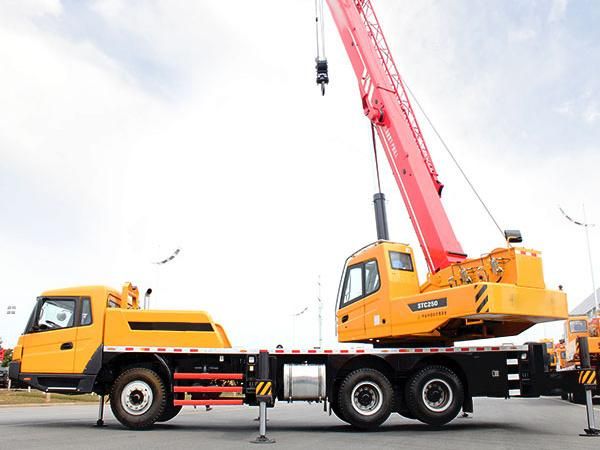

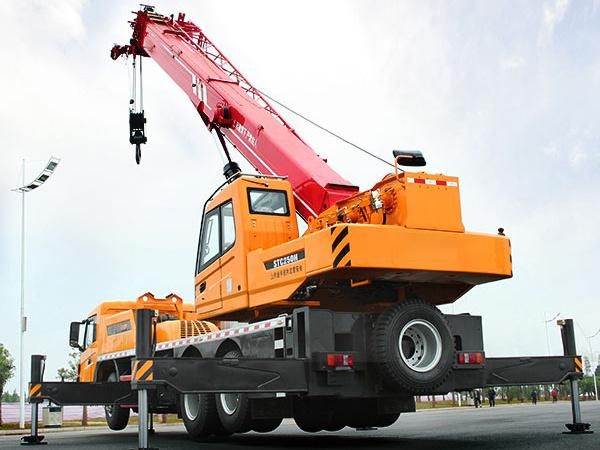

• Model NO.：QY25
• Rear Axle Load：12330kg
• Max. Travel Speed：75km,H
• Min. Turning Diameter：19.5m
• Max. Rated Total Lifting Capacity：35 Mt
• Transport Package：in Nude
• Specification：ISO, CE
• Trademark：oriemac
• Origin：Hunan, China
• HS Code：8703241201
• Production Capacity：3000

Classificatory
Item
Unit
Parameter
Dimension
Overall length
mm
15230
Overall width
mm
3000
Overall height
mm
3860
Mass
Total mass in travel state
kg
65000
Travel performance
Travel speed
Max. travel speed
km/h
75
Min. stable travel speed
km/h
0.5
Turning diameter
Min. turning diameter
m
24
Min. turning diameter at boom tip
m
26.6
Power ratio
kW/t
7.3
Min. ground clearance
mm
310
Approach angle
(°)
23
Departure angle
(°)
15
Braking distance (at 30km/h)
m
≤10
Max. grade-ability
%
40
Power
Engine rated output
kW/(r/min.)
324/1800
Engine rated torque
N.m/(r/min.)
2100/1200
Classificatory
Item
Unit
Parameter
Lifting performance
Max. total rated lifting capacity
t
100
Min. rated working radius
m
3
Max. load moment
Base boom
kN.m
3238
Fully extended boom
kN.m
1670
Fully extended boom + Jib
kN.m
1127
Outrigger span
Longitudinal
m
7.56
Lateral
m
7.6

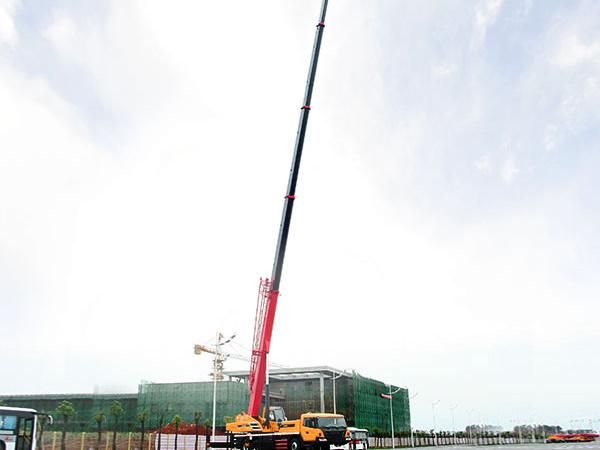

Boom length
Base boom
m
12.8
Fully extended boom
m
48
Fully extended boom + Jib
m
48 + 18.1
Jib offset angle
°
0, 15, 30
Working speed
Boom elevating time
Boom raising
s
60
Boom telescoping time
Full extending / Full retracting
s
140
Max. swing speed
r/min
2
Hoist speed (single line at 4th layer)
Main winch
m/min
110
Aux. winch
m/min
85
