3.9m Height Small Size Electric Scissor Lift for Aerial Work with 240 Capacity

Chenlift (Suzhou) Machinery Co., Ltd.
  • After-sales Service：Can Post Spare Parts Within 1 Week
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Middle-Level
  • Moves：Self-propelled

Base Info

  • Model NO.：MX390R
  • Driven Type：Hydraulic
  • Running Mode：Moving
  • Certification：CE, ISO 9001
  • Platform Height：3.9m
  • Working Height：5.9m
  • Loading Capacity：240kg
  • Motor Power：0.8kw
  • Platform Size：1.15* 0.70m
  • Lift/Drive Motor：24V 0.8 Kw,24V 0.3 Kw
  • Ground Clearance：0.05m
  • Gradeability：25%
  • Transport Package：PVC Film Wrapped in Pallet
  • Specification：1.32*0.76*1.52m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：2000 Units Per Year

Description

Basic Info.

Model NO. MX390R Driven Type Hydraulic Running Mode Moving Certification CE, ISO 9001 Platform Height 3.9m Working Height 5.9m Loading Capacity 240kg Motor Power 0.8kw Platform Size 1.15* 0.70m Lift/Drive Motor 24V 0.8 Kw/24V 0.3 Kw Ground Clearance 0.05m Gradeability 25% Transport Package PVC Film Wrapped in Pallet Specification 1.32*0.76*1.52m Trademark CHEN LIFT Origin China HS Code 8428909090 Production Capacity 2000 Units Per Year

Product Description

Mini Self-Propelled Scissor Lift for Aerial Work

Mini Self Propelled Scissor Lift is widely used in warehouse, supermarket and more (the place with narrow space) becuase of its small size. The simple structure make it much easier to operate and maintenance.

It moves and lifts all by battery power. Operator on platform can control lifting, moving, turning and all movement.

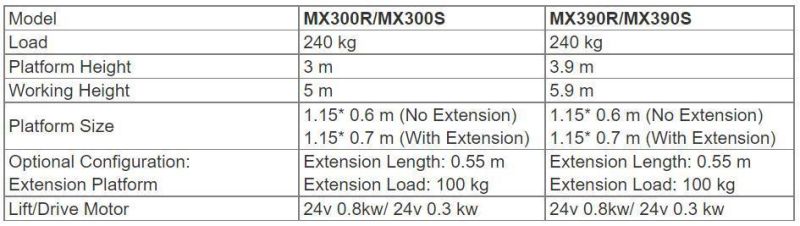

Specification

3.9m Height Small Size Electric Scissor Lift for Aerial Work with 240 CapacityWheel Type: Swivel Wheel Type and Hydraulic Turning Wheel Type( more easily turning)

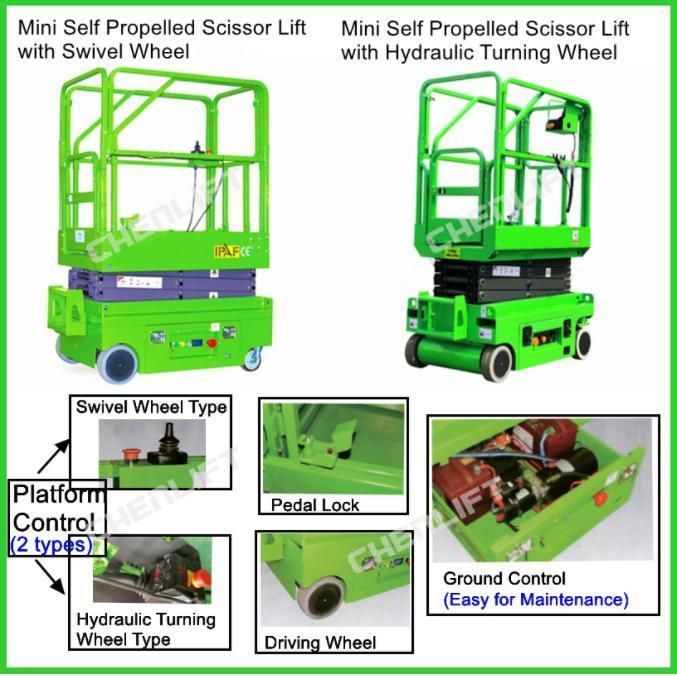

Details:

3.9m Height Small Size Electric Scissor Lift for Aerial Work with 240 Capacity

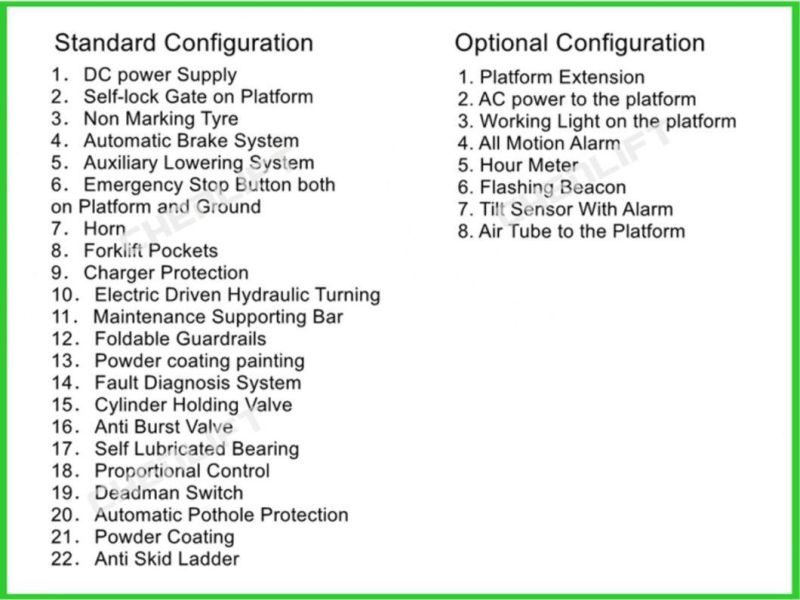

Configuration:

3.9m Height Small Size Electric Scissor Lift for Aerial Work with 240 Capacity

Safety Precaution

  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Braking System
  • Buzzer and Horn
