• Model NO.：SK-10T
• Maximum Lifting Height：3m
• Chain Falls：1
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Yellow
• Capacity Load：10000kg
• Standard：3
• Effort Required to Lift Max Load：392
• Running Test Load：12500kg
• Load Chain Number of Fall：4
• Load Chain Dia(mm：10
• Power Source：Hand
• Load Chain：G80 Chain
• Transport Package：Wooden Case,Carton
• Specification：55*51*29
• Trademark：DELE
• Origin：China

Basic Info.

Model NO. SK-10T Maximum Lifting Height 3m Chain Falls 1 Certification CE, ISO9001:2000 Condition New Color Yellow Capacity Load 10000kg Standard 3 Effort Required to Lift Max Load 392 Running Test Load 12500kg Load Chain Number of Fall 4 Load Chain Dia(mm 10 Power Source Hand Load Chain G80 Chain Transport Package Wooden Case/Carton Specification 55*51*29 Trademark DELE Origin China

Product Description

Products Description




CK lifting hoist hanging hand chain hoist chain pulley block
1.Lifting medium and power type. The lifting medium is either wire rope, wrapped around a drum, or load-chain, raised by a pulley with a special profile to engage the chain.

2.The power can be provided by different means. Common means are hydraulics, electrical and air driven motors. Both the wire rope hoist and chain hoist have been in common use since the 1800s. However; Mass production of an electric hoist did not start until the early 1900s and was first adapted by Germany.

3.A hoist can be built as one integral-package unit, designed for cost-effective purchasing and moderate use, or it can be built as a built-up custom unit, designed for durability and performance.

4.The built-up hoist will be much more expensive, but will also be easier to repair and more durable. Package units were once regarded as being designed for light to moderate usage, but since the 60s this has changed. Built-up units are designed for heavy to severe service, but over the years that market has decreased in size since the advent of the more durable packaged hoist.

MODEL	SK-0.5	SK-1	SK-1.5	SK-2	SK-3	SLA-5	SK-7.5	SK-10	SK-15
Capacity load	500kg	1000kg	1500kg	2000kg	3000kg	5000kg	7500kg	10000kg	15000kg
Standard/m	2.5	2.5	2.5	2.5	3	3	3	3	3
Running test load(KN)	0.75	1.5	2.25	3	4.5	6.25	10	12.5	20
Headroom(drawn close up)Hmin(mm)	240	270	347	380	470	600	700	700	820
Effort required to lift max load	221	304	343	314	343	381	392	392	392
load chain number of fall	1	1	1	2	2	2	3	4	6
Load chain Dia(mm)	6	6	8	6	8	10	10	10	10

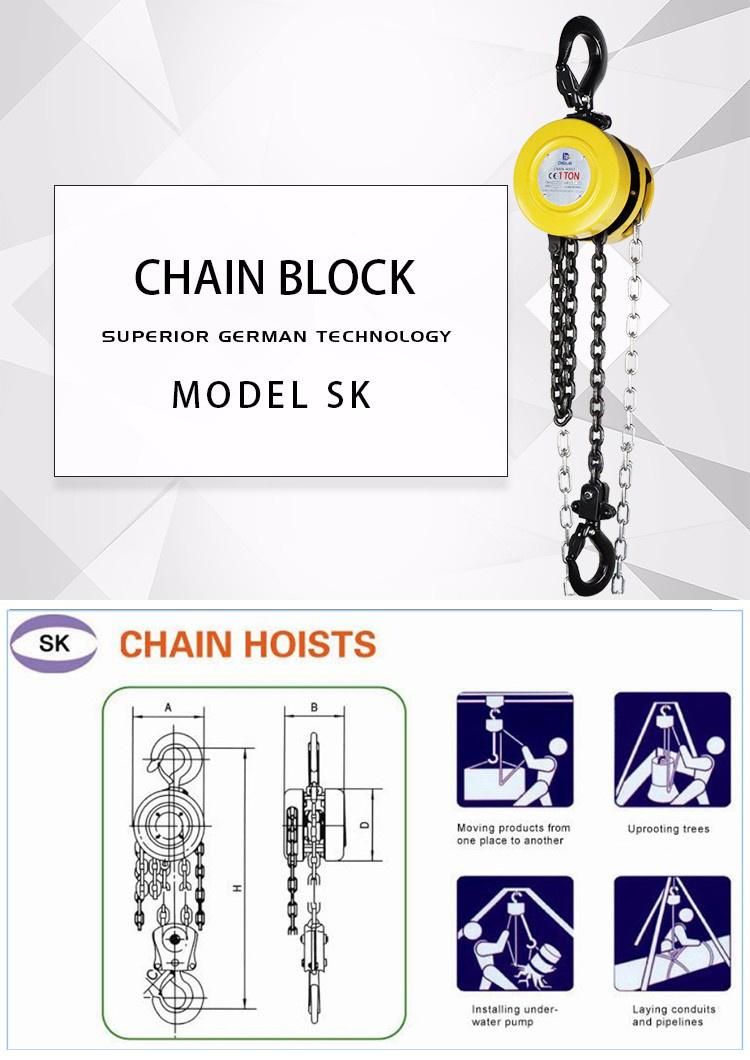

Dimensions(mm)        A	120	120	142	178	142	178	210	356	358
B	108	122	139	122	139	162	162	162	196
C	24	28	34	34	38	48	64	64	69
D	120	142	178	142	178	210	210	210	210
Net weight(kg)	8	10	16	14	24	36	58	68	112
Gross weight(kg)	10	13	20	17	28	45	70	83	127
packing measurements(L*W*H)(CM)	28*21*17	30*24*18	34*29*20	33*28*19	38*38*20	45*39*24	55*51*29	62*50*28	68*60*34

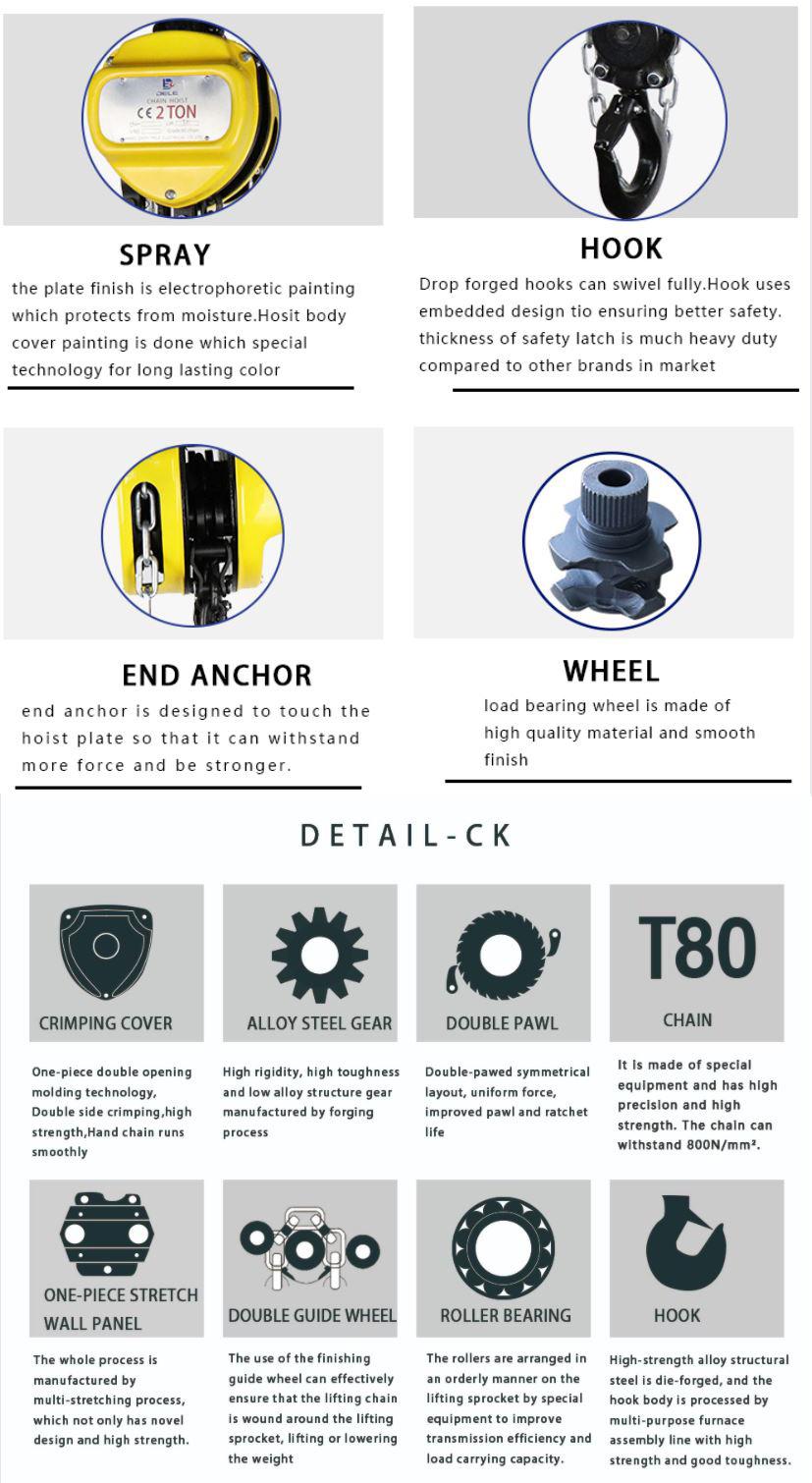

Details Images

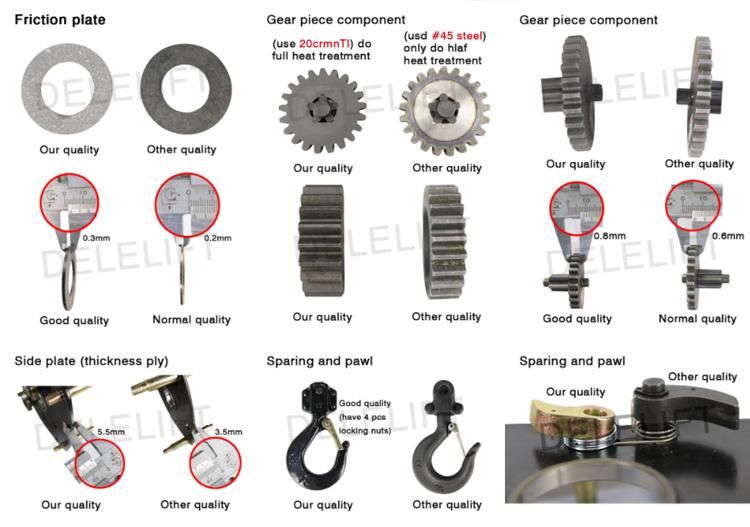

The Quality comparison of spare parts

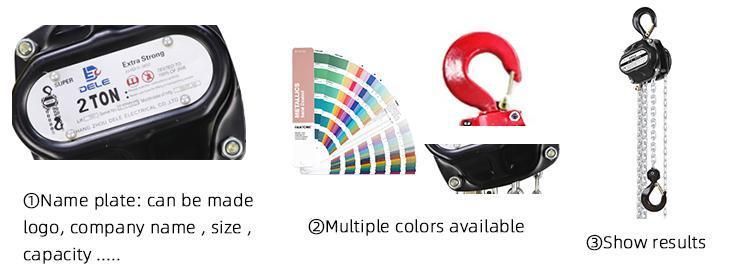

Customized Service

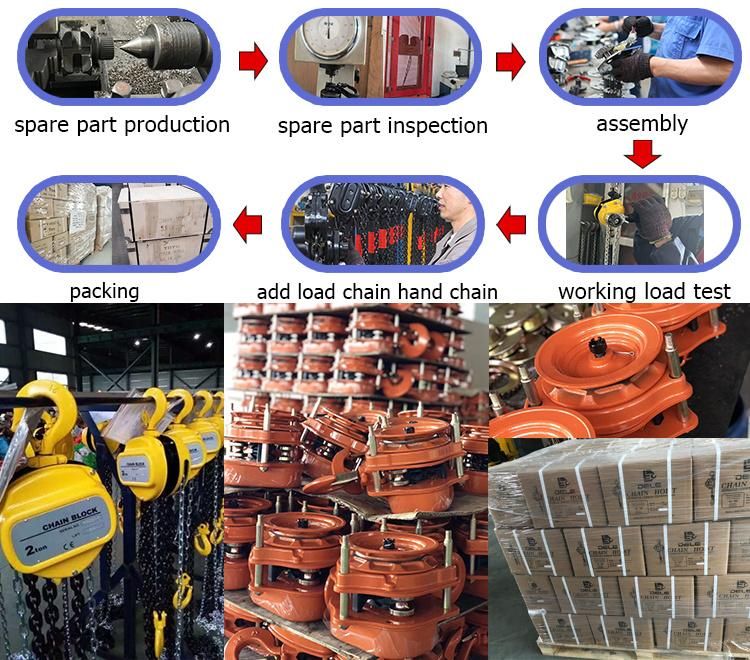

Production process

Certifications

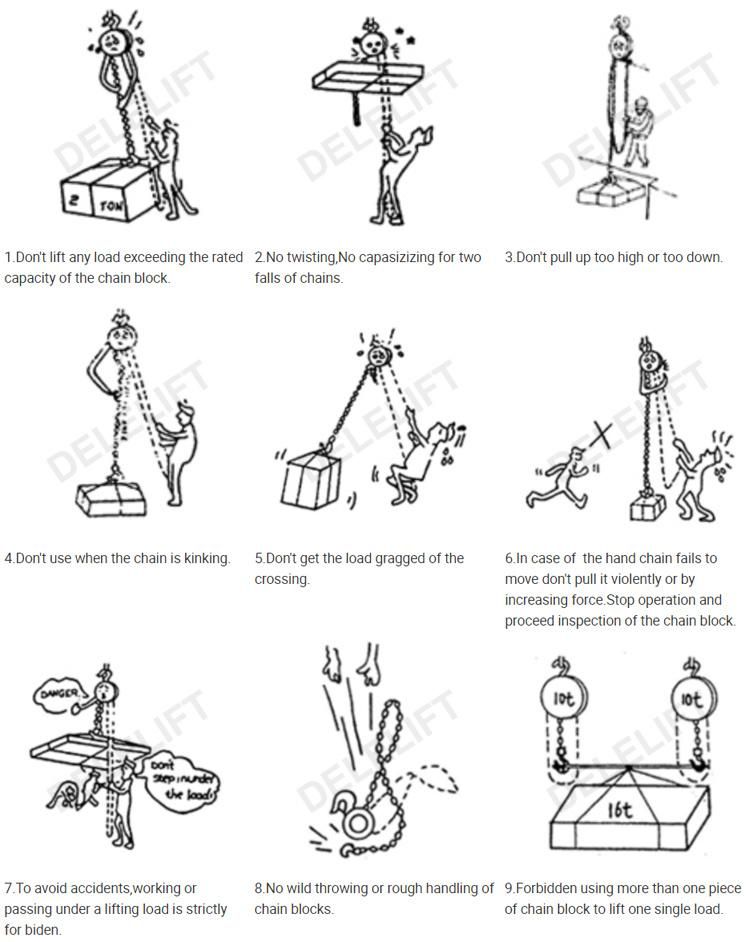

Usage

Payment

Our Service

FAQ
Q1. What's information should I provide to get the price?
A:1. Chain quality? 2.the chain size? 3. the working voltage? 4. the machine frequency?

Q2. What's the lead time for regular order?
A: The normal delivery time is 60-120 days. If you have special needs or if the quantity is greater than 1 set, please explain
when making an inquiry. When we quote, we will provide you with accurate delivery time according to the actual situation.

Q3. The space of my workshop is limited, can the machine is ok for me?
A: We have been specializing in European machines for 20 years. Machines are one of the biggest features of our products.According to your needs, our designers will tailor-made products suitable for your use.

Q4.Can you provide lifting tools?
A: Yes, we can provide any type of lifting tools such as Manual chain hoists, manual lever chain hoist, electric chains
hoists,chains, slings, hooks, electromagnetics, grabs, beams, etc.non-standard fixtures, etc... Welcome to consult

Q5. Is it OK to print my logo on the product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.

Q6. Are there any professional technicians to assist our installation?
A: Yes. We have a professional installation team, who has already been to many countries to assist the installation. If you need our technicians to offer this service, please let us know in advance. So that we can arrange the suitable technicians to your country.

Q7. How do you ship the goods and how long does it take to arrive?
A: Small products can be transported by air, and large products can be transported by sea. According to different countries and regions, the specific time will be confirmed according to the actual situation.

Q8. What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shipment. We'll show you the photos or videos of the products and packages before you pay the balance.

Q9. What is your terms of packing?
A: Generally, we pack our goods in neutral wooden boxes. If you have legally registered patent, we can pack the goods in your branded boxes after getting your authorization letters. There is no package of big machines,there are just protective covers.

Q10. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q11. How to proceed an order for hoist?
A: Firstly let us know your requirements or application:Hoists capacity, chains length and others? Secondly We quote according to your requirements or our suggestions.Thirdly customer confirms the samples and places deposit for formal order. Fourthly We arrange the production.

Q12. Do you offer guarantee for the products?
A: Yes, we offer 1-3 years warranty to our products.
