• Model NO.：HKG1214Z
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Loading Capacity：320kg
• Lifting Motor：24V,4.5kw
• Driver：Double Front Wheels

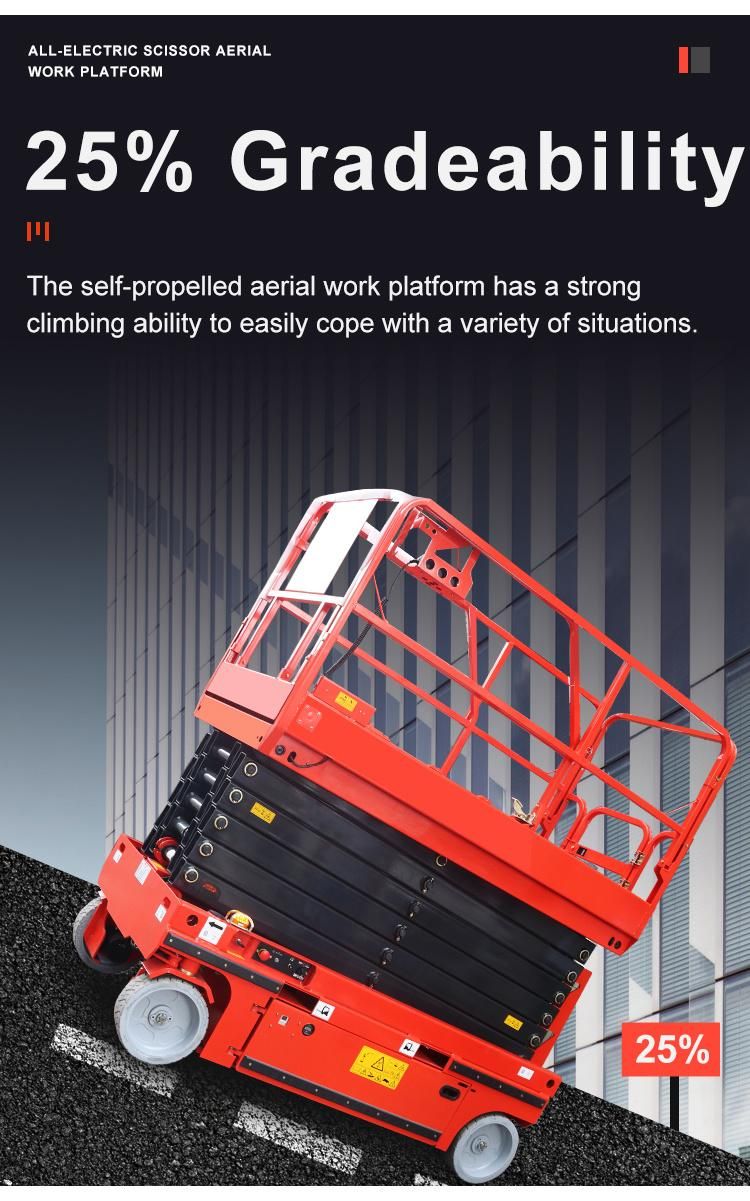

• Grade Ability：25%
• Battery：300ah
• Power：Electric
• Working Height：14m
• Platform Height：12m
• Working Platform Size：2270X1120 mm

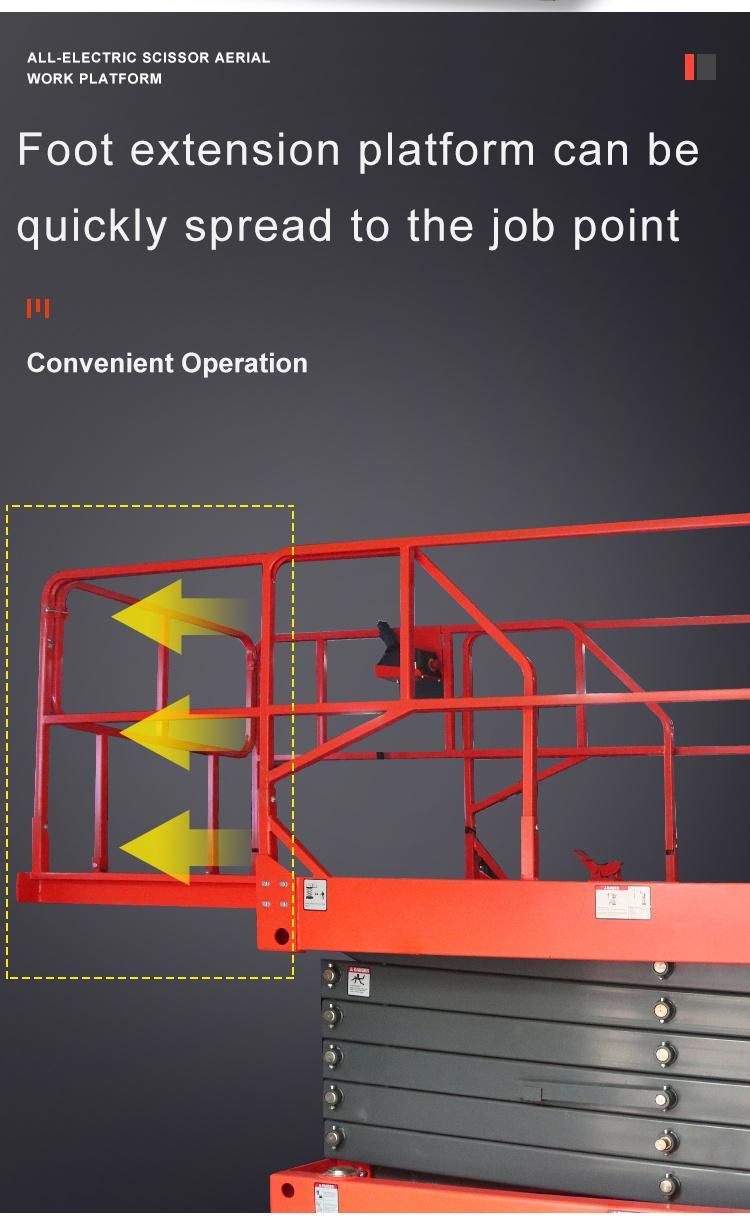

• Platform Extension：900 mm
• Total Weight：2980kg
• Wheel Base：1895 mm
• Travel Speed Lowered：3.5 Km,H
• Travel Speed Lifting：0.8 Km,H
• Charger：24V,25 Ah
• Transport Package：by Sea,by Air
• Specification：Work Height: 8m~16m
• Trademark：Haulke
• Origin：China
• HS Code：8427900000
• Production Capacity：1000000units,Year

Basic Info.

Model NO. HKG1214Z Driven Type Hydraulic Running Mode Moving Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Loading Capacity 320kg Lifting Motor 24V/4.5kw Driver Double Front Wheels Grade Ability 25% Battery 300ah Power Electric Working Height 14m Platform Height 12m Working Platform Size 2270X1120 mm Platform Extension 900 mm Total Weight 2980kg Wheel Base 1895 mm Travel Speed Lowered 3.5 Km/H Travel Speed Lifting 0.8 Km/H Charger 24V/25 Ah Transport Package by Sea/by Air Specification Work Height: 8m~16m Trademark Haulke Origin China HS Code 8427900000 Production Capacity 1000000units/Year

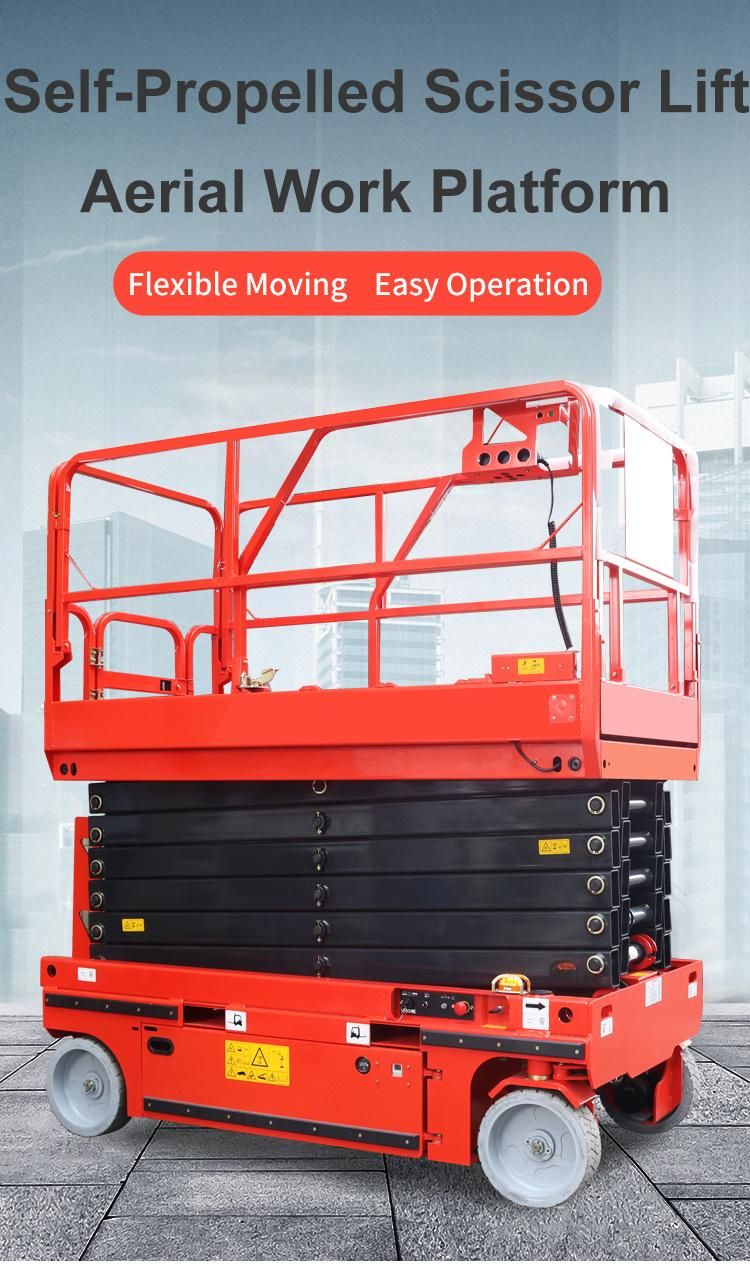

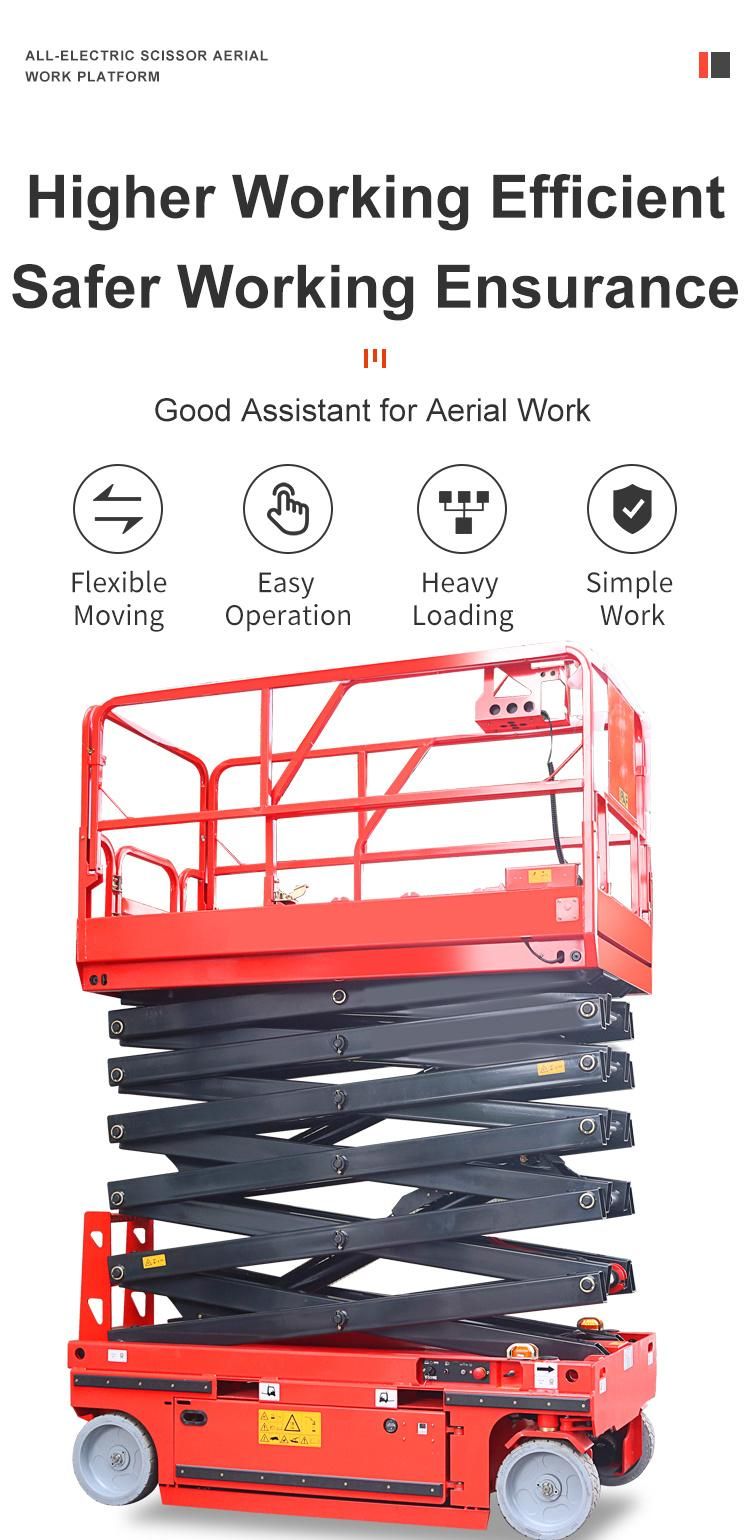

Product Description

Product Description:


Technical Specification:

Specification		HKG0608NZ	HKG0608Z	HKG0810Z	HKG1012Z	HKG1214Z	HKG1416Z
Loading capacity	kg	230	450	450	320	320	230
Loading capacity for extension platform	mm	113	113	113	113	113	113
Working height	mm	7.8	8	10	12	13.8	16
Platform height	mm	5.8	6	8	10	11.8	14
Machine length	mm	1860	2480	2480	2480	2480	2850
Machine width	mm	760	1190	1190	1190	1190	1250
Machine height(Unfold guardbar)	mm	2180	2200	2320	2450	2570	2635
Machine height (Fold guardbar)	mm	1840	1660	1780	1910	2030	2105
Working platform size	mm	1670*740	2270x1120	2270x1120	2270X1120	2270X1120	2640x1120
Platform extension size	mm	900	900	900	900	900	900
Minimum ground clearance Lowered State	mm	86	100	100	100	100	100
Mini ground clearance Lifting State	mm	16	19	19	19	19	19
Wheel Base	mm	1085	1895	1895	1895	1895	2230
Mini Turning Radius (Inner wheels)	mm	0	0	0	0	0m	0
Mini Turning Radius (External wheels)	mm	1640	2200	2200	2.2	2.2	2700
Lifting Motor	v/kw	24/3.3	24/3.3	24/3.3	24/3.3	24/4.5	24/4.5
Travel Speed (Lowered)	km/h	3.5	3.5	3.5	3.5	3.5	3.5
Travel Speed (Lifting State)	km/h	0.8	0.8	0.8	0.8	0.8	0.8
UP/Down Speed	sec	18/22	24/34	45/36	45/36	84/38	88/60
Battery	v/ah	4x6v/225ah	4x6v/225ah	4x6v/240ah	4X6/240	4X12/300	4x12/300
Charger	v/a	24/25	24/25	24/25	24/25	24/25	24/25
Grade ability	%	25	25	25	0.25	0.25	25
Max. Working Slope	°	2-3	2-3	2-3	2-3	2-3	2-3
Total weight	kg	1460	2050	2256	2640	2980	3600

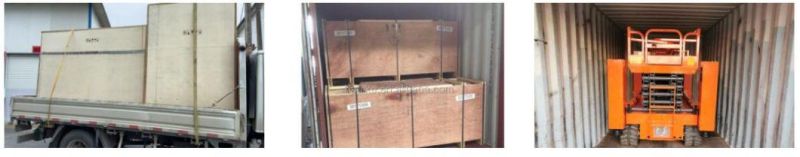

Packaging & Shipping:

After Sales Service:

24-hours online consult service is available here. Once you have any questions, just contact us and our professional staff will reply very quickly.

Market information also will be provided. Since we are an experienced supplier of lift table. For seller, the market information would be very pleased to offer as long as you contact us and ask for it.

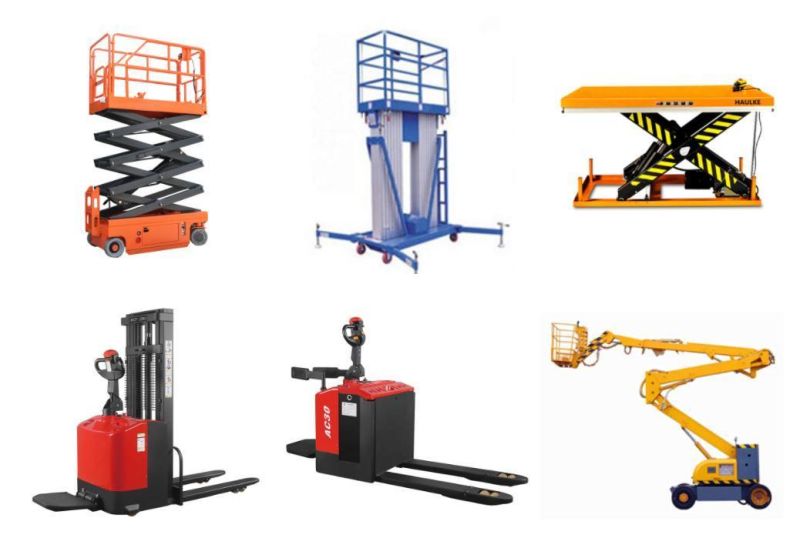

Related machines:

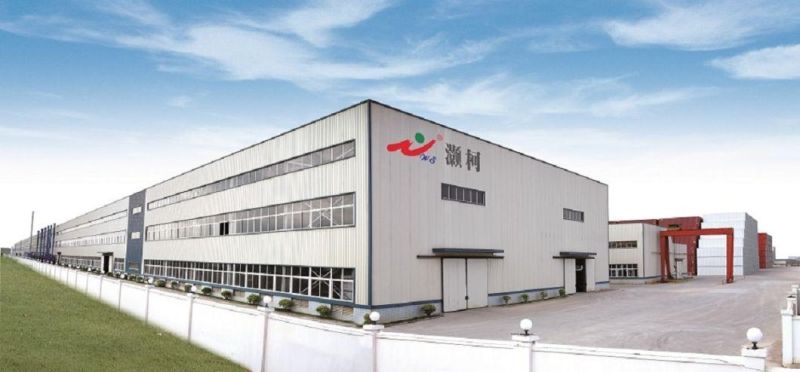

Company Profits:

Haoke is a research and development, production, sales and service in one of the professional manufacturer. Our products mainly include: aerial working platform, scissor type aerial working platform, electric lifting platform, fixed lifting platform,stacker series, lift table series, pallet truck series, forklift attachments series etc.

Our company's products have been certified by a lot of international quality certification, covering an area of 20000 square meters, the annual output has been grown to 30%. In order to better develop overseas market, we had established branch office in Russia, Japan, South Korea, Taiwan, Vietnam.

Haoke would continue to innovate and transform new technologies into products and services with international influence. With pioneering and enterprising spirit of "dare to be the first in the world", which will constantly improves its management methods to precipitate a profound enterprise.



Certificate:

FAQ:

1: How long does it take to execute my order?

Please tell us the quantity and model number of the products you are about to order, so that we will give you a detailed schedule.

2: How can I know the completion of my order?

Upon receipt of the deposit, we will immediately arrange for the shippment, after the order is completed, we will also send you the detection images of your order before delivery for you to confirm.

3: Can you arrange to deliver the goods for us?

Yes. When finish the orders, we will inform you and also we can arrange the shipping in the same time. There is LCL shipping and FCL shipping for different order term,the buyer also can choose Air-transport or Ocean shipping for your requirement. When your
orders reach your local nearest Sea port or River port, the logistics company will inform you.

4: Can you guarantee your products?

Yes, we guarantee your 100% satisfaction on all our products. Please feel free to feed back to us immediately if you are not satisfied with our quality or service. If the product does not meet the contract requirements, we will send you a free replacement or give you compensation in the next order.

5: Can I visit your company?

Of course, We always with great pleasure at your service. We have office in Shanghai, China. If you want to order our products and visit our company, please contact us to make an appointment.

Exhibition:
