• Power Source：Electric
• Shape：Flat
• Certification：CE, ISO 9001
• Sling Color：Orange
• Transport Package：Carton
• Specification：depends
• Trademark：MATCHAU
• Origin：China
• Production Capacity：1000000PCS,Year

Basic Info.

Power Source Electric Shape Flat Certification CE, ISO 9001 Sling Color Orange Transport Package Carton Specification depends Trademark MATCHAU Origin China Production Capacity 1000000PCS/Year

Product Description

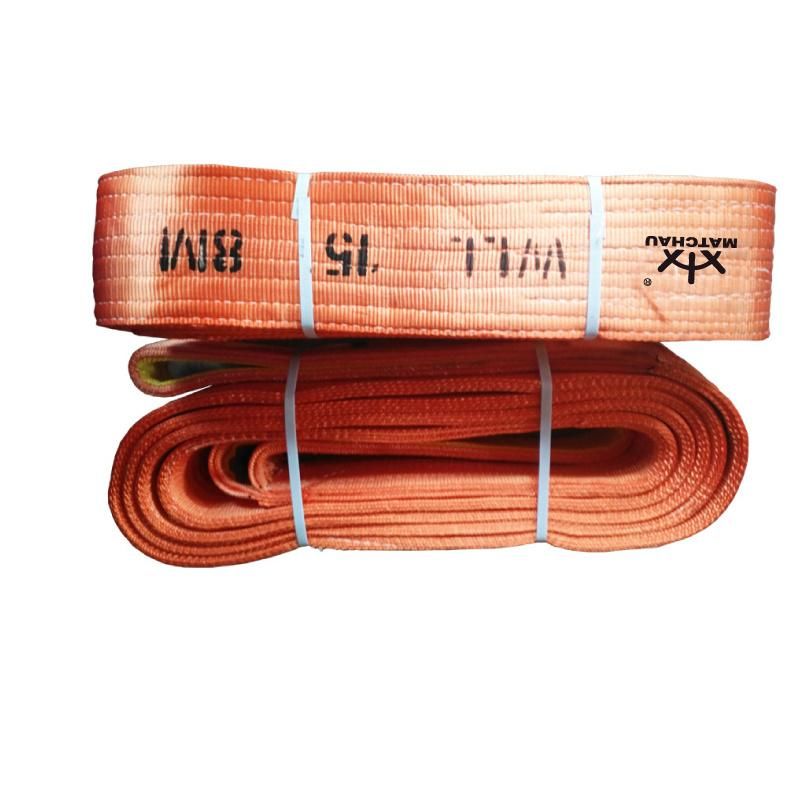

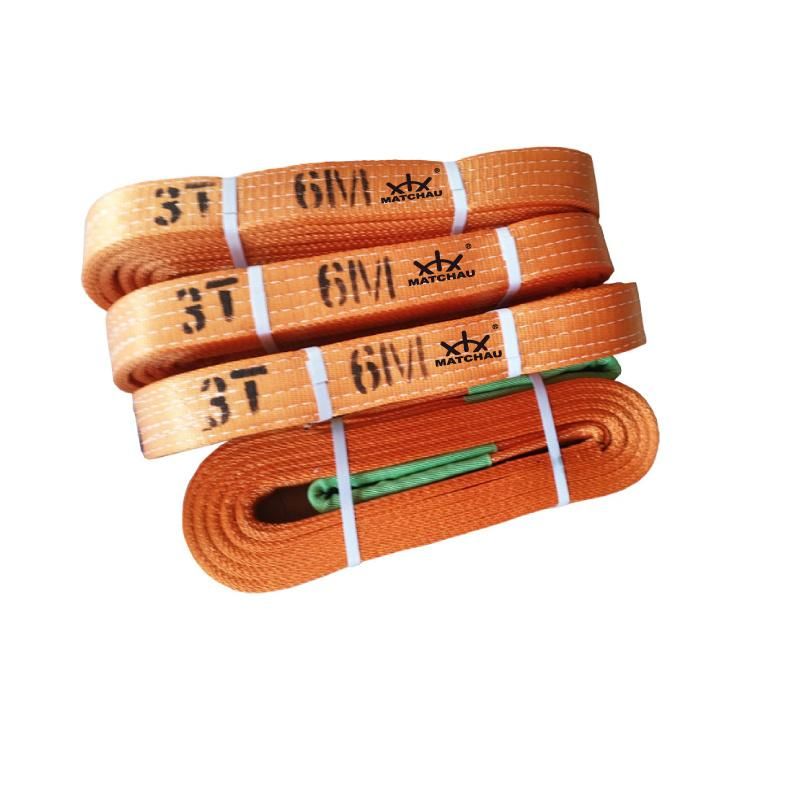

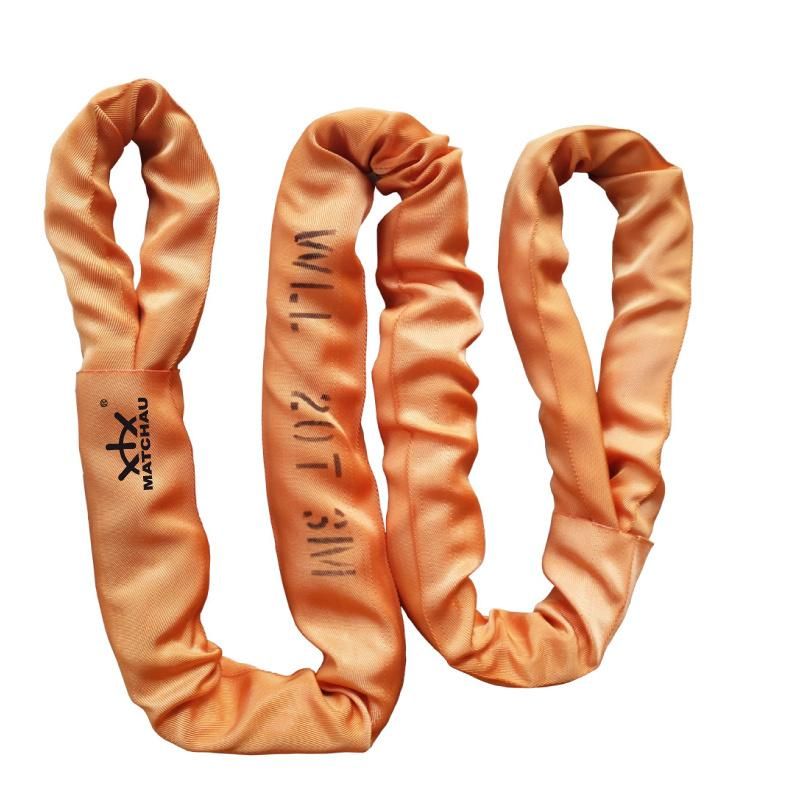

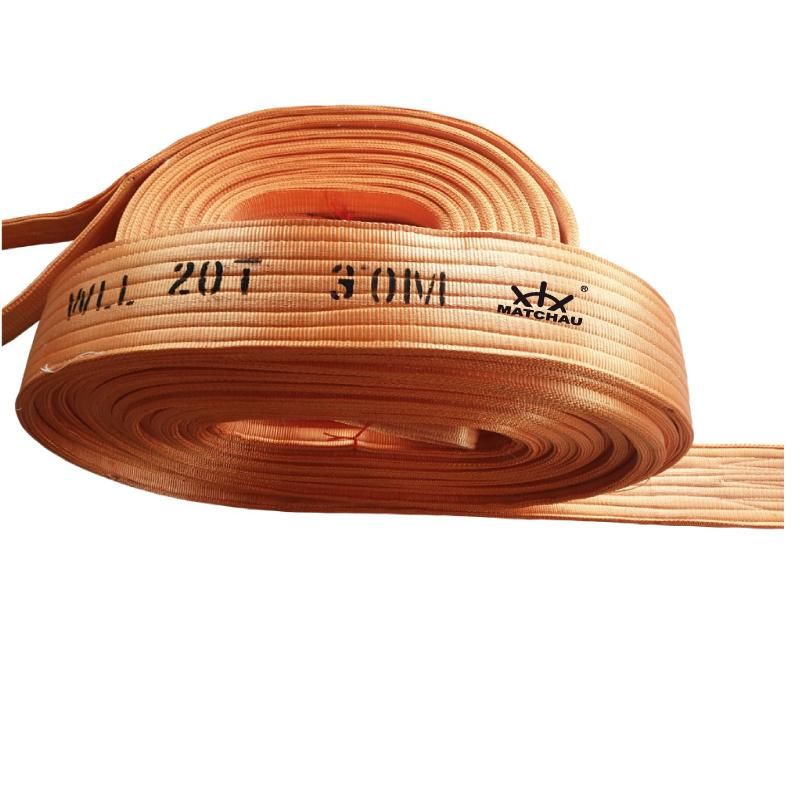

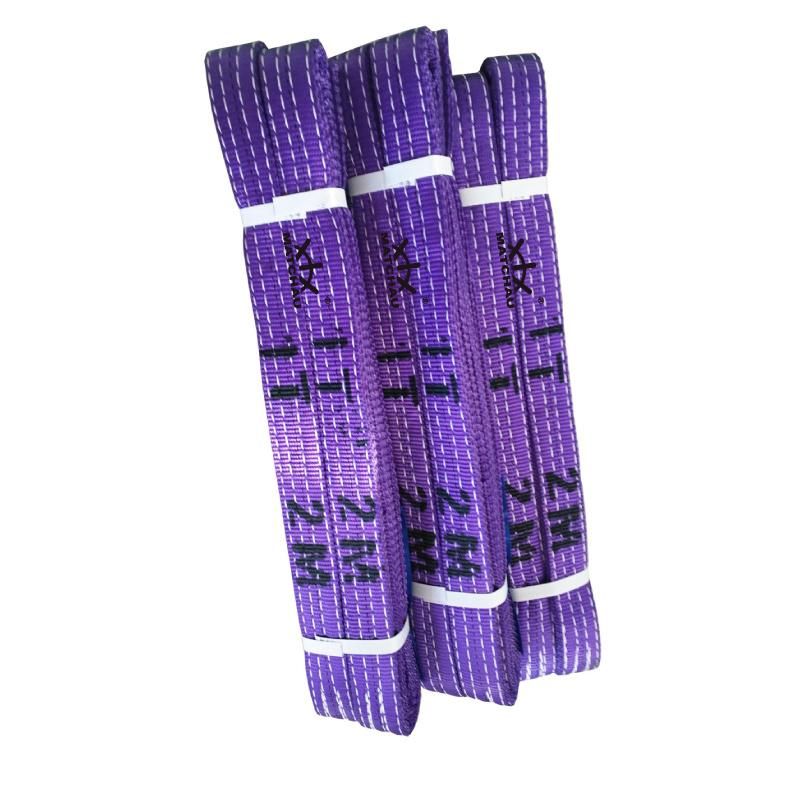

Thermal Resistant Polyester Flat Belt Type Color Code Webbing Sling for Crane

Name: Lifting sling belt Flexible double buckle sling
Material: imported nylon, polypropylene, DuPont, polyester (polyester), nylon, synthetic fiber, etc.

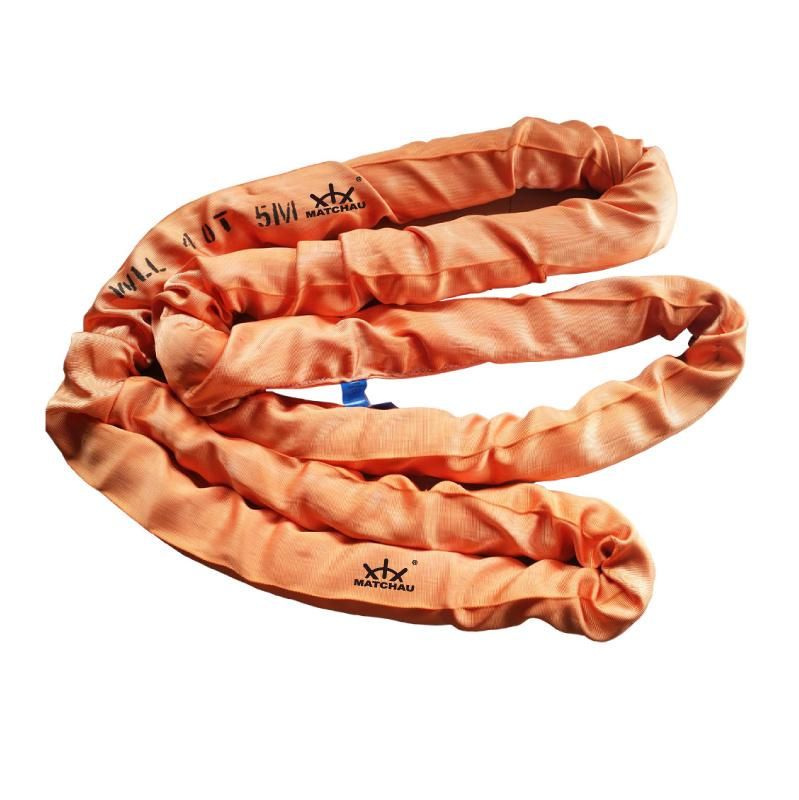

Strength: Flat sling with 1T-50T round sling with 1T-1000T
Bandwidth: 25mm-250mm
Working temperature: -40~100°C
Safety factor: 4: 1 5:1 6:1 7:1 8:1
Temperature range: -40°C-180°C
Length: According to customer needs
Elongation: 2% to 5% under extreme working force
Type: single layer, double layer, four layers
Load identification: When used, the label on the sling can be worn to identify the tonnage through the color of the sling jacket.

(T)	Width of sheath	Weight/M	Width	layers	weight/M	Width	layers	weight/M
1T	4cm	0.4kg	4cm	4	0.4kg	4cm	4	0.3kg
2T	5cm	0.5kg	5cm	4	0.5kg	5cm	4	0.4kg
3T	6.5cm	0.6kg	6cm	4	0.6kg	6cm	4	0.5kg
4T	7.5cm	0.8kg	8cm	3	0.8kg	8cm	4	0.6kg
5T	8cm	0.9kg	8cm	4	0.9kg	10cm	4	0.7kg
6T	9.5cm	1.1kg	10cm	3	1kg	10cm	4	0.7kg
8T	10cm	1.3kg	10cm	4	1.3kg	12cm	4	0.85kg
10T	11cm	1.8kg	12cm	4	1.5kg	12cm	5	1.1kg
12T	11cm	2.2kg	12cm	5	1.8kg	15cm	5	1.4kg
15T	13cm	2.4kg	15cm	4	1.8kg	20cm	4	1.4kg
20T	13.5cm	3.2kg	15cm	5	2.4kg	20cm	6	1.8kg
25T	15.5cm	4kg	25cm	4	3.2kg	30cm	5	2.8kg
30T	15.5cm	4.5kg	30cm	4	3.2kg	30cm	6	3.4kg
35T	18cm	5kg	30cm	5	3.8kg
40T	18cm	6kg	40cm	4	4.6kg
				5	5.8kg
50T	20cm	7.5kg	50cm	4	5.8kg

• Color, in according with international standard, to validate sling capacity.
• Special thickness sleeves and special technical to add using life.
• Each strips equal to 1ton capacity, it is easy to differentiate sling capacity.
• Clearly print WLL and length on surface of sling.
• Change-bearing point to add using life.
• If the core material no break, no loss of strength from abrasion, there is a simple ness way, it is easy to differentiate to decide if the sling is taken away from service or not.
• 100% polyester has less than 3% extension at rated capacity, and will return originally length, and 9-12% extension at break.
• Clearly tag with serial number and a copy of certificate together with one sling.
• Working temperature range: -40 -100.
