• Model NO.：HU
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：CE, RoHS, ISO 9001
• Load Capacity：600-1500 Kgs
• Volatage：Per Your Local Standard
• Package：Wooden Box
• Transport Package：Wooden Pallet and High Quality Paper Boxes with St
• Specification：1450*985*100
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：5000

Basic Info.

Model NO. HU Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof, Insulating Certification CE, RoHS, ISO 9001 Load Capacity 600-1500 Kgs Volatage Per Your Local Standard Package Wooden Box Transport Package Wooden Pallet and High Quality Paper Boxes with St Specification 1450*985*100 Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 5000

Product Description

U-Lift Ground Entry Hydraulic Scissor Lift Table For Workshop
 PLKLIFT Brands U Shape Scissor Lift Table are one of the most ideal equipment to lift goods within production lines and manufacturing environments.It is widely used in the warehouse, factory etc, to help people lifting the wooden or plastic pallet.

We produce the U shape scissor lift from 600kg~1500kg,also we can customize the products according to your specific requirement.

Data Sheet

Model	Load Capacity(kg)	Max. Platform Height(mm)	Platform Size (mm)	Self Height (mm)	Net weight (KG)
HU600	600	860	1450x985	85	207
HU1000	1000	860	1450x1140	85	280
HU1500	1500	860	1600x1180	105	380

This scissor lift table equipped with safety valve, to protect the safety both for goods and user. And the max. platform height is 860mm ,making the work more convenient.

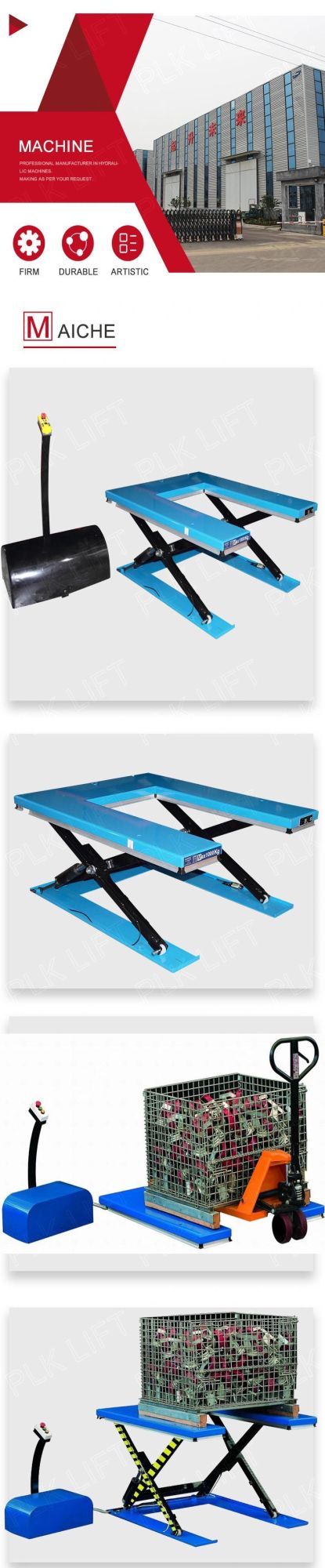

Product Show

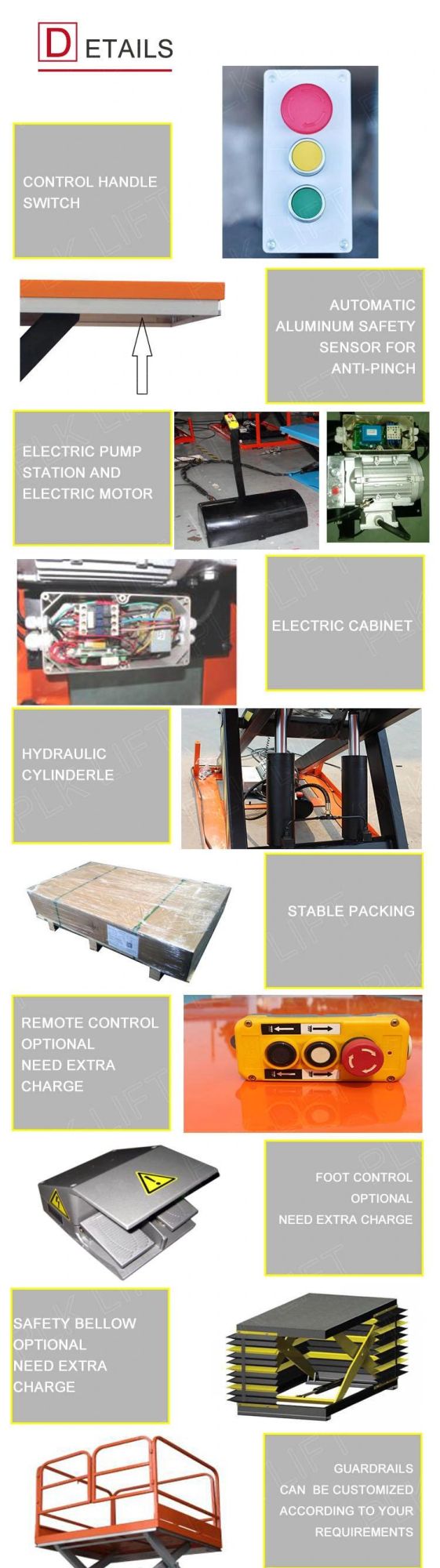

Details Show

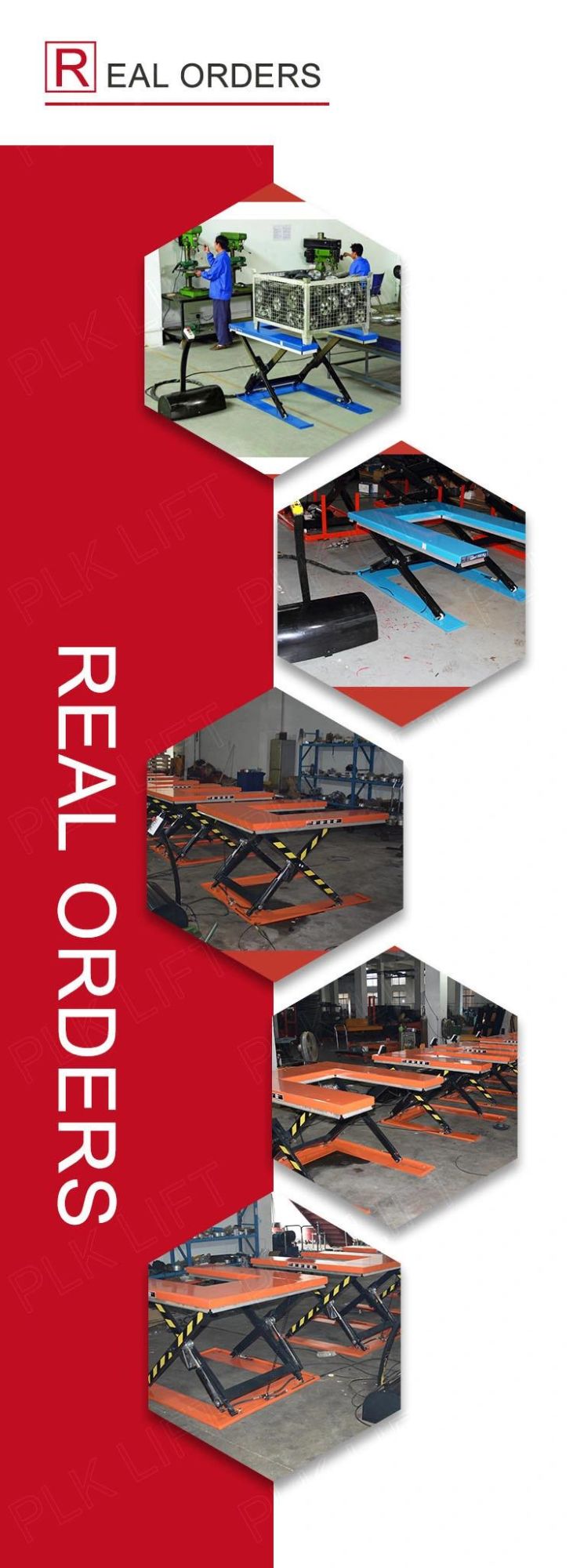

Bulk Order Show




Factory Show
