• Model NO.：SSL2-3
• Driven Type：Hydraulic
• Running Mode：No
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Lift Speed：3-6m,Min
• Voltage：220V,380V, AC Power, 1 or 3 Phase, Can Also Be Mad
• Guardrail(Optional)：1000mm
• Platform：Antiskid
• Color：Yellow, Blue, Green, Black as Your Requirement
• Installation：in Pit or Directly on Ground
• Max Load Capacity：1.2 Times Rated Load
• Surface：Rust-Proof
• Painting：Epoxy Paint
• Lifting Hook：4 Lifting Hooks for Easy Moving and Install
• Transport Package：Plywood Case or Nude Packing Based on Actual Need
• Specification：CE
• Trademark：Morn
• Origin：Shandong, China
• HS Code：84289090
• Production Capacity：50PCS Per Month

Basic Info.

Model NO. SSL2-3 Driven Type Hydraulic Running Mode No Feature Explosion-Proof, Insulating Certification CE, ISO 9001 Lift Speed 3-6m/Min Voltage 220V/380V, AC Power, 1 or 3 Phase, Can Also Be Mad Guardrail(Optional) 1000mm Platform Antiskid Color Yellow, Blue, Green, Black as Your Requirement Installation in Pit or Directly on Ground Max Load Capacity 1.2 Times Rated Load Surface Rust-Proof Painting Epoxy Paint Lifting Hook 4 Lifting Hooks for Easy Moving and Install Transport Package Plywood Case or Nude Packing Based on Actual Need Specification CE Trademark Morn Origin Shandong, China HS Code 84289090 Production Capacity 50PCS Per Month

Product Description

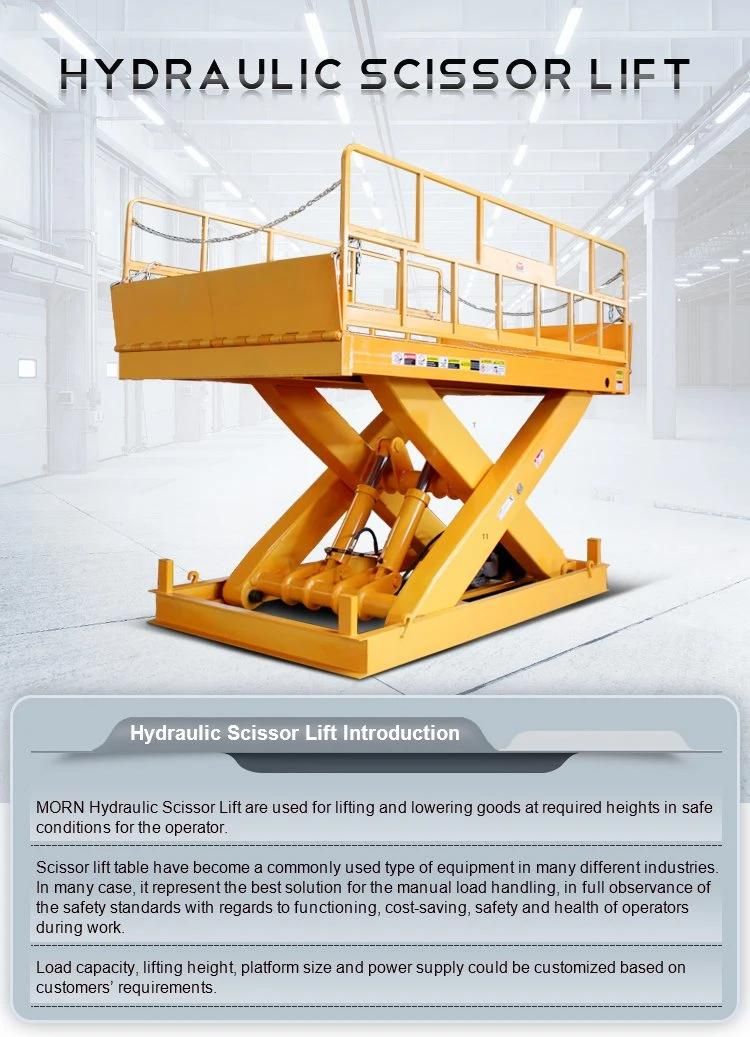

Hydraulic Stationary Warehouse Freight Scissor Lift Table

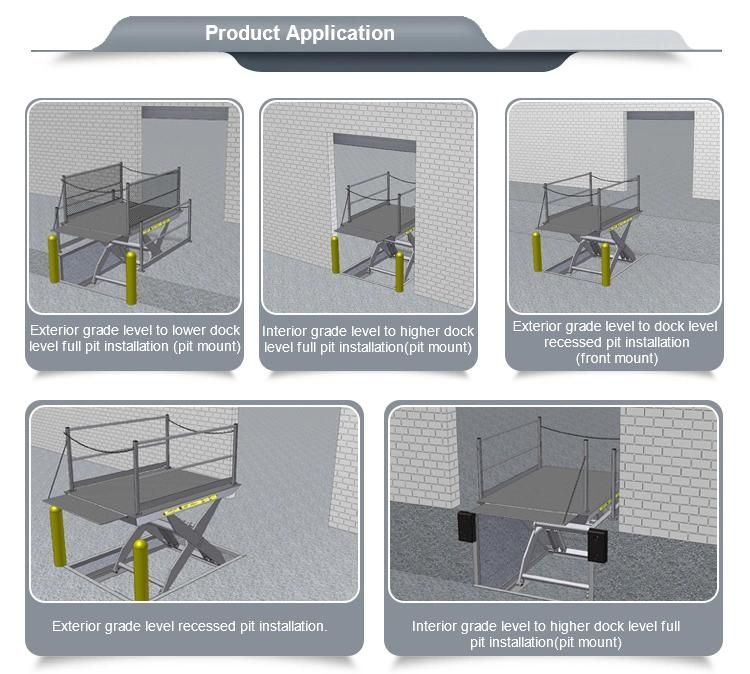

1. Two Types:
1) One is to be installed on ground to load cargo and then lifts till a certain height for unloading the cargo. A ramp can be added to the lift for easy access to platform
2) The other is installed in a pit. Then platform table is at the same level with the ground which is convenient to load the cargo onto it. In this way it also can be called freight elevator.
Main info for SSL2-3 for example:
1.      Load: 2000kg
2.      Platform size: 2500*1500mm
3.      Travel height: 3m
4.      Self-height: 550mm
5.      Weight: 1.5t
6.      AC power input
7.      Plywood case packing or nude packing based on actual need

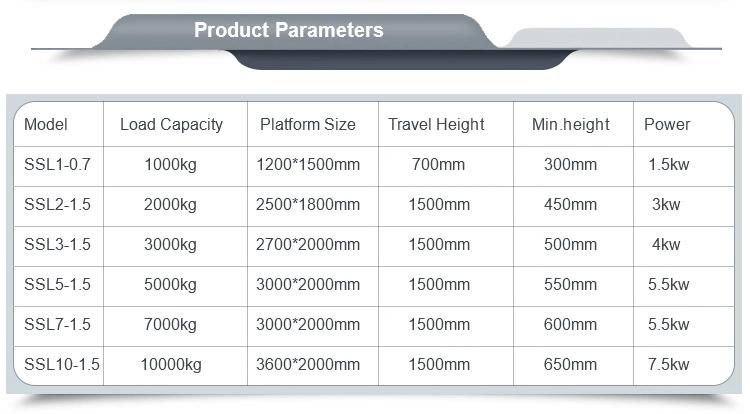

2. Model list (For reference. We will customize according to your demand):

3. Advantages:
1. Mature hydraulic lifting system, remote control and multi-control points at the different floors could be realized;
2. Lift Up, Stop and Lower be easily realized at each control point to make sure the lift platform stop at the accurate level point.
3. Smooth working condition, high load capacity, safety controls and reliable performance.
4. Power supply is from local power source, customize according to local voltage.

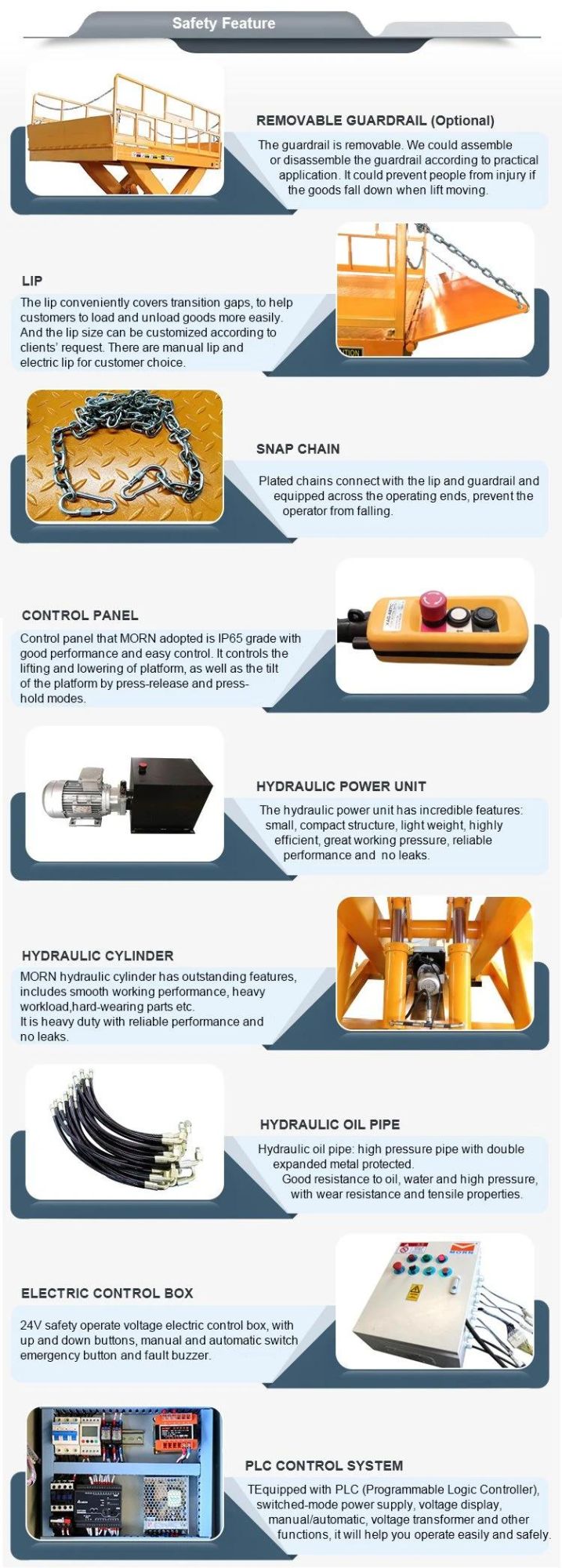

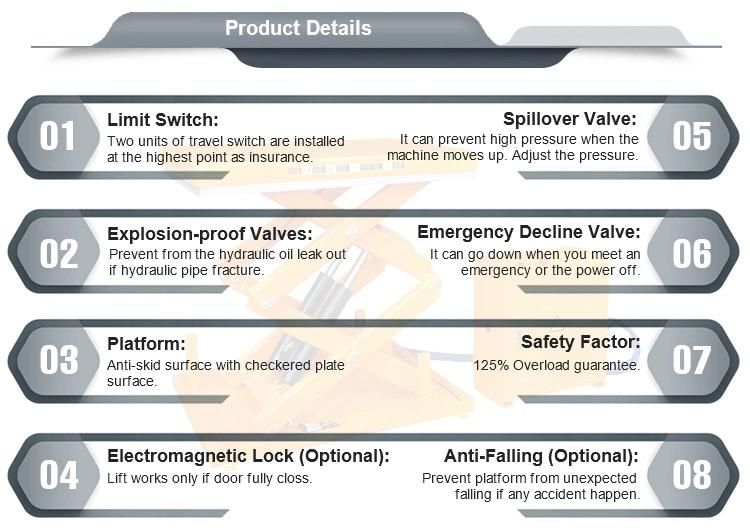

4. Safety Precaution:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Anti-dropping device: Prevent falling of platform
5. Safety guardrails can be added in all side, one side, two sides or per your need.
6. Supporting guard rails: two pieces connected with scissor lift to make sure the lift more stable when working

Interlocking System
Only all doors closed, could the cargo lift hoist. If any door open, the lift will not move. It prevent worker's misoperation and potential damage to workers.

Manual Decline Valve
In case of the failure of electricity supply, the platform will be suspended in midair. Then we could manually make the platform come down to Ground floor by the Manual Decline Valve. Prevent potential danger.
Anti-explosion Valve
In case of hydraulic pipe fracture, then Anti-explosion valve will work to prevent the hydralic oil leak out, so that it prevent the platform fall down. Protect the safety of the goods and worker.

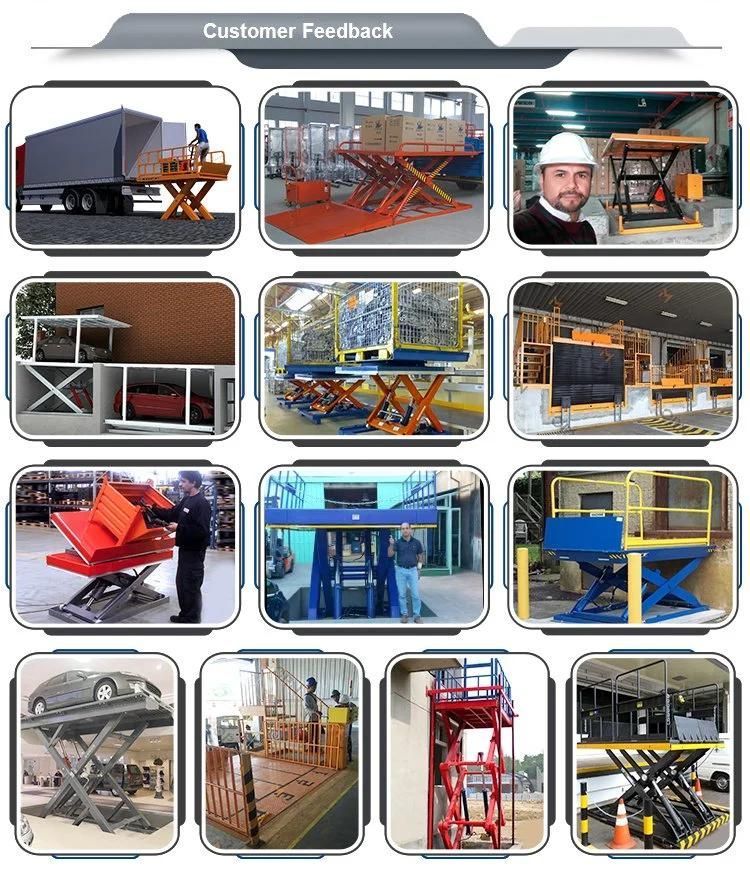

5. Applications
Mainly used for production lines with height difference between the goods transported;
Car lifting between different floors or car parking buildings' or show rooms;
Dock transfer for logistics centers, sea ports or at factories or warehouse;
Heavy duty materials lifting up or down;
Goods elevators with durable service life;
Large equipment assembly components when lifting;
Cargo handling, vehicles moving or under other conditions which need loading and unloading works.

6. Warranty:
1. User-friendly English manual for machine using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4. 24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.

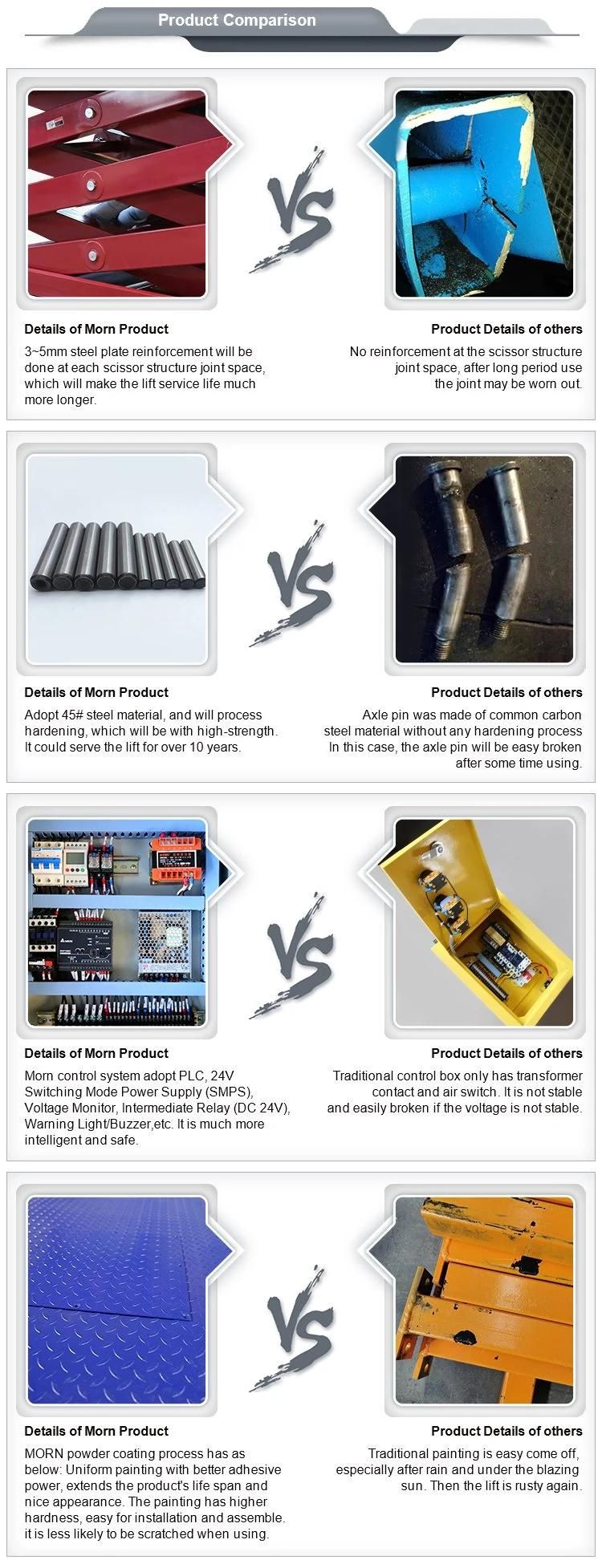

7. Main parts introduce:
1. Platform and scissor structure:  3-6mm thick  anti-skid checker plate to make the platform. Scissor structure adopts high-strength rectagular steel tubes or steel plates, strong and durable.
 2. Hydraulic power unit (power pack): Brand Lisheng, first class made in China. 1.5-7.5KW based on actual need.
 3. Hydraulic oil tube:  High pressure tube with double expanded metal.
 4. The control apparatus Brand DELIXI with 24V voltage.
 5. Limit switch: convert mechanical displacement into an electrical signal, first class in China.

8. Please tell us the following info and then we will send our quotation and design drawing to you ASAP.
1) Max platform height
2) Loading capacity
3) Table size (L*W)
