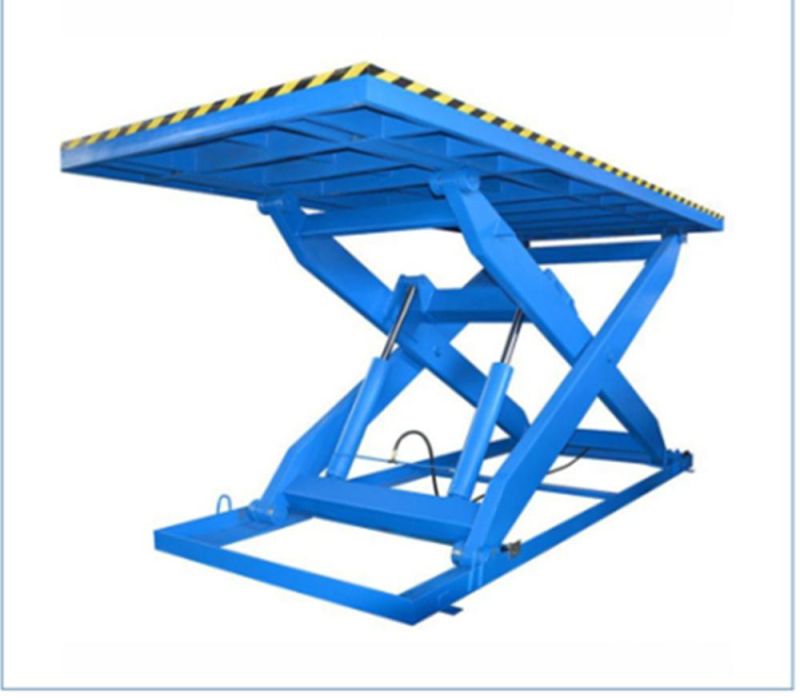

1ton 2ton 4ton Electric Custom Engineered Scissor Lift Tables
Wuxi Liford Import and Export Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism：Scissor Lift
- Carrying Capacity：1000kg---4000kg
- Moves：Stationary
Base Info
- Model NO.：HW1001, HW2001, HW4001 series
- Driven Type：AC
- Running Mode：Stationary
- Certification：CE, ISO 9001
- Min. Lifting Height：205mm
- Max. Lifting Height：1300mm
- Product Name：Stationary Lift Table
- Capacity：1000-4000kg
- Mechanism：Scissor Lift
- Package：Pallet with Stretch Film or Cartons
- Battery：380V50Hz
- Transport Package：Carton Box Package
- Specification：1300*820mm-2200*1800mm
- Trademark：Liford
- Origin：Jiangsu
- HS Code：84279000
- Production Capacity：600PCS,Month
Description
ModelCapacity Platform Height Min/Max Platform Size Base Size Lift Time Battery Net Weight kg mm mm mm s V/HZ kg HW1001 1000 205/990 1300*820 1240*640 20~25 380/50 160 HW1002 1000 205/990 1600*1000 1240*640 20~25 380/50 186 HW1003 1000 240/1300 1700*850 1580*640 30~35 380/50 200 HW1004 1000 240/1300 1700*1000 1580*640 30~35 380/50 210 HW1005 1000 240/1300 2000*850 1580*640 30~35 380/50 212 HW1006 1000 240/1300 2000*1000 1580*640 30~35 380/50 223 HW1007 1000 240/1300 1700*1500 1580*1320 30~40 380/50 365 HW1008 1000 240/1300 2000*1700 1580*1320 30~40 380/50 430 HW2001 2000 230/1000 1300*850 1220*785 20~25 380/50 235 HW2002 2000 230/1000 1600*1000 1220*785 20~25 380/50 268 HW2003 2000 250/1300 1700*850 1600*785 25~35 380/50 289 HW2004 2000 250/1300 1700*1000 1600*785 25~35 380/50 300 HW2005 2000 250/1300 2000*850 1600*785 25~35 380/50 300 HW2006 2000 250/1300 2000*1000 1600*785 25~35 380/50 315 HW2007 2000 250/1300 1700*1500 1600*1435 25~35 380/50 415 HW2008 2000 250/1400 2000*1800 1600*1435 25~35 380/50 500 HW4001 4000 250/1400 1700*1200 1600*900 30~40 380/50 375 HW4002 4000 240/1050 2000*1200 1600*900 30~40 380/50 405 HW4003 4000 240/1050 2000*1000 1980*900 30~40 380/50 470 HW4004 4000 300/1400 2000*1200 1980*900 35~40 380/50 490 HW4005 4000 300/1400 2200*1000 1980*900 35~40 380/50 480 HW4006 4000 300/1400 2200*1200 1980*900 35~40 380/50 505 HW4007 4000 300/1400 1700*1500 1620*1400 35~45 380/50 570 HW4008 4000 300/1400 2200*1800 1620*1400 35~45 380/50 655
