• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Load Capacity：1150kg; 680kg
• Platform Height：10m, 13m, 16m
• Lift Method：Hydraulic
• Platform Size：3950mm*1830mm
• Voltage：Customized
• Frequency：Customized
• Guardrail Height：1.1m
• Surface Treatment：Plastic Spray
• Safety Precaution 1：Anti Explosion Valve
• Certifications：CE
• Color：Red Yellow Blue Customized
• Lifting Speed：4-6m,Min
• Transport Package：Standard
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Sets,Month

Basic Info.

Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Load Capacity 1150kg; 680kg Platform Height 10m, 13m, 16m Lift Method Hydraulic Platform Size 3950mm*1830mm Voltage Customized Frequency Customized Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications CE Color Red Yellow Blue Customized Lifting Speed 4-6m/Min Transport Package Standard Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Sets/Month

Product Description

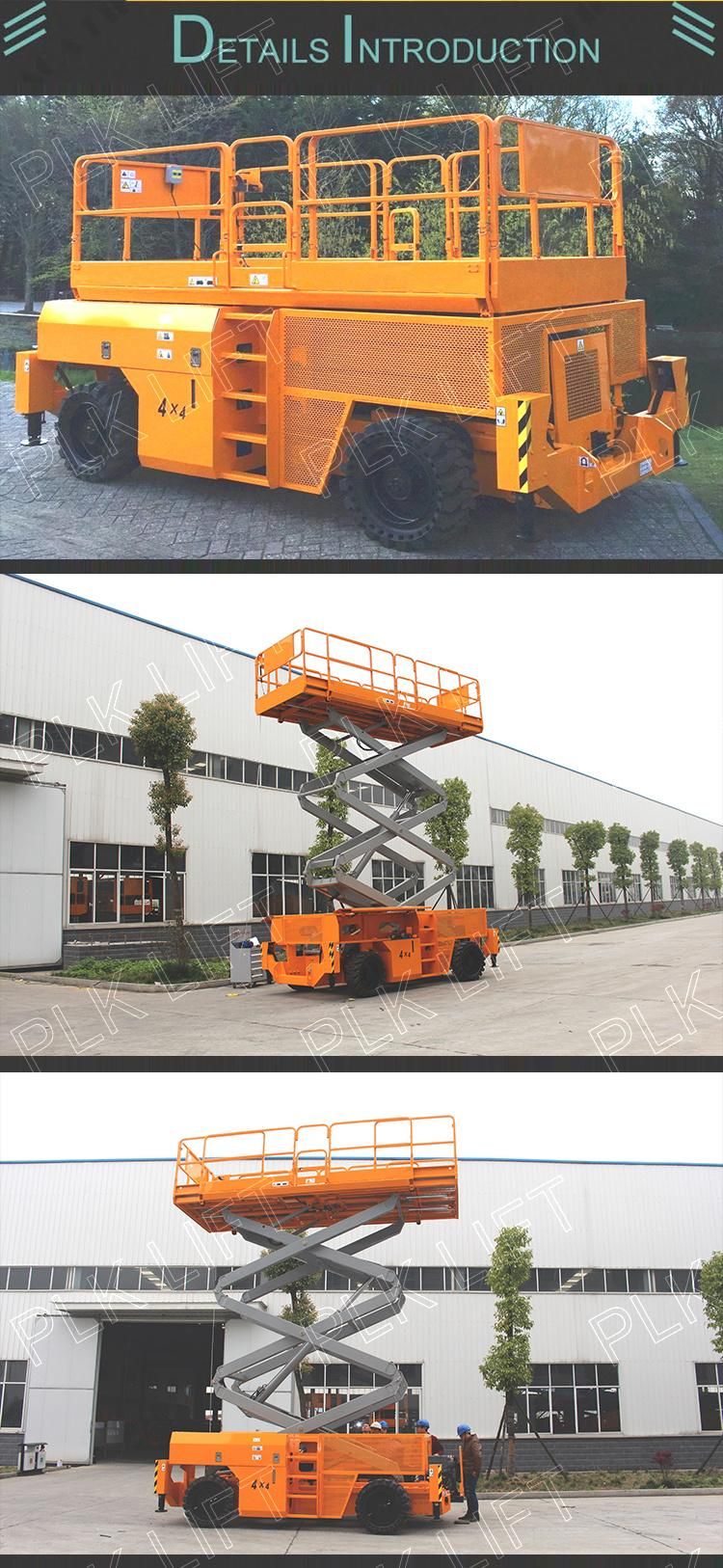

High End Outdoor Hydraulic mobile Lift for Construction
Aerial Lift Platform is configured with American TORJAN Battery, CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and American White driving wheel. It is powered by DC with adjustable moving speed.
There are many safety precautions, including explosion-proof valves, spillover valve and emergency decline valve etc..

	GTJZ-08RT	GTJZ-10RT	GTJZ-12RT
Working height max(m)	10	12	14
Platform height max(m)	8	10	12
(1)Platform height min(m)	1.22	1.34	1.46
(2)Outreach(m)	1.5	1.5	1.5
Lifting capacity(kg)	567	454	345
Lifting capacity(kg)(Extended platform)	136	136	136
Platform Size
(3)Lateral length(m)	2.5	2.5	2.5
(4)Extended length(m)	4	4	4
(5)Lateral width(m)	1.6	1.6	1.6
(6)Fence height(m)	1.15	1.15	1.15
(7)Skirting board height(m)	0.15	0.15	0.15
Stowed size
(8)Stowed length(m)	2.67	2.67	2.67
(9)Width(m)	1.75	1.75	1.75
(10)Height(m)	2.38	2.5	2.6
(11)Folded height(m)	1.68	1.8	1.98
(12)Wheelbase(m)	1.85	1.85	1.85
Ground clearance(m)	0.17	0.17	0.17

The Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning on the platform through control system.
