• Model NO.：MINI-UVL-750*1100
• Running Mode：Stationary
• Certification：CE
• Certificate：Ce,Emark
• Platform Size：1100*750 mm
• Loading Capacity：300kg
• Operation：Electric,APP
• Installed：Under Chassis
• Max Lifting Height：820mm
• Thickness：90mm
• Gross Length/Depth：1615mm
• Gross Width：970mm
• Volt：12V or 24VDC
• Transport Package：Plywood Case
• Specification：148kg
• Trademark：Xinder
• Origin：China
• HS Code：84289090
• Production Capacity：10000

Basic Info.

Model NO. MINI-UVL-750*1100 Running Mode Stationary Certification CE Certificate Ce,Emark Platform Size 1100*750 mm Loading Capacity 300kg Operation Electric,APP Installed Under Chassis Max Lifting Height 820mm Thickness 90mm Gross Length/Depth 1615mm Gross Width 970mm Volt 12V or 24VDC Transport Package Plywood Case Specification 148kg Trademark Xinder Origin China HS Code 84289090 Production Capacity 10000

Product Description

INTRODUCTION:

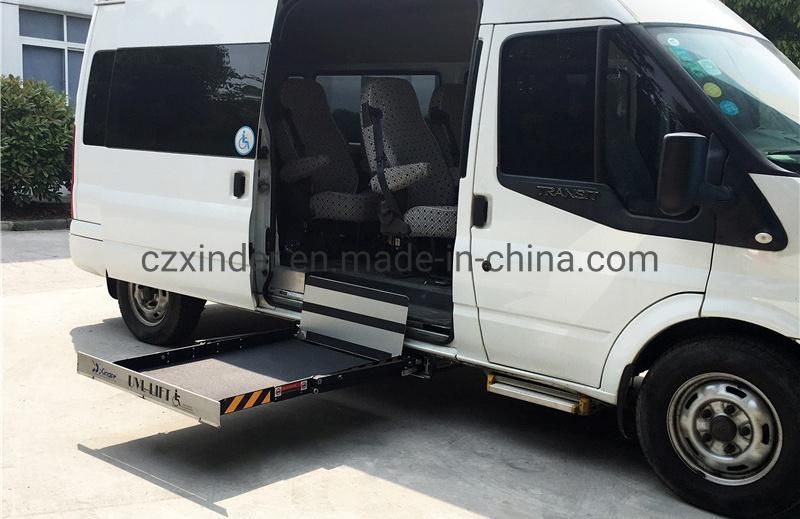

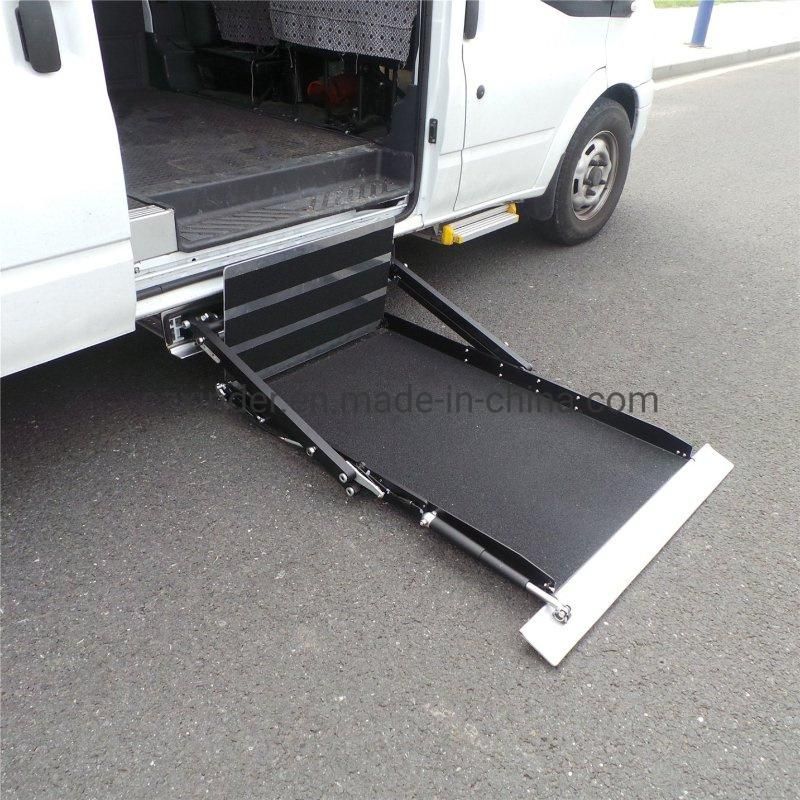

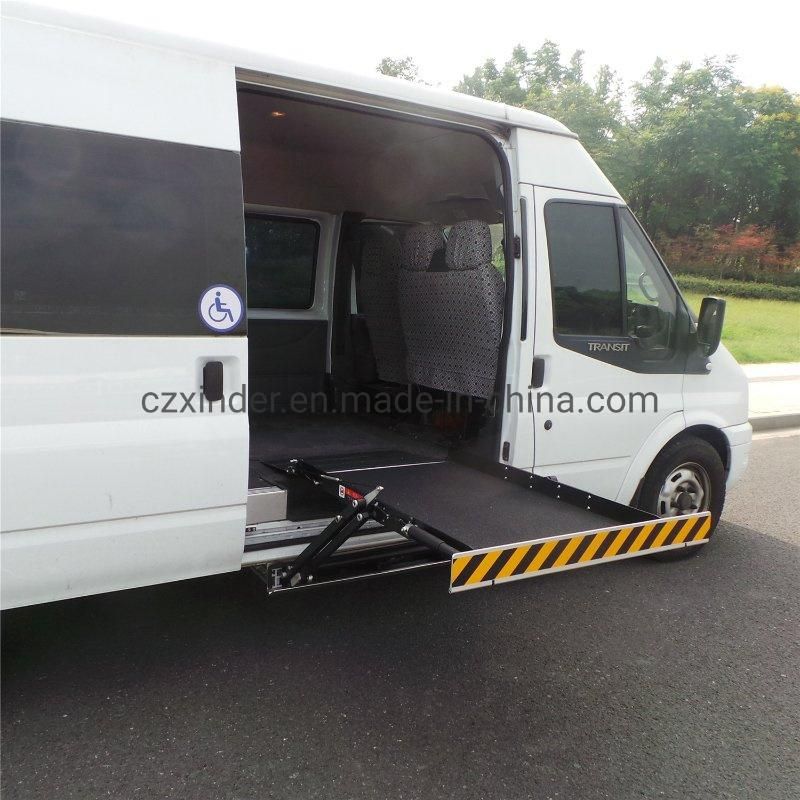

1. This lift is designed for van to help wheelchair occupant to get on van while seated on his wheelchair.
2. It is installed under the chassis of van side door.

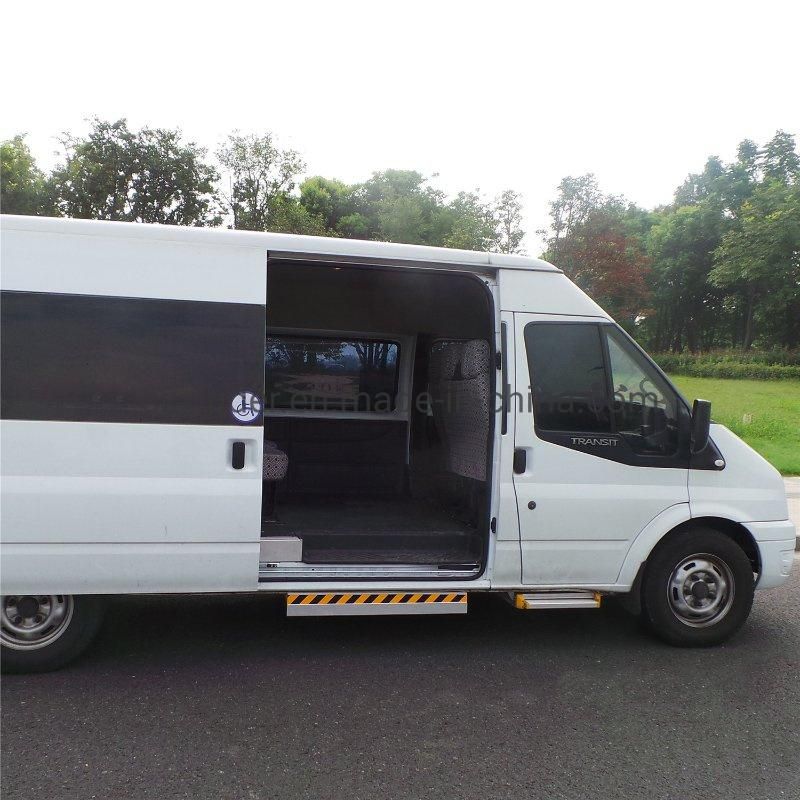

3. It stays out of way and out of sight when not in use, so it can provide clear path and good visibility for passengers.
4. The frame is super thin with thickness only 90mm.
5. This lift can be operated by the wired remote control or your mobilephone, and it can be operated manually for emergency.
6. Loading capacity is 300kg;
7. There is manual function for emergency.

ADVANTAGES:

1. Super thickness, only 90mm;
2. Door interlock function;
3. Inside safety locking device;
4. Provides clear path and good visibility both for passengers and the driver;
5. Mechanical automatic roll stops;
6. Warning sound during working;
7. Powerful hydraulic system ensures smooth and stable movements;
8. Anti-skid platform;
9. Manual backup function;
10. CE and EMARK certificate;
11. High-gloss polyester powder coat finish to prevent corrosion;
12. Can be operated by the remote control or your mobile phone;

SPECIFICATIONS:

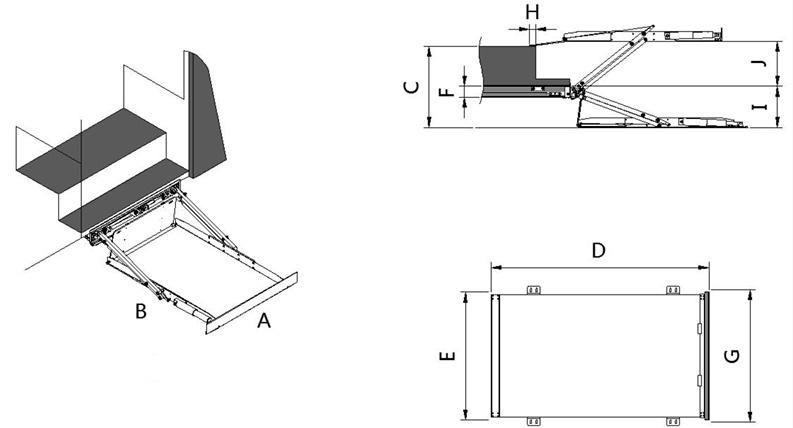

unit: mm

Model	A platform net width	B platform net length	C Max lifting height	D gross length	E gross width	F thickness	G door net width	H overlap size	I Max down stroke	J Max up stroke
MINI-UVL-750	750	1100	820	1615	970	90	850	50	390	430
MINI-UVL-800	800	1200	820	1715	1020	90	850	50	390	430
