2.7m 3m Cheap Small Home Elevator Lift for Disabled People Wheelchair Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service：Spare Parts Replacement
- Warranty：2years
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Wheelchair Elevator
- Lift Mechanism：Lift Chain
- Carrying Capacity：Middle-Level
- Moves：Stationary
Base Info
- Model NO.：AWL
- Driven Type：Hydraulic
- Running Mode：Stationary
- Feature：Explosion-Proof, Insulating
- Certification：GS, CE, RoHS, ISO 9001
- Power：2.2kw
- Rated Loading Capacity：250kg
- Min. Lifting Height：100mm
- Max. Lifting Height：1m-10m
- Weight：450~1300kg
- Guiderail Material：Aluminum Alloy
- Surface Treatment：Plastic Spraying
- Transport Package：Wooden Box
- Specification：2000*1430*1300mm
- Trademark：PLK LIFT
- Origin：China
- HS Code：8428909090
- Production Capacity：1000 Set,Month
Description
Standard model of 1 meter to 3 meter maximum platform heightModel Type WL2510 WL2515 WL2520 WL2525 WL2530 Max. Platform Height 1000mm 1500mm 2000mm 2500mm 3000mm Load Capacity 250kg 250kg 250kg 250kg 250kg N.W/G.W(kg) 350/450 450/550 550/700 700/850 780/900 Machine Size(mm) 2000*1430*
1300 2500*1430*
1300 3000*1430*
1000 3500*1430*
1000 4000*1430*
1000 Model Type WL2530 WL2535 WL2540 WL2550 WL2560 Max. Platform Height 3000mm 3500mm 4000mm 5000mm 6000mm Load Capacity 250kg 250kg 250kg 250kg 250kg N.W/G.W(kg) 780/900 850/1000 880/1050 1000/1200 1100/1300 Machine Size(mm) 4000*1430*
1000 4600*1430*
1000 5100*1430*
1000 6100*1430*
1000 7100*1430*
1000 Platform size 1430*1000mm skid proof checkered steel Min Platform height 60mm Speed 0.06~0.1m/s Control voltage 24V/DC Power Output 1.1~2.2KW Voltage As per your local Standard(single phase or three phase) Drive System Hydraulic pump station and electric motor (See details below) Control Mode Automatic travel switch(See details below) Drive Control Self-resetting system Overload Over current relay protection Materials Aluminium rails and guard with spraying plastics. (See details below) Working Condition Both indoors and outdoors -20°~70°C Entrance-Exit Way It's customized 90°or 180° Installation No pit installing,easy to install and remove
<3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall. Switches
(See details below)

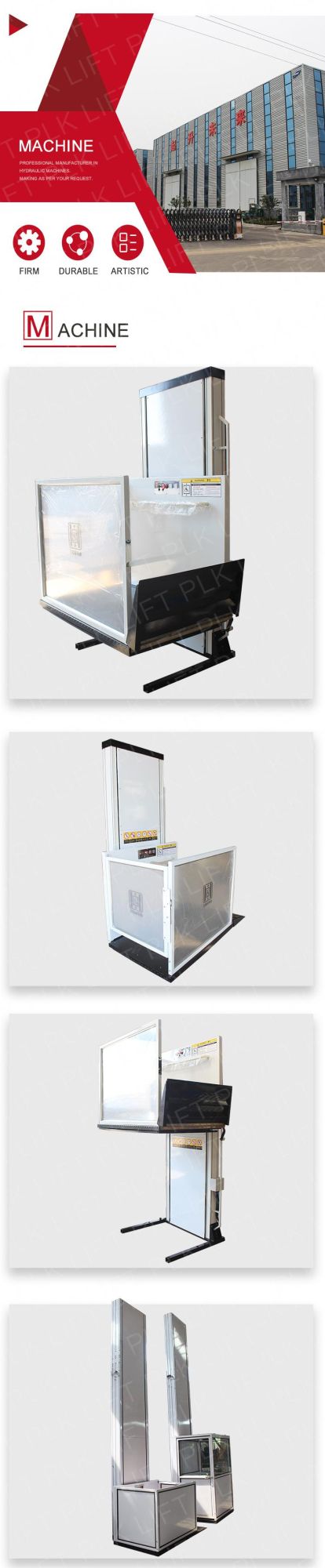

2. Photos Review:
Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

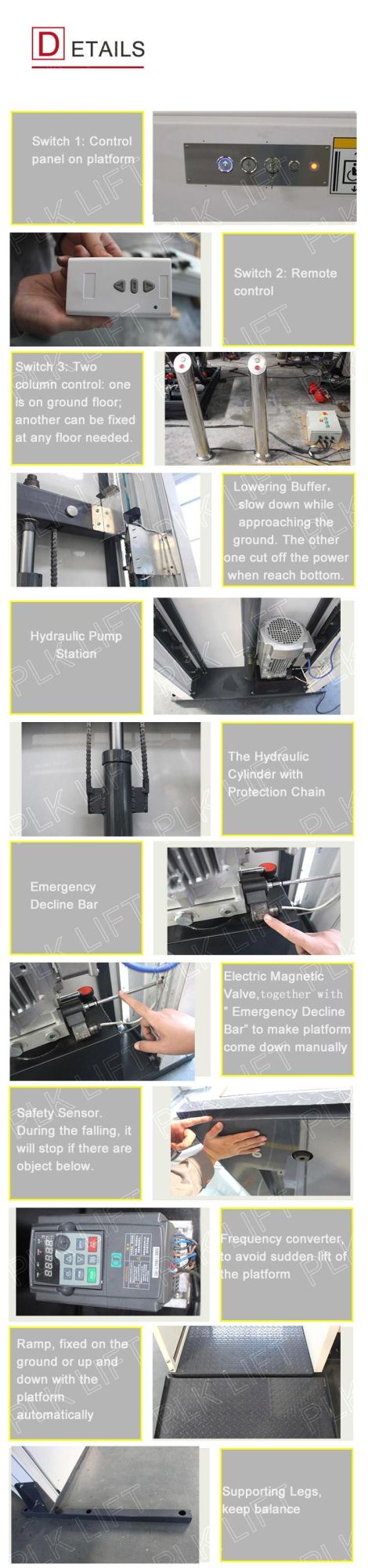

3. Details Display:

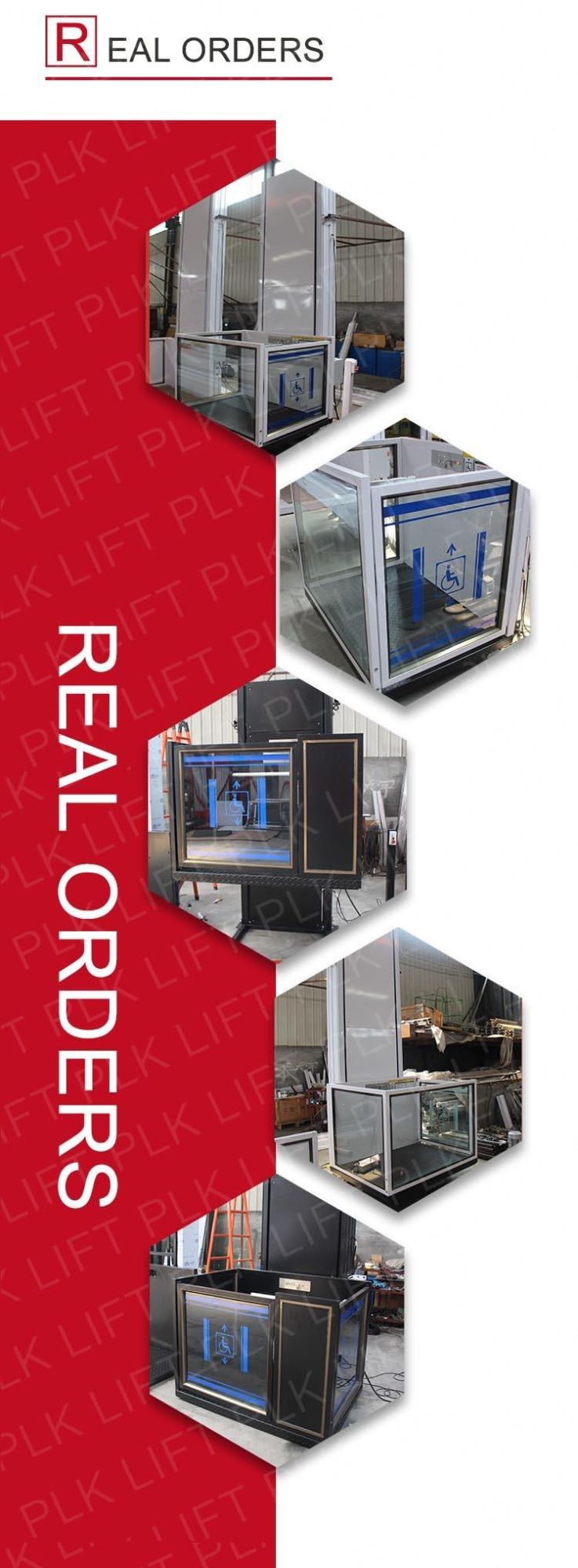

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)
5. Welcome to visit our factory and place the order with us.
6. All our products are CE certificated, good quality and competitive price. Welcome to send the inquiry to us if you are interested in any of them, and we will reply you ASAP.
1300
1300
1000
1000
1000
1000
1000
1000
1000
1000
<3.0m,installed directly on the floor. >3.0m, installed both on the floor and on the wall.
(See details below)
- One control panel on the platform
- Install two column switches on ground, which can be fixed at any floor needed.
- Remote control, user can operate lift within 20m.
