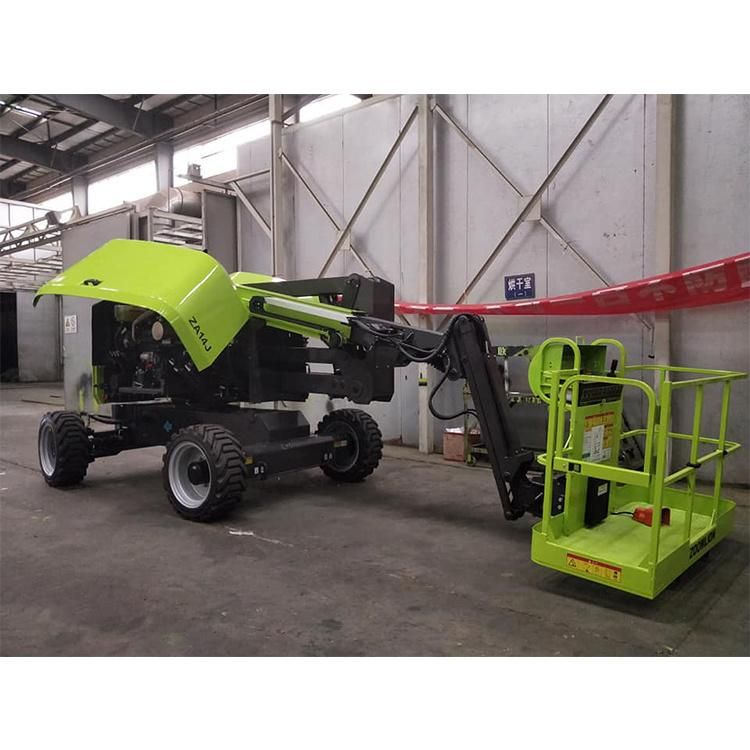

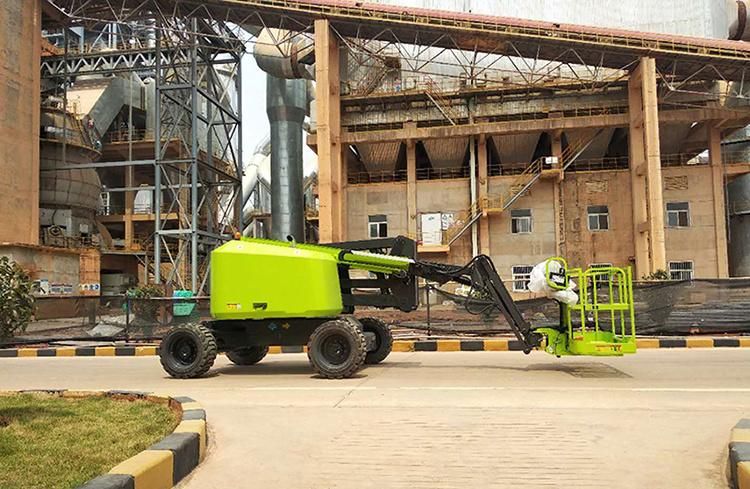

• Model NO.：ZA14J
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Work Height：15.8 M
• Platform Height：13.8 M
• Horizontal Outreach：8.3 M
• up and Over Height：7.55 M
• Platform Capacity：300 Kg
• Drive Speed：6.8 Km,H
• Gradeability：45%
• Swing：355
• Max. Working Speed：12.5m,S
• Fuel Tank Capacity：65 L
• Transport Package：Nude Package
• Specification：Platform: 1.83m*0.76m
• Trademark：Zoomlion
• Origin：China
• Production Capacity：50 Unit Per Month

Overview ZA14JZA18J MetricImperialMetricImperialSizeWork Height15.80m51ft 10in20.93m68ft 8inPlatform Height13.80m45ft 3in18.93m62ft 1inHorizontal Outreach8.30m27ft 3in12.35m40ft 6inUp and Over Height7.55m24ft 9in8.3m27ft 3inA - Stowed Length6.57m21ft 7in9.12m29ft 11inB - Stowed Width2.30m7ft 7in2.49m8ft 2inC - Stowed Height2.27m7ft 5in2.58m8ft 6inD - Platform Length1.83m6ft2.44/1.83m8/6ftE - Platform Width0.76m2ft 6in0.91/0.76m3ft/2ft 6inF - Wheelbase2.36m7ft 9in2.52m8ft 3inG - Ground Clearance0.42m1ft 5in0.42m1ft 5inPerformancePlatform Capacity300kg660 lb250kg550 lbDrive Speed6.8km/h4.23 mph6.1km/h3.79 mphGradeability45%45%45%45%Axles Oscillation0.1m4in0.2m8inTurning Radius (Inside)2.06m6ft 9in2.51m8ft 3inTurning Radius (Outside)4.78m15ft 8in5.47m17ft 11inSwing355°360° continuousPlatform Rotation±90°±90°H-Tail Swing00Max. Working Slope5°5°Max. Wind Speed12.5m/s27.96mph12.5m/s27.96mphPackaging & Shipping
