• Model NO.：SJY
• Driven Type：AC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Product Name：Hydraulic Scissor Lift
• Voltage：220,380V 50,60Hz
• Color：Customers′ Requirements
• Material：High Strength Steel
• Control：Control Panel
• Lift Drive：Hydraclic
• Lifting Speed：3-6m,Min
• Power Source：DC AC
• Transport Package：Standard
• Specification：500-2000
• Trademark：PLK
• Origin：China
• HS Code：8428909090
• Production Capacity：500sets

Basic Info.

Model NO. SJY Driven Type AC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Product Name Hydraulic Scissor Lift Voltage 220/380V 50/60Hz Color Customers′ Requirements Material High Strength Steel Control Control Panel Lift Drive Hydraclic Lifting Speed 3-6m/Min Power Source DC AC Transport Package Standard Specification 500-2000 Trademark PLK Origin China HS Code 8428909090 Production Capacity 500sets

Product Description

Low price scissor lifting mobile electric lift
Semi Electric Scissor Lift is of of the most economic mobile scissor lift made from our manufacturer,the available loading capacity is 500kg,1000kg,1500kg,and 2000kg,and the maximum table height is range from 4m to 18m.

Semi electric scissor lift is moved by manual or tractor towed,and lifting by AC power or DC(battery) power.

1. Data-Sheet:


Model No.	Table Size (mm)	Loading Capacity(kg)	Max. Table Height (m)	Min. Table Height (m)	Voltage (V)	Overall size (mm)	N.W.(kg)
SSL0540	2100*830	500	4	1.1	1 or 3phase	2250*950*1100	800
SSL0560	2100*830	500	6	1.2	1 or 3phase	2250*950*1200	880
SSL0507	2100*830	500	7	1.28	1 or 3phase	2250*950*1280	970
SSL0508	2100*930	500	8	1.38	1 or 3phase	2250*1060*1380	1050
SSL0509	2100*930	500	9	1.5	1 or 3phase	2250*1060*1500	1165
SSL0510	2100*1230	500	10	1.53	1 or 3phase	2250*1350*1530	1360
SSL0511	2100*1230	500	11	1.65	1 or 3phase	2250*1350*1650	1400
SSL0512	2550*1530	500	12	1.75	1 or 3phase	2796*1670*1750	2260
SSL0514	2812*1530	500	14	1.81	1 or 3phase	3067*1730*1810	2400
SSL0516	2812*1600	500	16	2.08	1 or 3phase	3067*1800*2080	3500
SSL0518	3070*1600	500	18	2.08	1 or 3phase	3321*1810*2080	3900
SSL1004	2100*1200	1000	4	1.18	3phase	2250*1350*1180	1250
SSL1006	2100*1200	1000	6	1.3	3phase	2200*1350*1300	1400
SSL1008	2100*1200	1000	8	1.42	3phase	2200*1350*1420	1585
SSL1010	2100*1200	1000	10	1.53	3phase	2200*1350*1530	1700
SSL1012	2550*1530	1000	12	1.75	3phase	2796*1670*1750	2560
SSL1014	2812*1530	1000	14	1.81	3phase	3067*1750*1810	2765
SSL1506	2100*1530	1500	6	1.53	3phase	2250*1750*1530	1780
SSL1508	2100*1530	1500	8	1.69	3phase	2250*1750*1690	2070
SSL1510	2100*1530	1500	10	1.85	3phase	2250*1750*1850	2250
SSL1512	2550*1530	1500	12	1.85	3phase	2250*1762*1850	2900
SSL1514	2816*1600	1500	14	1.96	3phase	3045*1852*1960	3400
SSL2006	2100*1530	2000	6	1.53	3phase	2250*1750*1530	1780
SSL2008	2100*1530	2000	8	1.69	3phase	2250*1750*1690	2070
SSL2010	2100*1530	2000	10	1.85	3phase	2250*1750*1850	2250
SSL2012	2550*1600	2000	12	1.954	3phase	2796*1852*1954	3200
SSL2014	2816*1600	2000	14	2.23	3phase	3067*1852*2230	3900

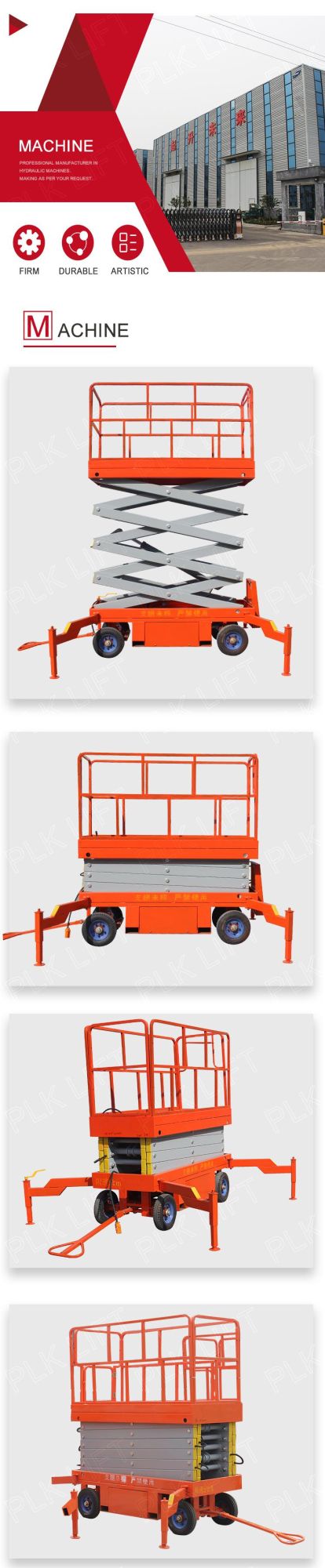

2. Product Photos:

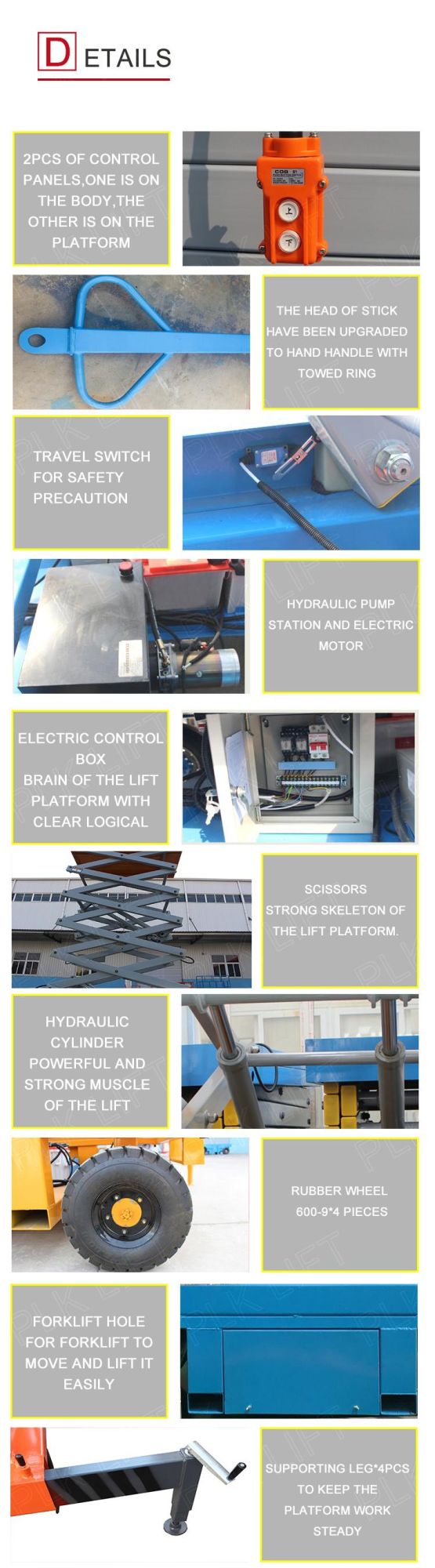

3. Details Review:

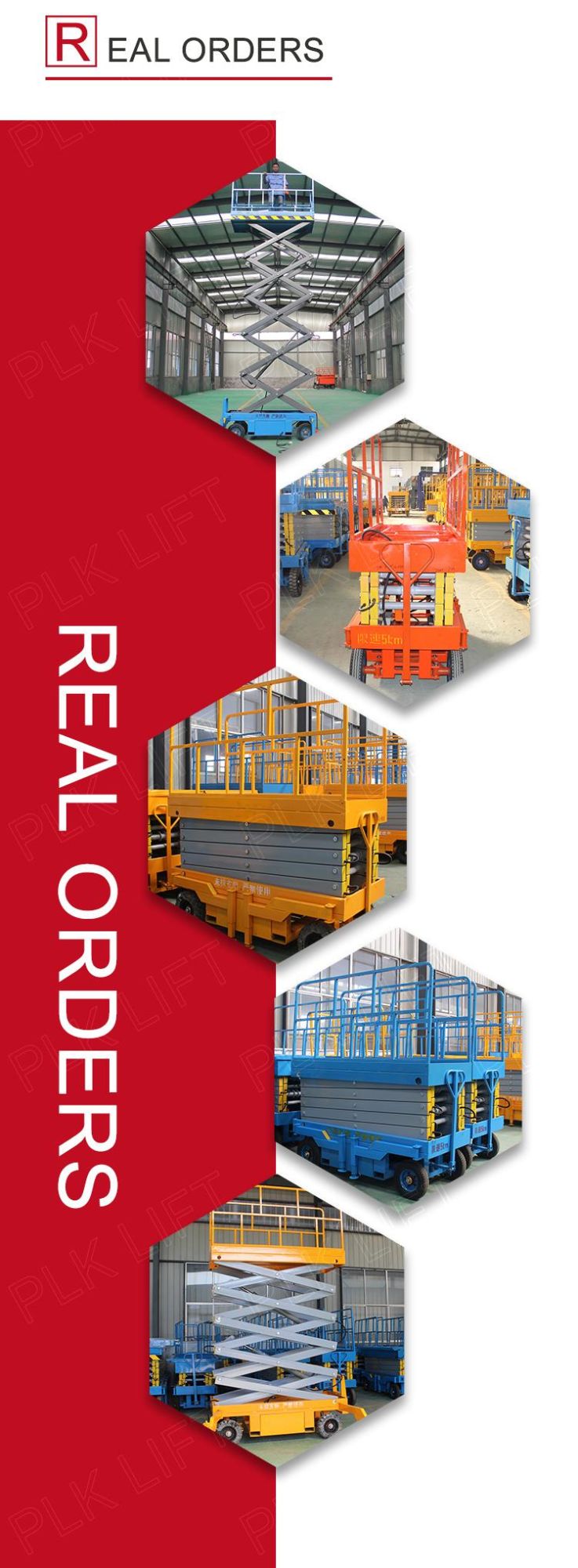

4. Real Orders Display:




5. Welcome to visit our factory and place the order with us.
