8m Lifting Height Electric Scissor Lift with Small Platform Size

Chenlift (Suzhou) Machinery Co., Ltd.
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Middle-Level
  • Moves：Self-propelled
  • Driven Type：DC
  • Running Mode：Moving

Base Info

  • Model NO.：MX800SN
  • Feature：Explosion-Proof, Insulating
  • Certification：CE, ISO 9001
  • Max Platform Height：8 M
  • Max Working Height：10 M
  • Load Capacity：230 Kg
  • Platform Size：2.27* 0.81 M
  • Platform Extension Length：0.9 M
  • Extension Load：113 Kg
  • Lift/Drive Motor：24V,3.3 Kw
  • Ground Clearance( Stowed/Raised)：0.1m,0.019m
  • Wheelbase：1.87 M
  • Gradeability：25%
  • Transport Package：Wrapped with Film, Packed in a Pallet, Wooden Case
  • Specification：2.43*0.81* 1.87 m
  • Trademark：CHEN LIFT
  • Origin：China
  • HS Code：8428909090
  • Production Capacity：3000 Units Per Year

Description

Model MX580SMX600SNMX800SNMX800SMX1000SMX1200SLoad230 kg230 kg230 kg450 kg320 kg230 kgExtension Load113 kg113 kg113 kg113 kg113 kg113 kgPlatform Height5.8 m6 m8 m8 m10 m11.8 mWorking Height7.8 m8 m10 m10 m12 m13.8 mPlatform Size1.67*0.74m2.27*0.81m2.27*0.81m2.27*1.12m2.27*1.12m2.27*1.12mPlatform Extension Length0.9 m0.9 m0.9 m0.9 m0.9 m0.9 mLift/Drive Motor24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/3.3 kw24v/4.5 kw Details
8m Lifting Height Electric Scissor Lift with Small Platform Size

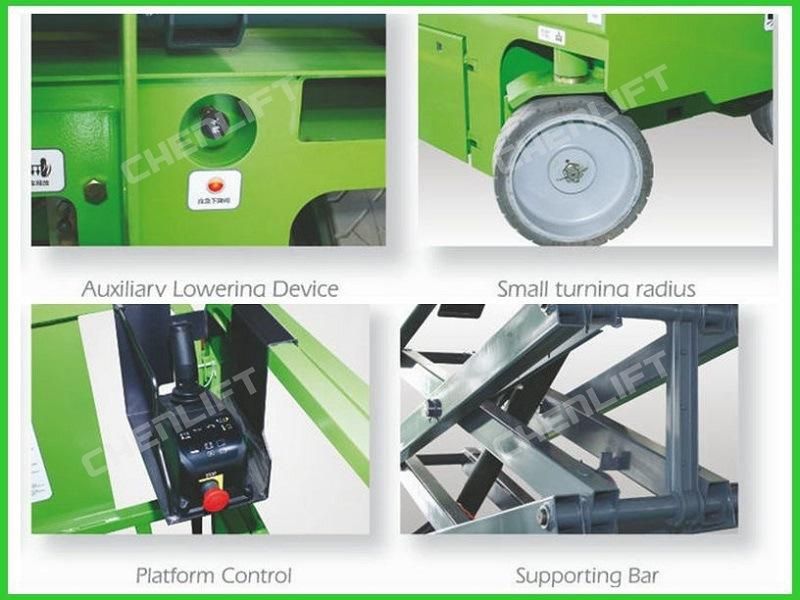

Safety Precaution
  • Auxiliary Lowering Devices
  • Anti-burst System
  • Emergency Stop Button
  • Tilting Protection System
  • Charging Protection System
  • Automatic Pothole Protection
  • Automatic Braking System
  • Buzzer and Horn
