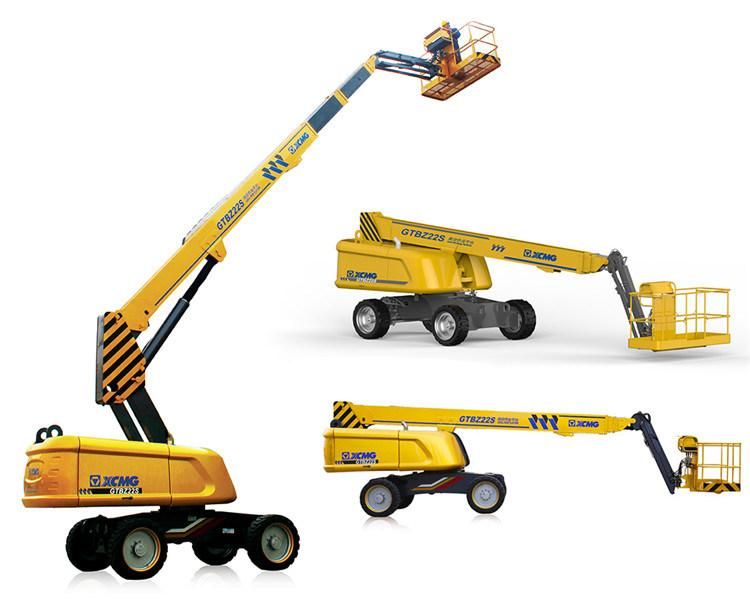

XCMG Official 22m Hydraulic Telescopic Aerial Work Platform Gtbz22s
Xuzhou Construction Machinery Group Co., Ltd.- After-sales Service：Overseas Service Center Available
- Warranty：1year
- Wheel Base：2500mm
- Weight：125000kg
- Max. Lifting：23.7m
- Transport Package：Container
Base Info
- Model NO.：GTBZ22S
- Specification：10150*2490*2800mm
- Trademark：XCMG
- Origin：Jiangsu, China
- HS Code：84301000
- Production Capacity：1000,Year
Description
Overview
Product Description
(1)Highest Efficiency in Operation
Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.
(2)Outstanding Performance of Operation
With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.
(3)Excellent Off-Road Performance
The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.Product ParametersItem Unit Parameter a Overall Length mm 10150 b Overall Width mm 2490 c Overall Height mm 2800 d Wheel Base mm 2500 Maximum Working Height m 23.7 Maximum Platform Height m 22 Maximum Working Range m 18.3 Maximum Load Capacity kg 340 Boom Luffing Range ° -5~+75 Rotation Angle of Rotating Platform ° 360 Maximum Tail Wagging mm 1550 Platform Size mm 2400×900 Rotation Angle of Platform ° 180 Total Weight kg 12500 Maximum Travel Speed km/h 6 Minimum Turning Radius m 6 Minimum Ground Clearance mm 230 Maximum Grade Ability % 45 Tire Specification - 355/55D625 Engine Model - Perkins 404D-22T Rated Power of Engine kW/(r/min) 43/(2600)
Company Profile
FAQ
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

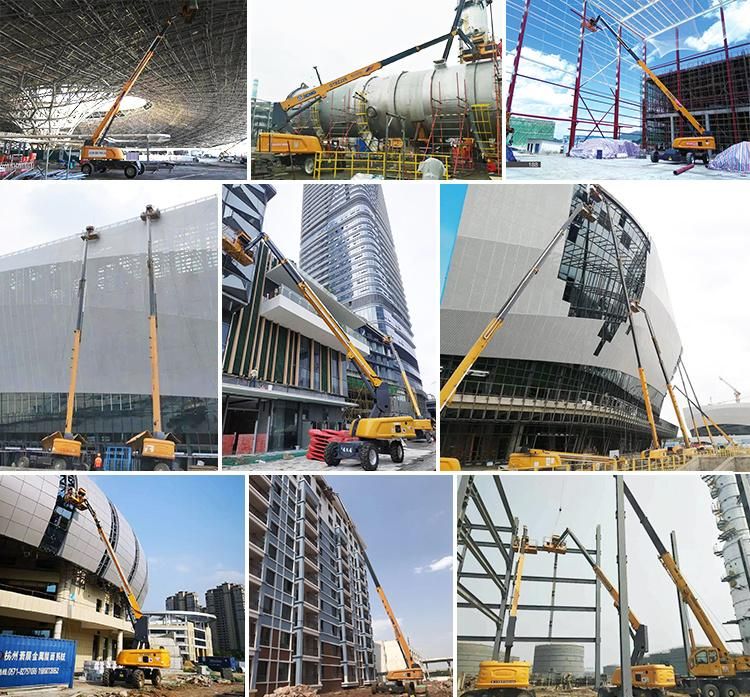

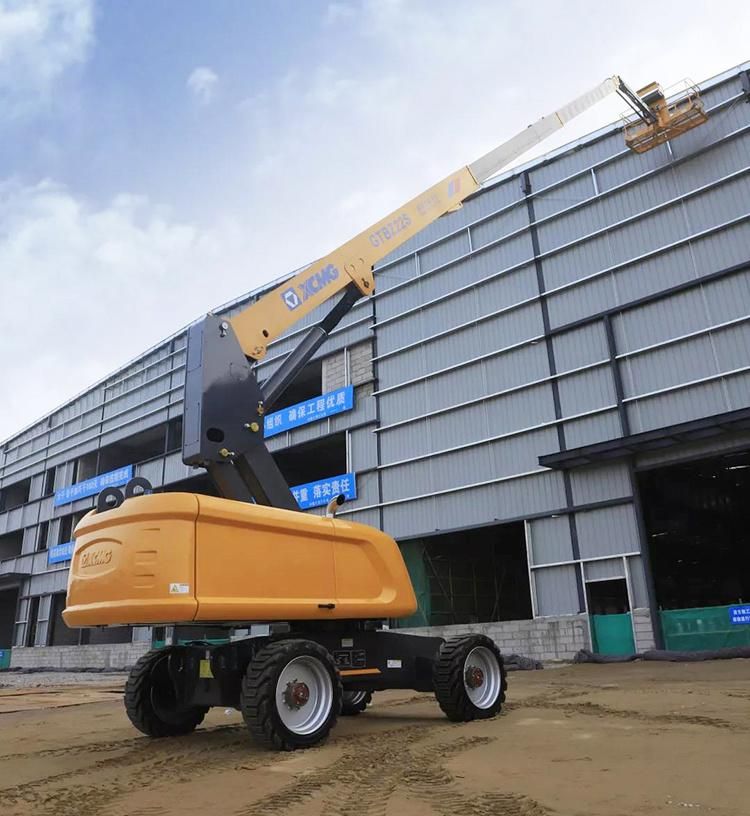

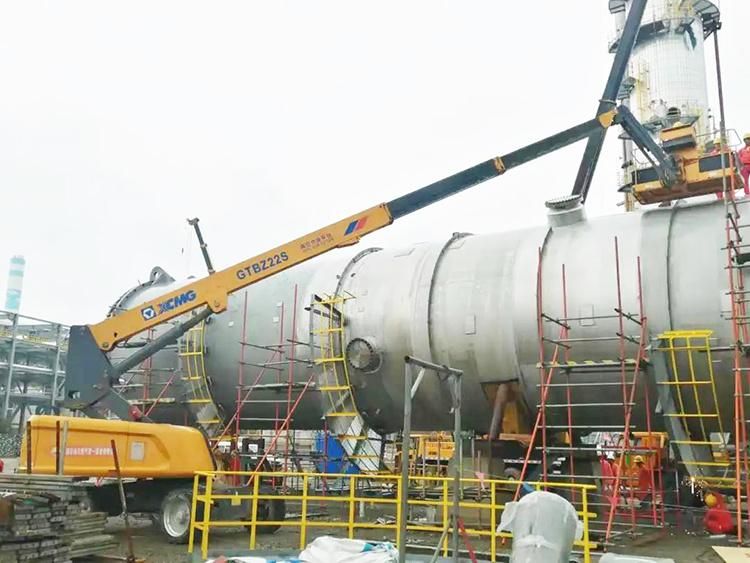

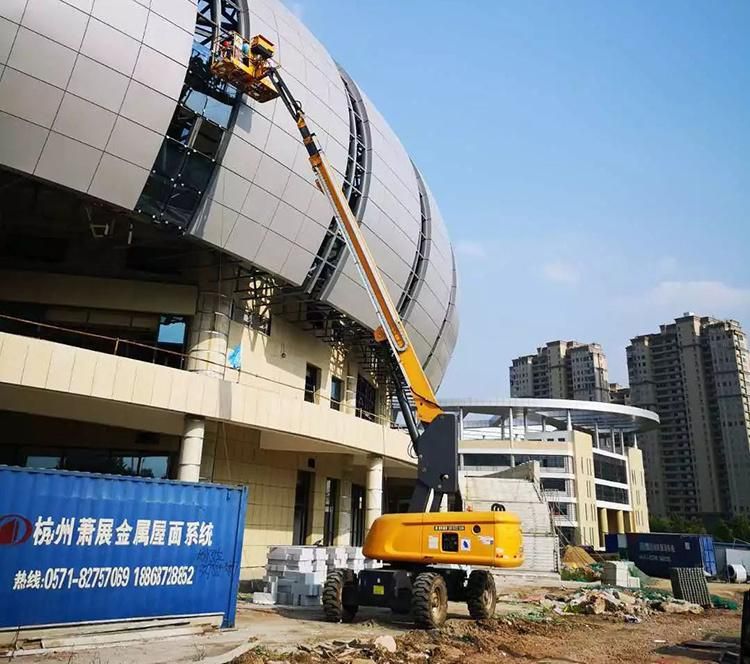

GTBZ22S is the highest-efficiency straight boom aerial work platform applied at the elevation of 22 meters. Being four-wheeldriven, it has the top-ranking gradeability among the industry; provided with the double-operating-radius curve, the machine has the industry-leading operating altitude/radius and carrying capacity. This type of machine, not only simple and high-efficiency, but also safe and reliable, may satisfy the diversified demands of different industrial users engaged in building construction, bridge and equipment maintenance, shipbuilding, petrochemical engineering, lease etc.
(1)Highest Efficiency in Operation
Being the highest-efficiency product applied at the elevation of 22 meters, it may be quickly lifted from the ground to the maximum altitude of operation just within 68 seconds.
(2)Outstanding Performance of Operation
With the maximum carrying capacity of 340kg, it has the industry-leading altitude and radius of operation, and may satisfy relevant construction demands on heavy loads and large operating spaces.
(3)Excellent Off-Road Performance
The four wide tyres, the real-time drive and the novel axle balancing system that may automatically make a response to the terrain will strengthen together the stability in driving on rough roads.Product Parameters
Company Profile
FAQ1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC,
3: What about the delivery time?
A: 30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.
