• Model NO.：BG
• Running Mode：Stationary
• Feature：Antiseptic
• Certification：CE, ISO 9001
• Standard：Nonstandard
• Application：Construction Site, Boat,Vessel, Shipyard, etc
• Warranty：12 Months
• Motor Type：Yzr225m-6
• Color：Customized
• Transport Package：Wooden Package & Container
• Specification：1900*1620*985mm
• Trademark：NYBON
• Origin：Henan Province, China
• HS Code：842531900
• Production Capacity：100 Sets Per Month

Basic Info.

Model NO. BG Running Mode Stationary Feature Antiseptic Certification CE, ISO 9001 Standard Nonstandard Application Construction Site, Boat/Vessel, Shipyard, etc Warranty 12 Months Motor Type Yzr225m-6 Color Customized Transport Package Wooden Package & Container Specification 1900*1620*985mm Trademark NYBON Origin Henan Province, China HS Code 842531900 Production Capacity 100 Sets Per Month

Product Description

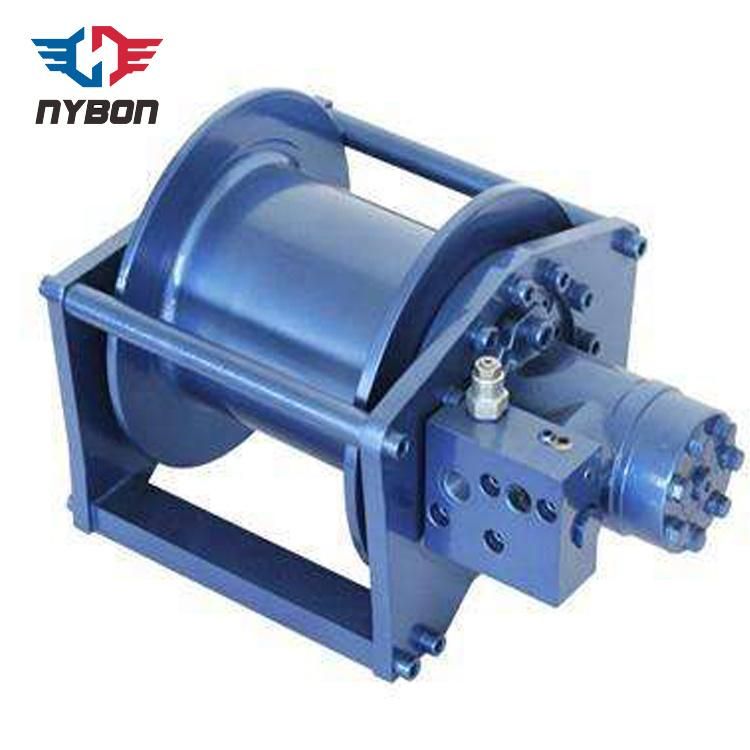

35000lbs single drum explosion proof mining petroleum hydraulic winch 15 ton

Hydraulic winch is used in a variety of lifting equipment occasions. Types are divided into: built-in hydraulic winch, exposed hydraulic winch, high-speed hydraulic winch, low-speed hydraulic winch, hydraulic winch usually by the hydraulic motor, control valve, gear boxes, rollers, brackets, (clutch) Rope, installation bracket and other combinations.

Some hydraulic winch does not take stand, directly by the hydraulic motor, control valve group, the drum, the end of the shaft and other components, these can be based on customer needs matching, can be widely used in conveyor tensioners, construction machinery Lifting cranes such as truck cranes, crawler cranes, aerial work platforms, forestry cranes, and port vessels such as port cranes, floating cranes, dredgers, crane cranes and davits, as well as heavy lifting equipment Such as oil rigs, offshore oil rigs, rotary drilling rigs for piling machines, rock drills, core drills, hydrostatic piles, and more.


hydraulic winch features:

1) Only flow restrictors and manifolds are on the outside of the drum. Hydraulic motors and shell to drive devices and other components are hidden in the winch drum, so the axial size is small, compact, beautiful appearance;
2) Starting efficiency and transmission efficiency, low energy consumption, reliable, long service life;
3) low noise during operation;
4) good economic performance.

Hydraulic winch installation

1, winch installation location and direction, allowing the drum axis as the center, any conversion position.
2, install the base plate bolt hole location installation. Note: The number and size of fixing bolts must comply with the requirements and must not be reduced or replaced with small diameter bolts.
3, winch floor installation, must be fixed and reliable, shall not be bent in use, the installation of the flatness of not more than 0.5mm, otherwise it will affect the smooth operation of the winch,
4, after the winch is installed, the base contact surface should be level and force evenly.
5, to ensure that the vertical axis of the drum and the pulley vertical, vertical axis of the drum and the pulley angle of not more than 1.5 degrees.
6, winch oil control valve should be a spring reset H-type three-way four-way valve, control valve installation location, according to the needs of the operation on the appropriate location.
7, brake valve (ie, sequence valve) to open the pressure should be between 6 ~ 8Mpa, winch factory, the manufacturer has been adjusted, please do not change.
8, winch use a wide range of occasions, single-use, the hydraulic system pressure, flow must be consistent with the requirements of the instructions, otherwise it will affect the service life of the winch. According to the needs of users, the factory can provide supporting power source, control valves and related pipelines.
9, under normal circumstances, when the operator facing the motor back to the operator relatively close to the port to enhance (into) the oil port. This port can be based on the specific operator habits. But once you decide not to change it.
10, Before formal use, you must carefully check the connection of the pipeline, lubricating oil level, ventilation holes, system pressure, etc. After everything is normal, turn back and forth for 2 minutes.
11, winch rope fixed, the lifting, the rope must be wound on the drum first 5 laps or more.
12, do not stampede, collision winch metal pipelines and joints, so as not to damage the winch.
13, winch lifting heavy objects, pay special attention to observe the motor drain port pressure gauge, such as back pressure over 1.4MPa, the system must be carefully back to the oil return line to ensure smooth.
At present, the device can not be used to carry people.

1. Q: What's your MOQ?

  A: 1 Set;

2. Q: What's your package?

  A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

  A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and
actual period;

4. Q: What's your warranty period?

  A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

   A: Yes; We have;

6. Q: What kinds of products do you have?

    A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist;
Screw Hoist; Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Could we buy spare parts in local once they are out of work?

    A: Our main electrical parts brand is Siemens or Schneider brand; it's very easy to buy all the world. But if there is
any difficulty, we can post to you by express, such as DHL, UPS, FEDEX, Aramex, etc.

8. Q: Do you provide lift tools?

    A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook,
lock catch, wire rope, fiber rope, etc.

9. Q: Could your winches drag inclined?

    A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
