• Model NO.：BCD
• Maximum Lifting Height：30m
• Chain Falls：1
• Certification：CE, ISO9001:2000
• Condition：New
• Color：Customized
• Power Supply：Electric
• Running Rail：I25A~63c
• Protection Grade：IP54
• Environment Temperature：-20~45
• Insulation Grade：F
• Lifting Height：6~30m
• Voltage：220V-460V 3pH AC
• Working Duty：M3
• Ex-Proof Grade：Diict4
• Transport Package：Plywood Box
• Specification：5 ton
• Trademark：NYBON
• Origin：China
• HS Code：84251100
• Production Capacity：300 Sets , Year

Temperature Class

Max. surface temperature of electrical equipment

ºC

Electrical equipment for explosive gas environment

Electrical equipment for combustible dust environment

T1

450

T2

300

T3

200

T4

135

T5

100

T6

85

Grade

and

group

Lgnition temperature(ºC)and group

T1

T2

T3

T4

T5

T6

T>450

450>T>300

300>T>200

200>T>135

135>T>100

100>T>85

I

Methane

IIA

Ethane, propane, acetone, styrene, ammonia benzene, toluene, benzene, ammonia, carbon monoxide, ethyl acetate, acetic acid

Butane, ethanol, propylene, butanol, acetic acid, butyl ester, amyl acetate, acetic anhydride

Pentane, hexane, heptane, decane, octane, gasoline, hydrogen sulfide, cyclohexane, gasoline, kerosene, diesel oil, and petroleum.

Ether, acetaldehyde, trimethylamine

Nitrite, ethyl ester

IIB

Acrylonitrile, propare, cyclopropane, coke oven gas

Ethylene oxide, propylene oxide, butadiene, ethylene

Two methyl ether, isoprene, hydrogen sulfide

Two ether, two butyl ether

IIC

Water gas, hydrogen

Acetylene

Carbon disulfide

Ethyl nitrate

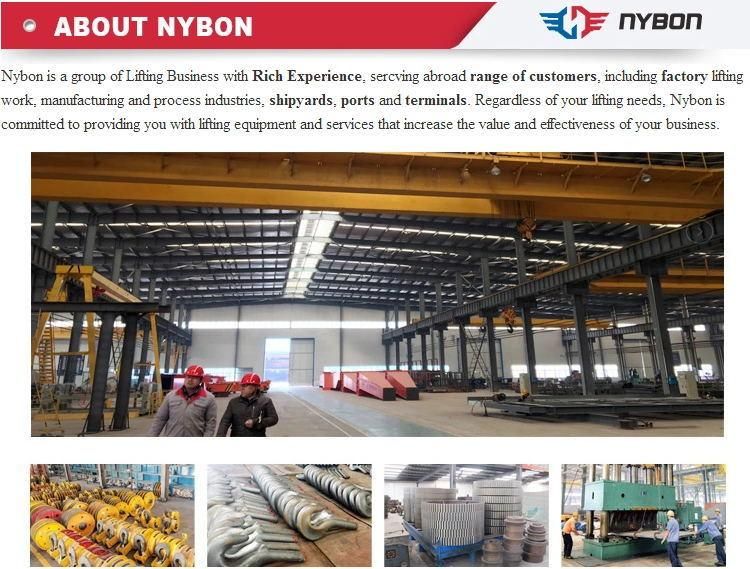

Company Information


Customer Praise

1. Q: What's your MOQ?

A: 1 Set;

2. Q: What's your package?

A: Main body in plywood box or in plastic woven cloths; Spare parts in plywood boxes;

3. Q: What's your delivery period?

A: Within 10/25/40 days after your prepayment received; exact period should be based on detailed requirements and actual period;

4. Q: What's your warranty period?

A: 12 months from winches accepted;

5. Q: Do you have engineer oversea installation service?

A: Yes; We have;

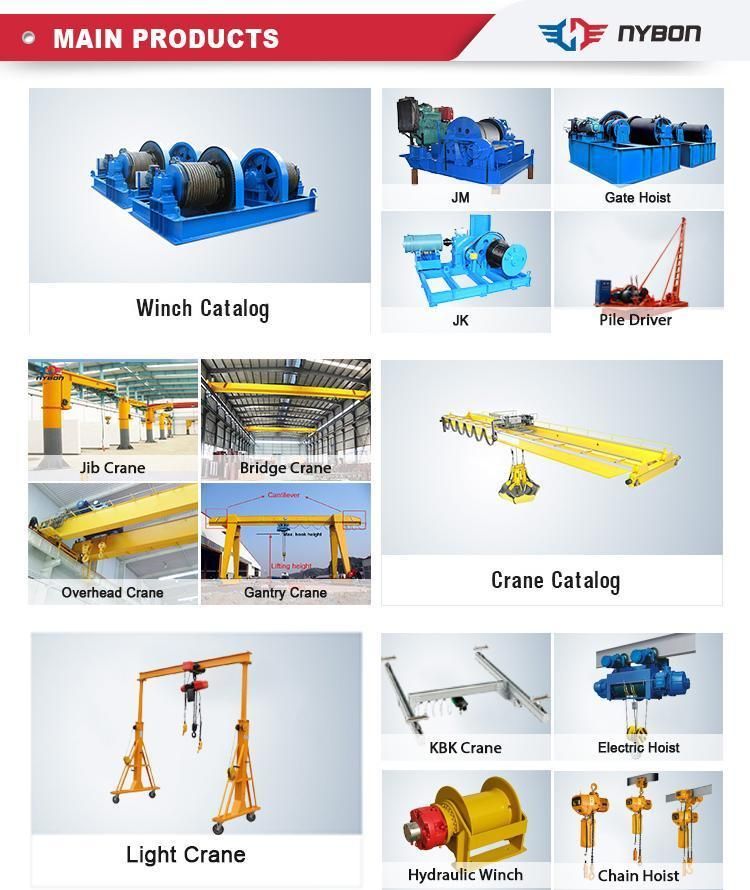

6. Q: What kinds of products do you have?

A: All kinds of industrial electric winch (especially non-standard); Overhead Crane; Gantry Crane, Electric Hoist; Screw Hoist;
Radial/Flat Gate Hoist; Steel Gate; etc.

7. Q: Do you provide lift tools?

A: Yes, we can provide any kinds of lift tools such as lift sling belt, lift clamp, grab, magnet , pulley blocks, hook, lock catch,
wire rope, fiber rope, etc.
8. Q: Could your winches drag inclined?

A: Yea, our electric winches could drag horizontal, drag inclined, hoisting vertical.
