• Model NO.：SJG3-3
• Feature：Explosion-Proof
• Certification：CE
• Handrail：4 Sides, 900mm
• Installation：Underground
• Safety Device：Explosion Proof Lock Valve, Emergency
• Stationary Hydraulic Scissor Lift：Scissor Lift
• Motor：Customer Required Brand or Chinese Famous Brand
• Color：Red, Blue, Orange, Gray or Other
• Lift Height：3m
• Lift Loading Capacity：3t
• Warranty：24monthes
• Power：220V, 240V, 380V, 400V or Other
• Transport Package：Iron Case or Plywood Case Package
• Specification：CE
• Trademark：SDLIFT
• Origin：China Shandong
• HS Code：84289090
• Production Capacity：5000 Set Per Year

Basic Info.

Model NO. SJG3-3 Feature Explosion-Proof Certification CE Handrail 4 Sides, 900mm Installation Underground Safety Device Explosion Proof Lock Valve, Emergency Stationary Hydraulic Scissor Lift Scissor Lift Motor Customer Required Brand or Chinese Famous Brand Color Red, Blue, Orange, Gray or Other Lift Height 3m Lift Loading Capacity 3t Warranty 24monthes Power 220V, 240V, 380V, 400V or Other Transport Package Iron Case or Plywood Case Package Specification CE Trademark SDLIFT Origin China Shandong HS Code 84289090 Production Capacity 5000 Set Per Year

Product Description

3M 3T Construction Stationary Hydraulic Lift Platforms



Application:·
The cargo lifter can be used to lift cargo with different levels, suitable for cargo moving between stairs, from basement to first floor, or to second floor.·Operation is easy. There are 2 sets control system installed on the cargo lifter, 1 control box below, and 1 hand controller on safety guard rail that can be operated on work platform.




Specficate:

Lift height	3000mm
Lift loading capacity	3000kg
Lift platform size	3600*2000mm
Voltage	110v 220v 240v 380v Optional
Platform Material	rectangular tube + checkered anti-slip plate
Support scissors	high strength Manganese Steel
Hydraulic cylinder	high precision wear-resisting cylinders with locking device for fall protection
Piston Rod	hard chromium plating surface
High-pressure oil pump	from Italy or Chinese famous brand
Hydraulic pipe	high pressure pipe with double expanded metal protected
Controller	1 control box below, 1 hand controller above platform

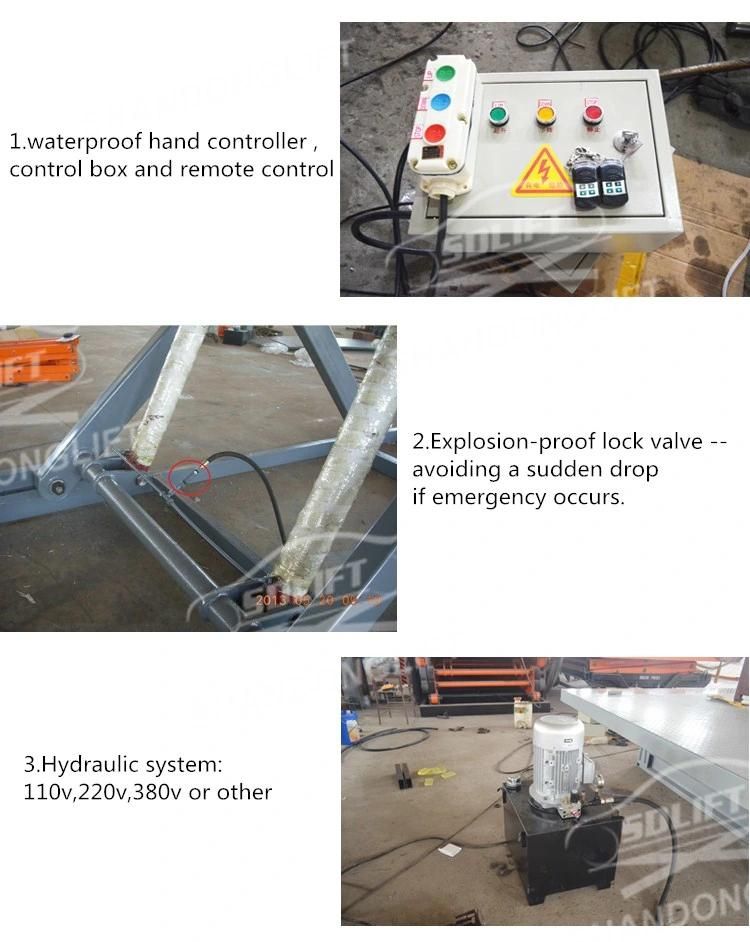

Parts Show :

Safety: 1) The safety rails to guarantee safety of the goods above lift platform.
2) Equipped 4 guide rails, to ensure the cargo lifter runs more smoothly and steadily.
3) The limit switch system helps the cargo lifter to stop at accurate position.
4) Electricity leakage protection device is equipped on, all electric components are CE certified.
5) All the scissor cargo lift are passed 1.2 times loading test before leaving factory.6) 2 year warranty for whole machine without man-made faults.

CE, TUV, SGS certificate :

Note:
1. Reply your inquiry in 24 working hours
2. Customized design is available,OEM are welcomed
3. Delivery the goods to our customer all over the world with speed and precision
4. Offer customer the lowest price with high quality lifting machine
