• Model NO.：HW1700,HW1700R
• Speed：Fast
• Carrying Capacity：Middle-Level
• Tonnage：2T
• Reel Number：1
• Running Mode：Moving
• Feature：Standard
• Certification：CE
• Standard：National Standards
• Maximum Traction(20MPa)：1700kg
• Operating Pressure：16-20MPa
• Hydraulic Valve：Manual,Remote
• Motor Displacement：400cc,380nm
• Rope(D X L)：6X20mm
• Weight：50kg
• Specification：560x435x250mm
• Trademark：RIMA
• Origin：Shandong
• Production Capacity：200PCS,Month
• Package size per unit product：56.00cm * 43.00cm * 25.00cm
• Gross weight per unit product：50.000kg

Basic Info.

Model NO. HW1700/HW1700R Speed Fast Carrying Capacity Middle-Level Tonnage 2T Reel Number 1 Running Mode Moving Feature Standard Certification CE Standard National Standards Maximum Traction(20MPa) 1700kg Operating Pressure 16-20MPa Hydraulic Valve Manual/Remote Motor Displacement 400cc/380nm Rope(D X L) 6X20mm Weight 50kg Specification 560x435x250mm Trademark RIMA Origin Shandong Production Capacity 200PCS/Month

Packaging & Delivery

Package size per unit product 56.00cm * 43.00cm * 25.00cm Gross weight per unit product 50.000kg

Product Description

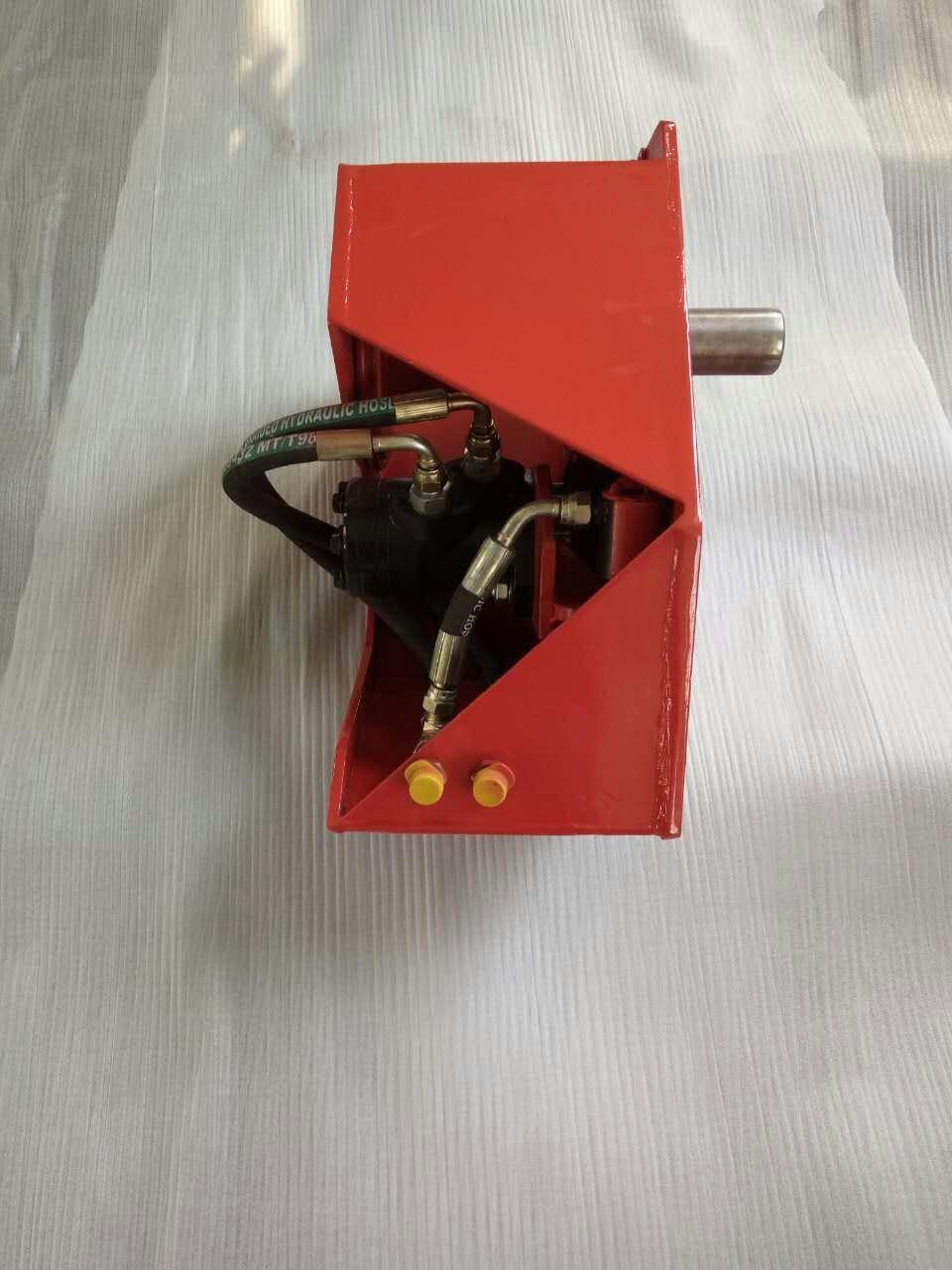

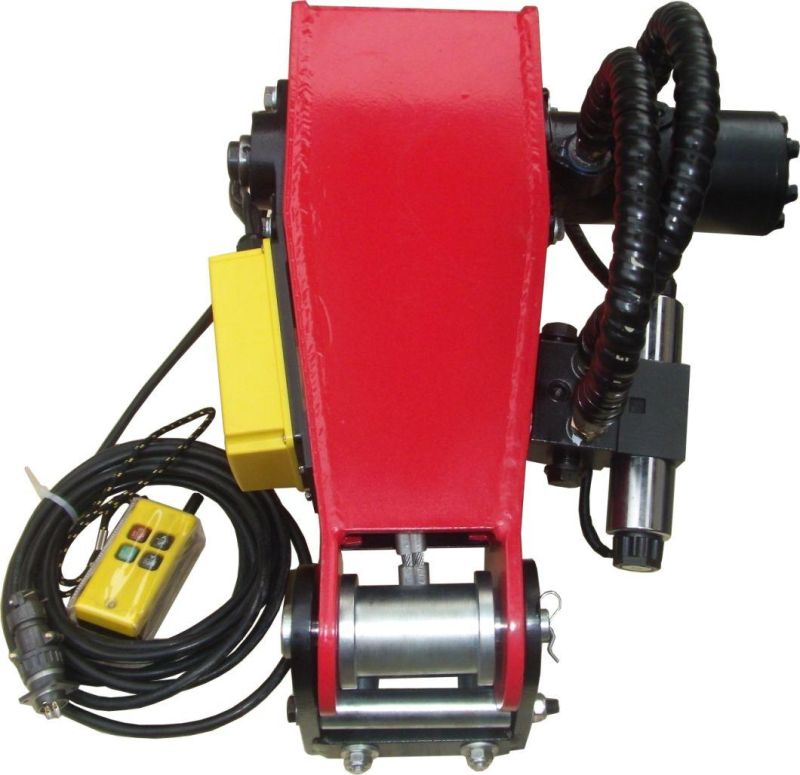

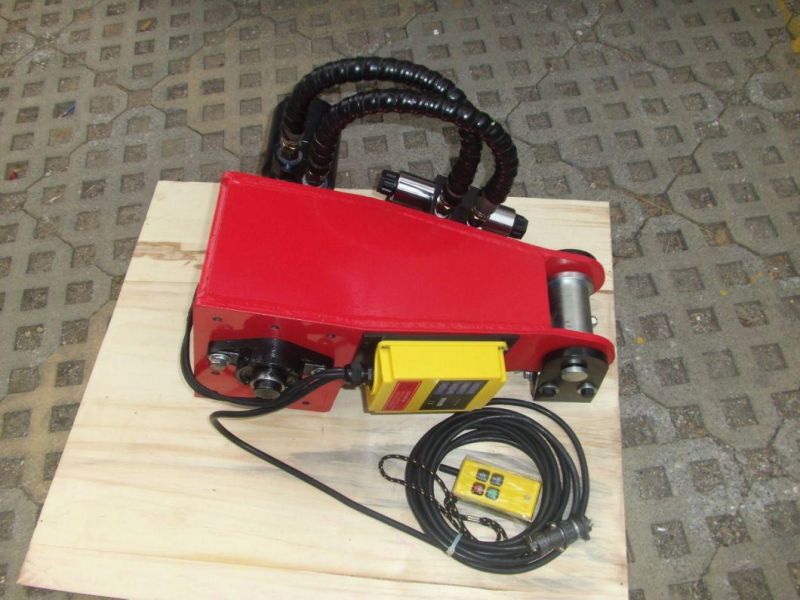

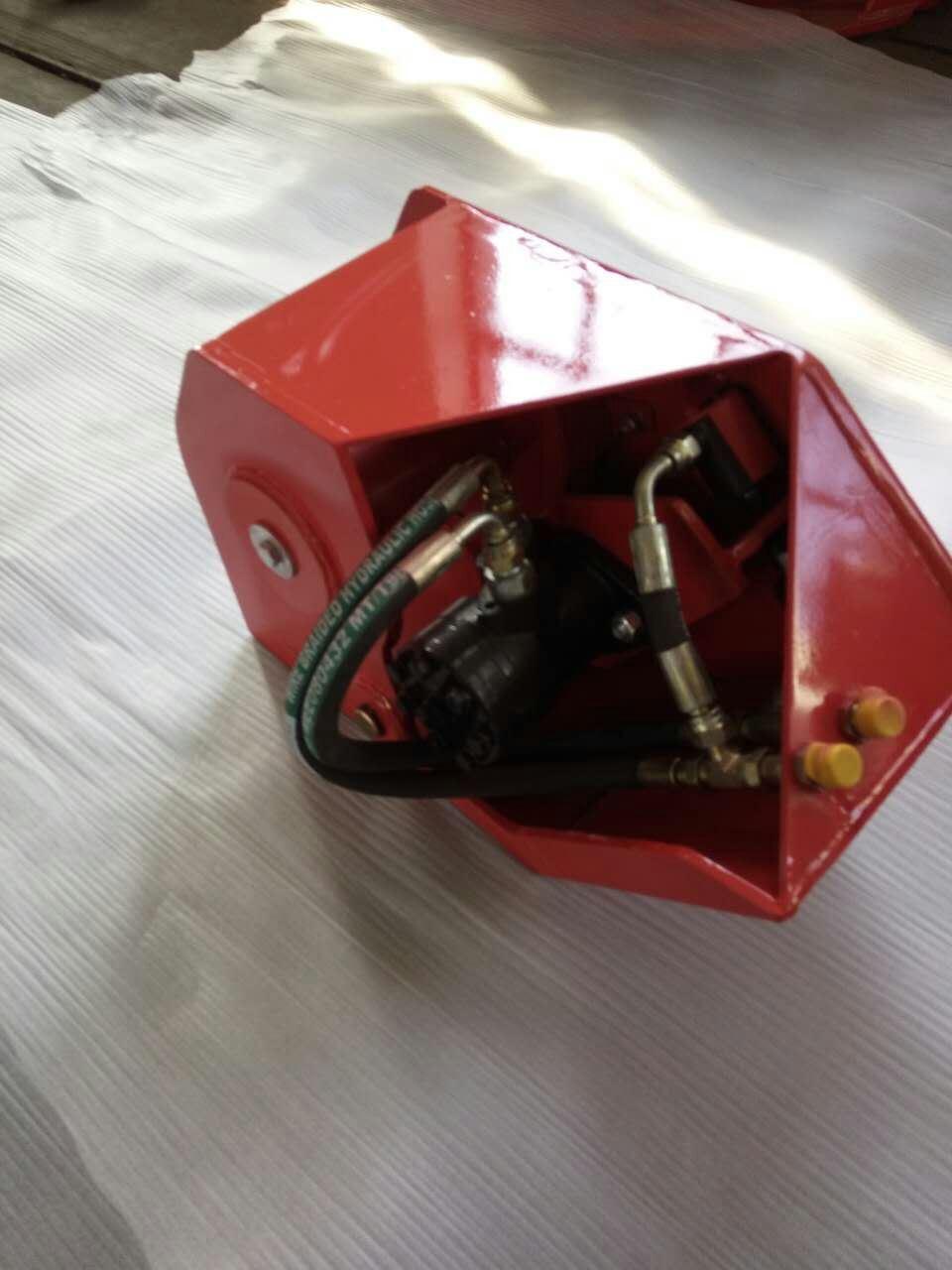

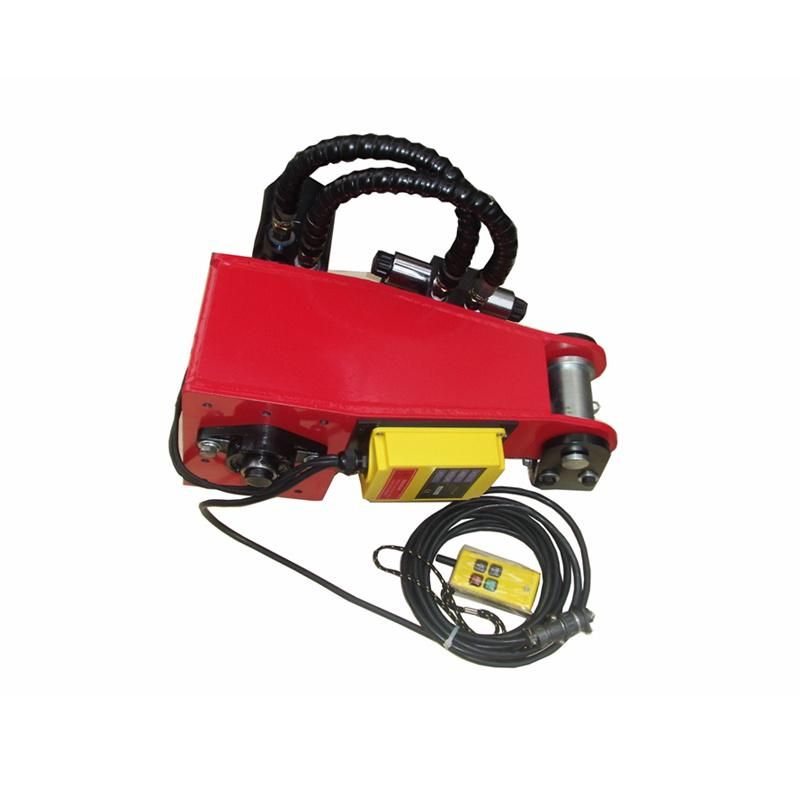

Hydraulic winch for log splitter/excavator/tractor/crane

 Specification
 HW 1700 Hydraulic winch for log splitter, Crane, Mini digger tractor, tractor viticulture Horticulture and many other applications

• And strutting up firewood for wood splitter
• Pull logs on trailer
• Pull out the rhizomes and trees
• When mounted winch on logging cranes and small excavators
• As a winch for small tractors and Vineyard tractors

A sturdy steel construction with 3-sided mounting standard (left, right, rear) with M 12 threaded holes, this allows many options for attaching the winch (threads are cut and painted you need to be trimmed before using the tapping, because of the rust protection).
There is a 20 m long and 6 mm thick steel cable mounted.
Large sheave for long life of the steel rope

Model	HW1700	HW1700R
Maximum Traction(20Mpa)	1700kg	1700kg
Operating Pressure	16-20Mpa	16-20Mpa
Hydraulic Valve	Manual	Remote
Motor Displacement	400cc/380Nm	400cc/380Nm
Rope(D x L)	6x20mm	6x20mm
Rope Speed(50 L/min hydraulic oil)	45m/min	45m/min
Dimensions	Length: 500 mm Length with pendant 560 mm Front width: 120 mm Rear width: 180 mm Width of bearing: +50 mm Width motor: + 205 mm Height: 250 mm 560x435x250mm	Length: 500 mm Length with pendant 560 mm Front width: 120 mm Rear width: 180 mm Width of bearing: + 50 mm Width motor: + 205 mm Height: 250 mm 560x435x250mm
Weight	50kg	55kg
