• Model NO.：YS Series
• Lifting Eye Type：Folded Eye
• Rope Core Type：Polyester Core
• Power Source：Hand
• Shape：Flat
• Certification：GS, CE, ISO 9001
• Sling Color：Orange
• Elongation：Less Than 7%
• Layer：1,2,3,4 Layer
• Width：25 and 30mm Series
• Transport Package：Plastic Shrink Film
• Specification：WLL 500kg to WLL 100T
• Trademark：Cargosafe or customised
• Origin：Zhejiang, China
• HS Code：5609000000
• Production Capacity：50000PCS, Month

Basic Info.

Model NO. YS Series Lifting Eye Type Folded Eye Rope Core Type Polyester Core Power Source Hand Shape Flat Certification GS, CE, ISO 9001 Sling Color Orange Elongation Less Than 7% Layer 1/2/3/4 Layer Width 25 and 30mm Series Transport Package Plastic Shrink Film Specification WLL 500kg to WLL 100T Trademark Cargosafe or customised Origin Zhejiang, China HS Code 5609000000 Production Capacity 50000PCS/ Month

Product Description

Product Description


Product Name	Polyester Eye-Eye type duplex webbing sling
Material	100% high tenacity polyester
Width	25mm to 300mm
Length	from 1m to 20,can be customized as require m up
W.L.L.	From 1Ton to 12 Ton or up
Safety Factor	SF 4:1,5:1,6:1,7:1,8:1 all available
Layer	2 ply
Color	According to EN standard or as required
Standard	According to Machinery Directive 2006/42/EC and EN1492-1:2008+A1
Elongation	>=7%
Lifting Eye types	1.Flat Eye 2.Reversed Eye 3.Folded Eye 1/2 Width from 1 Side 4.Folded Eye 1/2 width from 2 sides 5.Folded Eye 1/3 width Remark:all above 5 lifting eye types are available.
Sample Delivery Time	Within 3 days

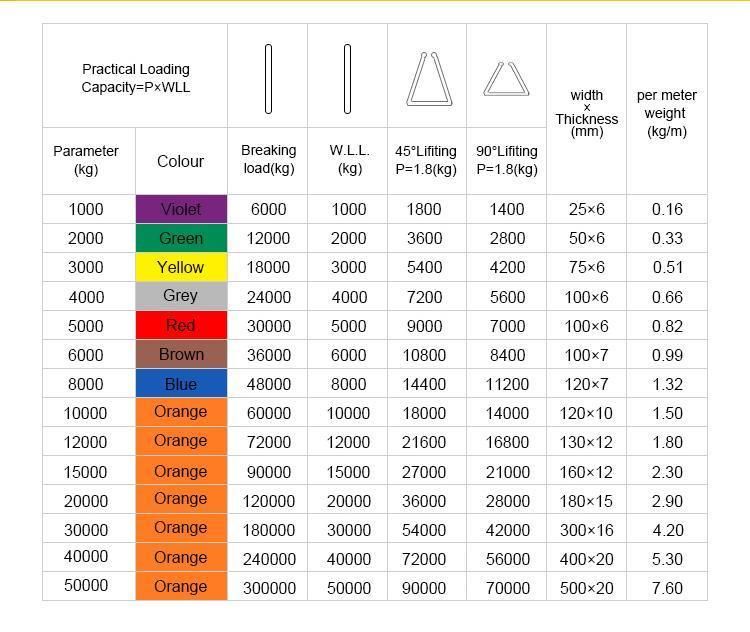

Technical Data




Detailed Display
Quality Control
Advantages

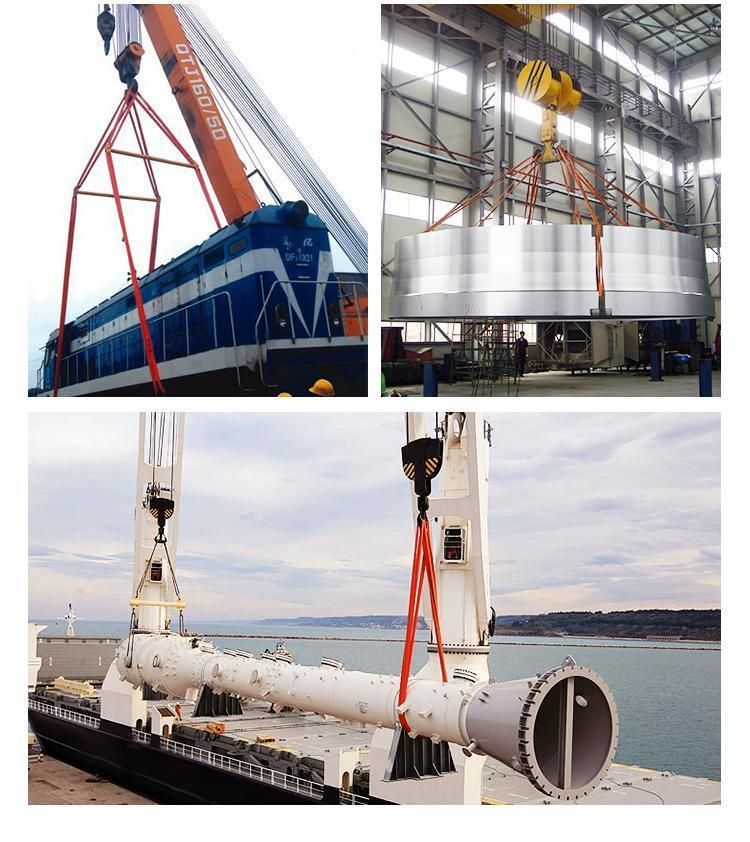

 Application


CAUTIONS for webbing sling!
-Do not exceed working load limit
-Prevent shock-loading.
-Where selecting a sling it is very important to consider the angles at which the sling will be used.
-Slings are subject to cutting when lifting items with sharp edges. In this case always use wear sleeves.
-Do not use a damaged sling.
-Never make knots in a sling.
-Never drag a sling from underneath a load that is resting on it.
-Chemical active environments can affect the strength of slings.
-Inspect slings weekly or more frequently depending on sling use.
-Always store slings in a cool dry and dark place when they are not in use for prolonged periods.
-Always read and understand the operating instruction before use.


About Yaletech






Hangzhou Yale Industrial Co., Ltd. is one of the leading manufacturers and suppliers of cargo control equipment and lifting equipment from China. With more then 10 years efforts, Hangzhou Yale has been developed from a small enterprise into a comprehensive group, integrating the R&D, manufacture and sale of cargo control equipments, lifting equipments and personal protective equipments.

   Covering an area of 40000 square meters, now we have over 300 employees and annual sales amount exceeds USD35 million and currently export 90% of production worldwide, especially to European and North American markets.Moreover, we have attained more than 12 intellectual property rights for our self-designed cargo lashing systems. This is also our competitive advantage. With well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customer satisfaction. Besides, all of our products have been strictly inspected before shipment. Most of our products have attained CE and GS certification

     We are dedicated to offer to our clients with Stable Quality and Competetive Prices for our products such as Cargo Nets , Safety Harness & Lanyards, Cargo Lashings, Webbing Slings, Composite Straps, Air Dunnage Bags, Bungee Cords, Ratchets and Hooks, etc.

"Quality, Innovation and Credibility Service" is our General Principle. Your Success is our Glory. Our aim is to help our customers gain more profit easily. We are making great efforts to achieve a Win-win Situation and sincerely welcome you to contact us!

    We are located in Hangzhou, warmly welcome you to visit us in Hangzhou China anytime convient for you.
