• Model NO.：TBL
• Load Capacity：200kg
• Working Height：4-15m
• Motor：3kw
• Power：Electric or Diesel
• Lifting Speed：50-90mm,S
• Dimension：5000*2000*3000mm
• Color：Customized
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shandong, China
• HS Code：84289090
• Production Capacity：50.000 PCS,Year

Basic Info.

Model NO. TBL Load Capacity 200kg Working Height 4-15m Motor 3kw Power Electric or Diesel Lifting Speed 50-90mm/S Dimension 5000*2000*3000mm Color Customized Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shandong, China HS Code 84289090 Production Capacity 50.000 PCS/Year

Product Description

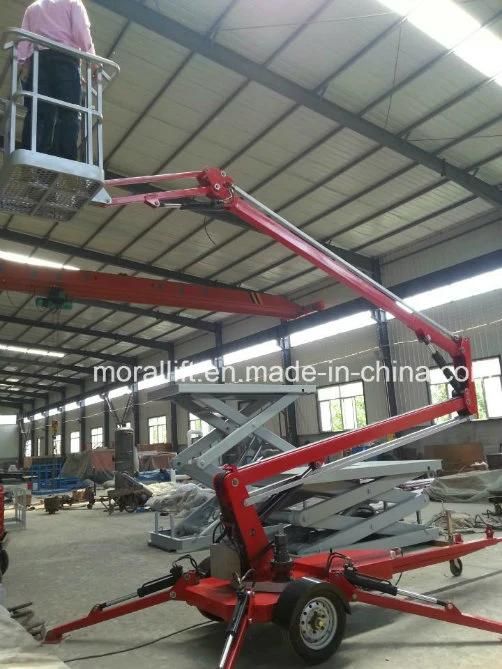

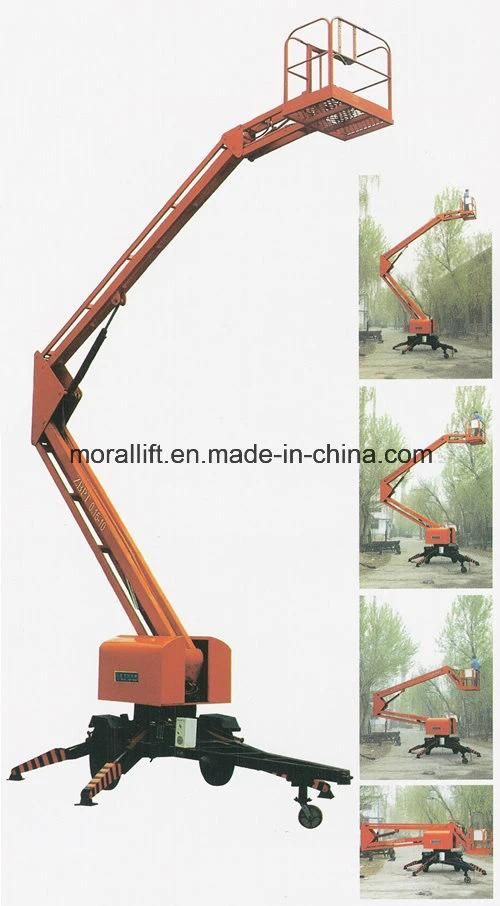

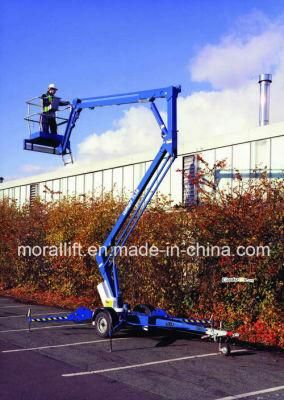

China Towable Hydraulic Articulating Boom Lift

Features:
1.Platform
Its platform can lift up ,extend horizontally, or turn around 360 degrees to stride across certain obstacles for work . so it can realize multipoint work in wide scope.
2..Legs
With 4 full-automatic hydraulic outriggers to steady the whole machine at any kind of ground conditions. When the road is uneven, four full-automatic legs or single leg can support the machine.
3.Drive
It can be diesel or storage battery according to customer's requirements.
4.Material
Adopt structural steel with high quality, handicraft for single-side welding and double-side molding,
5.Hydraulic cylinder:
Original import or domestic joint venture hydraulic cylinder, with high quality,  improving the reliability and prolonging  the work time,
6.Aloft work platform
Equipped with balanced valve, automatic pressure maintaining ,etc.
7. Advantages
The trailer boom lift is safe, reliable and durable. This type of cargo-lifts with characteristics of flexible moving, smoothly lifting, big convenient operation and so on.

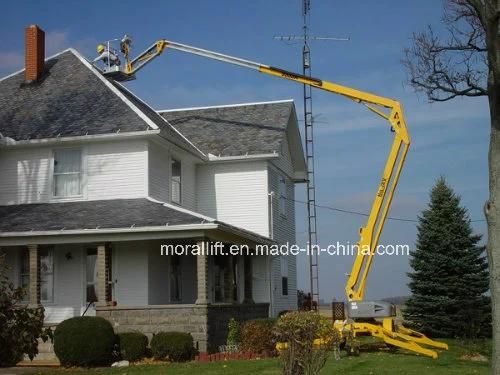

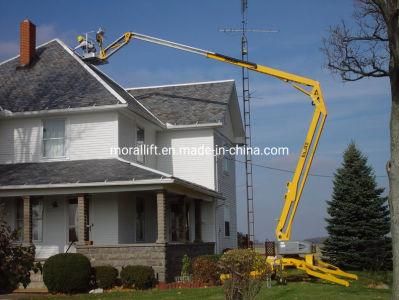

Application:
Trailer boom lifts are widely used in highways, boat yards shopping walls, stadiums, dock, station, marketplaces, gymnasiums and residential property, workshop,residential property, mining workshops and any other isometric maintenance operation of complex high-altitude construction  and other large range homework place.


Parameter:

type	Lifting height      (m)	Load (kg)	Horizontal span (m)	Platform size(L*W) (mm)	Dimension (L*W*H) (mm)	Power options	Weight (kg)
TBL0.2-8	8	200	3.5	900*700	5400*1600*1900	AC/DC/Diesel/Gasoline	1500
TBL0.2-10	10	200	4.5	900*700	54000*1600*1900	AC/DC/Diesel/Gasoline	1600
TBL0.2-12	12	200	7	900*700	5800*1600*2050	AC/DC/Diesel/Gasoline	1800
TBL0.2-14	14	200	8	900*700	6550*1800*2130	AC/DC/Diesel/Gasoline	2500
