11 Ton Mine Winch with Excellent Braking Performance for Coal Mine
Changsha Mining Equipment Co., Ltd.- After-sales Service：Video Training or Send Engineer to The Site
- Warranty：12 Months
- Type：Electric Winch
- Driven Type：AC
- Speed：1.2~2.6m,S
- Carrying Capacity：30 Kn
Base Info
- Model NO.：2JTP(B)-1.2*1.0P
- Tonnage：11 T
- Reel Number：2
- Running Mode：Stationary
- Feature：Explosion-Proof
- Certification：ISO 9001
- Standard：National Standards
- Drum Diameter：1.2 M
- Drum Width：1 M
- Center Distanse Between Two Drums：1.09m
- Max Static Tension Difference：20 Kn
- One Layer Lifting Height：165 M
- Two Layer Lifting Height：337 M
- Three Layer Lifting Height：512 M
- Wire Rope Diameter：20 mm
- Speed Ratio：20~31.5 I
- Motor Power：37~75 Kw
- Motor Speed：<= 1000 R,Min
- Transport Package：Null
- Specification：6.6X5.0X2.2 m3
- Trademark：CSME
- Origin：Changsha, China(Mainland)
- HS Code：8425110000
- Production Capacity：50 Sets,Month
Description
model drum Maximum
static
tension Maximum
static
tension
difference Lifting height/
Transport length steel wire rope speed
ratio Motor
Power motor
speed
≤ machinery
wieght number diameter width Center distance
between two
drums one
layer two
layer three
layer diameter speed PCS mm KN m mm m/s i KW r/min m Kg JTP-1.0×0.8
JTP-1.0×0.8P 1 1000 800 / 20 / 135 275 418 16 1.2
1.6
1.2
1.6 20
24
31.5 22
30
37
45 ≤1000 4.3×4.0×1.6 6200 JTP-1.0×1.0
JTP-1.0×1.0P 1000 169 345 524 4.3×4.0×1.6 6300 JTP-1.2×1.0
JTP-1 1200 1000 30 165 337 512 20 1.2
1.5
220
24
31.5 45
55
75
90 5.0×5.0×2.2 8500 JTP-1.2×1.2JTP-1.6×1.2
JTP-1.6×1.2P 1 1600 1200 45 216 441 670 24.5 2.0
2.5
320
24
31.5 110
132
160
220 6.4×5.4×2.2 13200 JTP-1.6×1.52JTP-1.2×0.8
2JTP-2 1200 800 890 30 20 131 268 408 20 1.2
1.5
220
24
31.5 37
45
75
75 6.2×5.0×2.2 10500 2JTP-1.2×1.0
2JTP-1.2×1.0P 1000 1090 165 337 512 6.6×5.0×2.2 11000 2JTP-1.6×0.9
2JTP-1.6×0.9P 2 1600 900 990 45 30 160 328 500 24.5 2.0
2.5
3.1
4.1 20
24
31.5 90
110
132
185 7.2×5.4×2.2 14500 2JTP-1.6×1.2
2JTP-1.6×1.2P 1200 1290 216 441 670 7.8×5.4×2.2 15200

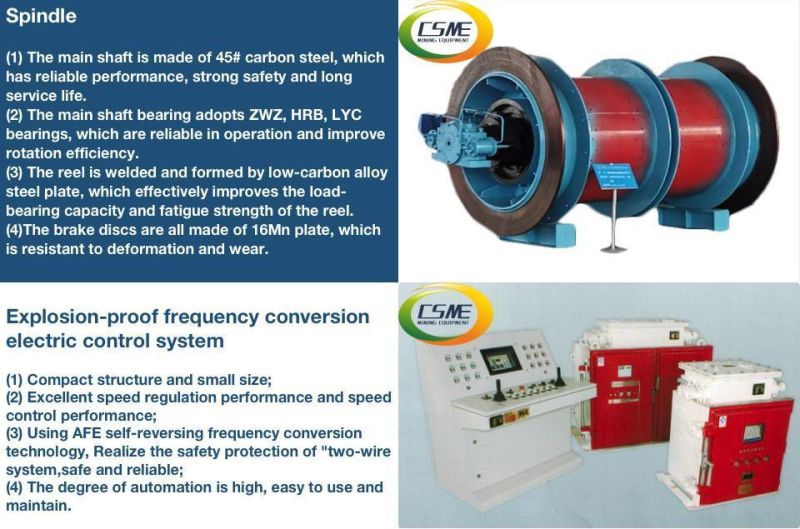

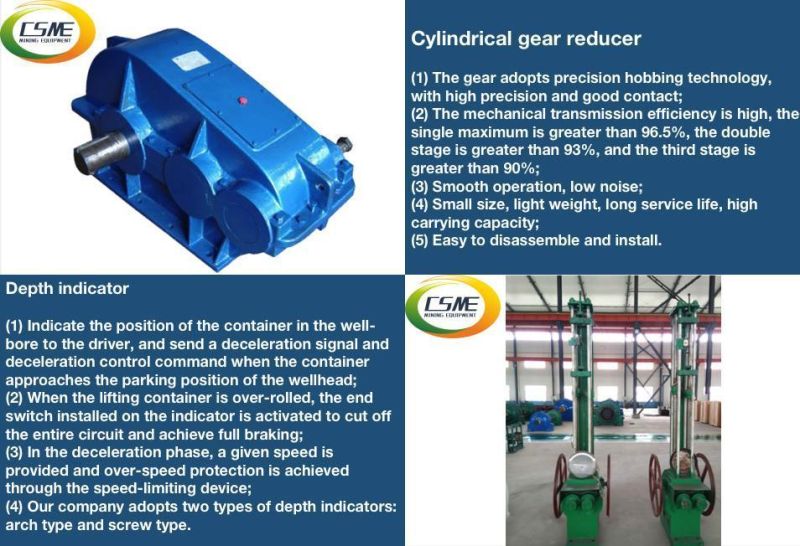

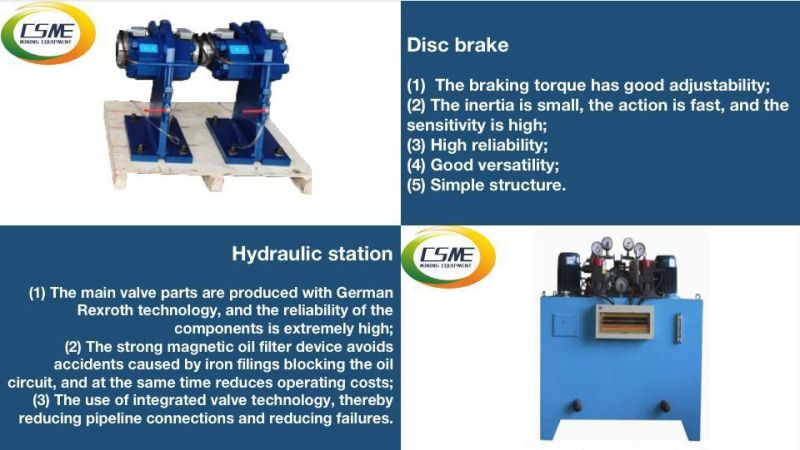

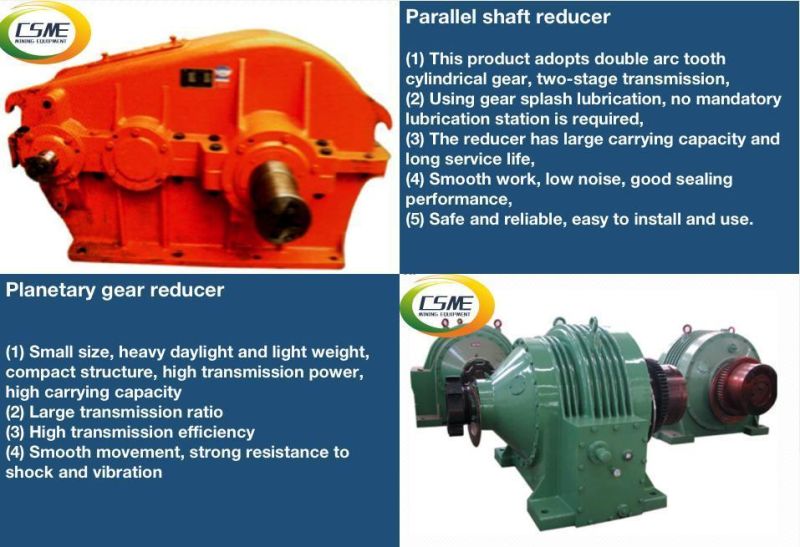

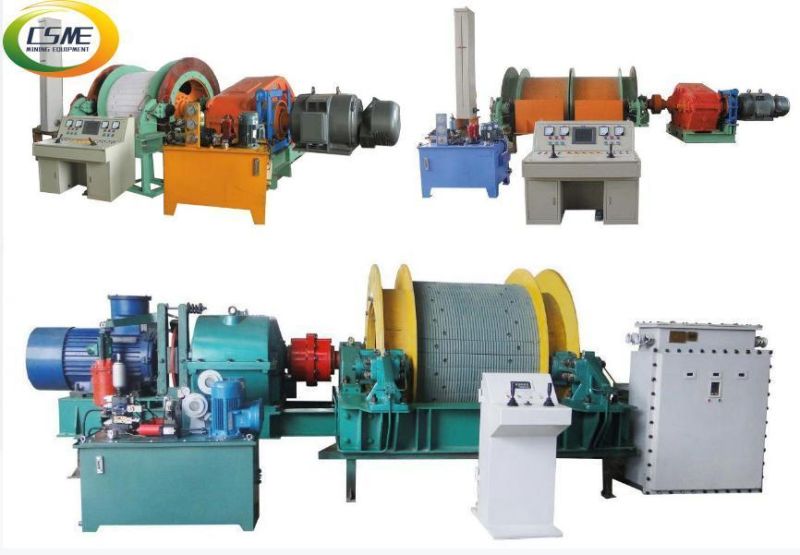

Product Details:

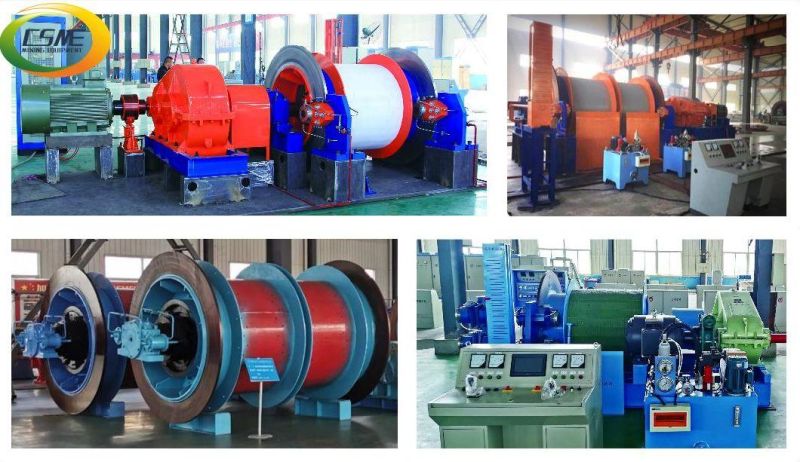

Factory workshop:

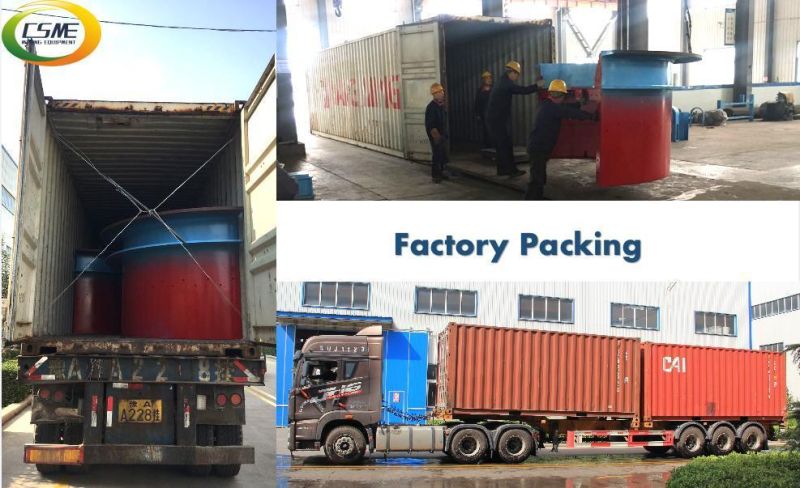

Pakage:
Our Service:
1. If you have specific requirements, we will actively discuss the details and implementable solutions with you, and then produce high quality products for you.
2. The company has professional engineers. Provide you with costomized services.
3. The company has professional business staff to answer your questions online 24 hours a day.
4. The after-sales service system is perfect, and solve problems for you in time.

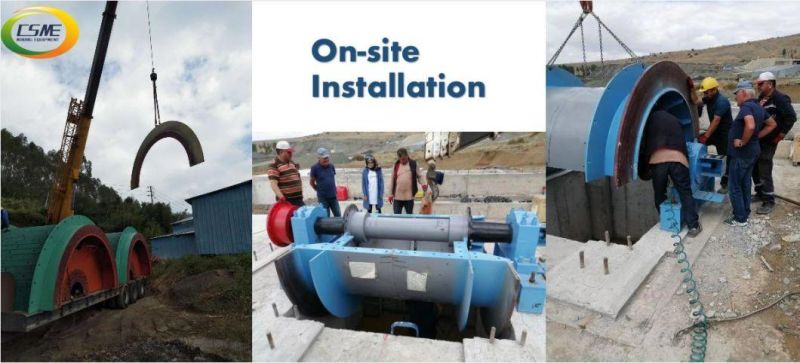

5. If you have installation requirements, we have a dedicated engineer to provide you with overseas guidance installation services.
