• Model NO.：RCS
• Condition：New
• Capacity (Ton)：5-1000 Tons Hydraulic Jack
• Stroke：Customized
• Max. Pressure：700 Bar
• Certificate：ISO9001:2008
• Transport Package：Carton
• Specification：ISO
• Trademark：Leadcrete
• Origin：China(Mainland)
• Production Capacity：1000 Set Per Month

Basic Info.

Model NO. RCS Condition New Capacity (Ton) 5-1000 Tons Hydraulic Jack Stroke Customized Max. Pressure 700 Bar Certificate ISO9001:2008 Transport Package Carton Specification ISO Trademark Leadcrete Origin China(Mainland) Production Capacity 1000 Set Per Month

Product Description

Single acting heavy lifting jack for sale


Specification
Its design is very compact, it is very suit for the place that closed height and max stroke are the main factor. The plunger of hydraulic jack is welding copper, the facial of plunger rod is plated hard chrome, the kinds of hydraulic jack is never falling off, abrasion resistance is very strong, high temperature paint, its facial is corrosion resistant and strike. Scraper seal of hydraulic cylinder can extend its life. Single acting design, spring return.



Details of RCS Series Low Height Hydraulic Jack
Low height hydraulic jack
1. Lightweight, low profile design for use in confined spaces
2. Plunger wiper reduces contamination, extending cylinder life
3. Grooved plunger end with threaded holes for mounting tilt saddlesIntegral handle on RCS-1002 for easy carrying
4. Plated steel plungers
5. Single-acting, spring return
 Technology Parameter:

Model	Tonnage Ton	Stroke mm	Closed height mm	Extend height mm	Cylinder In diameter	Outer diameter mm	Weight KGS
RCS-101	10	38	88	126	45	70	4.1
RCS-201	20	44	99	143	63	80	5
RCS-302	30	62	118	180	80	95	6.8
RCS-502	50	60	122	182	100	127	10.9
RCS-1001	100	45	120	165	140	180	20
RCS-1002	100	57	141	198	140	180	22.7
RCS-1530	150	30	120	150	180	230	30
RCS-1545	150	45	140	185	180	230	35
RCS-2002	200	60	162	222	200	250	55

Application:

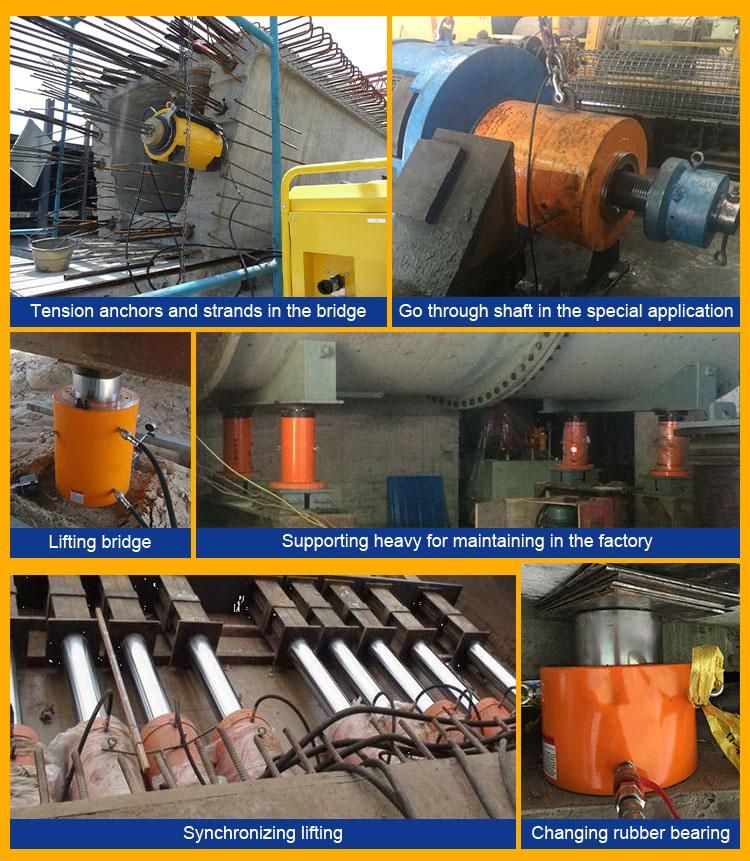

Our hydraulic jacks have been widely used for industrial field, such as steel plant, cement industry, chemical and refinery, bridge, railway, highway, hydropower station, ship repair, building, construction and maintenance.



Company information:

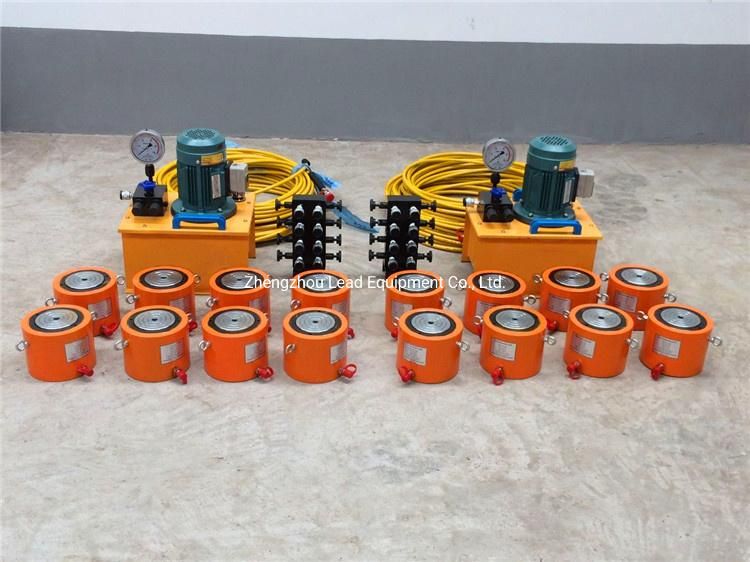

Zhengzhou Lead Equipment Co., Ltd. Have been in hydraulic tools industry since 2009. Our main products as follow:
Single acting hydraulic jack/cylinder/ram (10-100 tons)
Single acting hollow hydraulic jack/cylinder/ram (12-100 tons)
Double acting hydraulic jack/cylinder/ram (50-2000 tons)
Double acting hollow hydraulic jack/cylinder/ram (50-2000 tons)
Single acting hydraulic jack/cylinder/ram with lock nut (55-200 tons)
Thin type single acting hydraulic jack/cylinder/ram (10-200 tons)
Ultrathin hydraulic jack/cylinder/ram (10-200 tons)
Flange type hydraulic jack/cylinder/ram (10-630 tons)
Synchronous hydraulic jack (10-1000 tons)
Hydraulic accessories: high pressure oil hose, couplers, seal kits, mainfold, etc.
All the tonnage, stroke, height can be customized according to client's requirements, supply the best quality and serve. Our warranty is 2 years.
