• Model NO.：ND1T, 2T, 3.2T, 5T, 6.3T, 10T, 12.5T, 15T, 20T
• Certification：CE, ISO9001: 2000, Ce
• Condition：New
• Color：as Demand
• Feature：Low Head Room, Advanced Technology
• Running Mode：Moving
• Structure：Hook Crane
• Type of Work：Middle-Level
• Tower Crane Type：Electric Hoist
• Main Girder Form：Monorail Type
• Power Source：Electric
• Moving Type：Orbital
• Installation：Assembled, Overhead Crane, Gantry Crane
• Transport Package：Standard Exporting Pakage
• Specification：1t, 2t, 3t, 5t...100t
• Trademark：SHENGQI
• Origin：China
• HS Code：84251100
• Production Capacity：8000 Sets Per Year

Basic Info.

Model NO. ND1T, 2T, 3.2T, 5T, 6.3T, 10T, 12.5T, 15T, 20T Certification CE, ISO9001: 2000, Ce Condition New Color as Demand Feature Low Head Room, Advanced Technology Running Mode Moving Structure Hook Crane Type of Work Middle-Level Tower Crane Type Electric Hoist Main Girder Form Monorail Type Power Source Electric Moving Type Orbital Installation Assembled, Overhead Crane, Gantry Crane Transport Package Standard Exporting Pakage Specification 1t, 2t, 3t, 5t...100t Trademark SHENGQI Origin China HS Code 84251100 Production Capacity 8000 Sets Per Year

Product Description

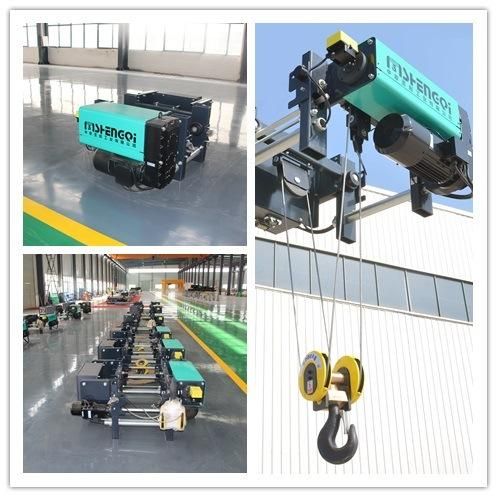

                                 ND Series Wirerope Hoist irerope electric hoist is a small-sized lifting crane, which can be mounted on overhead crane with single girder, double girder, gantry crane and jib cranes.


Features:
In General
*Compact structure, light weight, safe and reliable;
*Wide used and interchangeable of components;
*Lifting capacity strong, maintenance easy;
*Operation easy, lifting stable.

Lifting Motor
*Asynchronous Conical rotor motor with brake inside;
*Large torque, effective braking, compact structure;
*Stable operation, small size, light weight;
*Safe usage and easy maintenance;
*B or F class insulation, IP44, IP54 protection.

Travelling Motor
*Asynchronous Conical rotor motor with brake inside;
*Stable starting, effective braking;
*Assorted with reducer;
*B or F class insulation, fully covered;
*IP44, IP54 protection;
*IC0141 self-cooling.

Lifting Reducer
*Three-level dead axle helical gear rotating body, long service life;
*Gear and the axle made by alloy steel after heat treatment, high intensity;
*Box and cover made from superior cast iron, fully covered;
*Great speed ratio, high accuracy;
*Compact structure, silent operation, high efficiency;
*Machinery oils;
*Easy to assemble and disassemble.

Rope Drum
*Welding rope drum, light dead weight;
*Coil casing made from superior cast iron, high intensity;
*Rope guide avoids intertwining of wire rope, ensures normal operation;
*Extend the rope and drum's lifetime;
*No disturbance between rope socket;
*Easily interchangeable, high quality.

Steel Wire Rope;
*GB/T 20118-2006(6*37+1) hoisting wire rope;
*Anti-tensile, good flexibility;
*Good resistance to impact, long lifetime.

Hook
*20 high quality carbon steel;
*High security, triple static load;
*Spring-loaded sturdy safety catch, ensuring slings not release safe and reliable.

Fire stopper
*Adjustable mechanical memory structure, high sensitivity;
*Weight limiting stopper;
*preventing hook clashing the top;
*Safe and durable, easy to install and debug;
*Sensitive reaction, small and exquisite.

Overload limiter
*Preset related data according working condition;
*Show accurate weight value clearly;
*Modular, low power design, jam proof;
*Ensure the safe operation of electric hoist;
*Long service life of appliance components.

Electrical Part
*Reasonable layout of control cabinet, easy to repair;
*Protection class IP55;
*Optional main power source;
*Safe trolley conductor high conductivity, small pressure drop;
*Light dead weight, easy to install;
*Collector ensure continuing power supply.

Control Mode
*Pendant and remote control;
*Easy and safe control;
*Smooth operation;
*Waterproof Anti Fall.

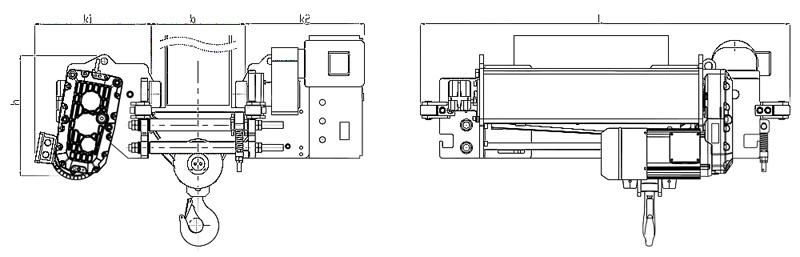

Type	Capacity	Lifting Height	Lifting Speed	Trolley Speed	Duty Class	b	K1	k2	L	h	Dead Weight
	t	m	m/min	m/min		mm	mm	mm	mm	mm	kgs
ND 1.6T-12M	1.6	12	1.6/10	2-20	M6	300	500	450	1270	400	370
ND 2.5T-12M	2.5	12	0.8/5.0	2-20	M6	350	500	450	1620	430	385
ND 3.2T-12M	3.2	12	0.8/5.0	2-20	M5	350	500	450	1620	450	405
ND 6.3T-12M	6.3	12	0.8/5.0	2-20	M5	450	490	450	1630	500	500
ND 8T-12M	8	12	0.8/5.0	2-20	M6	450	550	540	1460	650	640
ND 10T-12M	10	12	0.8/5.0	2-20	M5	450	550	540	1460	650	640
NH 10T-12M	10	12	0.66/4.0	2-20	M6	450	560	550	1500	700	730
ND 12.5T-12M	12.5	12	0.66/4.0	2-20	M5	500	560	550	1500	700	740
