• Model NO.：SOV-RSM series
• Condition：New

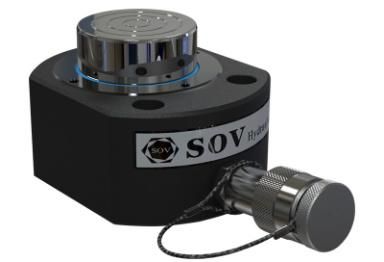

• Name：Hydraulic Cylinder 75 Ton with Factory (Sov-Rsm)
• Cylinder Capacity：5-150ton
• Stroke：6-16mm
• Cylinder Effective Area：6, 5-198, 1cm2
• Collapsed Height(a)：32-100mm
• Oil Capacity：4-317cm3
• Extended Height(B)：38-116mm
• Outside Diameter(D)：58*41-215*190mm
• Weight：1-26.3kg
• OEM：Yes
• Transport Package：in a Wooden Case
• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

 Product ParameterModel
NumberCylinder
CapacityStrokeCylinder
Effective AreaOil
CapacityCollapsed
Height(A)Extended
Height(B)Outside
Diameter(D)Weight ton (kN)mmcm2cm3mmmmmmkgSOV-RSM-501)5 (45)66,54323858 x 411SOV-RSM-10010 (101)1214,518435482 x 551,4SOV-RSM-20020 (201)1128,7325162101 x 763,1SOV-RSM-30030 (295)1342,1555871117 x 954,5SOV-RSM-50045 (435)1662,1996682140 x 1146,8SOV-RSM-75075 (718)16102,61647995165 x 13911,3SOV-RSM-100090 (887)16126,720385101178 x 15314,5SOV-RSM-1500150 (1368)16198,1317100116215 x 19026,3§  1) SOV-RSM-50 is fitted with an AR-400 coupler. Available as set, see note on next page.

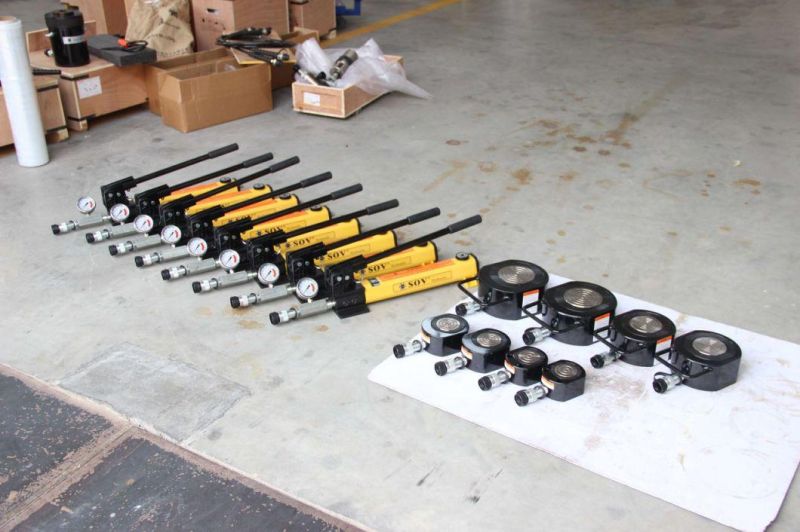

*Also available as cylinder-pump sets.

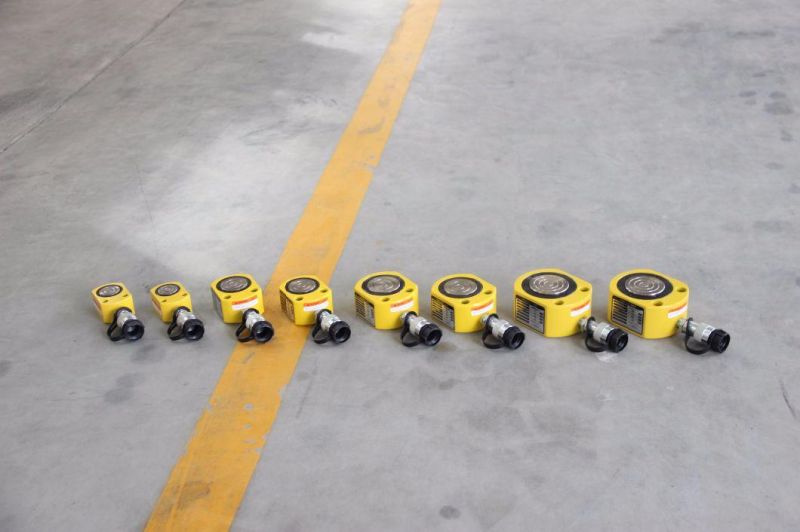

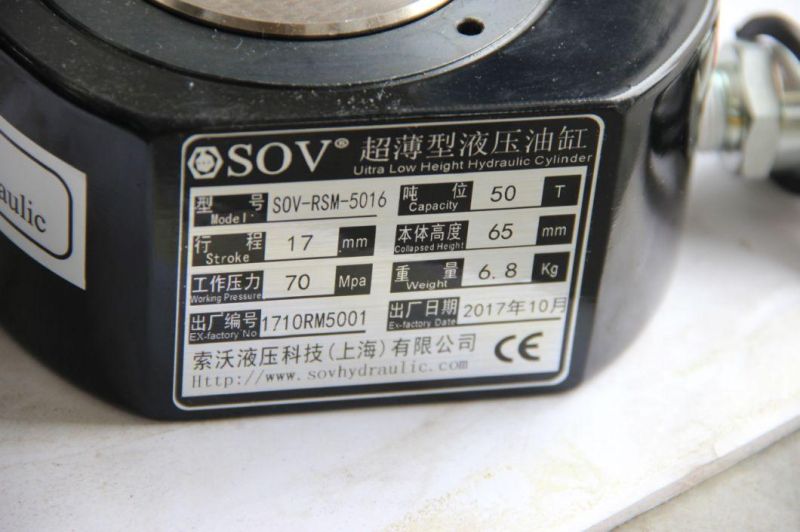

Photos

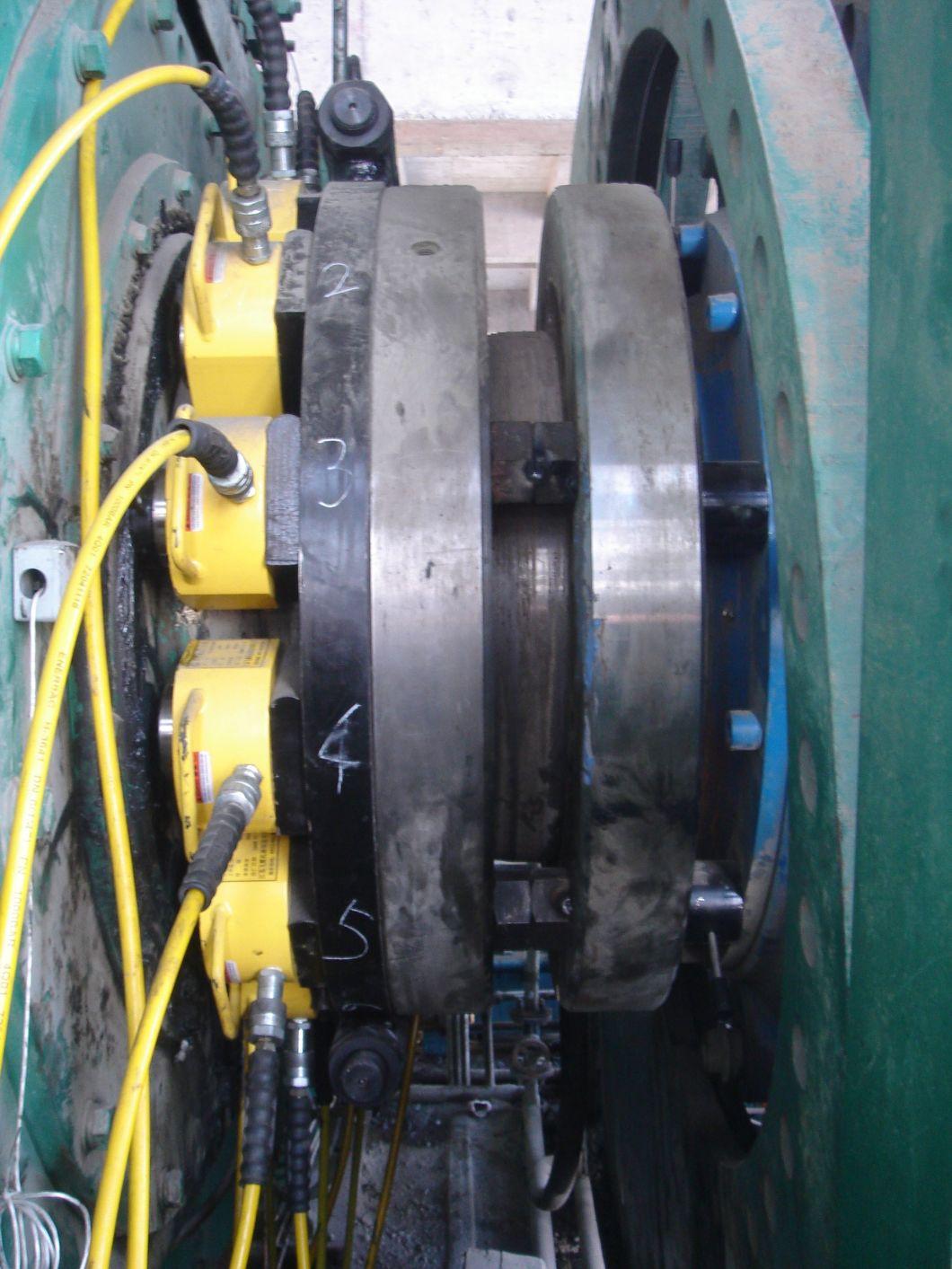

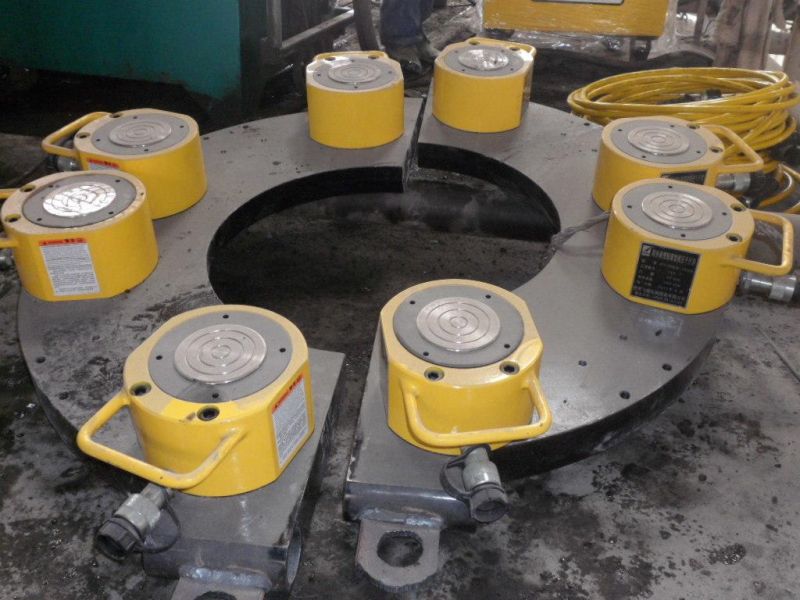

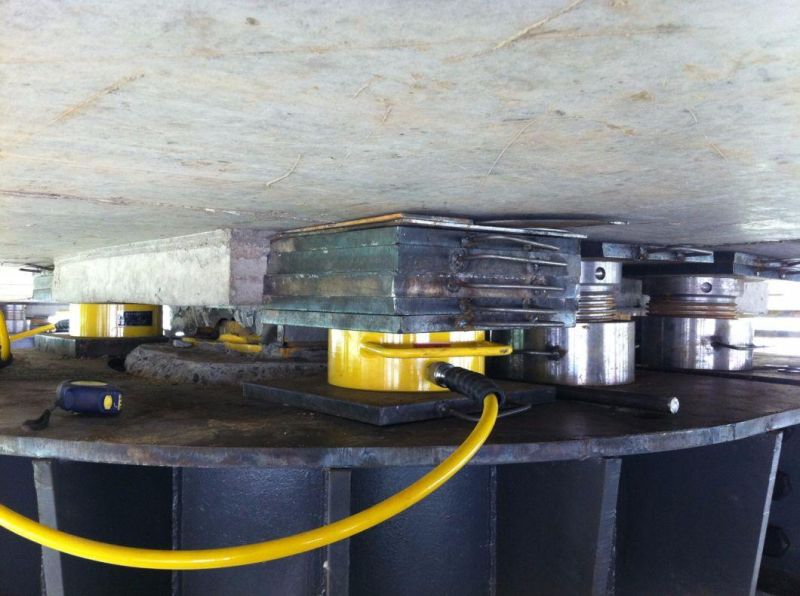

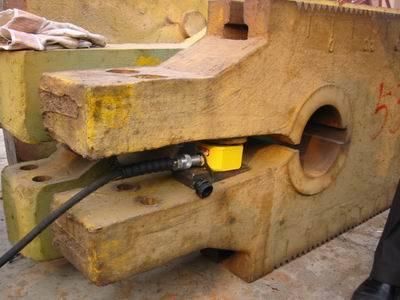

Applications

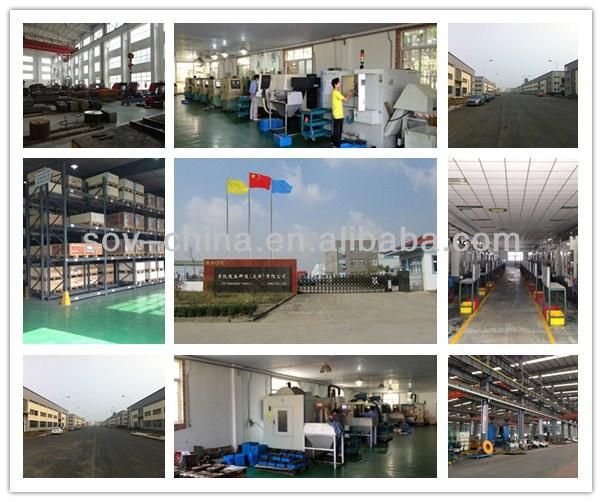

Company information:
SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.
SOV has always been focusing on providing customers with the most stable and the safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution. SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.

Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.

Our Main Products
? Hydraulic Cylinder (5ton-3000ton). --Single Acting--Double Acting--Hollow Plunger.
? PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
? Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
? Hydraulic Bolt Tensioner (M24-M600).
? Hydraulic Nut.
? Hydraulic puller (5-1000 ton).
? Hydraulic pump. --Hand and Electric Type (Max Up To 4000Bar).
? Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.
