• Model NO.：SOV-RSM Series
• Condition：New
• Name：20 Ton Small Hydraulic Cylinder
• Cylinder Capacity：5-150ton
• Stroke：6-16mm
• Cylinder Effective Area：6, 5-198, 1cm2
• Collapsed Height(a)：32-100mm
• Oil Capacity：4-317cm3
• Extended Height(B)：38-116mm
• Outside Diameter(D)：58*41-215*190mm
• Weight：1-26.3kg
• OEM：Yes
• Transport Package：in a Wooden Case

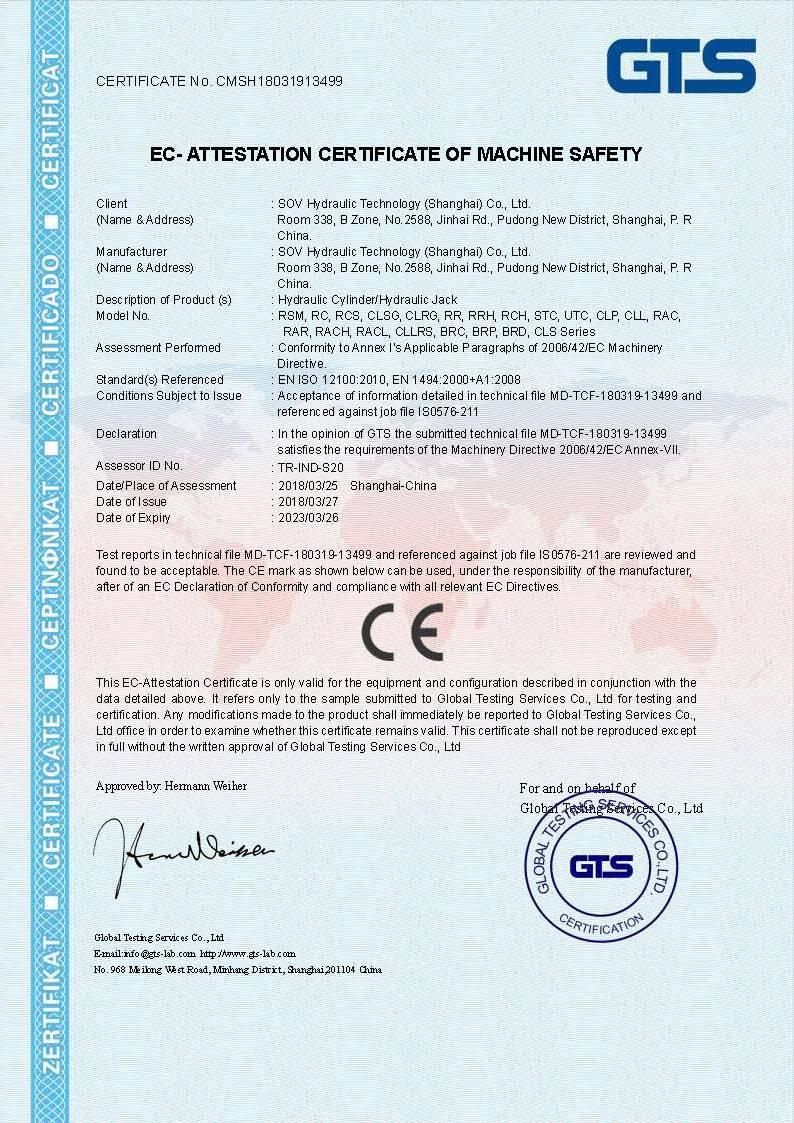

• Specification：CE, ISO
• Trademark：SOV
• Origin：China
• HS Code：8412210000
• Production Capacity：5000sets Per Month

Model
NumberCylinder
CapacityStrokeCylinder
Effective AreaOil
CapacityCollapsed
Height(A)Extended
Height(B)Outside
Diameter(D)Weight ton (kN)mmcm2cm3mmmmmmkgSOV-RSM-501)5 (45)66,54323858 x 411SOV-RSM-10010 (101)1214,518435482 x 551,4SOV-RSM-20020 (201)1128,7325162101 x 763,1SOV-RSM-30030 (295)1342,1555871117 x 954,5SOV-RSM-50045 (435)1662,1996682140 x 1146,8SOV-RSM-75075 (718)16102,61647995165 x 13911,3SOV-RSM-100090 (887)16126,720385101178 x 15314,5SOV-RSM-1500150 (1368)16198,1317100116215 x 19026,3§  1) SOV-RSM-50 is fitted with an AR-400 coupler. Available as set, see note on next page.

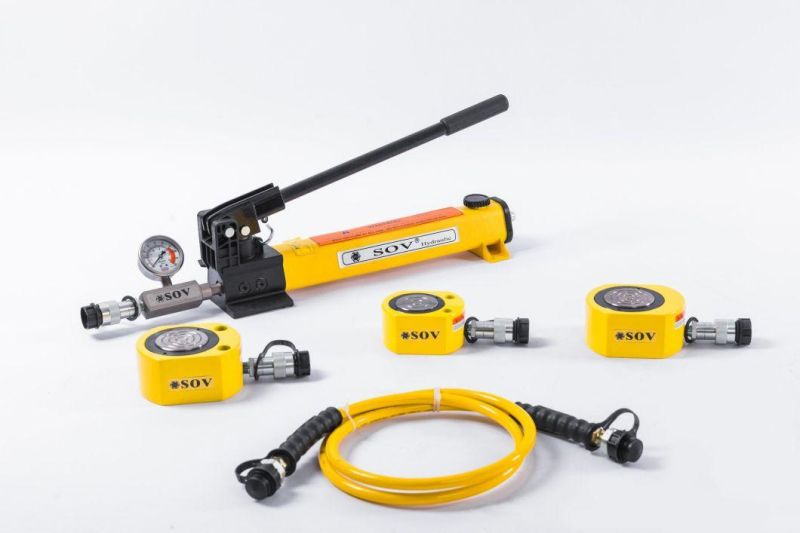

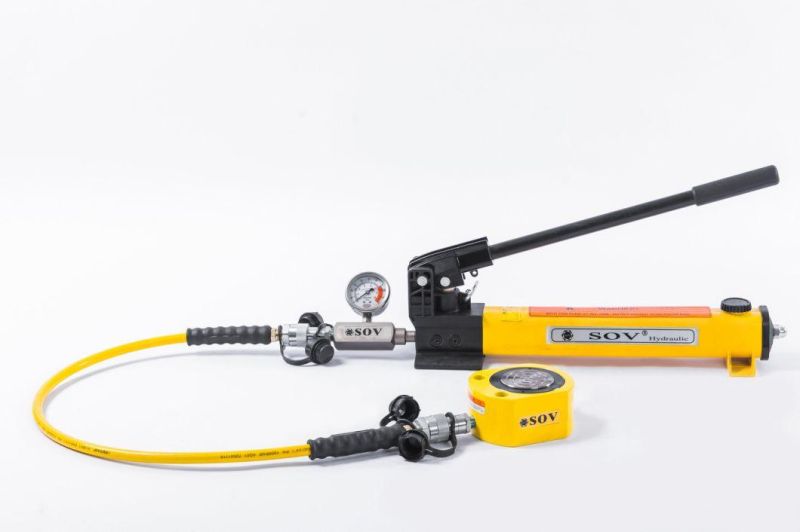

*Also available as cylinder-pump sets.

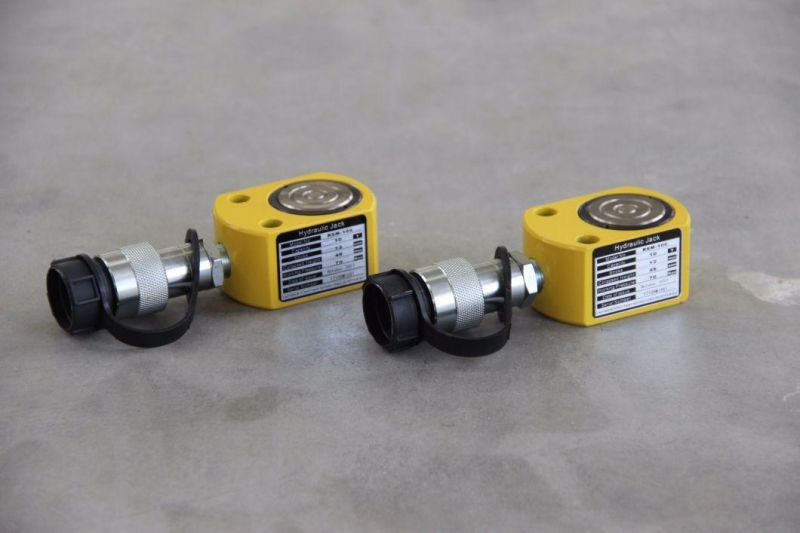

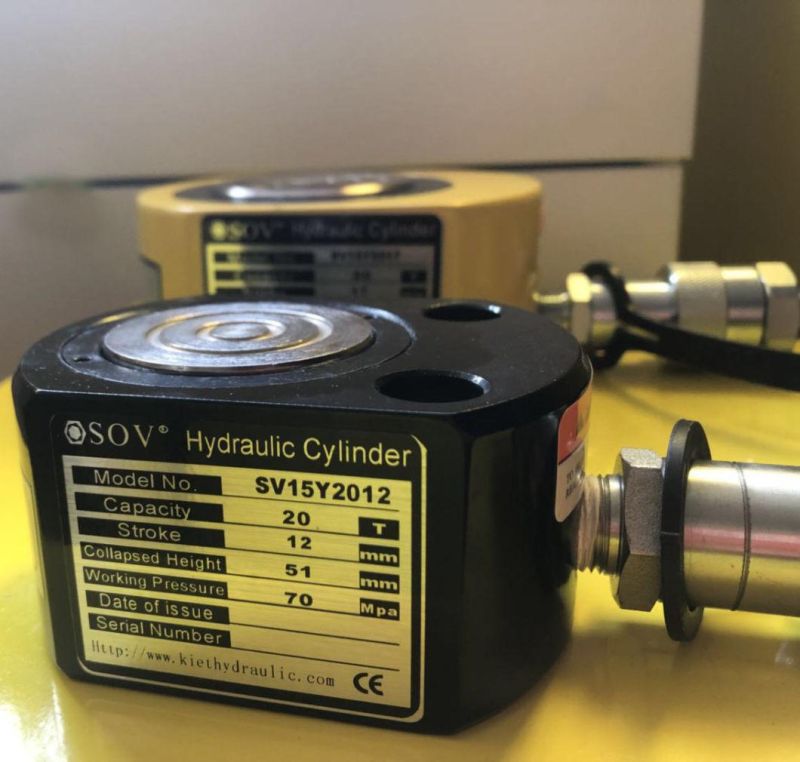

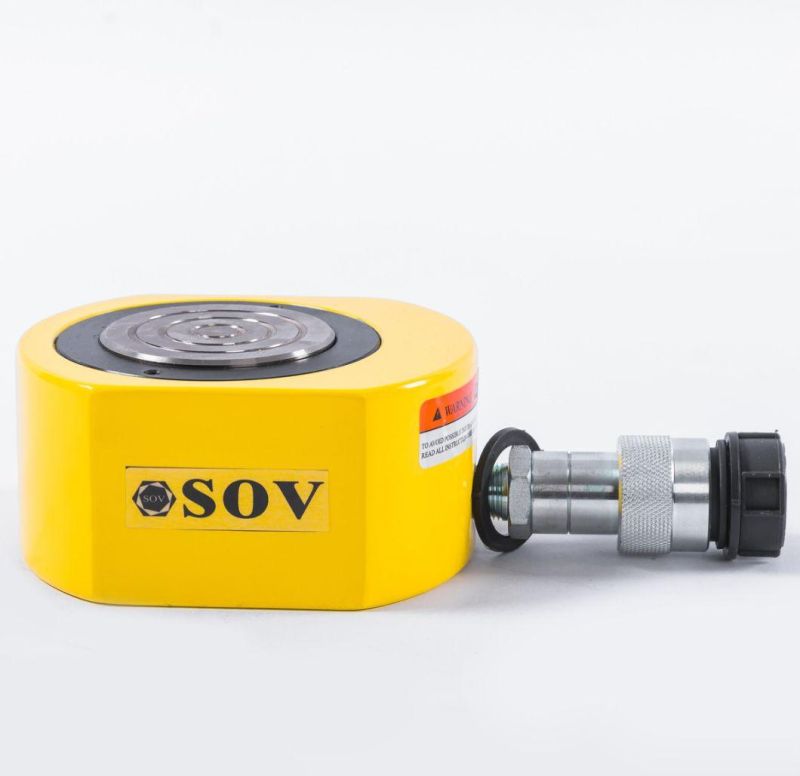

Photos

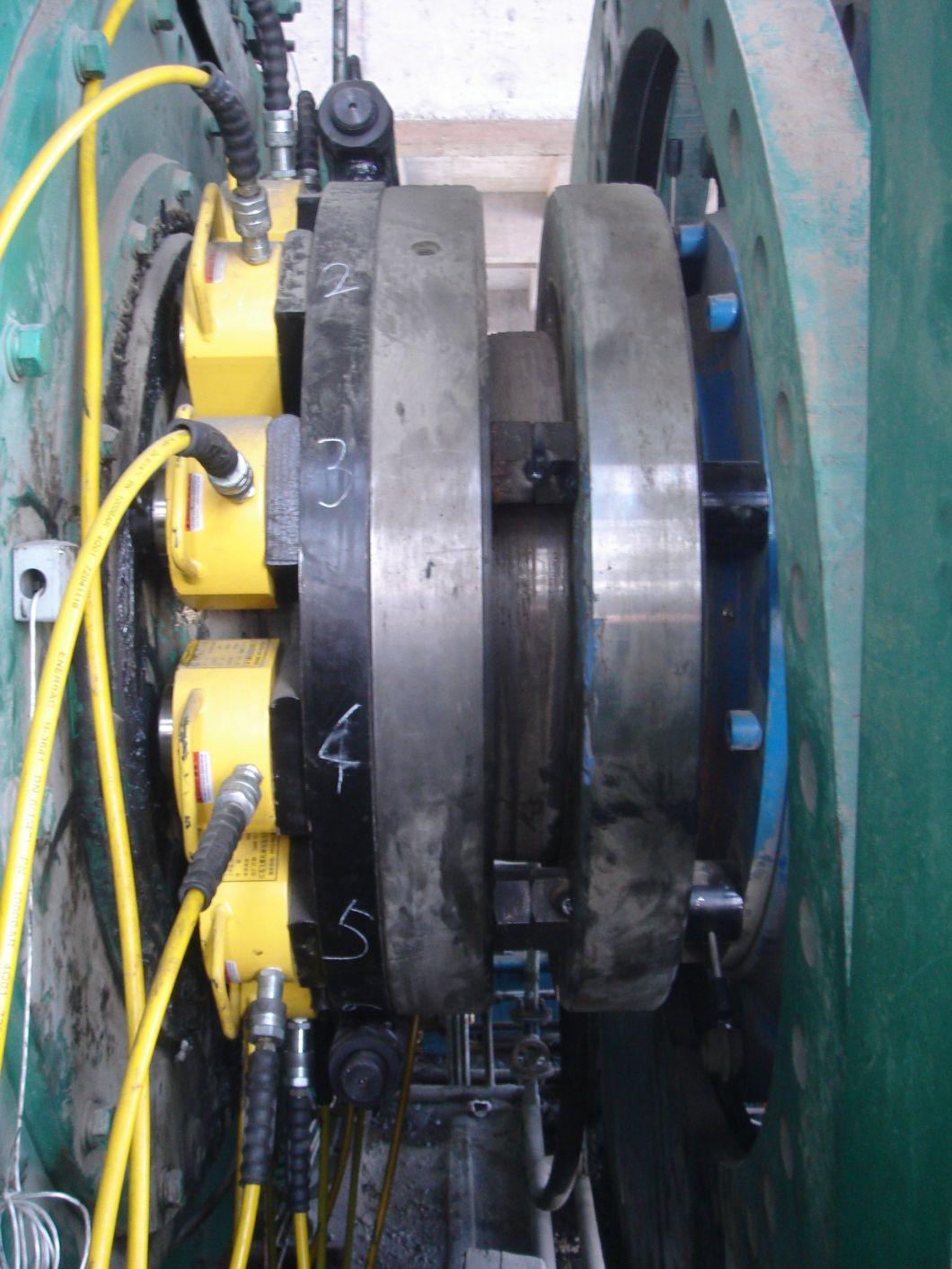

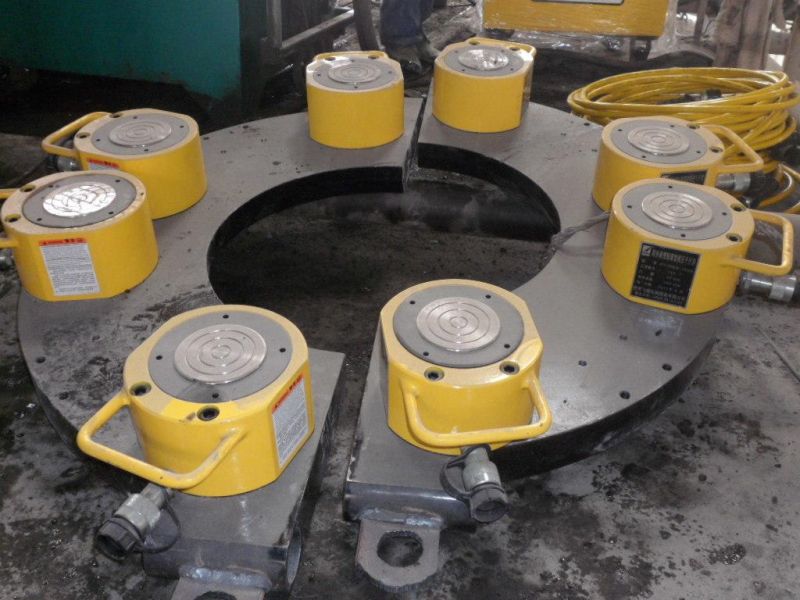

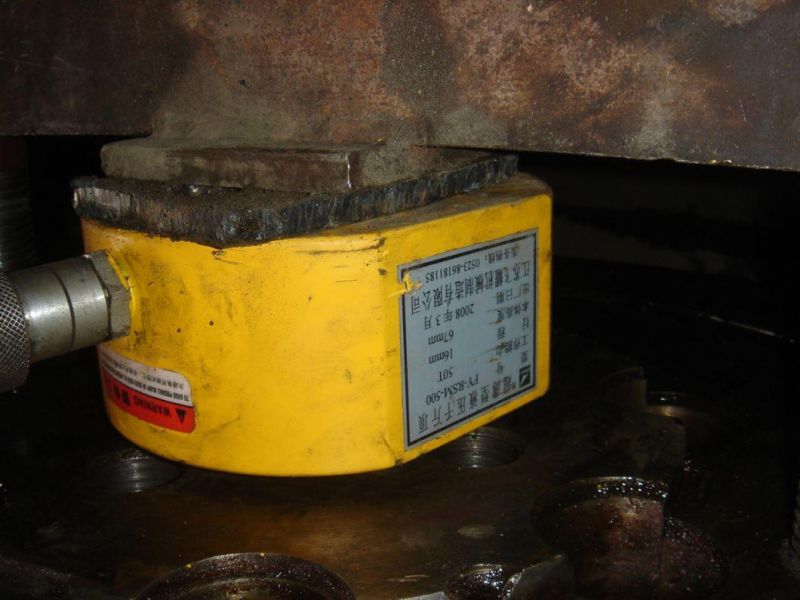

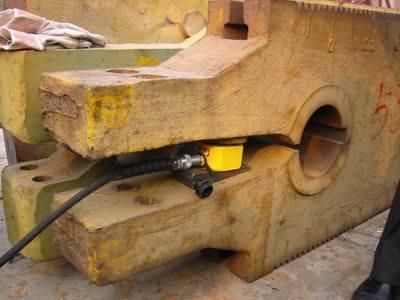

Applications







Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port




Company information
SOV Hydraulic Technology (Shanghai) Co., Ltd is the foremost hydraulic tools manufacturer and has the largest hydraulic tools factory in China. Since 1995, we've successfully transferred from OEM factory for ENERPAC & TITAN to create our own brand SOV with products and factory certified by CE and ISO 9001. SOV hydraulic tools have been exported to more than 40 countries in the global world market won by reliable quality, excellent after-sales service, competitive price and professional marketing service.


SOV has always been focusing on providing customers with the most stable and the safest hydraulic tools and helping customers to achieve the maximum efficiency with our suggested hydraulic solution. SOV earned good reputation from Chinese local market and international market for the following SOV main product lines,


Our Main Products
? Hydraulic Cylinder (5ton-3000ton). --Single Acting--Double Acting--Hollow Plunger.
? PLC Based Synchronous Lift Systems( 4-72 lift pointes for house translation or leveling, bridge supporting and tank welding supporting, etc.)
? Hydraulic/ Electric /Pneumatic Torque Wrench (100Nm-160000Nm).
? Hydraulic Bolt Tensioner (M24-M600).
? Hydraulic Nut.
? Hydraulic puller (5-1000 ton).
? Hydraulic pump. --Hand and Electric Type (Max Up To 4000Bar).
? Hydraulic Hose, Quick Coupling, Manifold and other hydraulic tools accessories.
