• Model NO.：HL
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：CE, ISO 9001
• Load Capacity：1000kg to 5000kg
• Lifting Height：1000mm to 4000mm
• Quantity of Hydraulic Cylinder：2
• Voltage：as Per Customers′ Local Standard
• Color：Yellow, Blue, Red or as Per Customer Requiement.
• Quality Warranty：12 Months
• Way of Installation：on Ground or Underground.
• Lowering Speed：Adjustable
• Name：Scissor Lift Platform
• Series：Lift Table
• Design：Scissor
• Self Height：85mm 105mm
• Material：Steel
• Antocorrosion：Yes
• Hydraulic Cylinder：2
• Transport Package：High Quality Paper Box
• Specification：CE, ISO, SGS
• Trademark：SAGAFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

Basic Info.

Model NO. HL Feature Explosion-Proof, Insulating, Spillover Valve Certification CE, ISO 9001 Load Capacity 1000kg to 5000kg Lifting Height 1000mm to 4000mm Quantity of Hydraulic Cylinder 2 Voltage as Per Customers′ Local Standard Color Yellow, Blue, Red or as Per Customer Requiement. Quality Warranty 12 Months Way of Installation on Ground or Underground. Lowering Speed Adjustable Name Scissor Lift Platform Series Lift Table Design Scissor Self Height 85mm 105mm Material Steel Antocorrosion Yes Hydraulic Cylinder 2 Transport Package High Quality Paper Box Specification CE, ISO, SGS Trademark SAGAFIRST Origin China HS Code 8428909090 Production Capacity 10000

Product Description

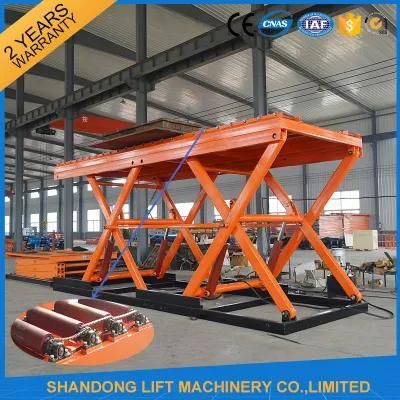

Electric Hydraulic Equipment Scissor Lift Table



Introduction:
Driven by the electric and hydraulic system.
Installed in the pit or on ground floor
Specification of scissor lift table:

Model	Loading Capacity(kg)	Platform Size (mm)	Base Size (mm)	Self Height (mm)	Travel Height (mm)	Lifting Time(s)	Power (V/Hz)	Net Weight(kg)
HL1001	1000	1450x1140	1325x1074	85	860	25	as per your local standard	357
HL1002	1000	1600x1140	1325x1074	85	860	25		364
HL1003	1000	1450x800	1325x734	85	860	25		326
HL1004	1000	1600x800	1325x734	85	860	25		332
HL1005	1000	1600x1000	1325x734	85	860	25		352
HL1501	1500	1600x800	1325x734	105	870	30		302
HL1502	1500	1600x1000	1325x734	105	870	30		401
HL1503	1500	1600x1200	1325x734	105	870	30		415
HL2001	2000	1600x1200	1427x1114	105	870	35		419
HL2002	2000	1600x1000	1427x734	105	870	35		405

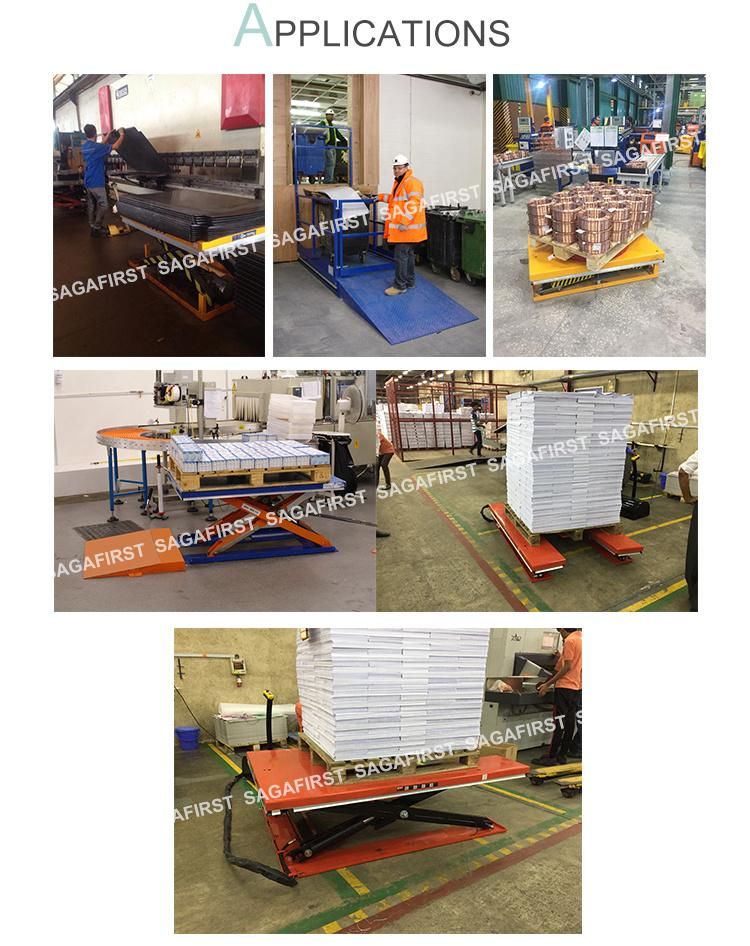

The scissor lift help workers raise or lower heavy items to convenient working levels, helping reduce the risk of strained back.
Advantages of SAGAFIRST lift table:
1.Standard ramp make it easier to load and unload.
2.High quality pump station make it lift and fall very stably.
3.Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4.Equipped with aluminum alloy blend-stop under the platform
5.Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
6.Explosion-proof valve stops platform lowering quickly when pipe bursts.
7.Up to American standard ANSI/ASME and Europe standard EN1570

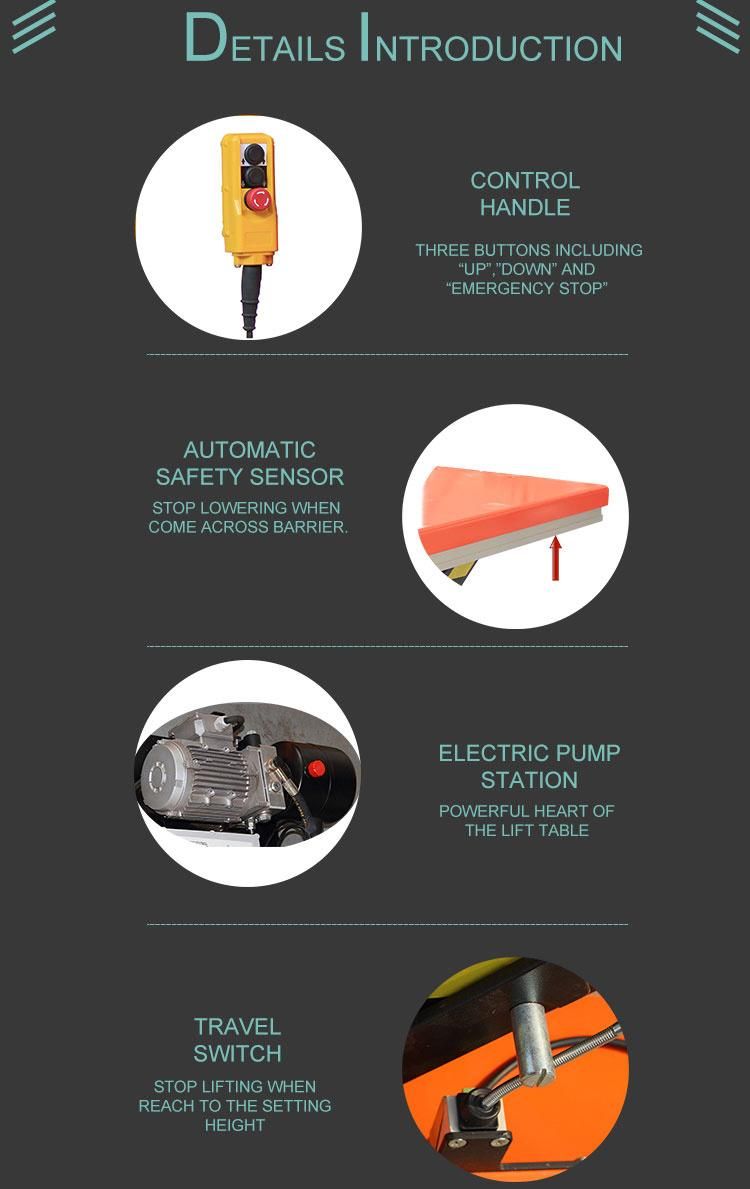

Safety Precautions of lift table:
1. Explosion-proof valves
2. Spillover valve
3. Emergency decline valve
4. Overload protection locking device.
5. Emergency decline valve
6. Overload protection locking device.

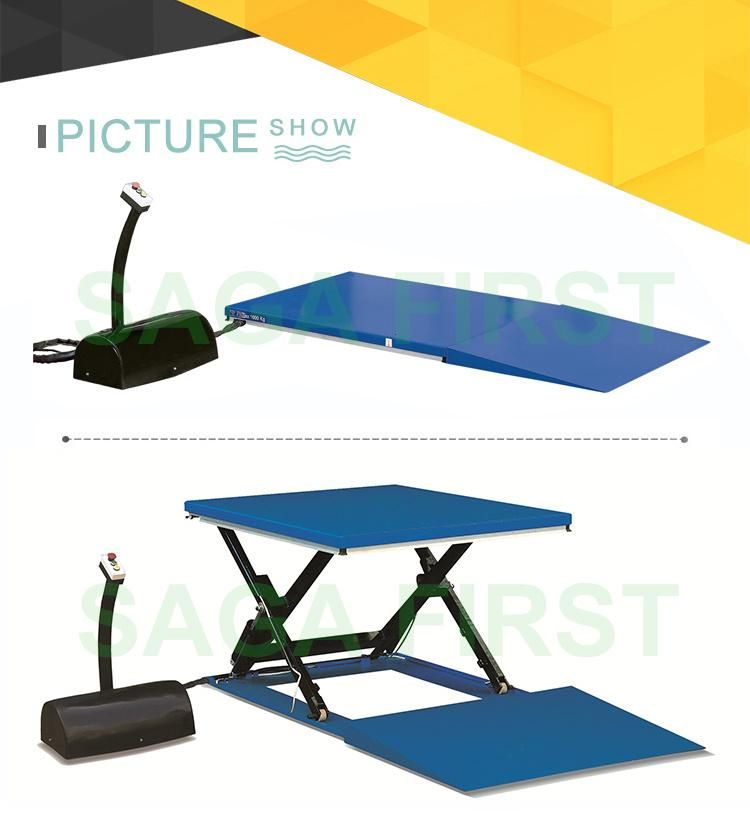

Picture for Your Review








Certificate:ISO and CE

Our Service:

1.We can design the customerized scissor lift table as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the scissor lift table break down to help you repair.

6.Parts of scissor lift table can be sent to you by express within 7 days if needed.

Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The scissor lift table adopt most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.

2.How can customer repair the scissor lift table.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breask down within one year,we can send the parts free of charge to you.

Factory Show:
