Stationary U-Shaped Lifting Table

Wuxi Buytool Industrial Equipment Co., Ltd.
  • Warranty：One Year
  • Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane

Base Info

  • Model NO.：HU600 HU1000 HU1500
  • Lift Mechanism：Scissor Lift
  • Carrying Capacity：Weight Level
  • Moves：Stationary
  • Driven Type：AC
  • Running Mode：Stationary
  • Feature：Explosion-Proof
  • Certification：GS, CE, ISO 9001
  • Capacity：600kg, 1000kg, 1500kg
  • Min. Height：85mm
  • Max. Height：860mm
  • Table Size：1450*985mm
  • Lift Time：25-35s
  • Color：Customizable
  • Net Weight：207-380kg
  • Certificate：Ce Approved
  • Scissor：Single Scissor Lift Table
  • Type：Stationary Lift Table
  • Usage：Warehouse, Material Handling
  • Delivery Time：One Month
  • Power：380V,50Hz; 220V,50Hz
  • Product Name：Electric Lift Table
  • Transport Package：1PC,Wooden Case
  • Specification：customizable
  • Trademark：Buytool
  • Origin：Made in China
  • HS Code：8427900000
  • Production Capacity：3000PCS,Month
  • Package size per unit product：150.00cm * 120.00cm * 48.00cm
  • Gross weight per unit product：375.000kg

Description

Basic Info.

Model NO. HU600 HU1000 HU1500 Lift Mechanism Scissor Lift Carrying Capacity Weight Level Moves Stationary Driven Type AC Running Mode Stationary Feature Explosion-Proof Certification GS, CE, ISO 9001 Capacity 600kg, 1000kg, 1500kg Min. Height 85mm Max. Height 860mm Table Size 1450*985mm Lift Time 25-35s Color Customizable Net Weight 207-380kg Certificate Ce Approved Scissor Single Scissor Lift Table Type Stationary Lift Table Usage Warehouse, Material Handling Delivery Time One Month Power 380V/50Hz; 220V/50Hz Product Name Electric Lift Table Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 3000PCS/Month

Packaging & Delivery

Package size per unit product 150.00cm * 120.00cm * 48.00cm Gross weight per unit product 375.000kg

Product Description

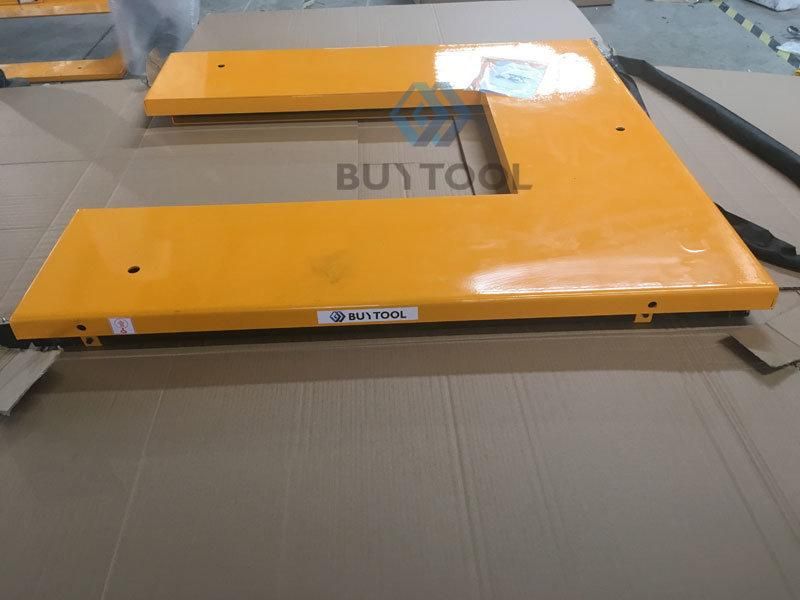

'U' Shaped Top Platform
Specially for handling pallets, no need for a pit or load ramps.
They are manufactured to all European safety standards including EN1570: 1990.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.
Oiless bushings on pivot points.
Quick assembly joint for oil hose.

Model  HU600HU1000HU1500
Capacity (kg)60010001500
Max. height H(mm)860860860
Collapsed height h(mm)8585105
Platform L×W(mm)1450×9851450×11401600×1180
Lifting Time (second)25~3525~3530~40
Power Pack (KW)380V/50Hz,AC1.1KW380V/50Hz,AC0.75KW380V/50Hz,AC1.5KW
Net Weight (kg)207280380


Stationary U-Shaped Lifting Table
Stationary U-Shaped Lifting TableStationary U-Shaped Lifting Table
Stationary U-Shaped Lifting Table



FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;
3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
