• Model NO.：HW
• Running Mode：Stationary
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Voltage：Local
• Color：Customized
• Material：Steel
• Plug/Socket：Local
• Transport Package：Wooden Box
• Specification：Custom
• Trademark：PLK LIFT
• Origin：China(Mainland)
• HS Code：8428909090
• Production Capacity：1000 Set,Month

Basic Info.

Model NO. HW Running Mode Stationary Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Voltage Local Color Customized Material Steel Plug/Socket Local Transport Package Wooden Box Specification Custom Trademark PLK LIFT Origin China(Mainland) HS Code 8428909090 Production Capacity 1000 Set/Month

Product Description

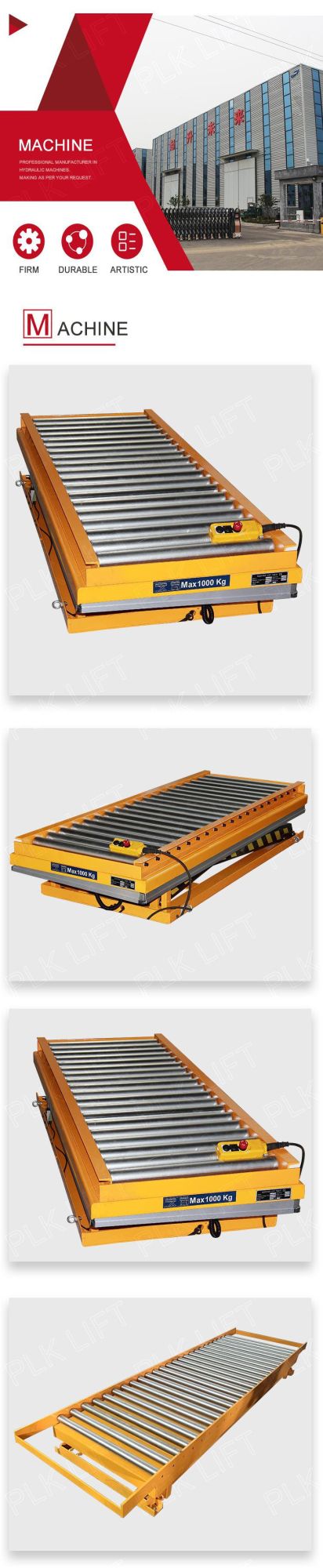

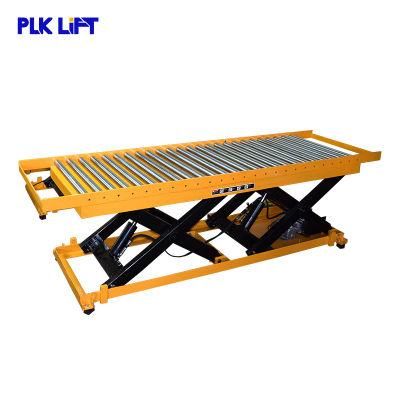

Electrical power hydraulic scissor lifting table
Scissor lift table adopts much stronger materials and parts to increase the load capacity and lifting height. We will make the scissor numbers, platform size, lifting height and load capacity as per your requests.

PLK electric scissor lift table is popular for its easy movement and operation. It's a wise solution to your needs.

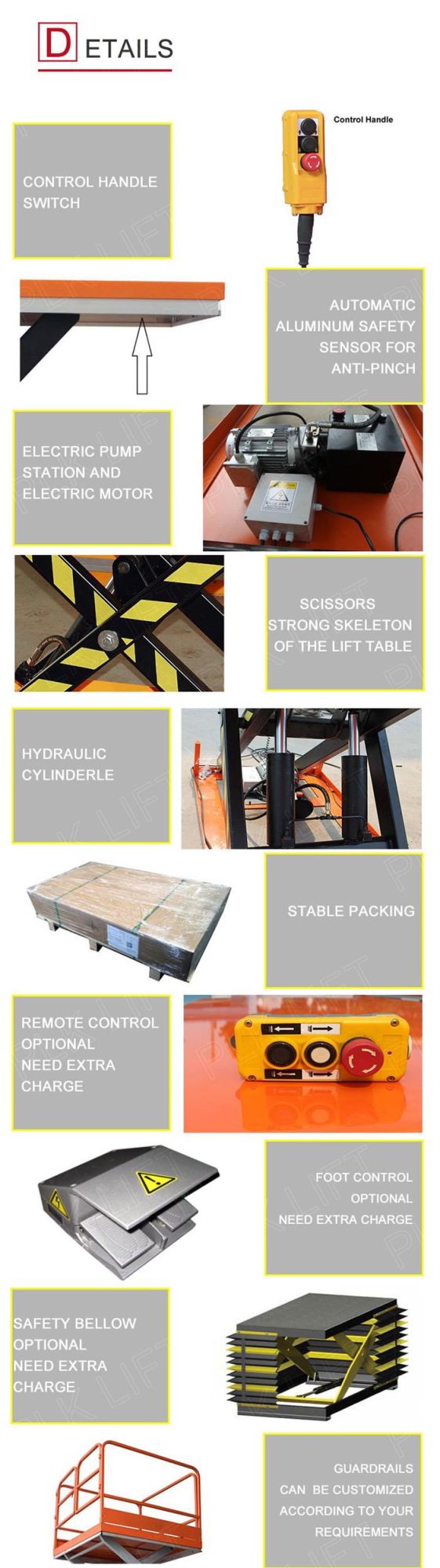

Features & Advantages:

1. Surface treatment: shot blasting and stoving varnish with anti-corrosion function.
2. High quality pump station makes scissor lift table lift and fall very stably.
3. Anti-pinch scissor design; main pin-roll place adopts self-lubricating design which prolong life span.
4. Removable lifting eye to help lift the table and install.
5. Heavy duty cylinders with drainage system and check valve to stop the lift table dropping in case of hose burst.
6. Pressure relief valve prevents overload operation; Flow control valve makes descending speed adjustable.
7. Equipped with aluminum anti-pinch safety sensor underneath the platform.
8. Up to American standard ANSI/ASME and Europe standard EN1570
9. Safe clearance between scissors to prevent wear and tear during operation.
10. Simple structure makes it much easier to operate and maintain.
11. Stop at the accurate designated position.

Safety Precautions:

1. Explosion-proof valves: protect hydraulic pipe, anti hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up, adjusting the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power is off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when coming across barriers.
