• Model NO.：VWL
• Feature：Explosion-Proof
• Certification：CE
• Material of Platform：Checkered slip-proof aluminum alloy
• Control Mode：Automatic Control
• Drive System：Hydraulic Drive
• Load Capacity：300kg
• Lifting Height：3m,customized
• Speed：80-100mm,s
• Platform size：1200*900mm,customized
• Type：Aluminum extruded
• Power Output：2.2KW
• Warranty：12month
• Transport Package：Plywood Packaging
• Specification：12CBM
• Trademark：MORAL
• Origin：Shandong of China
• HS Code：842890
• Production Capacity：2000units,Year

Basic Info.

Model NO. VWL Feature Explosion-Proof Certification CE Material of Platform Checkered slip-proof aluminum alloy Control Mode Automatic Control Drive System Hydraulic Drive Load Capacity 300kg Lifting Height 3m/customized Speed 80-100mm/s Platform size 1200*900mm/customized Type Aluminum extruded Power Output 2.2KW Warranty 12month Transport Package Plywood Packaging Specification 12CBM Trademark MORAL Origin Shandong of China HS Code 842890 Production Capacity 2000units/Year

Product Description

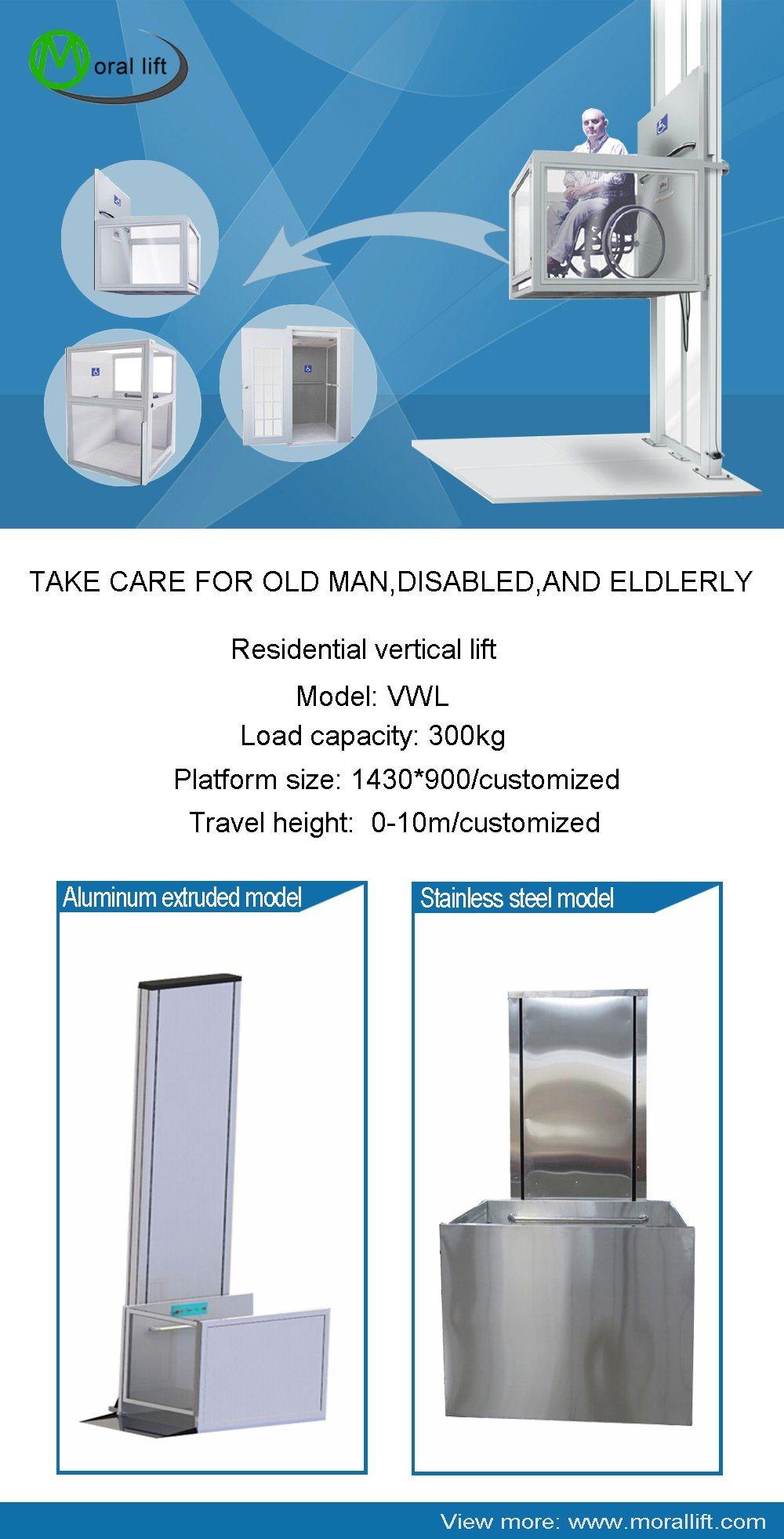

Vertical Lifting Table Residential Villa Elevator with Customized Height


If you have difficulty using stairs, or use a wheelchair or mobility scooter, then a residential vertical lift is a great way to ensure that you can always safely and conveniently enter and exit your home. All of our porch lifts are designed to be completely resistant to the harshest weather conditions and are an affordable alternative to residential elevators.



MAIN FEATURE
1.load:300kg
2.lifting height: 3000mm/customized
3.platform size:1430*900mm/customized
4..speed:80-100mm/s
5..vertical lifting structure
6..hydraulic drive,smooth and safe lifting

WHEELCHAIR LIFT
1.vertical elevating system. This durable and easy-to-use vertical lift is suitable for indoor or outdoor applications requiring vertical transportation up to 6 meters.
2.It can be directly installed into the ground without architectural supporting pits     and easy to operate.
3.Its hydraulic system offers passengers smooth and comfortable transportation and different safety devices remove every hiding risk.
4.Emergency Descending:When there is no power or malfunctions, manually descend the device.
5.It's suitable for large-sized newly-built residential estates and those areas where there is compact land resource and etc.
6.this machine max.lifting height is 10000mm.

PARAMETER

Platform size	1430mm(L)* 900mm(W)
Dimension	1430mm(L)*1400mm(W)
MaxPlatform Height	3000mm
Min Platform height	80mm
Configuration	Open through or front and side entrances
Speed	80-100mm/s
Load capacity	300KG
Power Output	2.2KW
Power Input	220V/50HZ/ (or customized for local power supply)
Drive System	Hydraulic
Control Mode	Automatic
Drive Control	Self-resetting system
Overload	Protection Over current relay
Material of Platform	Checkered slip-proof aluminum alloy
Painting	Plastic electrostatic spraying
Guard panel & drivecabinet (framework)	Aluminum Alloy / 304 stainless steel
Operation Panel	Polished aluminum Alloy

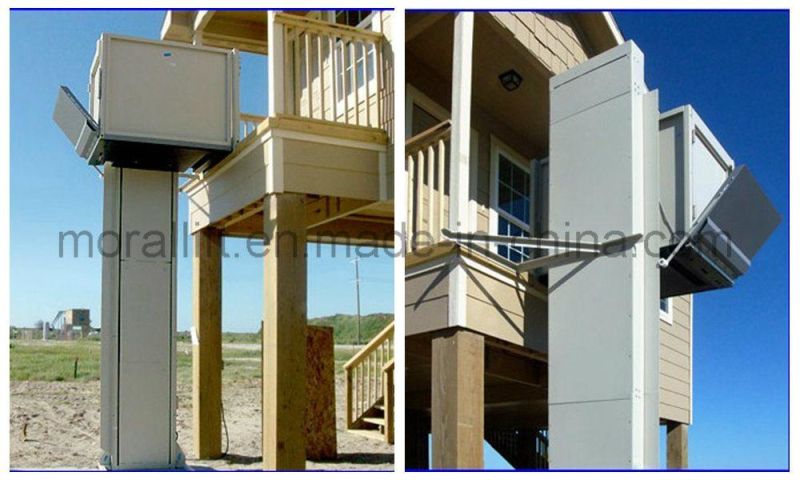

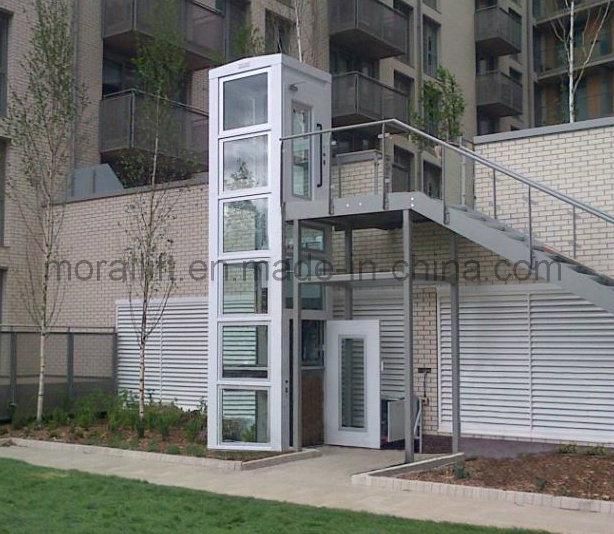

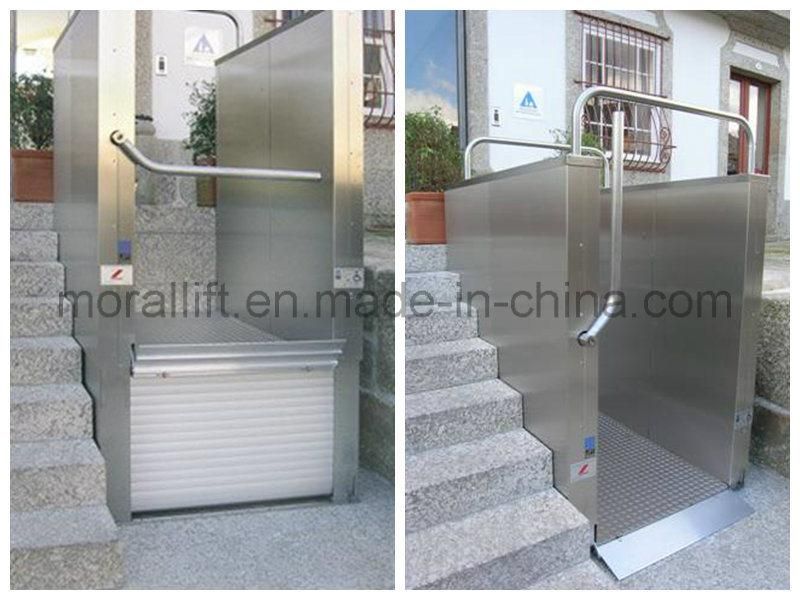

PRODUCT SHOW







AFTER SALES
1. User-friendly English manual for machine installation using and maintenance.
2. One year warranty for whole machine without man-made fault;
3. We will send you parts for free if there are any non-human factors problem during warranty time
4.24-hours technical support by email, telephone or other communication online.
5. We could reply you in 2 hours after received your any questions even on weekend and holiday, engineers are available to your country if necessary.


OUR SERVICE
1. All the machines will b full tested before shipment.
2. The total machine guarantee for 12 months.
3.24 hours technical support-email, telephone or video online.
4. User-friendly English manual for machine using and maintaining.
5. Several sets wearing parts will be free for you.

COMPANY
Welcome to Moral Lift China, we are a professional manufacturer of wheelchair lift. we have fine equipment, advanced technology,and complete testing equipment.our promise: quality first, customer above. we will customize for your every inquiry!




WHY CHOOSE US
1. Professional design drawing for the confirmation in case of any misunderstanding.
2. All products will be produced strictly according to CE quality management system.
3. Every lead rail lift must be tested before delivery,100% qualified.
4. Detailed rust-removing and powder painting process.
5. 5 years warranty for main structure and 1 year warranty for electrical parts.

YOU MAY LIKE



BUYING TIP
If you are interested in our products, please provide the following parameters:
1. Load capacity (kg)
2. Platform size (mm)
3. Lifting height (mm)
The best price will be provided once the above confirmed.

We are looking forward to establishing relationships with you in the near future. CONTACT US!!!
