• Model NO.：N-03
• Condition：New
• Flow：3L , Min
• Motor Power：3kw
• Use Voltage：380V
• Tension Strok：≤ 200mm
• Transport Package：Wooden Case
• Trademark：ZT
• Origin：China
• Production Capacity：1000set,Mouth

Basic Info.

Model NO. N-03 Condition New Flow 3L / Min Motor Power 3kw Use Voltage 380V Tension Strok ≤ 200mm Transport Package Wooden Case Trademark ZT Origin China Production Capacity 1000set/Mouth

Product Description

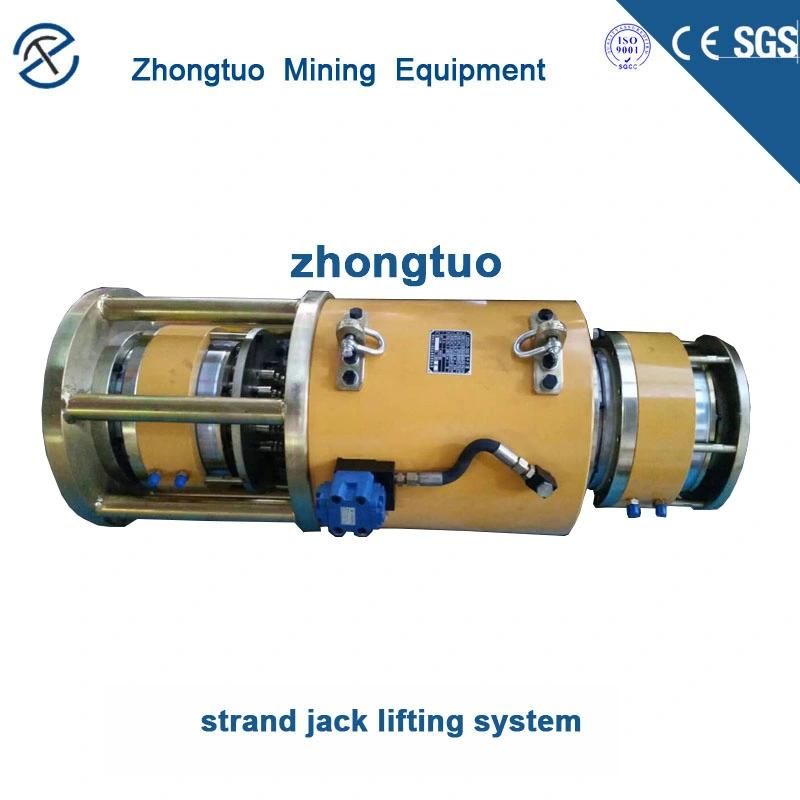

Zt-01 Hydraulic Post Tension Anchor PC Strand Stressing Jack:
Hydraulic tension jack: large tonnage 65-600 tons jack; bridge steel strand jack.
1 2 or 4 jack synchronous tension construction
2 computer to accurately monitor the tension data.
3 Increases labor costs by 80% for tension construction.
Focus on customers, customer service

Zt-01 Hydraulic Post Tension Anchor PC Strand Stressing Jack Description:

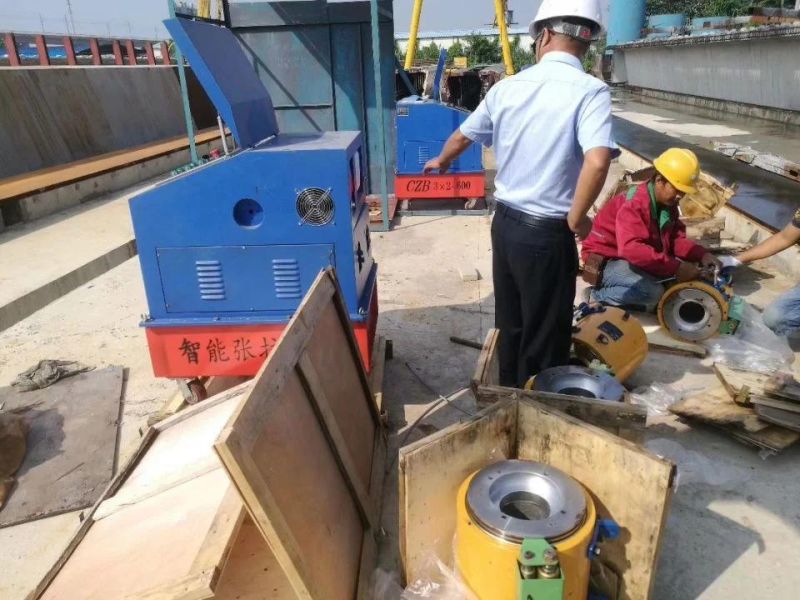

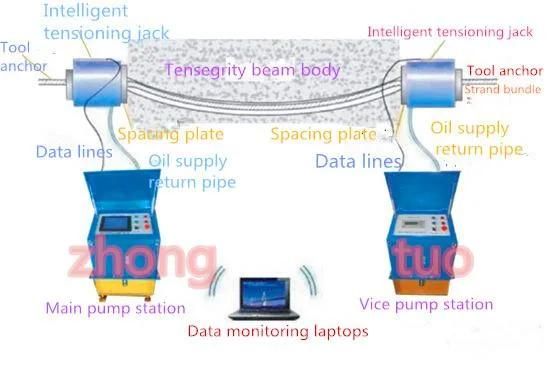

intelligent tensioning equipment is designed to meet the needs of a variety of roads, bridges and other projects in the construction of prestressed beam tension and design, the system consists of four jacks, two electric hydraulic stations, four high-precision pressure sensors, 4 high-precision displacement sensor, inverter, PLC controller, host, wireless data transmission system and other components, which can simultaneously control the four jack synchronous work, constitute a balanced tension. It is realized by the computer preset tension process, one key operation to realize the automatic control of the tensioning process, the elongation value display, the real-time curve acquisition and check alarm of the tension data, the result of the recording record, the wireless data transmission and the network transmission, Post Tension Intelligent Tensioning


Zt-01 Hydraulic Post Tension Anchor PC Strand Stressing Jack Parameters:

Tension system technical indicators Force system accuracy 0.3% F.S Displacement measurement accuracy 0.5% Double top pair pull unbalance 5KN Hydraulic station working voltage 380 ± 10% Control system Operating voltage 220 ± 10% Use temperature -20 ºC -50 ºC

Hydraulic station Maximum oil pressure 60MPa Flow 3L / min Motor power 3KW Use voltage 380V

Tensioning jacks Nominal tension of 270 ~ 6000KN Tension stroke ≤ 200mm Stroke tolerance ± 2mm

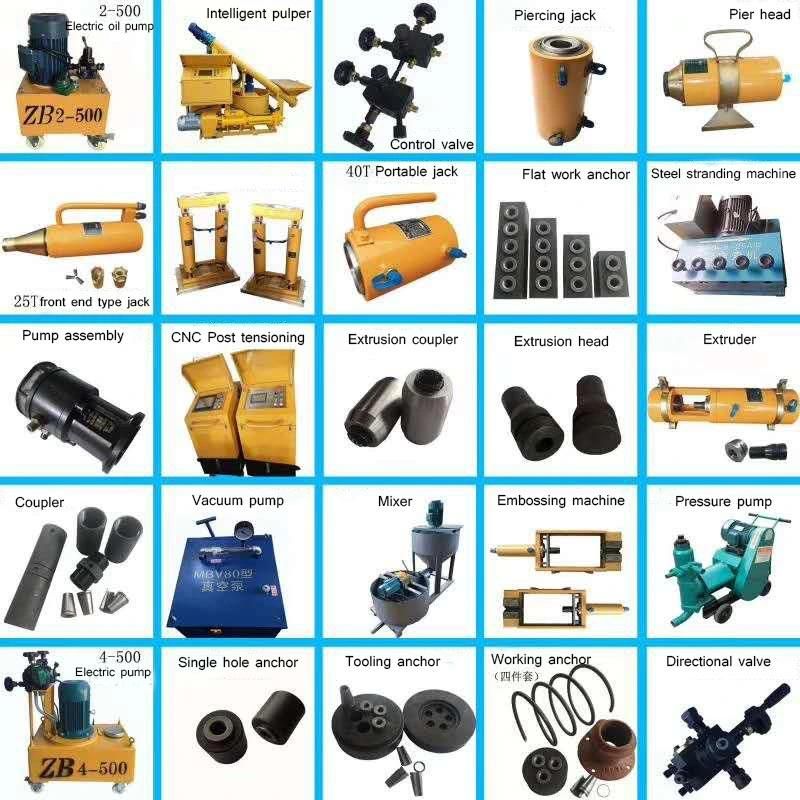

Related Products
