• Model NO.：GL-LD
• Moves：Self-Propelled
• Driven Type：DC
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Transport Package：Timer Box
• Specification：6CBM
• Trademark：PLK
• Origin：China
• HS Code：8428909090
• Production Capacity：50000 Set Per Year

Basic Info.

Model NO. GL-LD Moves Self-Propelled Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Timer Box Specification 6CBM Trademark PLK Origin China HS Code 8428909090 Production Capacity 50000 Set Per Year

Product Description

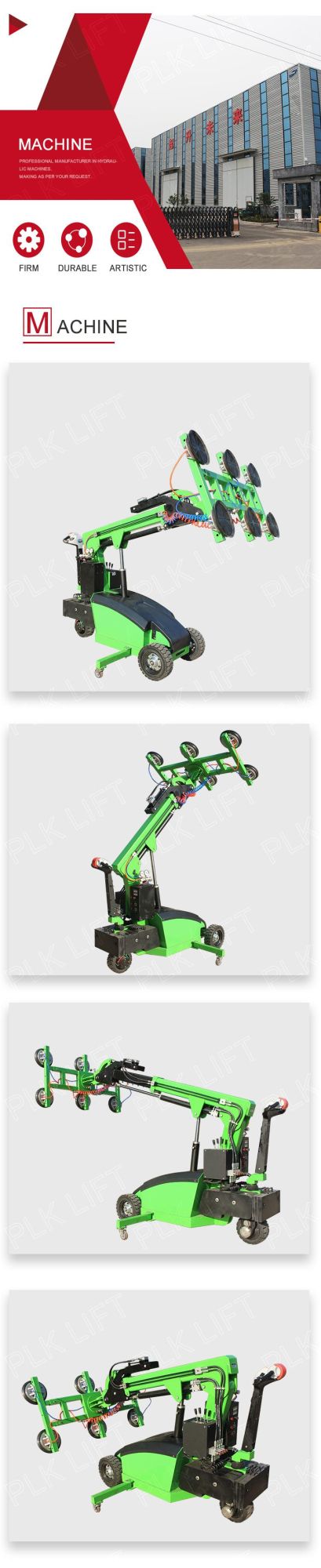

350-600kgs High-End Heavy Duty Electric Mobile Vacuum Lifter

Model Type	GL-LD-350	GL-LD-600
Loading Capacity	350kg (retract)/175kg(extend)	600kg (retract)/300kg(extend)
Lifting Height	3500mm	3500mm
Battery	2x12V/100AH	2x12V/120A
Controller	VST224-15	CP2207A-5102
Drive motor	24V/600W	24V/900W
Hydraulic power	24V/2000W/5L	24V/2000W/5L
Cap Diameter	Ø250mm/300mm	Ø250mm/300mm

Introduction:
GL-LD series Vacuum Lifter: small size, easy to transport.
Special design for handling difference kind of heavy plate, such as steel, glass, granite, marble and so forth, with vacuum suction caps.

1. Lifting capacity 350kg/600kg (175kg/300kg when lifting arm is fully extended)
2. Manual 360degree rotation
3. Electric lift up to 3.5M
4. Weight of machine 660kg/1000kg

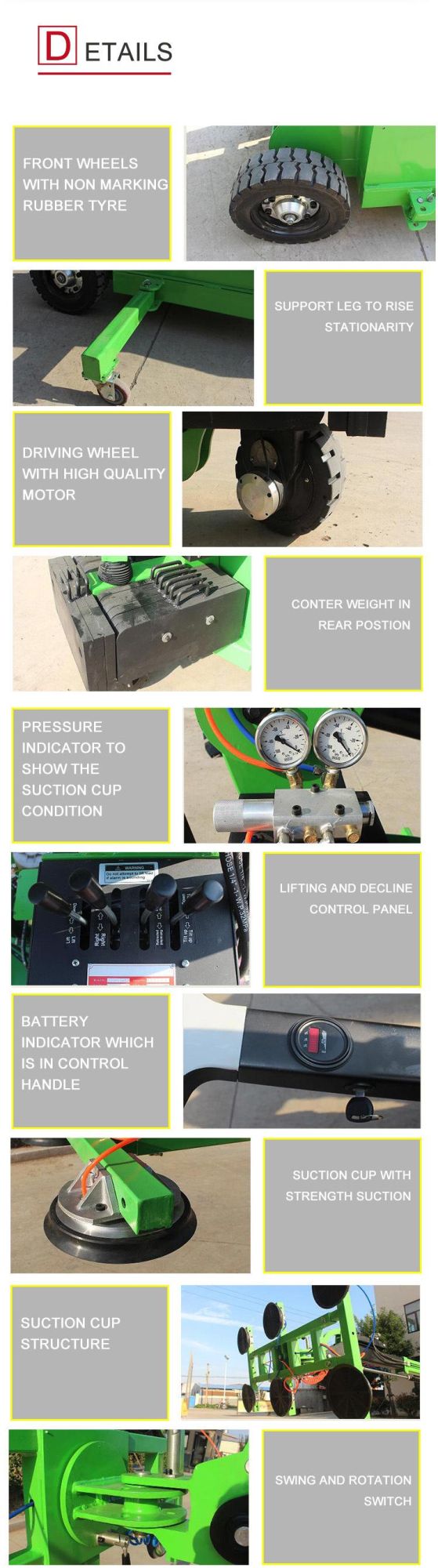

Advantages
1. Integrated control system secures quick and automatic positioning vertically and horizontally by a single push on a button.
2. DC24V reliable actuators for lifting, extension and tipping. efficient and precise. Self propelling, various circuit vacuum suction.
3. Attractive price, staff saving, strong improvement of working environment.
4. Vacuum lifter are dealt with shot blasting and stoving varnish, high anti-corrosion function.
5. High quality pump station make the vacuum lifter lifts and falls very stably.
6. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
7. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
8. Brief structure make it much easier to operate and maintain.
9. Up to American standard ANSI/ASME and Europe standard EN1570.
