Top Quality CE Cheap Wheelchair Lift

Jinan Moral International Co., Ltd.
  • Application：Disabled Lift
  • Lift Mechanism：Lift Chain
  • Carrying Capacity：Light Level
  • Moves：Stationary
  • Driven Type：Hydraulic
  • Running Mode：Stationary

Base Info

  • Model NO.：SJG(II)
  • Feature：Explosion-Proof
  • Certification：CE
  • Platform Size：1300*900mm
  • Lifting Height：Max 10m
  • Speed：100mm,S
  • Drive：Hydraulic
  • Load Capacity：300kg
  • Power：2.2kw
  • Platform：Non-Skid Diamond Aluminum Platform
  • Min Platform Height：80mm
  • Noise：50dB
  • Safety Device：Emergency Stop Button
  • Transport Package：Standard Export Packing
  • Specification：CE
  • Trademark：Moral
  • Origin：Jinan, Shangdong, China
  • HS Code：842890
  • Production Capacity：50, 000 PCS,Year

Description

Mainly material:PlatformNon-skid Diamond Aluminum PlatformLead railsAluminum extruded sectionsHydraulic cylinderφ80*1pcsChain16ASurface materialAluminum plate with plastic spraying finishedControls partsSchneider/DelixiInstallation Non-pit installationWorking ConditionBoth indoor and outdoor

Safety deviceHigh pressure hydraulic oil pipe with double steel net Explosion proof value for cylinder Emergency stop button Emergency down valve when power failure The operation must be stopped immediately the safety edge meets obstacles during operation Machine can working when door completely closed Upper final limit safety switchPackingSteel frame with plywood casesCertificateCE/ISO/SGS/CCC

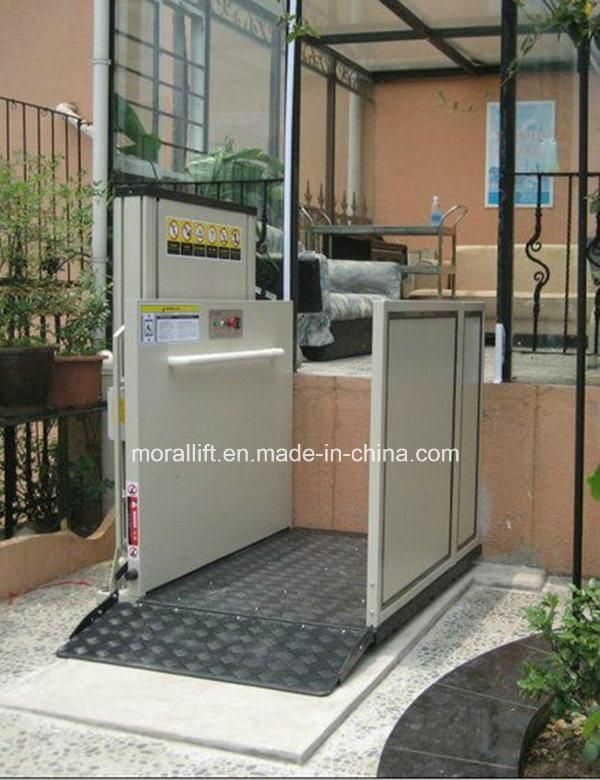

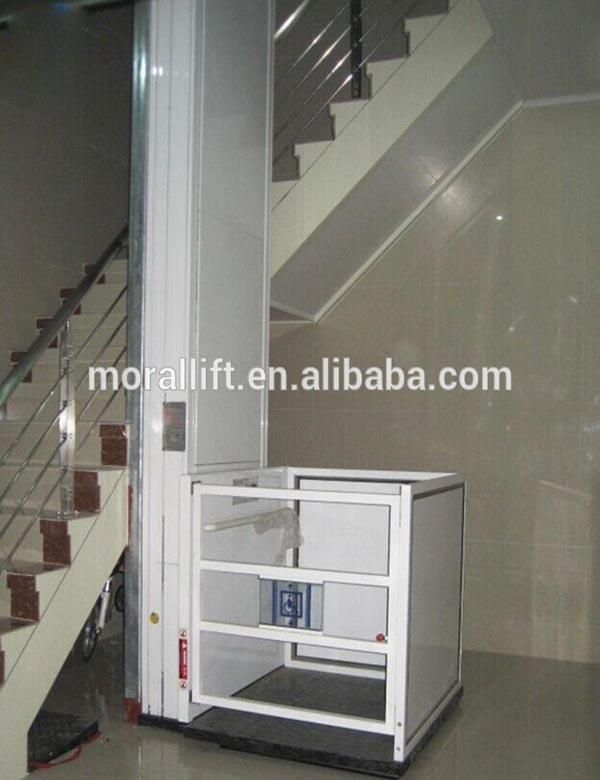

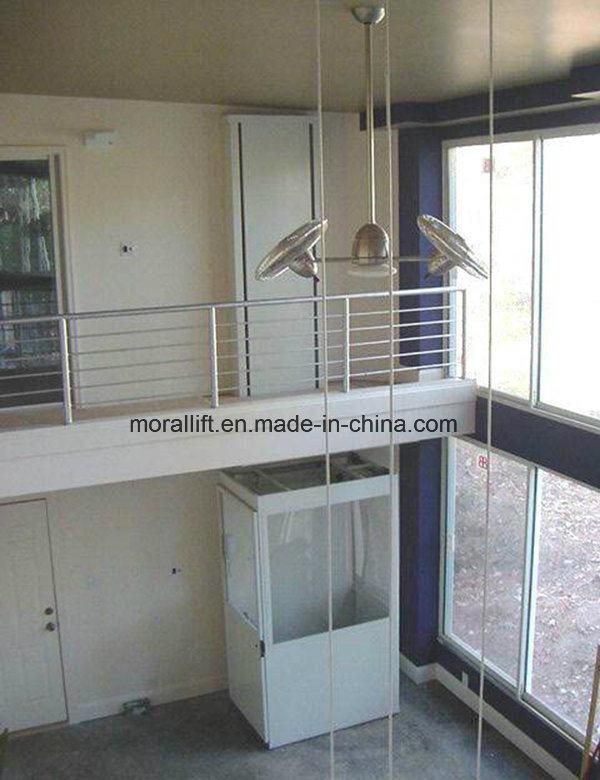

Product photos:
Top Quality CE Cheap Wheelchair Lift
Top Quality CE Cheap Wheelchair Lift
Top Quality CE Cheap Wheelchair Lift
