• Model NO.：RCS
• Condition：New
• Name：Single Acting High Tonnage Lightweight Low Profile
• Capacity：5-95t
• Oil Capacity：10-3466cm^3
• Working Pressure：700bar or 70MPa
• Stroke：16-362mm
• Cylinder Effective Area：14.5-126.7cm2
• Coll Height：88-141mm
• Extended Height：126-198mm
• Outside Diameter：69-165mm
• Weight：2.7-20.7kg
• Transport Package：Wooden Case
• Specification：CE, ISO, SGS
• Trademark：SOV, Can OEM
• Origin：Jiangsu Province in China
• HS Code：841221000
• Production Capacity：1000per Month

Basic Info.

Model NO. RCS Condition New Name Single Acting High Tonnage Lightweight Low Profile Capacity 5-95t Oil Capacity 10-3466cm^3 Working Pressure 700bar or 70MPa Stroke 16-362mm Cylinder Effective Area 14.5-126.7cm2 Coll Height 88-141mm Extended Height 126-198mm Outside Diameter 69-165mm Weight 2.7-20.7kg Transport Package Wooden Case Specification CE, ISO, SGS Trademark SOV, Can OEM Origin Jiangsu Province in China HS Code 841221000 Production Capacity 1000per Month

Product Description

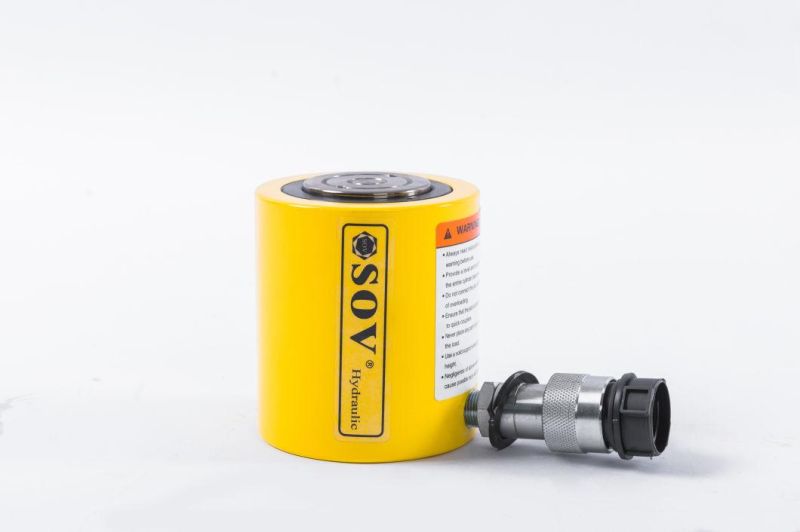

Single Acting High Tonnage Lightweight Low Profile Telescopic Hydraulic Jack
Features
§ Lightweight, low profile design for use in confined spaces
§ Baked enamel finish for increased corrosion resistance
§ Plunger wiper reduces contamination, extending cylinder life
§ CR-400 coupler and dust cap included on all models
§ Grooved plunger end with threaded holes for mounting tilt saddles
§ Integral handle on RCS-1002 for easy carrying
§ Plated steel plungers
§ Single-acting spring return

Technical Sheet

Model Number	Cylinder Capacity	Stroke	Cylinder Effective Area	Oil Capacity	Collapsed Height(A)	Extended Height(B)	Outside Diameter(D)	Weight
	ton (kN)	mm	cm2	cm3	mm	mm	mm	kg
SOV-RCS-101*	10 (101)	38	14,5	55	88	126	69	2,7
SOV-RCS-201*	20 (201)	45	28,7	129	98	143	92	5,0
SOV-RCS-302*	30 (295)	62	42,1	261	117	179	101	6,8
SOV-RCS-502*	45 (435)	60	62,1	373	122	182	124	10,0
SOV-RCS-1002*	90 (887)	57	126,7	722	141	198	165	20,7

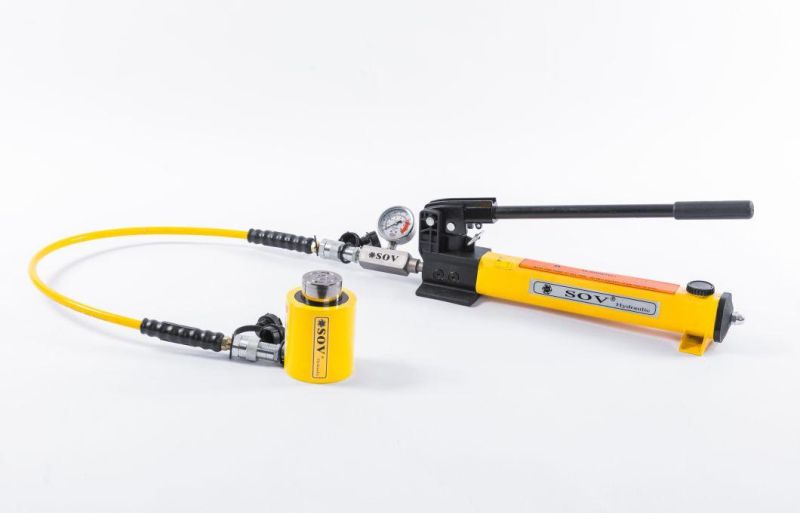

SOV LIGHTWEIGHT LOW PROFILE HYDRAULIC CYLINDERS

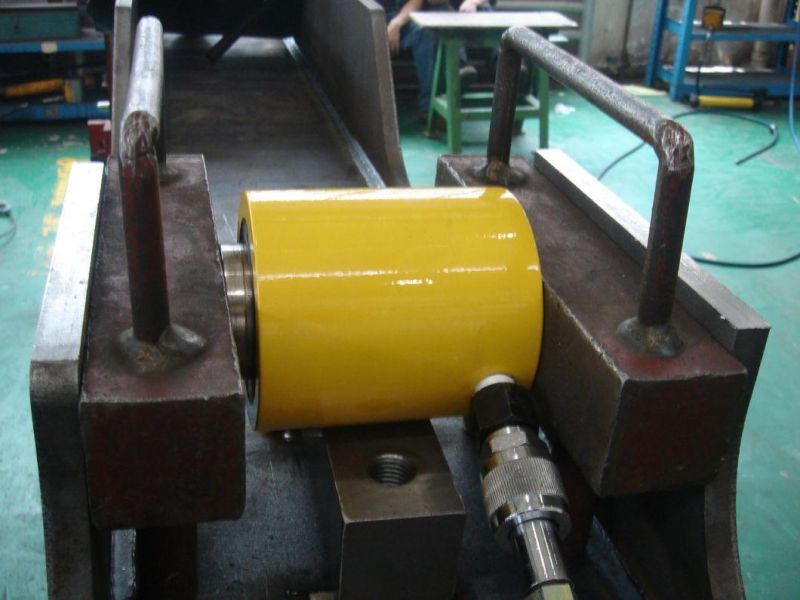

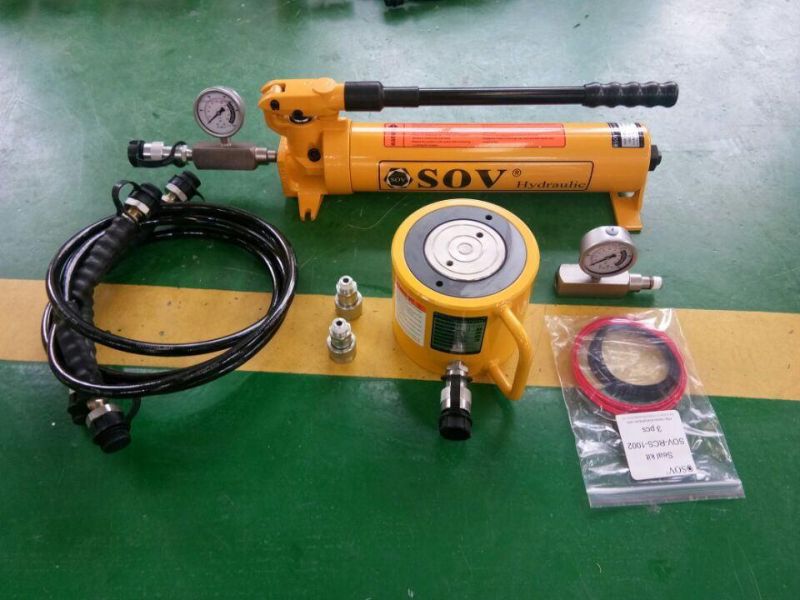

photos

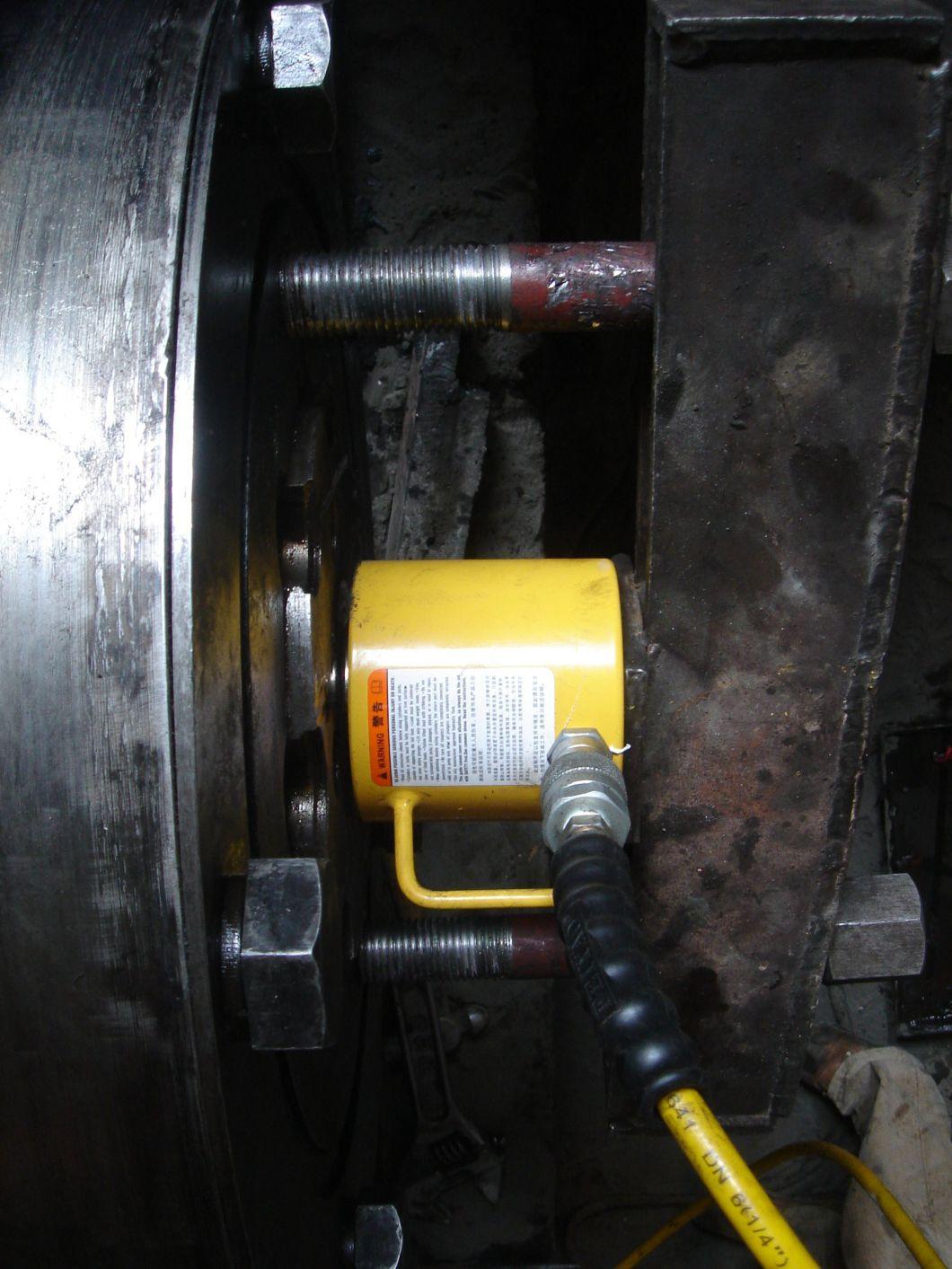

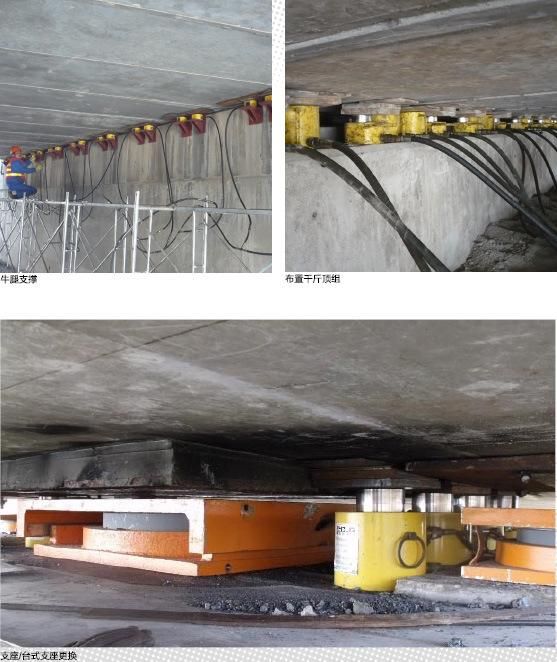

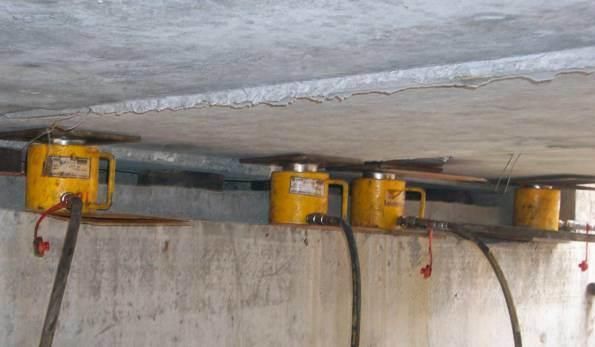

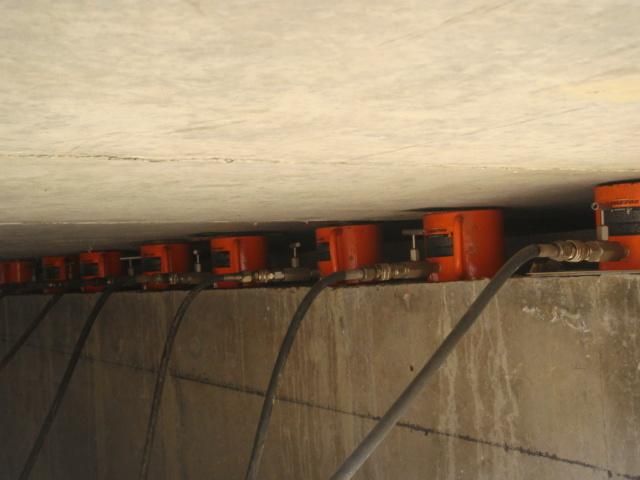

Applications








Packaging & Delivery
Packaging Details: Hydraulic cylinder
Packing: standard plywood case
Delivery Detail: Shipped in 7 days after payment


Our Services
One Year Warranty,repair and service for the whole life,question report response in 24 hours,and reply in 48 hours.

Company Information
SOV is a professional manufacturing in hydraulic tools and products,we have been in the industry for more than 20 years.Since the establishment in 1995,we successfully transformed from OEM manufacturer to create our own brand SOV,and our factory has been approved by CE,ISO9001:2008 consecutively.Our products have been widely used in petrochemical,cement,shipbuilding,steel plant,and heavy constructions areas,etc.

Our main product category includes:
Hydraulic cylinders and jacks
Hydraulic bolting tools such as hydraulic torque wrench
Hydraulic bolt tensioners,nut splitters.

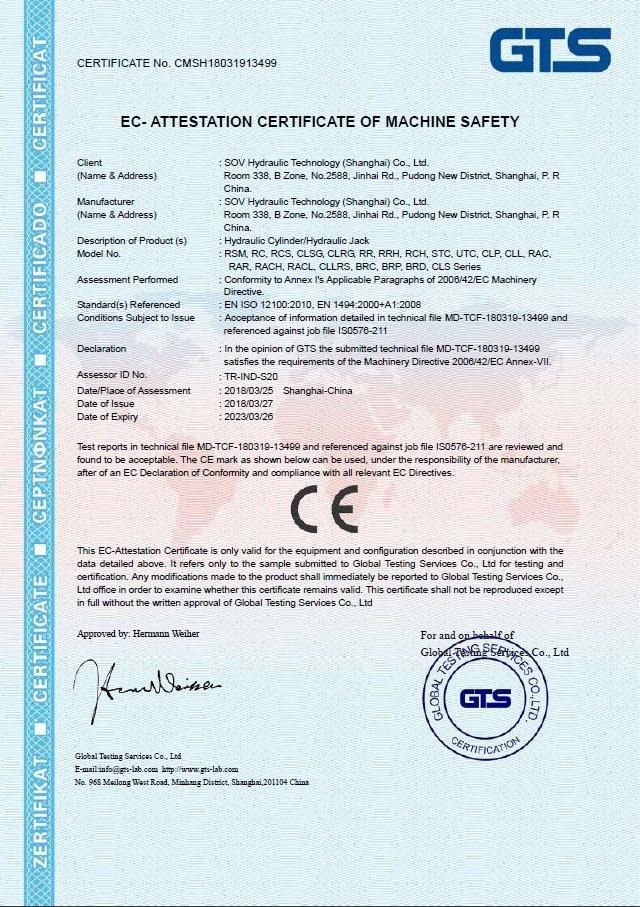

Certificate


Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.



WHY YOU NEED SOV?

Q1: What's the brand name of your products ?

A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.

Q2: Hydraulic cylinder internal leakage?

A: There are 3 main reasons causing internal leakage :Overload,polishing is not well controlled,bad seal kits.As is known to all,vehicles in China are often overload,our products all designed to bear the overload power.We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.

Q3: Does your piston rod get ruptured easily?

A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.

Q4: Is your design reasonable? What about your product safe coefficient?

A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities . Rest assured.

Q5: How about the delivery time?

A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time.Generally ,it's 7-20 days.

Q6: What 's the after-service?

A: If the quality can't meet your requirement ,we will pay all your lost and offer technical support to solve your problem.
