• Model NO.：SP
• Driven Type：Diesel
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Transport Package：Container
• Trademark：SAGA FIRST
• Origin：China(Mainland)
• HS Code：8428909090
• Production Capacity：100sets,Month

Basic Info.

Model NO. SP Driven Type Diesel Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Transport Package Container Trademark SAGA FIRST Origin China(Mainland) HS Code 8428909090 Production Capacity 100sets/Month

Product Description

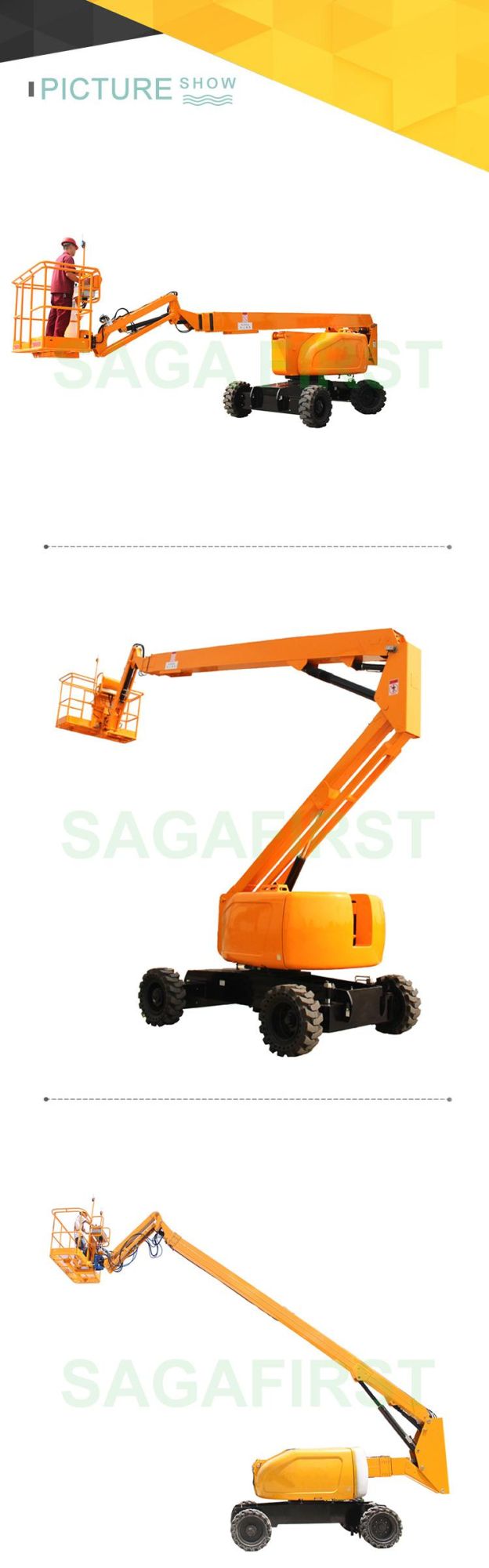

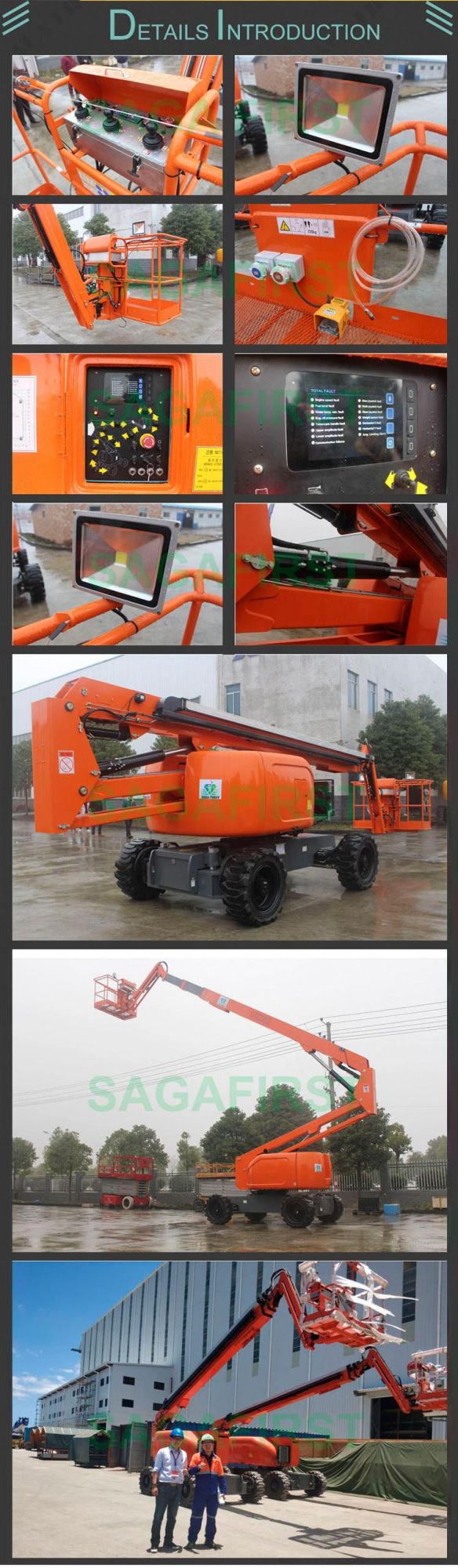

Self Propelled Diesel 12m to 40m Articulated Boom Lift

Qingdao Sinofirst Machinery Co., Ltd focus on product quality and innovation. Telescopic boom lift, articulating boom lift, scissor lift and truck mounted platform are all our main products.

Model Type No.	SPABL-12JIB	SPABL-14	SPABL-16JIB	SPABL-18	SPABL-20JIB	SPABL-24JIB	SPABL-25JIB	SPABL-30JIB	SPABL-38JIB	SPABL-40JIB
Working Height Maximum	14m	16.2 m	18 m	20m	22 m	26.2 m	27.1 m	32 m	40.1 m	42.3m
Platform Height Maximum	12m	14.2 m	16 m	18 m	20 m	24.2 m	25.1 m	30 m	38.1m	40.3m
Horizontal Outreach Maximum	8m	8 m	9.8 m	10.8 m	12.6 m	15.8 m	16 m	20.2 m	21.6 m	21.6m
Lifting capacity	200kg	230kg	230 kg	230 kg	230 kg	230 kg	230 kg	480 kg	480 kg	480kg
Up & Over Height maximum	5m	7.75 m	7.75 m	9.2 m	9.2 m	9.8 m	6.8 m	230kg	230kg	230kg
Length( stowed)	5.3m	6.2 m	7.7 m	8.25 m	9.07 m	9.92 m	9.75 m	12.2 m	19.5 m	23.6m
Width (stowed)	2m	2.29 m	2.28 m	2.35 m	2.38 m	2.48 m	2.58 m	12.52 m	11.37 m	12.15m
Height(stowed)	2.26m	2.38 m	2.38 m	2.38 m	2.49 m	2.82 m	2.8 m	2.5 m	2.5 m	2.49m
Wheel base	2.4m	2.2 m	2.45m	2.4 m	2.45m	3 m	3 m	3.43 m	4.17 m	3.9m
Ground clearance	200mm	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m	0.43 m
Platform measurement	1.1*0.67m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	1.83*0.76 m	2.44×0.91m	2.44×0.91m	2.44*0.91*1.13m
Tuning radius (inside)	3.0m	3 m	2.61 m	3 m	2.66 m	2.6 m	2.6 m	2.74 m	3.13m	3.13m
Tuning radius (outside)	5.2m	5.2 m	5.61 m	5.2 m	5.66 m	5.85m	5.85 m	5.85 m	6.5m	6.5m
Speed(stowed)	3.2km/h	4.2 km/h	4.2km/h	4.2km/h	4.2km/h	4.2 km/h	4.2 km/h	4.14 m	4.14 m	4.14m
Travel speed(raised or extended)	0.8km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h	1.1km/h
Turn table swing	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous	360° Continuous
Platform Leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling	Automatic leveling
Swing Speed	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm	0~0.8rpm
Grade ability	30 %	45 %	45%	45%	45%	45%	45%	45%	45%	45%
Solid tire	33*12-20	33×12-20	33×12-20	33×12-20	33×12-20	36×14-20	385/65-24	385/65-22.5	385/65-22.5	445/65-22.5
Motor Pump	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins	Cummins

Features & Advantages

1. The crank arm provides multi directional positioning for up, outward and span, allowing you to reach where you want in a variety of ways.
2. Standard configuration of four-bar weighing device; overload protection, platform amplitude and height automatic detection device, automatic control of the boom movement speed and walking speed, high-precision weighing device and other measures to ensure the safety of the operation And smoothness.
3. 16m or less and including the electric model is very compact, can pass through a small door opening and can work in a small space.
4. Full-scale control handle and CAN bus and PLC control system, simple control, high positioning accuracy, allowing users to do whatever they want. The stainless steel operating box has a sealed box cover and a box cover to protect the electrical components from moisture and damage.
5. Closed walking system consisting of electric proportional variable pump and hydraulic variable motor and flow distribution valve can meet higher moving speed and lower stable working speed, high efficiency and low heat.
6. AC380V can be connected to the platform according to user requirements and the compressed air pipeline can be configured to meet the special working requirements of the user.
7. Closed walking system, convenient speed regulation and large speed regulation range; the hydraulic system of the boom is a double spool circuit, which has higher safety. Hydraulic components are pure European and American brands.
8. The four-wheel drive power is strong and the climbing degree is large.
9. The angle of the flying arm varies from -55° to +75°, so you can reach the place you want without going to the main arm.
10. Easy to maintain and repair.
11. The oscillating axle can sense the terrain, and the four-wheel landing can be ensured on the uneven road without reducing the driving force.
12. The piston rod of the cylinder has protective sleeves, and the head of the boom has dust proof devices.
13. The table has a rotation range of ±80°, making your work more flexible.
14. The output gear of the rotary reducer is eccentric 2.5mm, and the flank clearance can be adjusted to reduce the free rotation angle of the boom.
15. Prevent the machine from moving once the work basket hit obstacles.
16. Ensure that the boom retracts when the engine and oil pump fail.
17. The electric crank arm type uses the battery as the power source, with low noise and no emission. It is suitable for indoor and some special requirements.
18. Provide an option for the generator set to use the generator to generate
