• Model NO.：SMA
• Feature：Explosion-Proof, Insulating, Spillover Valve
• Certification：GS, CE, ISO 9001
• Max Platform Height：6m, 8m, 10m
• Load Capacity：125kg
• Platform Size：600*600mm
• Power：AC(Without Battery) or DC(with Battery)
• Lifting Motor：0.75kw
• Charge：24V,10A
• Battery：2*12V,60ah
• Quanlity Warranty：12month
• Failure Rate：Extremely Low
• Delivery Time：15-20days
• Transport Package：High Quality Seaworthy Package
• Specification：CE, ISO, SGS
• Trademark：SINOFIRST
• Origin：China
• HS Code：8428909090
• Production Capacity：10000

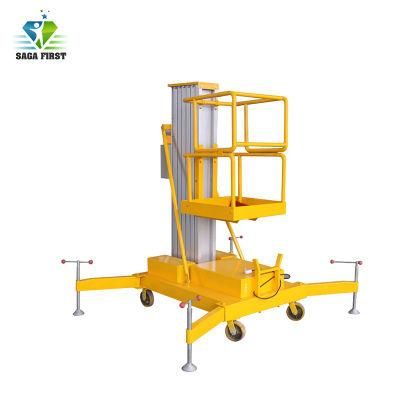

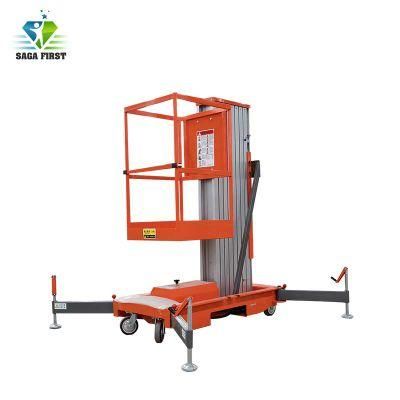

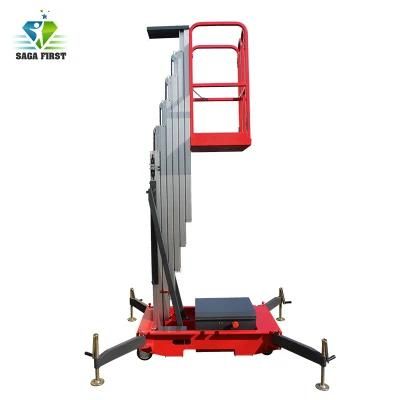

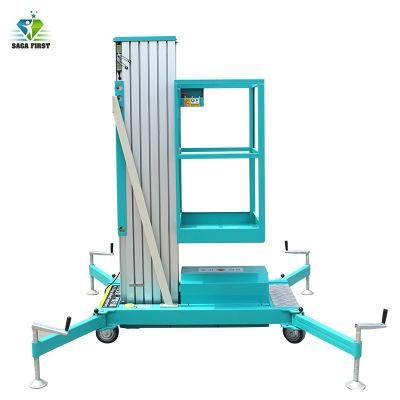

12m Aluminum Alloy Vertical Man Lift Platform Mobile Lift with CE
Single Mast Aluminum Lift Platform is famous for its light weight and high lift. It is made of aluminum alloy. So the weight of the product is very light. Operator can move it around easily. It is widely used in supermarket, factory, hotel, restaurant,   station, theatre, exhibition hall, indoors and outdoors maintenance.

Introduction:
Moving by man manully.
Lifting by AC(without battery) power or DC(with battery) power
AC: Voltage as per your local standard.
DC: Battery supply power.

Safety Precautions:
Emergency button can cut off power immediately.
Descent decline valve makes lift platform low down in emergency situation.
When lift platform is overloading, overload protection system will stop the platform lifting.
Anti-explosion valve will stop the platform drop quickly when oil pipe breaks down.
Spillover valve can prevent high pressure when the machine moves up. Adjust the pressure.

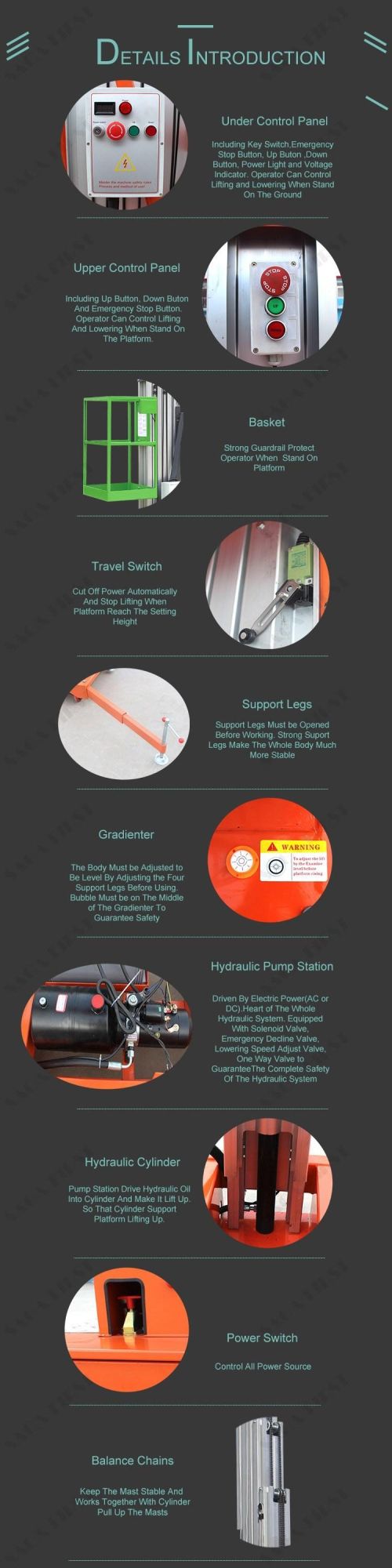

Configuration:
Dual controls operation
Multi-guide pulley on mast
Dual base platform
Chassis with level gauge
Over load protection
24V safe control voltage
Double safety protection with leveling stabilizers and outriggers support
No-marking wheels
Low maintenance requirements will save you time and money.

Safety of Electrical and hydraulic System
Ergonomic control panel, power indicator, electric shock protector, circuit breaker etc.
Built in pressure release valve
Emergency stop buttons are available both on the platform and on the low position.
Emergency lowering device
Broken valve activated automatically to stop the flowing of hydraulic oil in case any pipe broken.

Specification:

Model No			SMA06	SMA08	SMA10
Max. Platform Height		mm	6000	8000	10000
Max. Working Height			8000	10000	12000
Min. Platform Height			580
Ground Clearance			60
Lift Rated Capacity		kg	125
Platform Size		mm	600*550
Outspread Size			2030*1840
Electrical	AC	v	as per customers' requirement
Source	DC		12
Battery		v/Ah	120
Charger		v/A	12/15
Lifting Motor	AC	v/kw	0.75
	DC		1.5Kw
Overall Length		mm	1420
Overall Width			840
Overall Height			1930
Overall	AC	kg	240	300	340
Net Weight	DC		260	320	360

Our Service:

1.We can design the customerized aerial aluminum lift platform as per your requirement.

2.The most suitable model will be recommended to you once we know about your requirement.

3.Shipment can be arranged from our port to your destination port.

4.Opetion video can be sent to you if needed.

5.Maintenance video will be given once the aerial aluminum lift platform break down to help you repair.

6.Parts of aerial aluminum lift platform can be sent to you by express within 7 days if needed.


Frequently Asked Questions:

1.How can customer  buy parts once it break down?

The aerial aluminum lift platform adopt most of the common parts of hardware.You can buy the parts in your local hardware market.

2.How can customer repair the aerial aluminum lift platform.

One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.

3.How long is the quality guarantee?

One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.

Certificate:CE ROHS SGS IOS ETC.

Contact information:
 Dennis(Sales Manager)
Qingdao Sinofirst Machinery Co., Ltd.
Add:Danshan Industrial Park, Chengyang,Qingdao China
Mob:+86-18562653283 Tel:+86-532-68076300 Fax: +86-532-68076301

URL: sinofirst.en.made-in-china.com

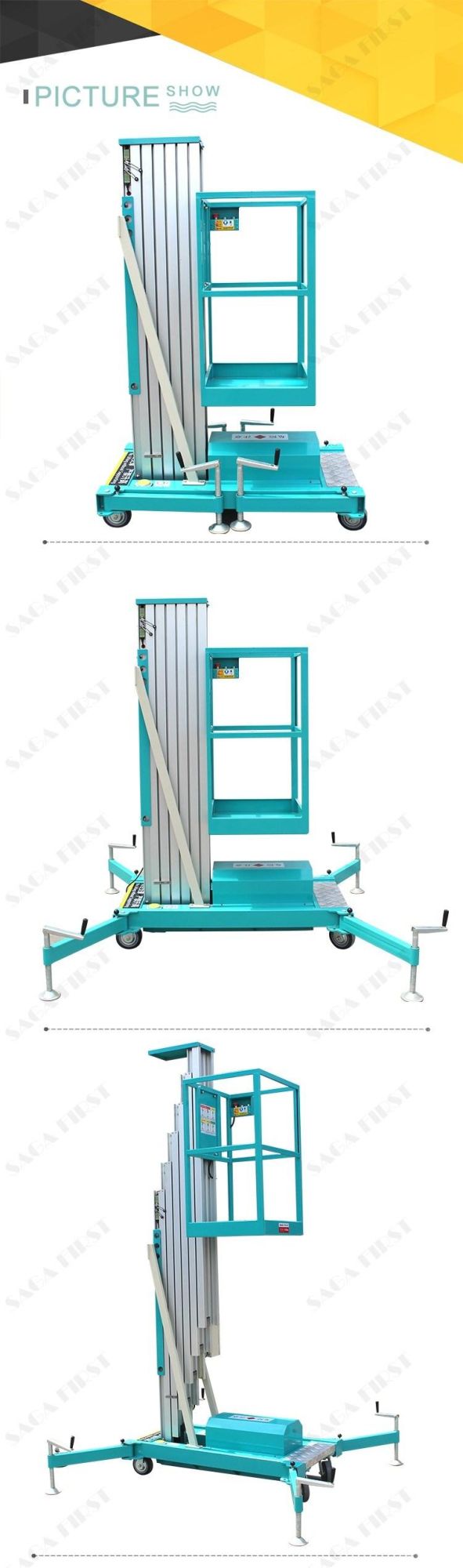

                                                             Pictures for Your Review:


Our Service:

1.We can design the customerized aerial aloft working table as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port.
4.Opetion video can be sent to you if needed.
5.Maintenance video will be given once the aerial aloft working table break down to help you repair.
6.Parts of aerial aloft working table can be sent to you by express within 7 days if needed.

Frequently Asked Questions:
1.How can customer  buy parts once it break down?
The aerial aloft working table adopt most of the common parts of hardware.You can buy the parts in your local hardware market.
2.How can customer repair the aerial aloft working table.
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
One year quality guarantee.If it breaks down within one year,we can send the parts free of charge to you.
Certificate:ISO and CE
