Ce Approved Small Electric Hydraulic Mobile Scissor Lift
Qingdao Sinofirst Machinery Co., Ltd.- After-sales Service：1 Year Free Spare Parts Replacement
- Warranty：1 Year Free Spare Parts Replacement
- Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration
- Lift Mechanism：Scissor Lift
- Carrying Capacity：Middle-Level
- Moves：Moving
Base Info
- Model NO.：SPS
- Driven Type：DC
- Running Mode：Moving
- Feature：Explosion-Proof, Insulating, Spillover Valve
- Certification：GS, CE, RoHS, ISO 9001
- Max Platform Height：3.0m, 3.9m
- Load Capacity：300kg
- Platform Size：1170*600mm
- Overall Length：1180mm
- Overall Width：760mm
- Lifting Time：20s
- Lowering Time：30s
- Wheelbase：990mm
- Lifting Motor：0.8kw
- Charge：12V,15A
- Max Allowable Working Angle：2
- Color：Orange Red Yellow Blue or Customized
- Optional：Extendable Platform
- Quanlity Warranty：12month
- Failure Rate：Extremely Low
- Transport Package：High Quality Seaworthy Package
- Specification：CE, ISO, SGS
- Trademark：SAGA FIRST
- Origin：China
- HS Code：8428909090
- Production Capacity：10000
Description
Configuration:
Battery charge indicator
Self-lock gate on platform
Leveling indicator
Safety brackets
Extended stop button
Emergency lowering system
Dual locking castors
Forklift pockets
All motion alarm
Folding guardrails
Cylinder holding valve
Feature&Advantages:
1. Self-drive system for on site maneuvering from platform (stowed)
2. Roll-out deck extension keeps everything you need within arm's reach (optional)
3. Non-marking tyres
4. Power source - 24V (four 6V AH batteries)
5. Fit through narrow doorways and aisles
6. Compact dimensions for space efficient storage.
Safe Precaution:
1. Explosion-proof valves: protect hydraulic pipe, anti-hydraulic pipe rupture.
2. Spillover valve: It can prevent high pressure when the machine moves up. Adjust the pressure.
3. Emergency decline valve: it can go down when you meet an emergency or the power off.
4. Overload protection locking device: in case of dangerous overload.
5. Anti-dropping device: Prevent falling of platform.
6. Automatic aluminum safety sensor: lift platform will stop automatically when come across barriers.

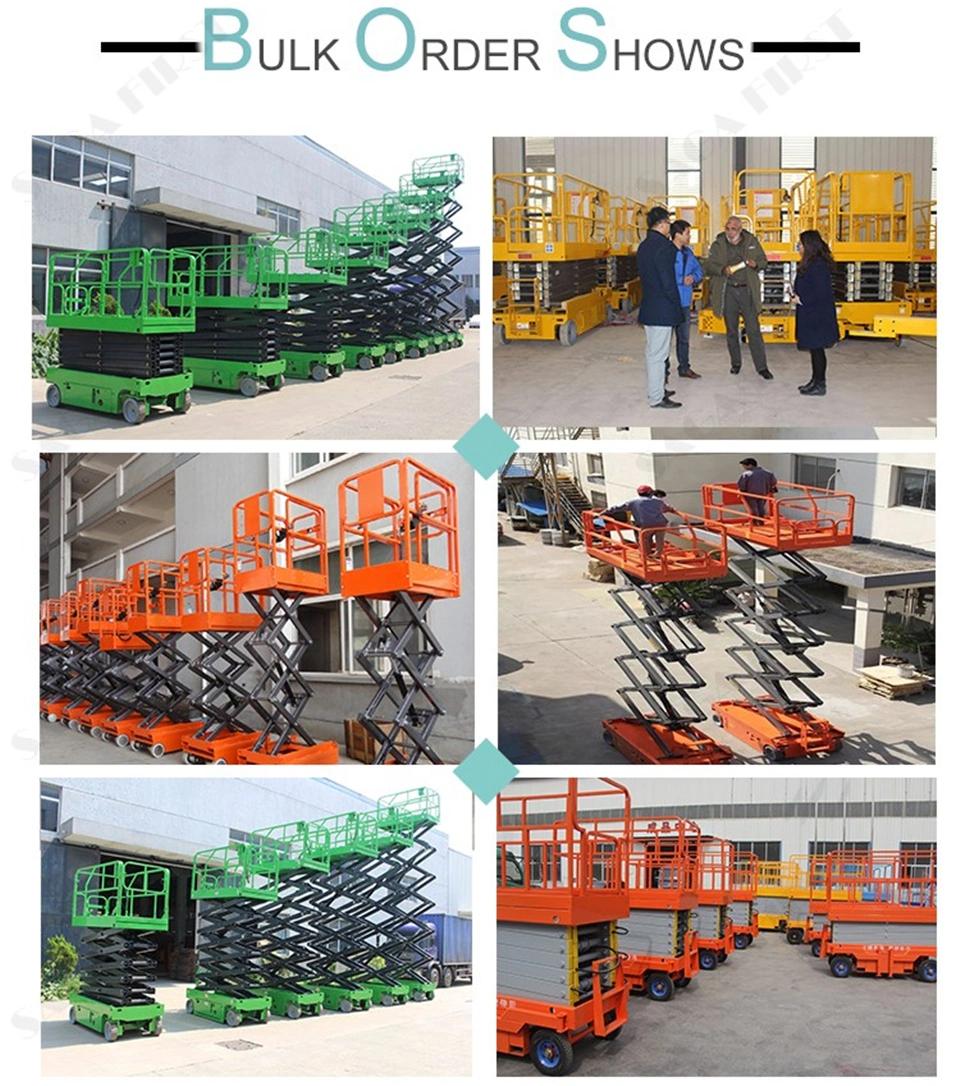

Bulk Order Shows:

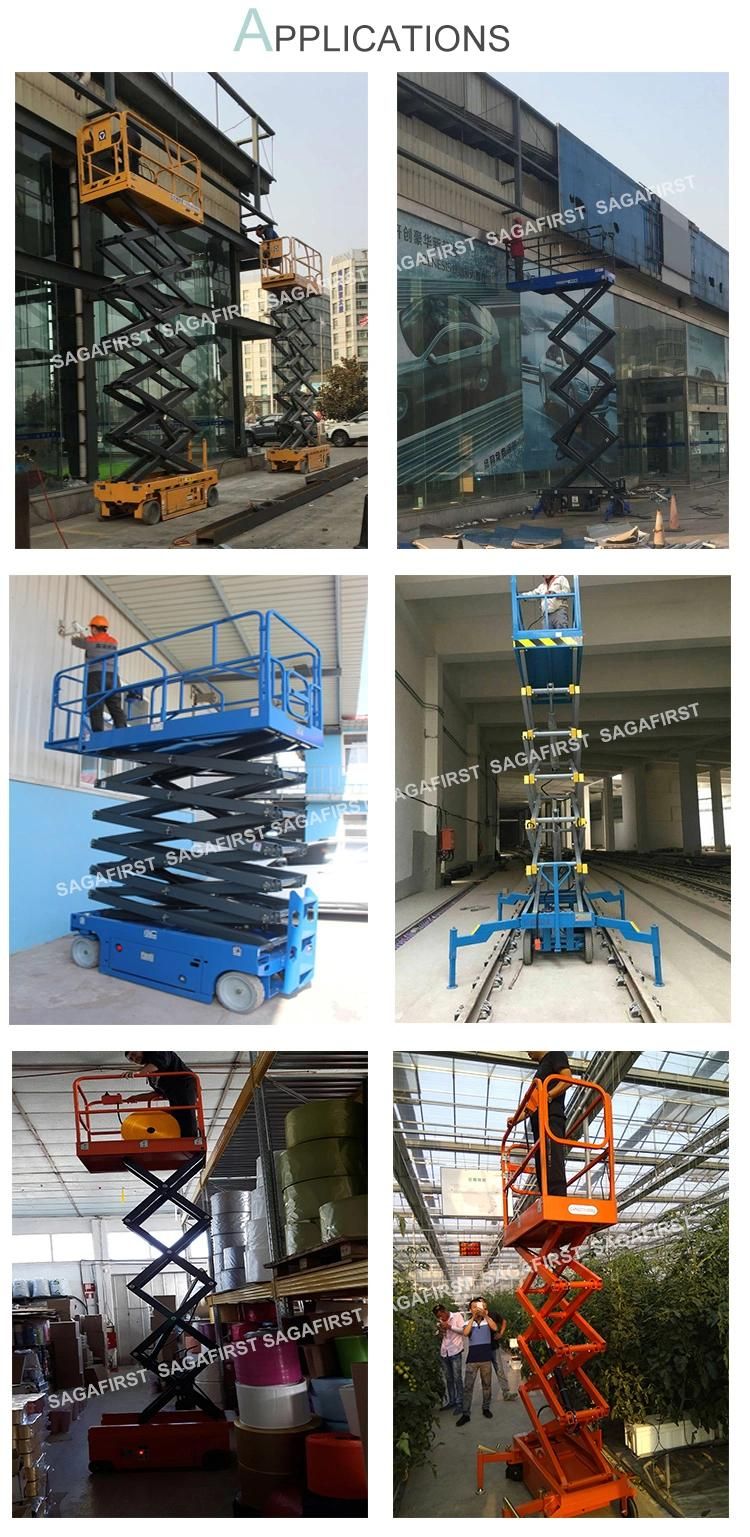

Applications:
Certificate: CE ROHS SGS ISO ETC.
Our Service:
1.We can design the customerized the lifter as per your requirement.
2.The most suitable model will be recommended to you once we know about your requirement.
3.Shipment can be arranged from our port to your destination port or home.
4.Opetion video can be sent to you if needed.
5.Maintenance and user manual.
6.Parts of the lifting equipment can be sent to you by express within 7 days if needed.
Frequently Asked Questions:
1.How can customer buy parts once it break down?
The lift adopts most of the common parts of hardware.You can buy the parts in your local hardware market or forklift parts shop.
2.How can customer repair if any problem?
One of the great advantage of the equipment is with very very low failure rate.Even it breaks down,we can guide to repair it by video and repair instruction.
3.How long is the quality guarantee?
one year quality guarantee.send the parts free of charge
| Frequent Asked Questions | Answers |
| Are you a factory or trading company? | We're factory with over 12years exporting experience. |
| What's the MOQ? | 1UNIT,the more,the better. |
| What's the payment terms? | <USD4999: 100%TT in advance. >USD5000: 30%TT in advance,balance before shipment. >USD10,000: TT or Irrevocable L/C At Sight. |
| Do you offer OEM&ODM service? | Yes,like lifting capacity, lifting height, size of platform,painting color,logo,manual etc. |
| What's the delivery time? | 15~20days after down payment |
| What's the quality warranty? | 24 months.Offer free parts for replacement. |
| How can I get the after-sales service? | We offer videos,pictures and technical guidance immediately. |
| What's your QA&QC policy? | 3times 100% inspection before shipping. |
| Can you tell me your clients in my country? | Of course. But only after the permittance of customers. |
Feel free to contact us anytime. Our professional salesmen are 24hours online.
