• Model NO.：RSY-GL
• Power Source：External Force
• Shape：External Force
• Certification：ISO 9001
• Sling Color：Red
• Capacity：5, 10, 20 Tons
• Width of The Sling：100mm
• Length of The Anti-Cutting Layer：900mm
• Steel Base：14 Thickness *90 Width*200,390 Length
• Transport Package：Regular Packing
• Specification：3.3-meter, 3.5-meter, 4-meter & customized
• Trademark：Toyo
• Origin：China
• HS Code：5911900090
• Production Capacity：10000pieces,Year

Basic Info.

Model NO. RSY-GL Power Source External Force Shape External Force Certification ISO 9001 Sling Color Red Capacity 5, 10, 20 Tons Width of The Sling 100mm Length of The Anti-Cutting Layer 900mm Steel Base 14 Thickness *90 Width*200/390 Length Transport Package Regular Packing Specification 3.3-meter, 3.5-meter, 4-meter & customized Trademark Toyo Origin China HS Code 5911900090 Production Capacity 10000pieces/Year

Product Description

Glass Lifting Sling



Description

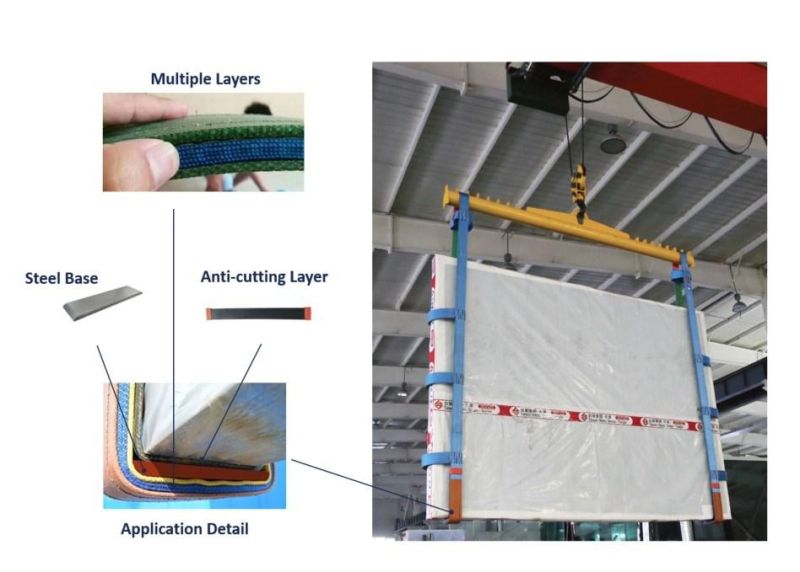

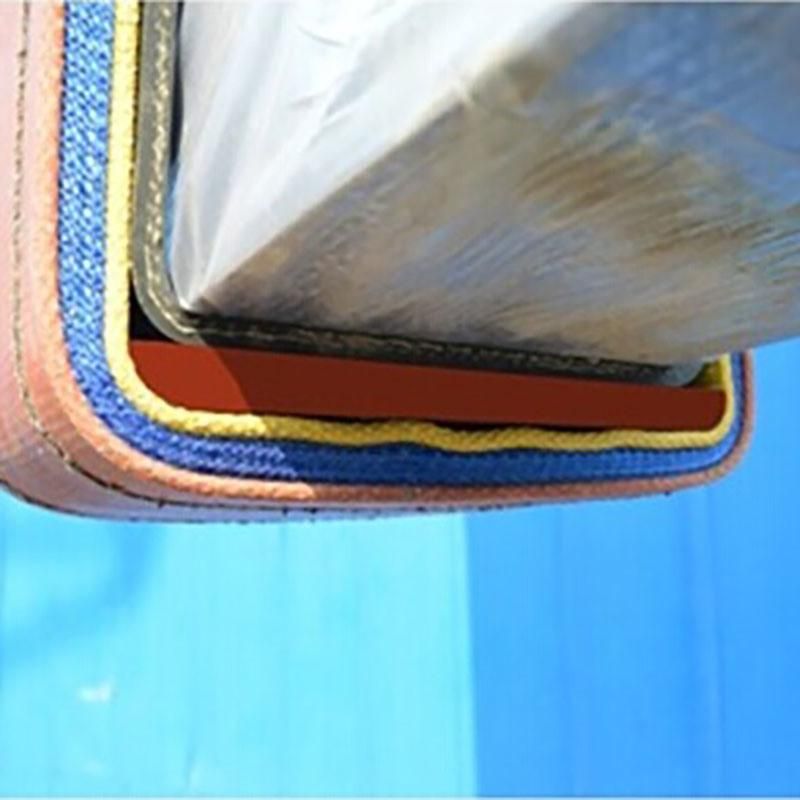

We are very proud to say we have a high quality and very designed glass slings in China. We use the Swiss ribbon loom to make it, one sling has four layers. It was made by the high-intensity polyester tread as the bearing core, and add high-tech materials in the inner glass contact area as the anti-cutting layer. Also, it originally creates the R-angle full-steel plate base which can be used in the lifetime. Product design conforms to the principle of mechanics, spreads the load, and the details are perfect.

This sling is 9 kg heavier than the similar product in the market, which makes its life cycle doubled. It was applied for the national patent (patent number: 201430200860.0) protection and is under protect by Pacific Insurance Company. It is qualified with China domestic test report and destroy tension test.


Features


• Swiss ribbon low adopted
• Four layers with 9 kg heavier than the similar product in the market
• Chinese National Patent
• Pacific Insurance Company
• China domestic test report and destroy tension test

Specification


Model	RSY-GL
Capacity	5, 10, 20 tons
Length of the Sling (after folding)	3.3-meter, 3.5-meter, 4-meter & customized
Width of the Sling	100mm
Steel Base	1)14 thickness *90 width*200 length (mm) 2)14 thickness *90 width*390 length (mm) 3)14 thickness *90 width*customized length (mm)
Length of the Anti-cutting layer	900mm

Notes:

The length of the glass sling should be glass tall plus 700mm
The length of the glass hanging bar should be the glass length minus 500mm



Pictures Showing




Waiting for your inquiry.

Limited products with un-limited service!
