• Model NO.：HW
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Power：2.2kw
• Rated Loading Capacity：250kg
• Min. Lifting Height：100mm
• Max. Lifting Height：1m-10m
• Weight：450~1300kg
• Warranty：12 Month
• Guiderail Material：Aluminum Alloy
• Surface Treatment：Plastic Spraying
• Transport Package：Wooden Box
• Specification：2000*1430*1300mm
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：1000

Basic Info.

Model NO. HW Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Power 2.2kw Rated Loading Capacity 250kg Min. Lifting Height 100mm Max. Lifting Height 1m-10m Weight 450~1300kg Warranty 12 Month Guiderail Material Aluminum Alloy Surface Treatment Plastic Spraying Transport Package Wooden Box Specification 2000*1430*1300mm Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 1000

Product Description

Wheelchair lift is special designed for disabled and elderly people,so it very stable and safety.The wheelchair lift is designed with scissors and cyliners, which is covered with high quality black protective curtains around, It is safe and easy to use.

We mainly produce the wheelchair lift from 1m-6m,the load capacity is 250kg, and the platform size can be customized.If you have a special requirements for color,we can also design according to your request.

1. Data Sheet, we produce this scissor type handicap lift according to your required loading capacity, lifting height and platform size. Please tell us if you need to use this wheelchair lift.

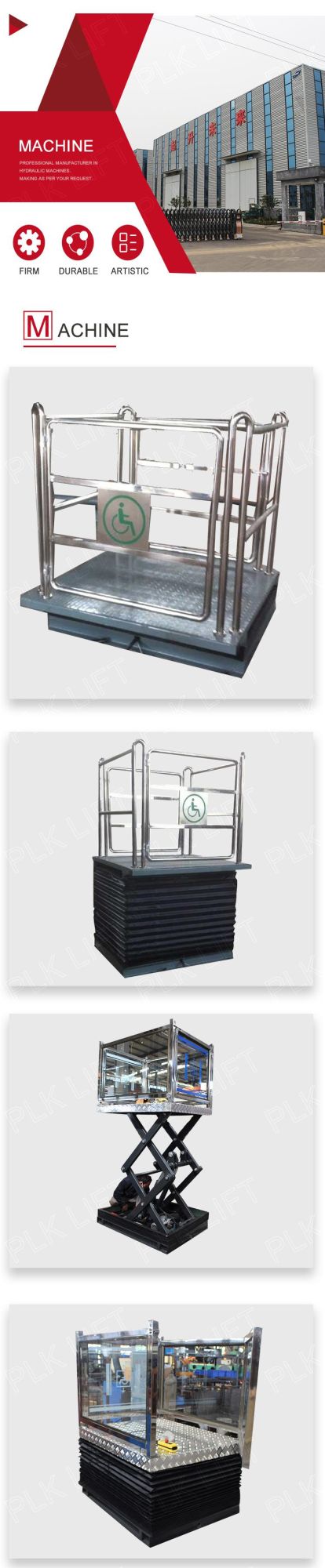

2. Photos Review:



Features and Advantages:
1. Aluminum Alloy material with great anti corrossion function.
2. High quality pump station make the wheelchair lifts and falls very stably.
3. Automatical Safety sensor at bottom stop lowering when come accorss barrier.
4. Electric magnetic lock works during lifting and lowering to guarantee safety.
5. Heavy duty cylinders with drainage system and check valve to stop the scissor lift table lowering in the case of hose burst.
6. Pressure relief valve prevent overload operation; Flow control valve make descent speed adjustable.
7. Brief structure make it much easier to operate and maintain.
8. Up to American standard ANSI/ASME and Europe standard EN1570.

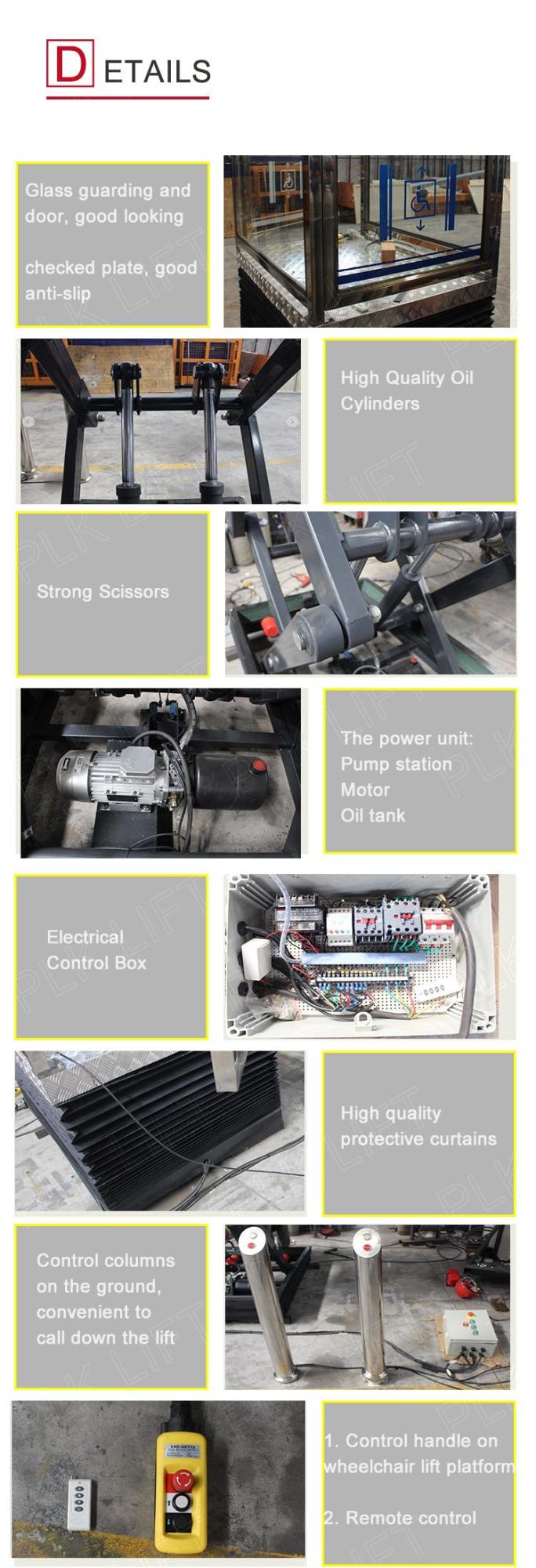

3. Details Display:

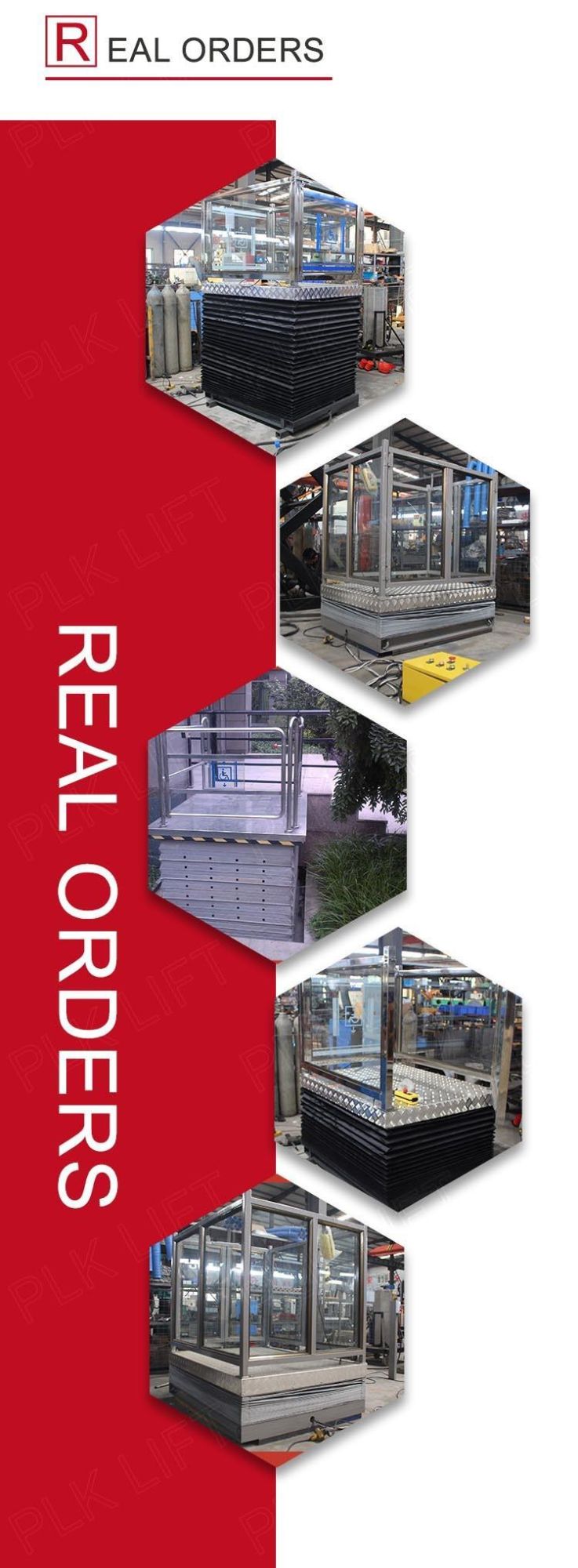

4. Real Orders Show: (We produce our wheelchair lift for both home and abroad, quality is good.)


5. Welcome to visit our factory and place the order with us.
