• Model NO.：SJYL
• Feature：Emergency stop button
• Certification：CE
• Name：Aluminum Alloy Work Platform
• Capacity：100KG
• Lifting height：3-10M
• Working height：4.5-11.5M
• Weight：350KG
• Table size：700*650mm
• Power：1.5kw
• Power sources：220V,380V or chargeable battery
• Operate：Electrical or manual drive
• Advantage：Emergency stop button
• Transport Package：Plywood Package
• Specification：700*650mm
• Trademark：Moral
• Origin：China
• HS Code：842890
• Production Capacity：20sets,Month

Basic Info.

Model NO. SJYL Feature Emergency stop button Certification CE Name Aluminum Alloy Work Platform Capacity 100KG Lifting height 3-10M Working height 4.5-11.5M Weight 350KG Table size 700*650mm Power 1.5kw Power sources 220V/380V or chargeable battery Operate Electrical or manual drive Advantage Emergency stop button Transport Package Plywood Package Specification 700*650mm Trademark Moral Origin China HS Code 842890 Production Capacity 20sets/Month

Product Description

★★CE Approval Powered Genie Lift Platform ★★
★Brief introduction:
Aluminum alloy hydraulic lift table: it is a new-era product through brand-new design, adopts new aluminum molding material. The lift table has tiny swing, because of high-strength molding material.
 Handy and light appearance makes it freely exert maximum lifting ability in limited room. As a result, this product makes it easy to carry out high-altitude working by one person. The power sources could be 220V/380V or chargeable battery.

★Main features:

1.This lift's working height: 6m, 8m, 10m, 12m, 14m, 16m,18m,20m; can be controlled on the table or on the ground by remoter control.

2.The lift platform, high-duty aluminum alloy structure is suitable for aloft work. It is equipped with security rope and safety protection devices .Even if working at the 30 meter high,it's very safe and reliable. Our wheels can be moved easily.

3.It can be in and out of the elevators conveniently when equipped with belt control switch or remote control switch systems.

4.This kind of platforms has 2 types, one is equipped with single ladder and the other has double ladders on both sides. The biggest lifting height is 30 meters, the lifting capacity ranges from 100kg to200kg.

★Advantages:

Mobile Aluminum Lifts with high-strength aluminum alloy high-quality aluminum alloy, beautiful in appearance, small size, light weight, lifting balance, safe and reliable, no pollution and can operate from up to down, smooth lifting, Operate conveniently in narrow space, Work efficient and balance well.

They are widely used in factories, Star Hotels, restaurants, railway stations, airports theaters , exhibition halls and other places, It's the best security partner together with maintenance of equipment, paint renovation, replacement lamps, electrical appliances, cleaning and maintenance and other uses

★Technical datas:


Type	Capacity(kg)	Table size(mm)	Lifting height(mm)	Working height(mm)	Weight(kg)
SJYL0.1-3	100	700*650	3000	4500	350
SJYL0.1-4	100	700*650	4000	5500	370
SJYL0.1-6	100	700*650	6000	7500	400
SJYL0.1-8	100	700*650	8000	9500	450
SJYL0.1-10	100	700*650	10000	11500	500

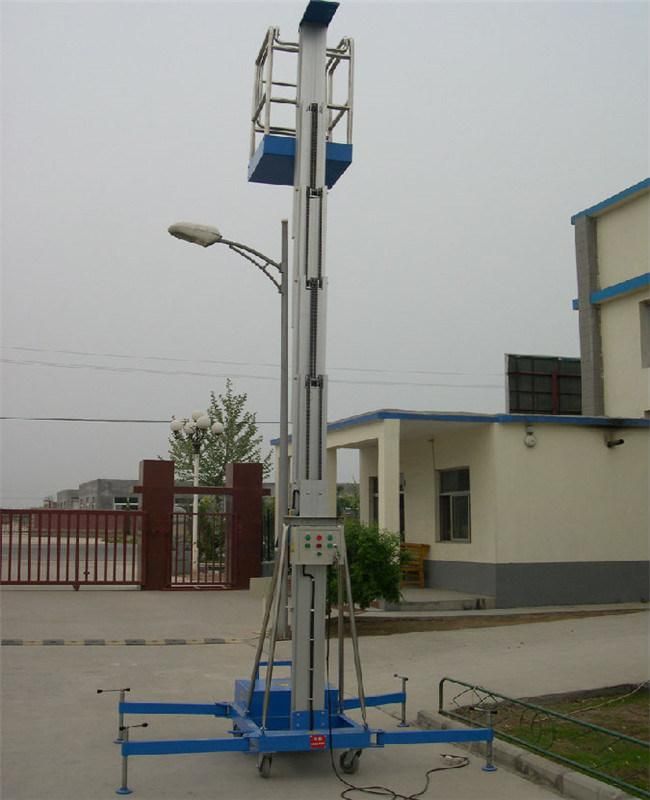

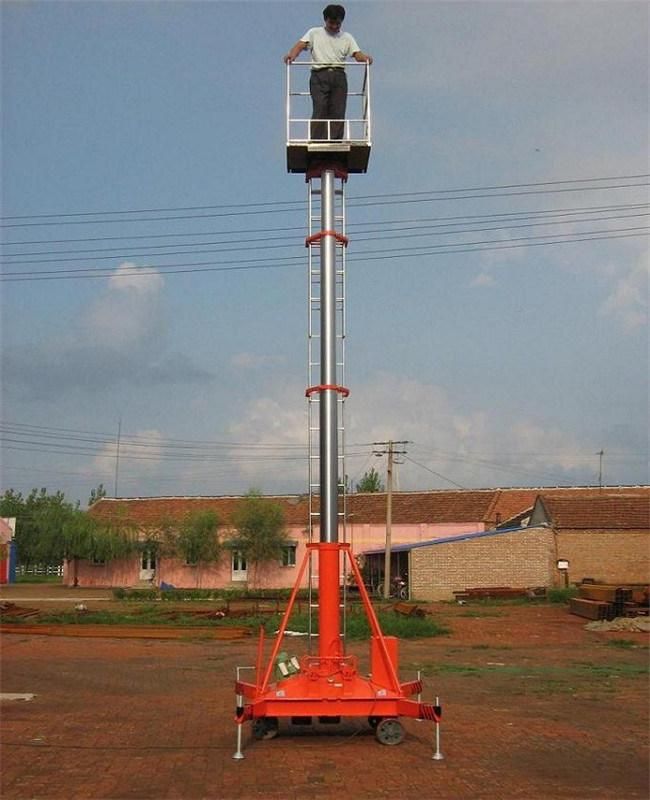

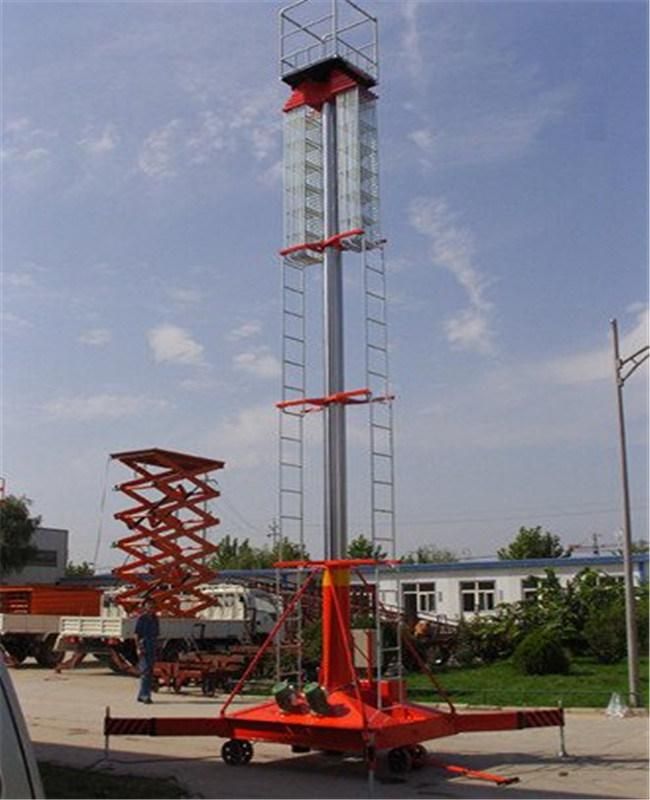

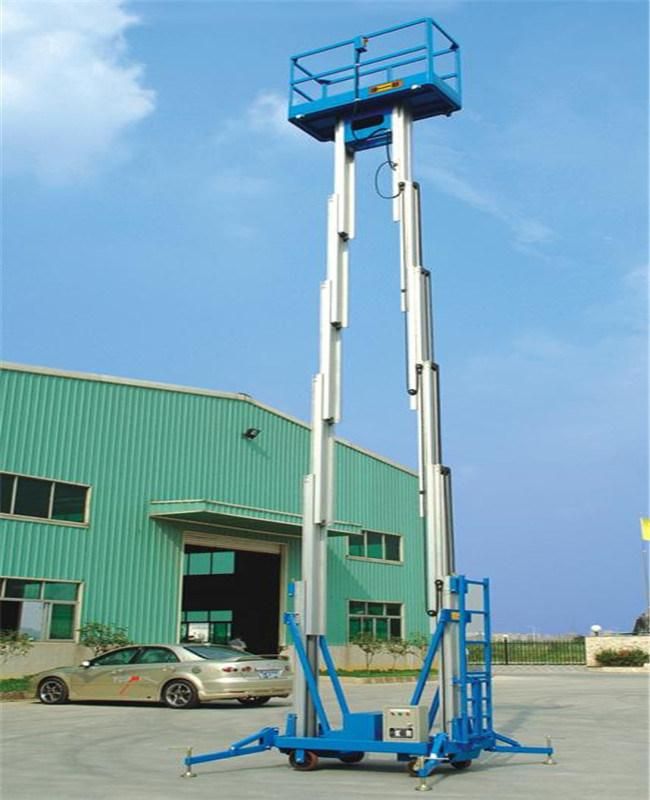

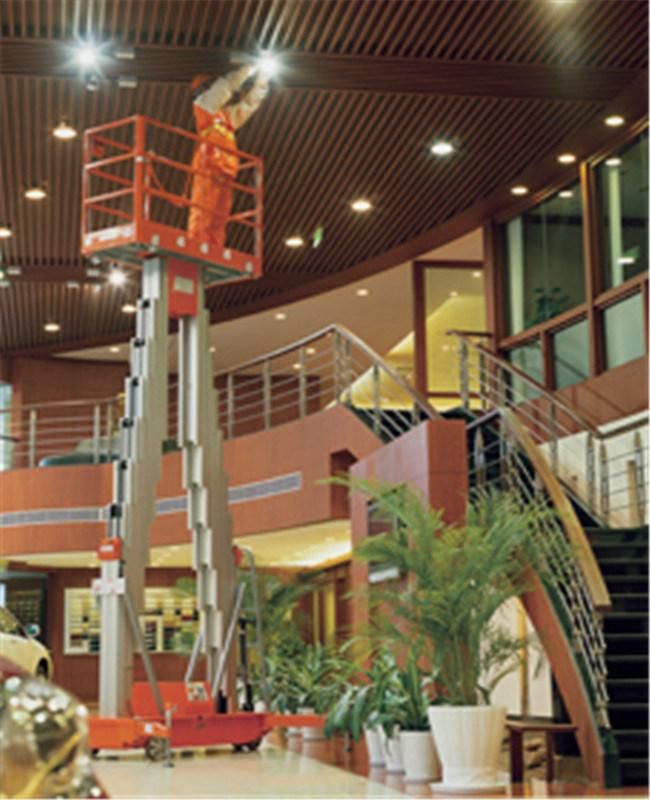

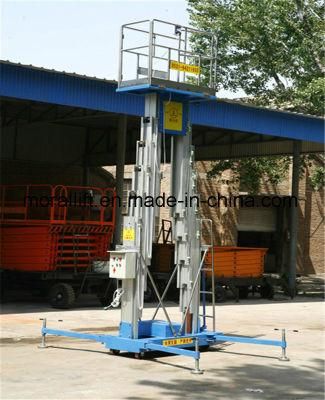

★Detailed images:
