• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：GS, CE, RoHS, ISO 9001
• Color：Yellow, Red, Green, Customized
• Capacity：420kg
• Lifting Height：2400mm
• Machine Length：2840mm
• Machine Width：1180mm
• Turning Radius：2150mm
• Grade Ability：3%
• Wheel Size：Dia 250X80mm
• Brake Type：Electromagnetism Brake
• Drive Motor：1.2kw
• Lifting Motor：2.2kw
• Noise：<70 Dba
• Battery：24V,210A
• Rotation Angle：135 Degree
• Machine Weight：1000kg
• Transport Package：Timer Box
• Specification：5CBM
• Trademark：PLK LIFT
• Origin：China
• HS Code：8428909090
• Production Capacity：500 Set,Month

Basic Info.

Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Color Yellow, Red, Green, Customized Capacity 420kg Lifting Height 2400mm Machine Length 2840mm Machine Width 1180mm Turning Radius 2150mm Grade Ability 3% Wheel Size Dia 250X80mm Brake Type Electromagnetism Brake Drive Motor 1.2kw Lifting Motor 2.2kw Noise <70 Dba Battery 24V/210A Rotation Angle 135 Degree Machine Weight 1000kg Transport Package Timer Box Specification 5CBM Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500 Set/Month

Product Description

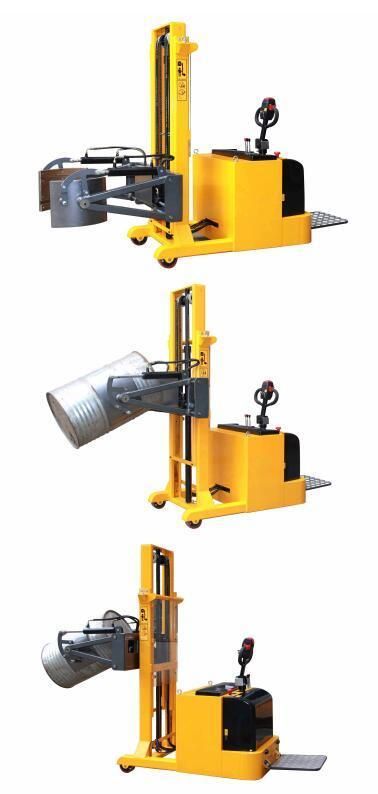

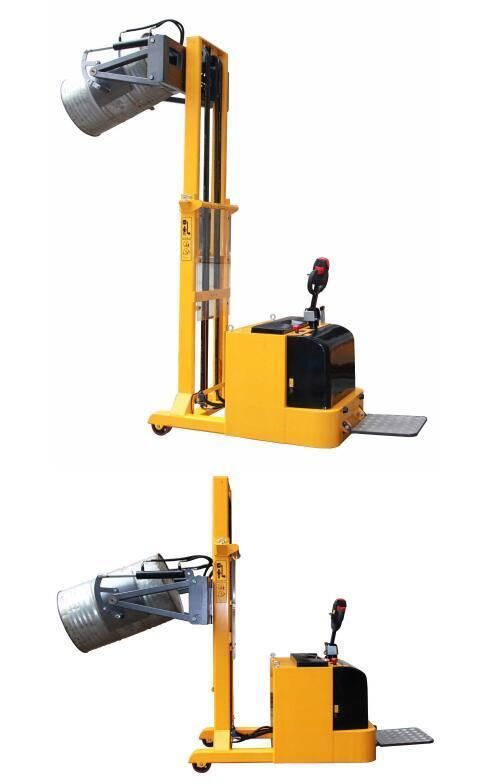

420kg Barrel Lifting Machine Round Arm Lift Introduction:
1.This equipment is used for handling oil barrels or other round objects. It is integrated with precision driving control system, characterized by stable moving , lightweight and flexibility. One man operation is allowable.
2.It's configured with multifunctional control panel, stepless reducer, and high power reversal switch as well as hydraulic pump station and durable driving wheels.
 It also comes with a standing platform for the sake of operater.
3.Electro-hydraulic holding clamp exerts great gripping force, holding barrels in place.

Model		DL420
Drive Type		Electric Motor
Capacity	kg	420
Lifting Height	mm	2400
Overall Length	mm	2840
Overall Width	mm	1180
Turning Radius	mm	2150
Grade Ability	%	3
Wheel size	mm	φ250*80
Material of Wheel	/	PU
Brake Type		Electromagnetism brake
Drive Motor	kw	1.2
Lifting Motor	kw	2.2
Noise	Db(A)	<70
Battery voltage/volume	V/A	24/210
Weight	kg	1100

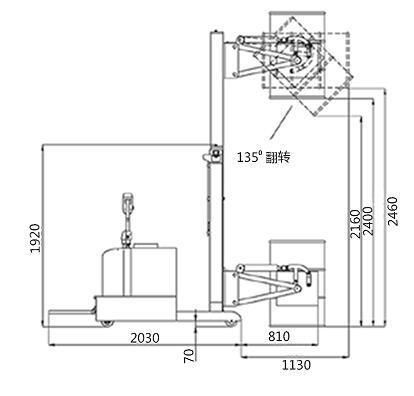

Rotation Angle		135°

Our Service:
1. We accept customized orders, all features tailored to the needs of customers.
2. Advice and solution will be presented for customer's consideration.
3. We provide online aftersales service. In case of breakdown, troubleshooting videos will be sent.


Frequently Asked Questions:
1.How to buy spare parts once it breaks down?
The aerial scissor man lift uses standardized parts enabling local purchase.
2.How to repair the aerial scissor man lift?
Very low failure rate. Even it does, we can guide you through via video instruction.
3. Quality guarantee?
One year quality guarantee and free parts delivery during the period.

Factory Show:
