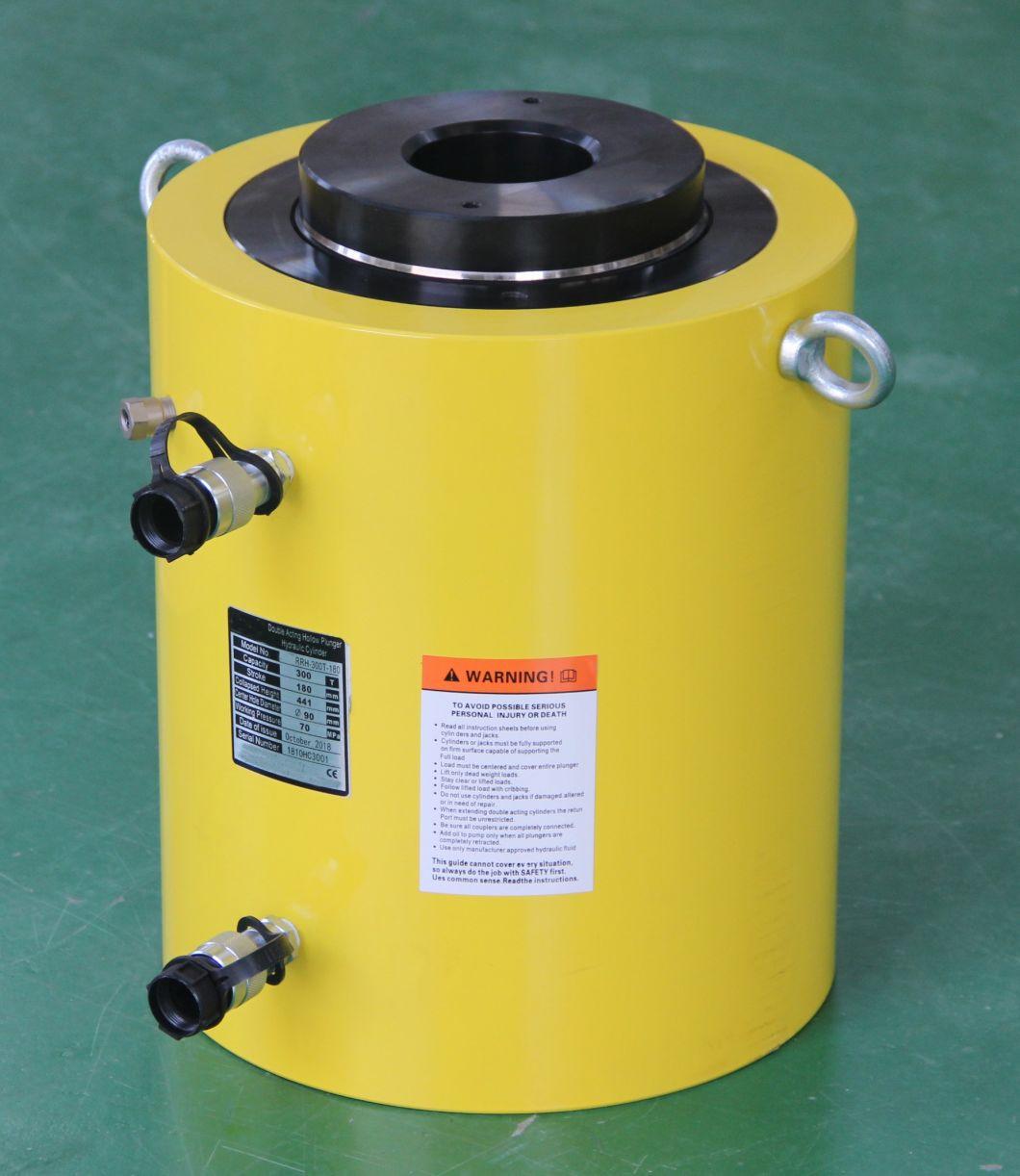

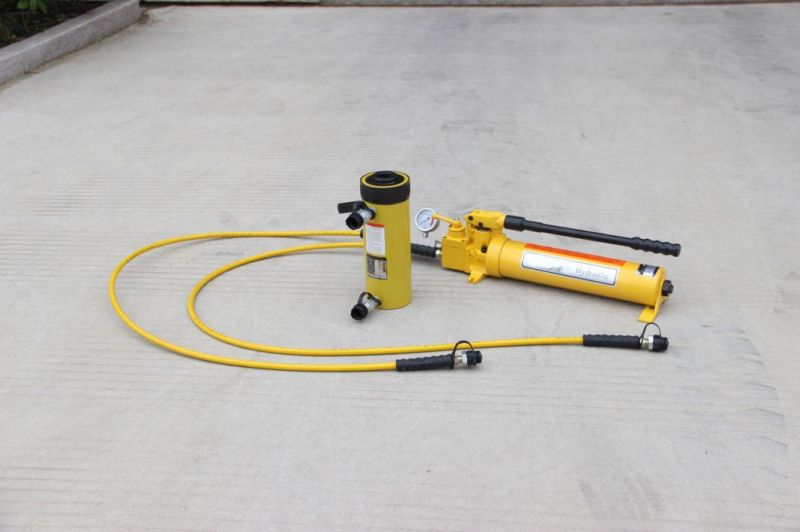

60 Ton Double Acting Quick Return Hydraulic Hollow Jack
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Type：Hydraulic Jack
- Structure：Hydraulic Jack
- Capacity (Load)：60t
- Power Source：Hydraulic
- Max Height：336mm
- Certification：EPA, CS, CE, ISO 9001:2000, ISO 9001:2008
Base Info
- Model NO.：SOV-RRH Series
- Condition：New
- Cylinder Capacity (Ton)：30-600
- Stroke (mm)：38-300
- Collapsed Height(mm)：165-700
- Outside Diameter (mm)：114-495
- Plunger Diameter：63.5-305
- Center Hole Diameter：33.3-140
- Weight (Kg)：21-800
- Working Pressure(Bar)：700
- Transport Package：Standard Export Wooden Box
- Specification：CE, ISO, SGS
- Trademark：SOV
- Origin：China
- HS Code：8412210000
- Production Capacity：5000sets Per Month
Description
Maximum
Cylinder CapacityCylinder
Effective Area Oil
Capa-
city Coll.
Height Ext.
Height Out-
side
Dia. Center Hole
Dia. Weight kN cm2 cm3 A B D Y ton mm Adv. Retr. Adv. Retr. Adv. Retr. mm mm mm mm kg SOV-RRH-307 30 178 326 213 46,6 30,4 829 541 330 508 114 33,3 21 SOV-RRH-3010 258 326 213 46,6 30,4 1202 784 431 689 114 33,3 27 SOV-RRH-603 60 89 576 380 82,3 54,2 733 482 247 336 159 53,8 28 SOV-RRH-606 166 576 380 82,3 54,2 1366 900 323 489 159 53,8 35 SOV-RRH-6010 257 576 380 82,3 54,2 2115 1393 438 695 159 53,8 45 SOV-RRH-1001 95 38 931 612 133 87,4 505 333 165 203 212 79,2 33 SOV-RRH-1003 76 931 612 133 87,4 1011 666 254 330 212 79,2 61 SOV-RRH-1006 153 931 612 133 87,4 2035 1337 342 495 212 79,2 79 SOV-RRH-10010 257 931 612 133 87,4 3420 2246 460 717 212 79,2 106 SOV-RRH-1508 145 203 1429 718 204,1 102,6 4144 2083 349 552 247 79,2 111

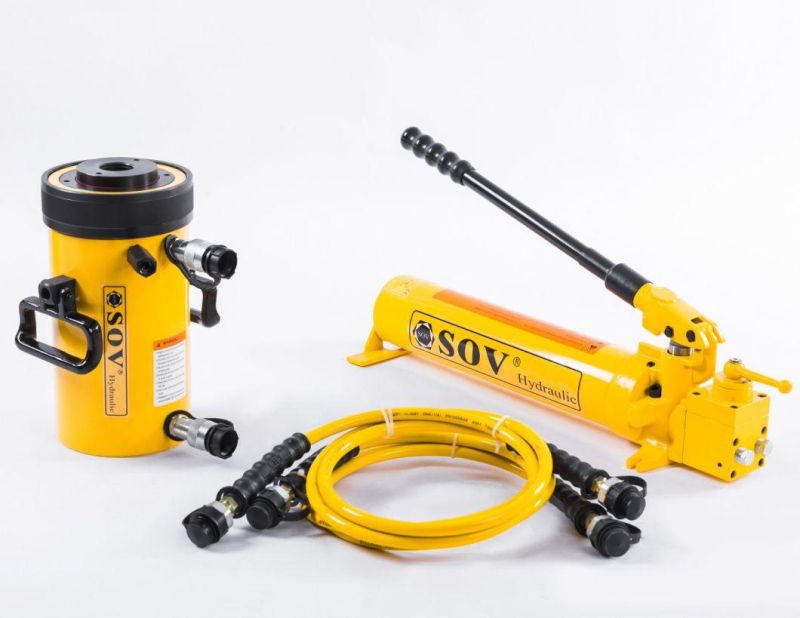

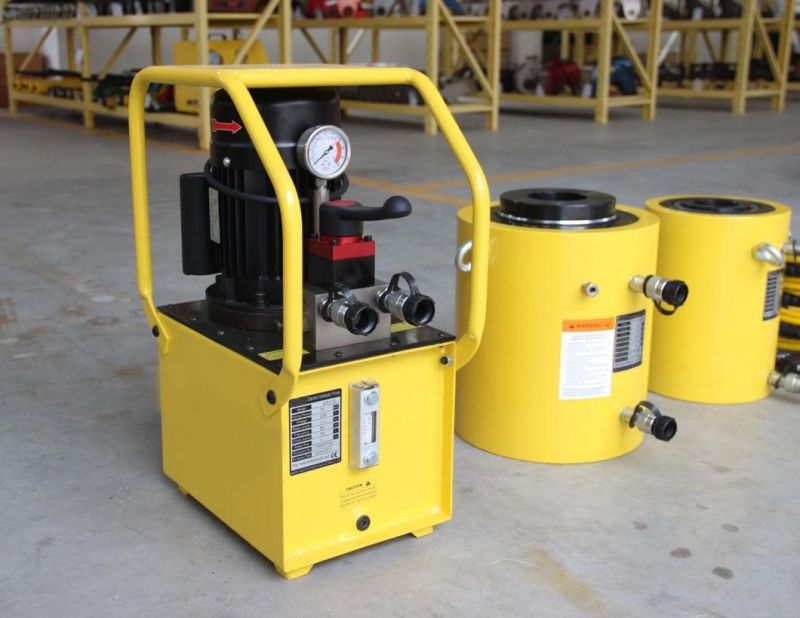

Photos

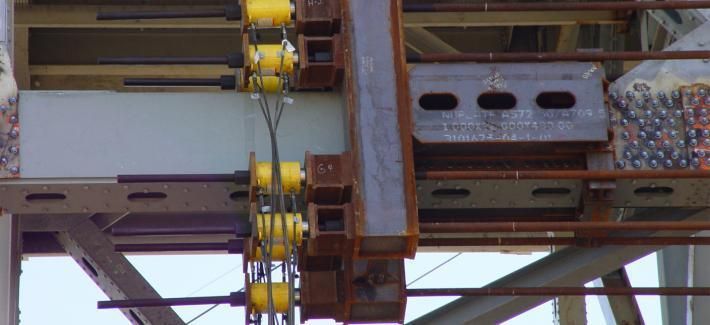

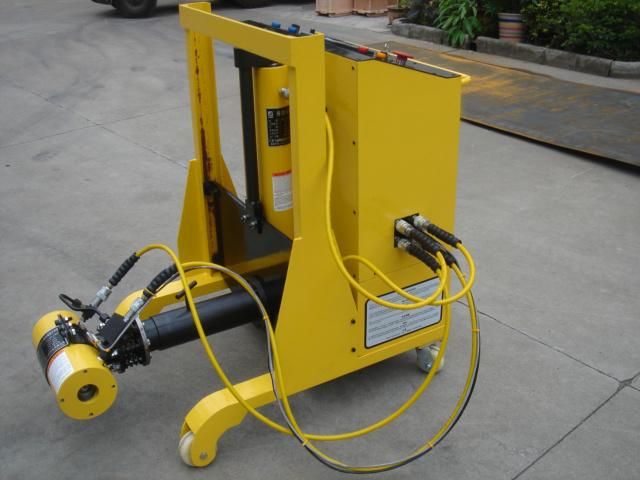

Applications

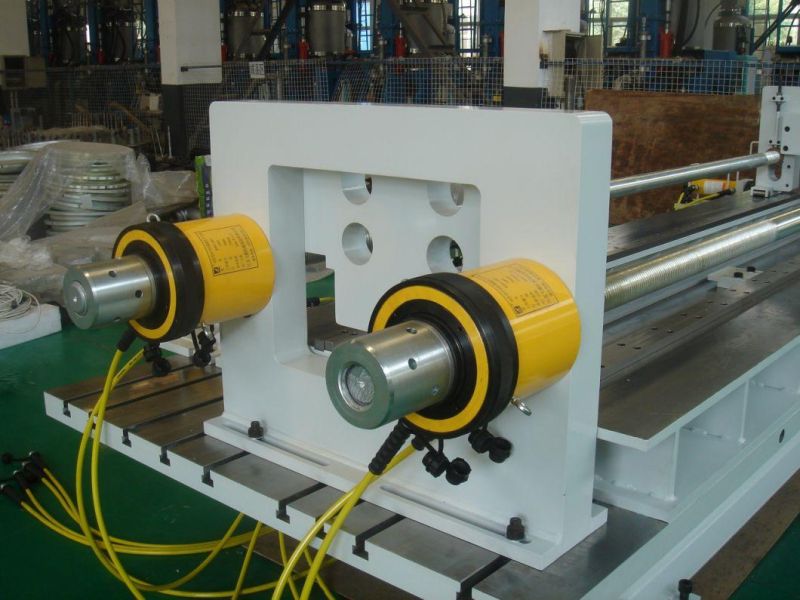

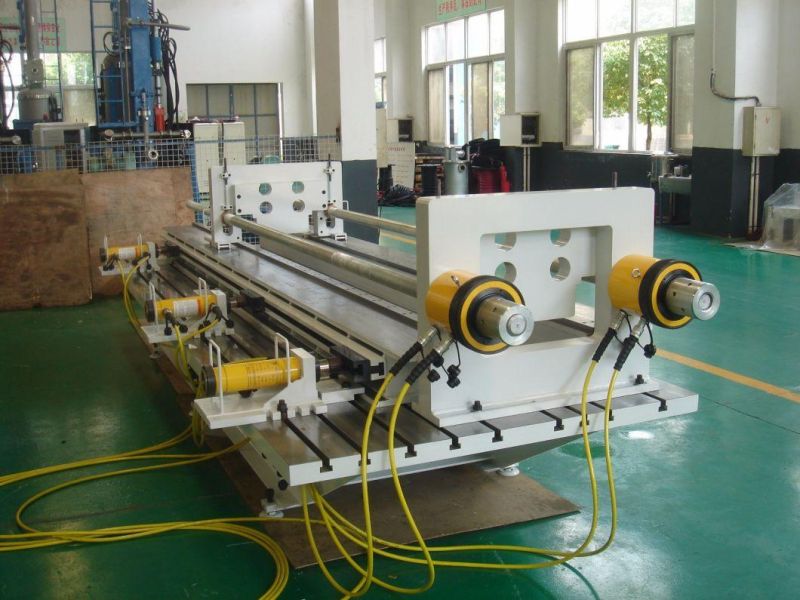

Used for SECPG as multi-fonction press machine with generator pole pressing

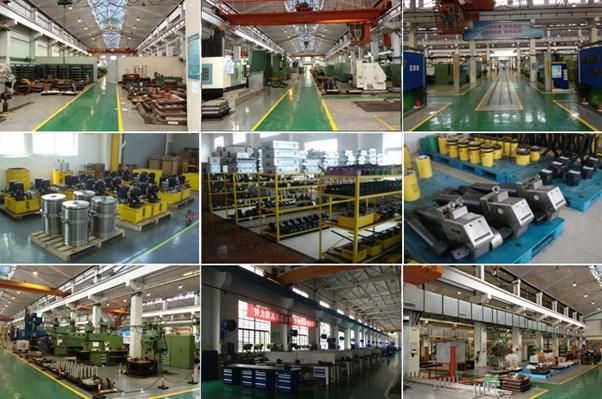

Company information
SOV Hydraulic Technology(Shanghai )Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

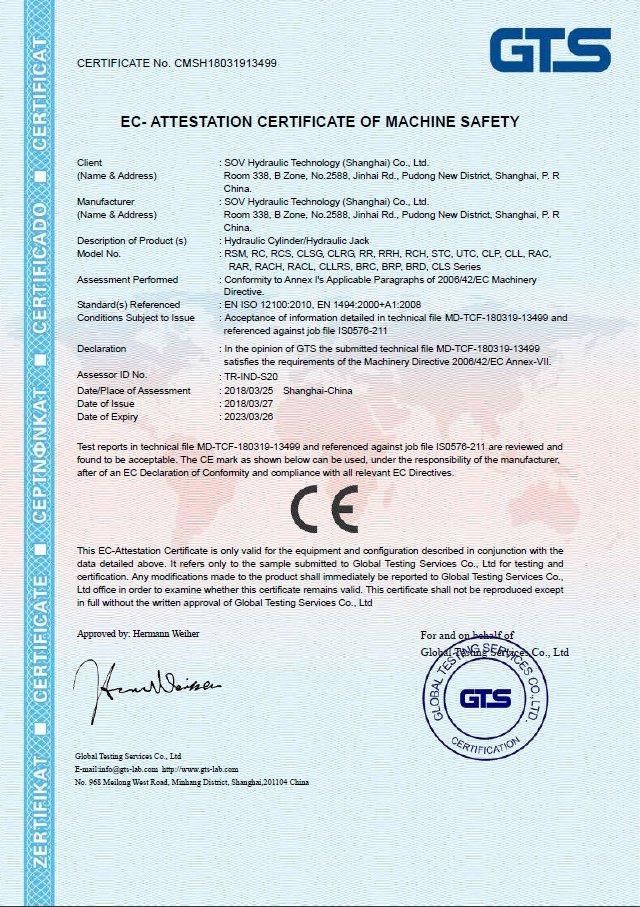

Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
Teams
Main Products
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
