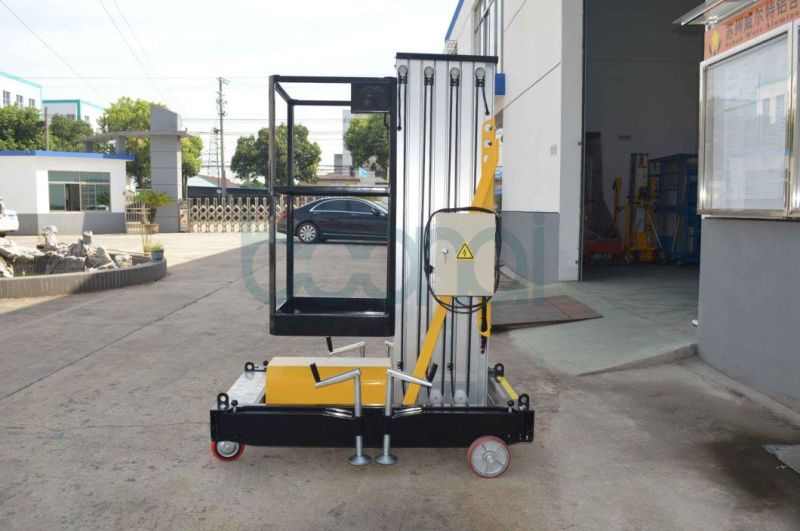

Single Mast Lift Table, Vertical Lift 8 M

Boonai (Suzhou) Lift Equipment Co., Ltd.

Application：Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane, Decoration
Lift Mechanism：Lift Chain
Carrying Capacity：Middle-Level
Moves：Moving
Driven Type：DC or AC, DC and AC
Running Mode：Moving

Base Info

Model NO.：GTWY8-100
Feature：Explosion-Proof, Insulating, Limit Switch
Certification：CE, ISO 9001
Delivery：15 Days or Rush as Requested
Warranty：12 Months Apart From Man-Made Faults
Safe Working Load (Kg)：125
Max Platform Height (M)：8
Max Working Height (M)：9.7
Platform Size (M)：0.60*0.55
AC (VAC/Kw)：220,0.75
DC (Option) (VDC/Kw)：24,0.8
Accumulator (V/Ah)：2*12,80
Charger (V/a)：24,10
Transport Package：Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof
Specification：300 KG(AC)
Trademark：BOONAI
Origin：Xiangcheng District, Suzhou, China
HS Code：8428909090
Production Capacity：200 Units Per Month

Description

Basic Info.

Model NO. GTWY8-100 Feature Explosion-Proof, Insulating, Limit Switch Certification CE, ISO 9001 Delivery 15 Days or Rush as Requested Warranty 12 Months Apart From Man-Made Faults Safe Working Load (Kg) 125 Max Platform Height (M) 8 Max Working Height (M) 9.7 Platform Size (M) 0.60*0.55 AC (VAC/Kw) 220/0.75 DC (Option) (VDC/Kw) 24/0.8 Accumulator (V/Ah) 2*12/80 Charger (V/a) 24/10 Transport Package Steel Pallet+Buffer Sponge+Bubble Bag+Water Proof Specification 300 KG(AC) Trademark BOONAI Origin Xiangcheng District, Suzhou, China HS Code 8428909090 Production Capacity 200 Units Per Month

Product Description

Application:for single passenger
Features:small footprint ,less weight ,easily moved,able to access to limited passageway,the most ideal equipment for aerial work to replace ladder or rigger,with high efficiency and more security
Standard Configuration
Power supply:single phase AC(AC220V)
Move mode:manual(default)
Driving unit :one unit hydraulic pump,small volume and less noise.
others:

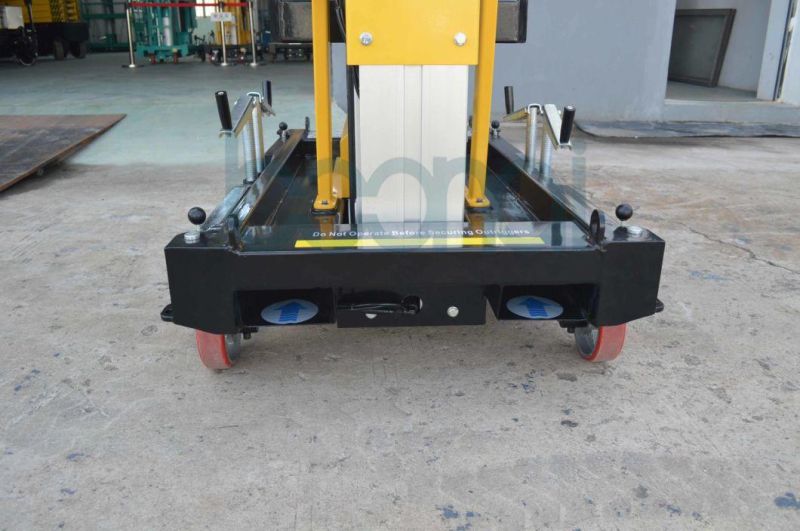

1,Leveling of platform is guaranteed by adjusting outrigger with screws
2,Electric limit switch shall cut off power when up limit is reached

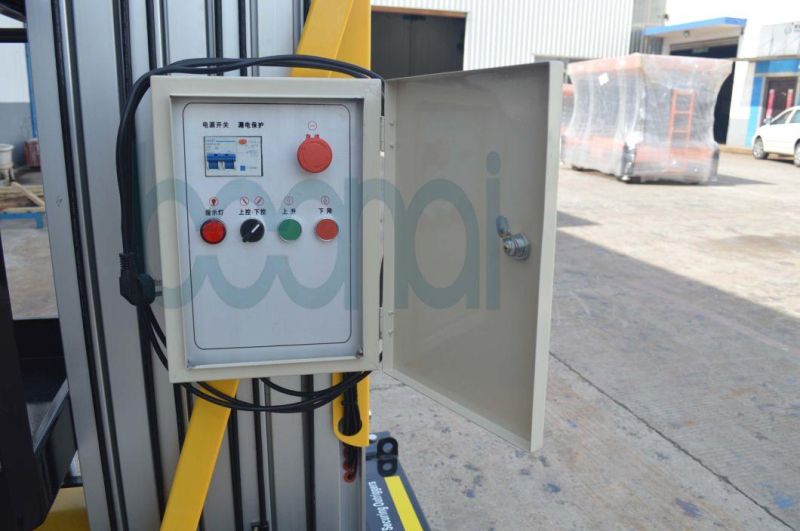

3,Ground/platform control modes are available,rendering possibility of one operator
4,Stroke protection block is build in hydraulic cylinder for security
5,Emergency lowering system is equipped
6,Antiskid staircase is provided

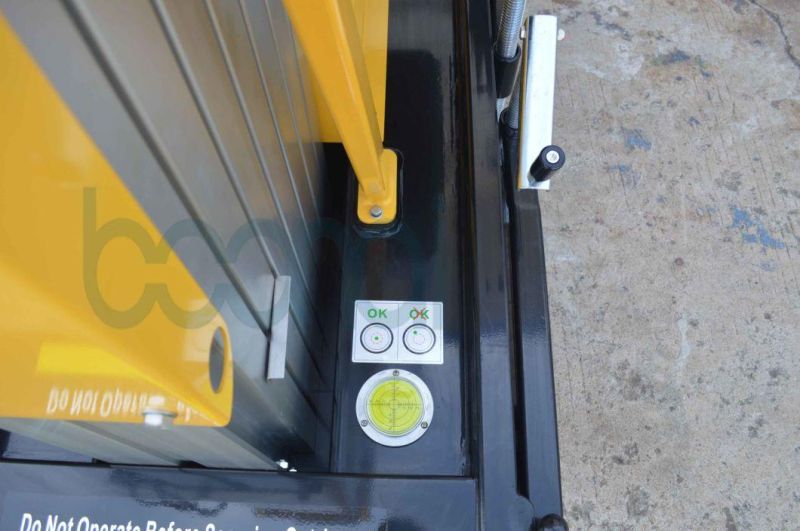

7,Leveling indictor is equipped

Model	GTWY4-100	GTWY4-100	GTWY8-100	GTWY9-100	GTWY10-100
Safe working load(kg)	150	260	125	125	125
Number of passengers	1	1	1	1	1
Max height of platform(m)	4	6	8	9	10
Max working height(m)	5.7	7.7	9.7	10.7	11.7
Overall length (m)	1.05	1.32	1.32	1.38	1.42
Overall width(m)	0.75	0.80	0.80	0.85	0.85
Overall height (m)	1.65	1.65	1.98	1.98	2.10
Extended outrigger(lxw)(m)	1.76*1.64	1.76*1.63	1.76*1.75	1.98*1.83	1.91*1.81
Size of platform(m)	0.60*0.55	0.60*0.55	0.60*0.55	0.60*0.55	0.60*0.55
Lifting motor
AC(VAC/kw)	220/0.75	220/0.75	220/0.75	220/0.75	220/0.75
DC(option)(VDC/kw)	24/0.8	24/0.8	24/0.8	24/0.8	24/0.8
Accumulator(V/AH)	2*12/80	2*12/80	2*12/80	2*12/80	2*12/80
Charger(V/A)	24/10	24/10	24/10	24/10	24/10
Wheel
Front wheel (in)	6	6	6	6	6
Rear wheel (in)	6	6	6	6	6
Overall weight(kg)	185(AC) 230(DC)	260(AC) 305(DC)	300(AC) 345(DC)	326(AC) 372(DC)	350(AC) 395(DC)
