Standard DC Belt Wheel Track Scissor Lift
Jinan PLK Machinery Co., Ltd.- After-sales Service:Free Spare Parts, Life Technical Support
- Warranty:1 Year
- Application:Workshop Crane, Shipboard Crane, Warehouse Crane, Building Crane
- Lift Mechanism:Scissor Lift
- Carrying Capacity:450kg, 320kg
- Moves:Self-propelled
Base Info
- Model NO.:GTJZ-10RT
- Driven Type:DC
- Running Mode:Moving
- Feature:Explosion-Proof, Insulating
- Certification:GS, CE, RoHS, ISO 9001
- Platform Height:6m 8m 10m 12m
- Lift Method:Hydraulic
- Platform Size:2270*1150mm
- Voltage:110V 220V 380V
- Frequency:50Hz,60Hz
- Guardrail Height:1.1m
- Surface Treatment:Plastic Spray
- Safety Precaution 1:Anti Explosion Valve
- Certifications:CE
- Color:Red Yellow Blue Customized
- Lifting Speed:4-6m,Min
- Transport Package:Standard
- Trademark:PLK LIFT
- Origin:China
- HS Code:8428909090
- Production Capacity:500sets
Description
Basic Info.
Model NO. GTJZ-10RT Driven Type DC Running Mode Moving Feature Explosion-Proof, Insulating Certification GS, CE, RoHS, ISO 9001 Platform Height 6m 8m 10m 12m Lift Method Hydraulic Platform Size 2270*1150mm Voltage 110V 220V 380V Frequency 50Hz/60Hz Guardrail Height 1.1m Surface Treatment Plastic Spray Safety Precaution 1 Anti Explosion Valve Certifications CE Color Red Yellow Blue Customized Lifting Speed 4-6m/Min Transport Package Standard Trademark PLK LIFT Origin China HS Code 8428909090 Production Capacity 500setsProduct Description

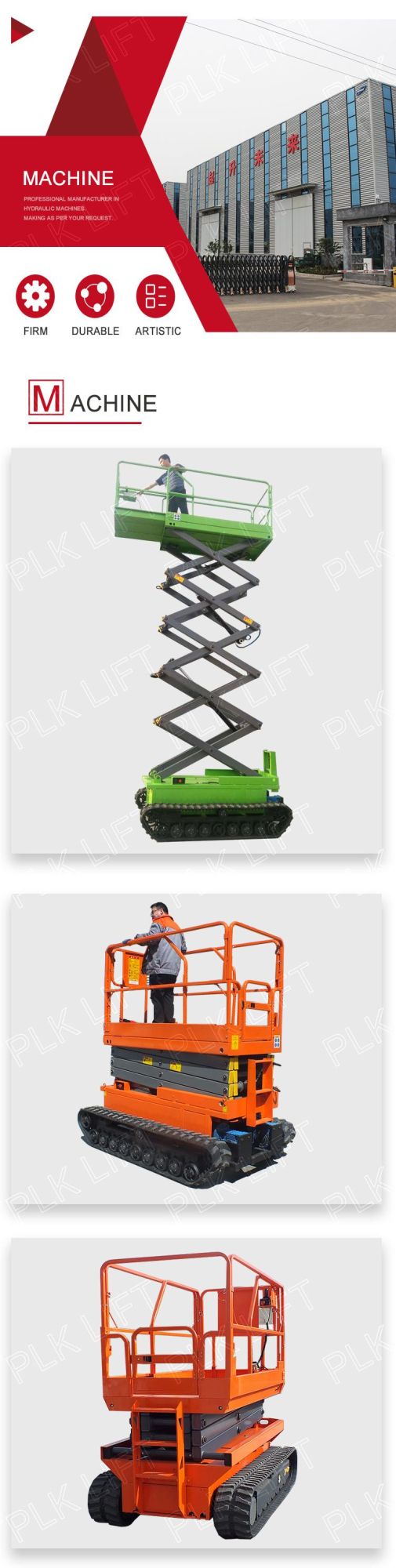

Level Track Scissor Lift Electric Mobile Scissor LiftConfiguration
a. American TORJAN Battery, CUITIS control system, Sweden bucher pump station, Italy doyle hydraulic valve and American White driving wheel.
b. Deep cycle battery and intelligent charger
c. DC, Gas or diesel motor available.
d. Non markingtracks
e. Foldable guardrails and extendable platform
f. Self levelling hydraulic outriggers available
g. "Hall"proportional joystick control
Structure Mechanical Bracing
Steel bar bracing to guarantee absolute safety
Oscillation Axle
It allows for smooth and steady scaling of rough terrains, without undesirable bumpy up/down movements.
Safety Mechanisms
Apart from mechanical bracing bar, there are explosion-proof valves, spillover valve and emergency decline valve etc..
After-Sales Service
Free parts including shipping for the 1st purchase year
Life support by 24/7 bilingual staff
Original parts and outstanding service when warranty expires.
Model Type | SP-TC045 Crawler Type 4.5m | SP-TC06 Crawler Type 6m | SP-TC06H Automatic Leveling Hydraulic Outriggers | SP-TC08 Crawler Type 8m | SP-TC08H Automatic Leveling Hydraulic Outriggers | SP-TC10 Crawler Type 10m | SP-TC10H Automatic Leveling Hydraulic Outriggers | SP-TC12 Crawler Type 12m | SP-TC12H Automatic Leveling Hydraulic Outriggers |
Max Lifting Height | 6.5m | 8m | 8m | 10m | 10m | 12m | 12m | 14m | 14m |
Working Height | 4.5m | 6m | 6m | 8m | 8m | 9.75m | 9.75m | 11.75m | 11.75m |
Load Capacity | 200Kg | 450Kg | 450Kg | 450Kg | 450Kg | 320Kg | 320Kg | 320Kg | 320Kg |
Extendable Platform | 100Kg | 113Kg | 113Kg | 113Kg | 113Kg | 113Kg | 113Kg | 113Kg | 113Kg |
Workers on Platform | 1 | 2 | 2 | 2 | 2 | 2 | 2 | 2 | 2 |
Overall Length | 1.27 | 2.47 | 2.782 | 2.47 | 2.782 | 2.47 | 2.782 | 2.47 | 2.782 |
Overall Width | 0.79 | 1.39 | 1.581 | 1.39 | 1.581 | 1.39 | 1.581 | 1.39 | 1.581 |
Overall Height (Guardrails unfolded) | 1.82 | 2.28 | 2.28 | 2.7 | 2.4 | 2.53 | 2.53 | 2.67 | 2.67 |
Overall Height (Guardrails folded)) | / | 1.745 | 1.745 | 1.865 | 1.865 | 1.995 | 1.955 | 2.13 | 2.13 |
Platform Size(m) | 1.23*0.655 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 | 2.27*1.12*0.7 |
Extendable Platform(m) | 0.55 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
Min Turning Radius(m) | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 | 0 |
Min Ground Clearance(m) | 0.05 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 |
Lifting Motor | 24v/0.1.2Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw | 48V/4Kw |
Driving Motor | 2X24v/1.5Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw | 2X48v/4Kw |
Driving Speed | 1.7Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h | 2.4Km/h |
Lifting up/down Speed | 24/20sec | 38/30sec | 38/30sec | 45/36sec | 45/36sec | 70/62sec | 70/62sec | 85/75sec | 85/75sec |
Charger | 0.25 | 48V/25A | 48V/25A | 48V/25A | 48V/25A | 48V/25A | 48V/25A | 48V/25A | 48V/25A |
Machine Weight | 790Kg | 2400Kg | 2800Kg | 2550Kg | 2950kg | 2840Kg | 3240kg | 3000Kg | 3480kg |
Aerial Lift Platform moves and lifts all by battery power. Operator can control lifting, moving, turning all on the platform through the control system.
Factory Show Jinan PLK Machinery Co., Ltd is located in Jinan City, Shandong Province, and was established in 2003. In the past years, Jinan PLK has developed into a professional manufacturer of aerial working platforms, lifting machines and material lifts. PLK Machinery is committed to providing customers with best quality products and professional services. Every year, we invest a lot of money in product renewals. High quality products and professional services make us a leader in the industry.
