High Tonnage Single Acting Lock Nut Jack (SOV-CLSG)
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Type:Hydraulic Jack
- Structure:Hydraulic Jack
- Capacity (Load):41-50T
- Power Source:Hydraulic
- Max Height:100-150mm
- Certification:EPA, CS, CE, RoHS, ISO 9001:2000, ISO 9001:2008
Base Info
- Model NO.:SOV-CLSG)
- Condition:New
- Name:Sov High Tonnage Single Acting Hydraulic Jack
- Cylinder Capacity Ton (Kn):50 (539)-1000 (10260)
- Stroke mm:50-300
- Cylinder Effective Area Cm2:77, 0-1465, 7
- Oil Capacity Cm3:385-43972
- Collapsed Height(a) mm:162-814
- Extended Height(B) mm:212-1114
- Outside Diameter(D) mm:130-560
- Weight Kg:17-1439
- Working Pressure:700 Bar
- Transport Package:in a Wooden Case
- Specification:CE, ISO, SGS
- Trademark:SOV, ENERPAC, POWERTEAM
- Origin:Shanghai, China
- HS Code:8412210000
- Production Capacity:5000sets Per Month
Description
Overview

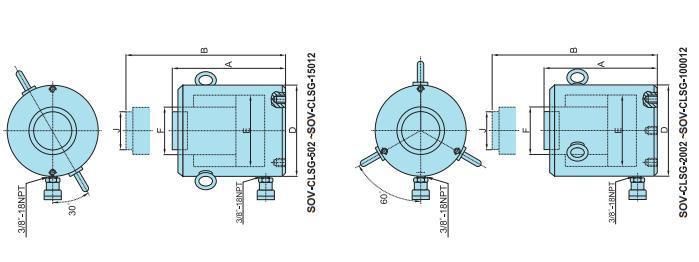

Model Number Cylinder
Capacity Stroke Cylinder
Effective Area Oil
Capacity Collapsed
Height(A) Extended
Height(B) Outside
Diameter(D) Weight ton (kN) mm cm2 cm3 mm mm mm kg SOV-CLSG-502 50
(539) 50 77,0 385 162 212 130 17 SOV-CLSG-504 100 77,0 770 212 312 130 20 SOV-CLSG-506 150 77,0 1155 262 412 130 23 SOV-CLSG-508 200 77,0 1540 312 512 130 27 SOV-CLSG-5010 250 77,0 1924 362 612 130 31 SOV-CLSG-5012 300 77,0 2309 412 712 130 34 SOV-CLSG-1002 100
(929) 50 132,7 664 182 232 165 19 SOV-CLSG-1004 100 132,7 1327 232 332 165 29 SOV-CLSG-1006 150 132,7 1991 282 432 165 40 SOV-CLSG-1008 200 132,7 2655 332 532 165 50 SOV-CLSG-10010 250 132,7 3318 382 632 165 61 SOV-CLSG-10012 300 132,7 3982 432 732 165 71 SOV-CLSG-1502 150
(1390) 50 198,6 993 196 246 205 39 SOV-CLSG-1504 100 198,6 1986 246 346 205 52 SOV-CLSG-1506 150 198,6 2978 296 446 205 65 SOV-CLSG-1508 200 198,6 3971 346 546 205 78 SOV-CLSG-15010 250 198,6 4964 396 646 205 92 SOV-CLSG-15012 300 198,6 5957 446 746 205 105 SOV-CLSG-2002 200
(1861) 50 265,9 1330 216 266 235 55 SOV-CLSG-2006 150 265,9 3989 316 466 235 91 SOV-CLSG-20012 300 265,9 7977 466 766 235 146 SOV-CLSG-2502 250
(2565) 50 366,4 1832 235 285 275 102 SOV-CLSG-2506 150 366,4 5497 335 485 275 136 SOV-CLSG-25012 300 366,4 10993 485 785 275 207 SOV-CLSG-3002 300
(3193) 50 456,2 2281 312 362 310 184 SOV-CLSG-3006 150 456,2 6843 412 562 310 232 SOV-CLSG-30012 300 456,2 13685 562 862 310 303 SOV-CLSG-4002 400
(3919) 50 559,9 2800 375 425 350 270 SOV-CLSG-4006 150 559,9 8399 475 625 350 330 SOV-CLSG-40012 300 559,9 16797 625 925 350 421 SOV-CLSG-5002 500
(5114) 50 730,6 3653 419 469 400 401 SOV-CLSG-5006 150 730,6 10959 519 669 400 480 SOV-CLSG-50012 300 730,6 21918 669 969 400 599 SOV-CLSG-6002 600
(5987) 50 855,3 4276 429 479 430 474 SOV-CLSG-6006 150 855,3 12829 529 679 430 565 SOV-CLSG-60012 300 855,3 25659 679 979 430 701 SOV-CLSG-8002 800
(8234) 50 1176,3 5881 474 524 505 741 SOV-CLSG-8006 150 1176,3 17644 574 724 505 880 SOV-CLSG-80012 300 1176,3 35288 724 1024 505 1058 SOV-CLSG-10002 1000
(10260) 50 1465,7 7329 564 614 560 1062 SOV-CLSG-10006 150 1465,7 21986 664 814 560 1213 SOV-CLSG-100012 300 1465,7 43972 814 1114 560 1439
Capacity
Effective Area
Capacity
Height(A)
Height(B)
Diameter(D)
(539)
(929)
(1390)
(1861)
(2565)
(3193)
(3919)
(5114)
(5987)
(8234)
(10260)
