• Model NO.：ZS1012HD-Li
• Driven Type：Hydraulic
• Running Mode：Moving
• Feature：Explosion-Proof, Insulating
• Certification：CE, ISO 9001
• Work Height：11.8m
• Platform Height-Elevated：9.8m
• Platform Length：2.3m
• Platform Width：1.12m
• Platform Capacity：350kg
• Gross Weight：2900kg
• Transport Package：Container,Roro,Bulk
• Specification：2.49*1.15*2.46m
• Trademark：Zoomlion
• Origin：Hunan, China
• HS Code：8428909090
• Production Capacity：500units,Month

Main Specs of Scissor Lifts (HD-Li)Comply with CE/ANSI/GB StandardModelZS1414HD-LiZS1212HD-LiZS1012HD-LiZS0808HD-LiZS0608HD-LiZS0607HD-LiSizeWork Height15.7m13.80m11.80m10.00m8.00m7.87mA - Platform Height-Elevated13.7m11.80m9.80m8.00m6.00m5.87mB - Platform Height-Stowed1.5m1.46m1.33m1.20m1.07m1.05mC - Platform Dimension (Length)2.67m2.30m2.30m2.30m2.30m1.65mC - Platform Dimension (Width)1.12m1.12m1.12m0.81m0.81m0.74mPlatform Extension0.9m0.91m0.91m0.91m0.91m0.91mE - Overall Height (Rails Up)2.65m2.59m2.46m2.35m2.22m2.20mOverall Height (Rails Down)2.1m2.05m1.92m1.85m1.72m1.79mF - Overall Length2.87m2.49m2.49m2.49m2.49m1.85mG - Overall Width1.4m1.15m1.15m0.81m0.81m0.76mH - Wheelbase2.22m1.85m1.85m1.85m1.85m1.37mI - Ground Clearance (Stowed)0.11m0.11m0.11m0.11m0.11m0.06mJ - Ground Clearance (Raised)0.02m0.02m0.02m0.02m0.02m0.016mPerformancePlatform Capacity260kg350kg350kg230kg380kg230kgCapacity on Deck Extension113kg113kg113kg113kg113kg113kgMax. Number of Workers232222Drive Speed (Stowed)3.5km/h3.5km/h3.5km/h3.5km/h3.5km/h3.5km/hDrive Speed (Raised)0.8km/h0.8km/h0.8km/h0.8km/h0.8km/h0.8km/hTurning Radius (Inside)0.1m0.1m0.1m0.1m0.1m0.1mTurning Radius (Outside)2.6m2.2m2.2m2.1m2.1m1.6mUp/Down Drive Motor24V/4.5KW24V/4.5KW24V/4.5KW24V/3.3KW24V/3.3KW24V/3.3KWUp/Down Time88s/60s62s/42s60s/35s31s/40s28s/35s20s/24sGradeability25%25%(14°)25%(14°)25%(14°)30%(17°)25%(14°)Max. Working Slope (Lateral/Vertical)1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°1.5°/3°ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlProportional   ControlDriveFront   WheelsFront   WheelsFront   WheelsFront   WheelsFront   WheelsFront   WheelsBrakeRear   WheelsRear   WheelsRear   WheelsRear   WheelsRear   WheelsRear   WheelsTireф381mm×127mmф381mm×127mmф381mm×127mmф381mm×127mmф381mm×127mmф305mm×114mmPowerBattery250Ah   Li-ion200Ah   Li-ion200Ah   Li-ion180Ah   Li-ion180Ah   Li-ion140Ah   Li-ionCharger24V/30A24V/30A24V/30A24V/30A24V/30A24V/30ACharger  (Option)24V/60A24V/60A24V/60A24V/60A24V/60A WeightGross3540kg3180kg2900kg2060kg1910kg1425kgFeaturesStandard Features GPS   positioning and tracking systemAutobrake systemDrivable at full heightProportional   controlsEmergency descent systemHour meterAll motion alarmEmergency stop buttonExtension deck (unidirectional)Fold-down   handrailsOn-board diagnosticCharging protection systemFlashing amber beaconOver tilt protective systemScissor maintenance propSelf-closing   entry gateActive pothole protection systemForklift pocketsZoomlion AWM Remote Monitoring and Rental Management System *Accessories & OptionsPlatform work lightsLoad sensing systemAC power to platformAirline to platform

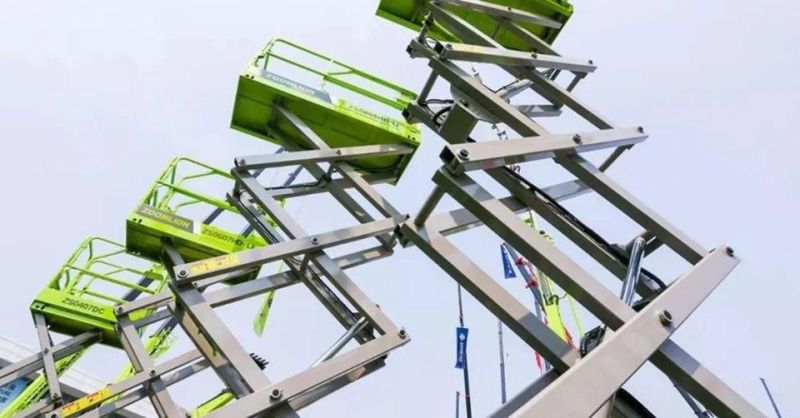

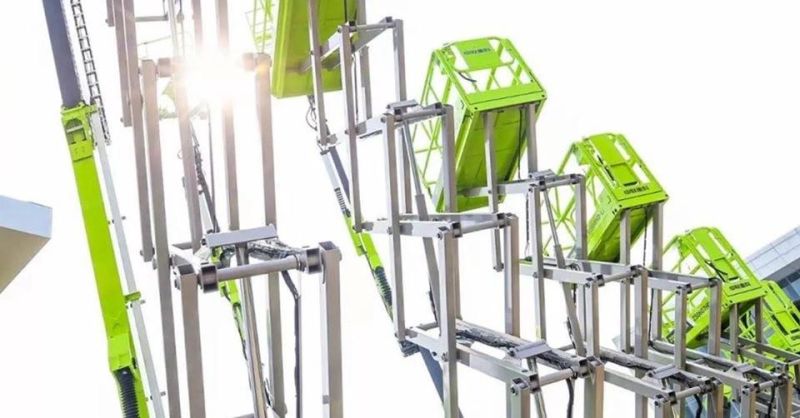

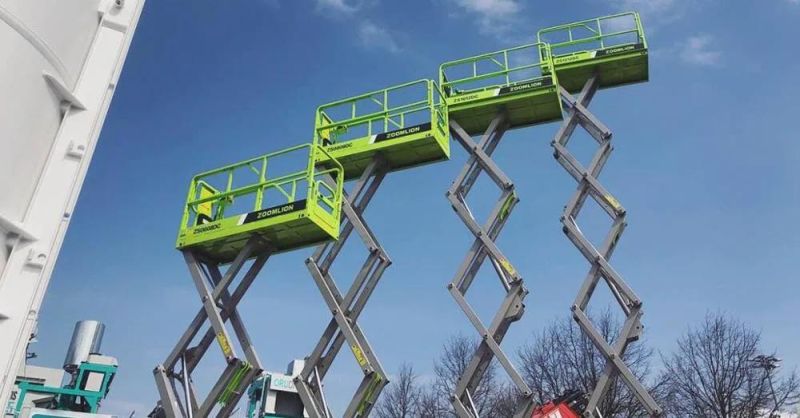

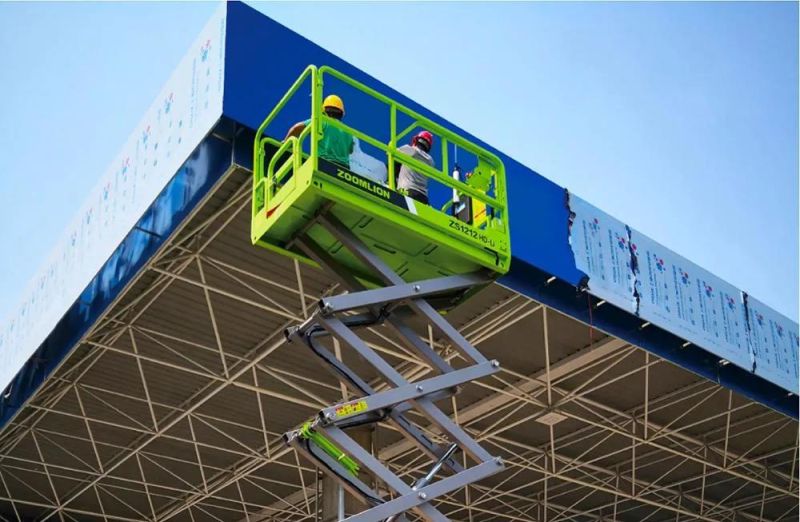

Product pictures





Company information
