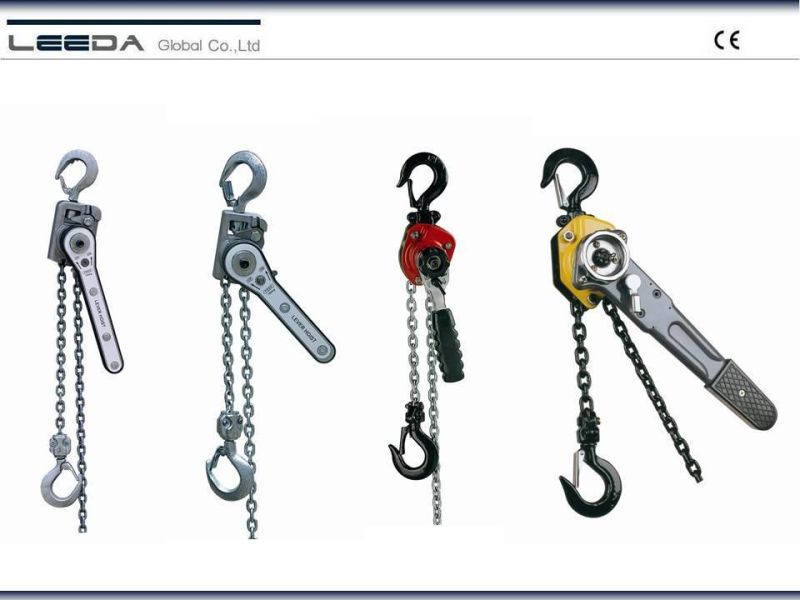

Alu Frame Lever Hoist (HSHA series)
Leeda Global Co., Ltd.- Application：Double Beam Crane, Gantry Crane, Bridge Crane, Tower Crane, Single Grinder Crane, Lifting Platform, Small Crane
- Type：Lever Hoist
- Sling Type：Chain
- Maximum Lifting Height：20m
- Chain Falls：1,2
- Certification：CE, ISO9001:2000
Base Info
- Model NO.：HSHA series
- Condition：New
- Material：Aluminium
- Design：Heavy Duty Type
- Lifting Height：1.5 Meter
- Capacity：1.5 T,3 T
- Effort to Rated Capacity：21 Kg
- Transport Package：Wooden Pallet
- Specification：CE
- Trademark：Leeda
- Origin：China
- HS Code：84251900
Description
ModelHSHA1.5T-AL HSHA3.0T-AL Rated capacity(kg) 1500 3000 Standard lift height(m) 1.5 1.5 Test load(kg) 2250 4500 Force to lift rated capacity(kg) 21 21 Diameter of load chain(mm) Φ 7.1*21 Φ 7.1*21 No. of falls 1 fall 2 falls Length of operating handle(mm) 300 300 Dimensions (mm) A 180 180 B 102 102 C 115 115 D 300 300 Net Weight(kg) 10 16.5 Packing size (mm) 455*150*190 455*150*190 Mininum quantity(pcs) 5 5
