• Model NO.：SJG
• Driven Type：Hydraulic
• Running Mode：Stationary
• Feature：Explosion-Proof
• Certification：CE
• Load Capacity：3000kg,Customized
• Lifitng Hiehgt：5000mm,Customized
• Platform Size：5000*2500mm,Customized
• Material：High Strength Manganese Steel
• Motor：Hydr-APP
• Speed：100mm,S
• Color：Optional
• Control：24V
• Power：5.5KW
• Transport Package：Standard Export Packing
• Specification：CE
• Trademark：Moral
• Origin：Jinan, Shangdong, China
• HS Code：842890
• Production Capacity：50, 000 PCS,Year

Basic Info.

Model NO. SJG Driven Type Hydraulic Running Mode Stationary Feature Explosion-Proof Certification CE Load Capacity 3000kg/Customized Lifitng Hiehgt 5000mm/Customized Platform Size 5000*2500mm/Customized Material High Strength Manganese Steel Motor Hydr-APP Speed 100mm/S Color Optional Control 24V Power 5.5KW Transport Package Standard Export Packing Specification CE Trademark Moral Origin Jinan, Shangdong, China HS Code 842890 Production Capacity 50, 000 PCS/Year

Product Description

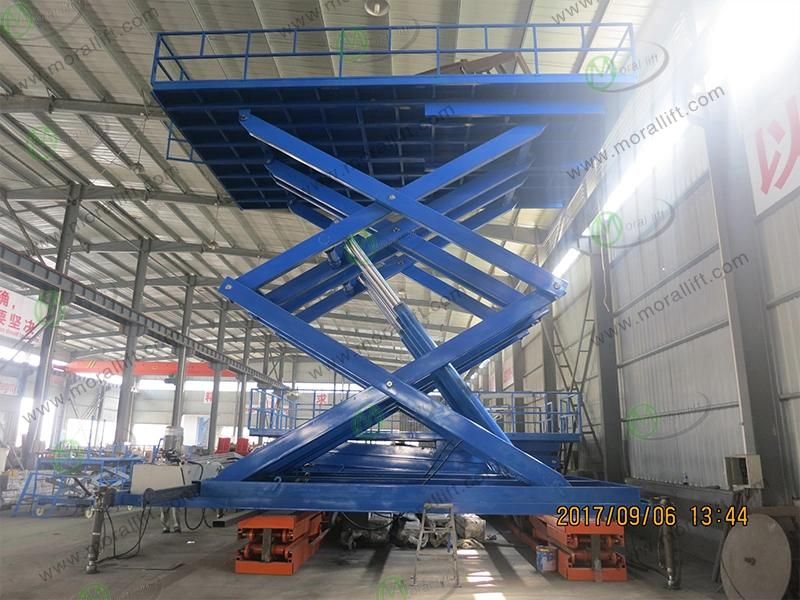

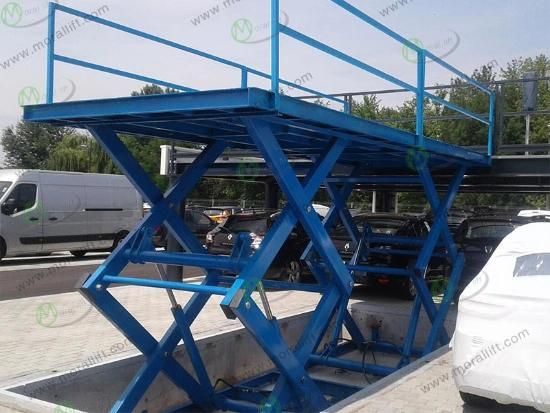

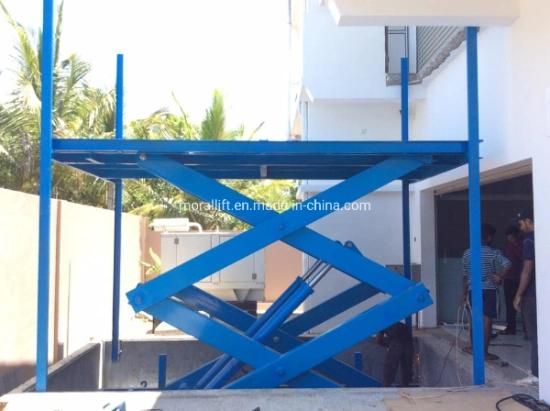

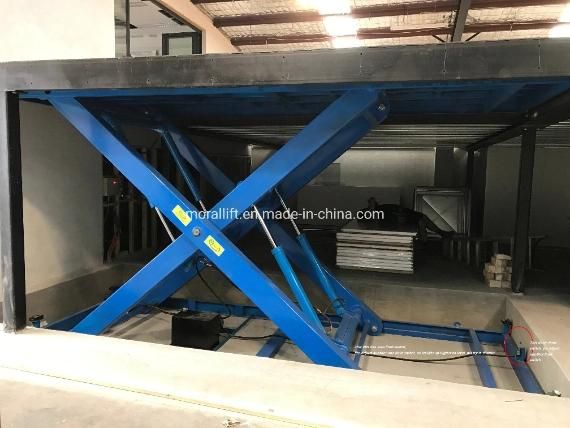

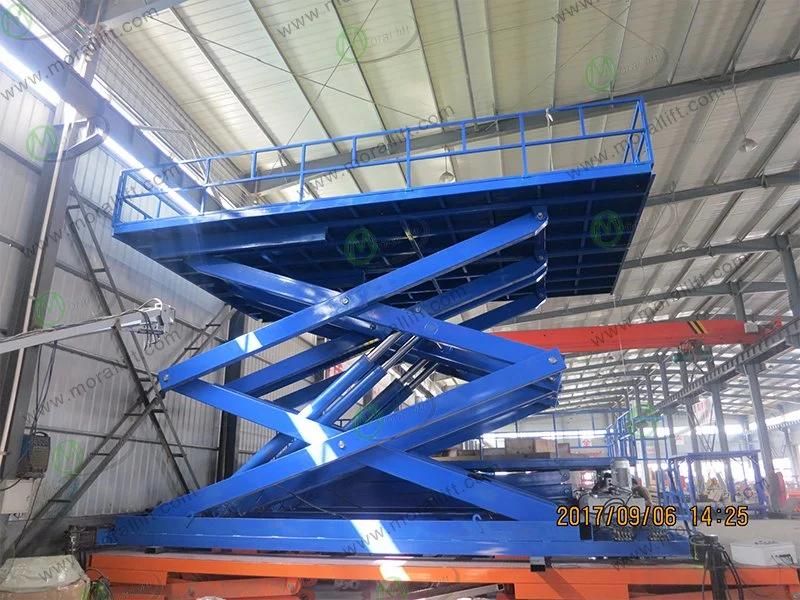

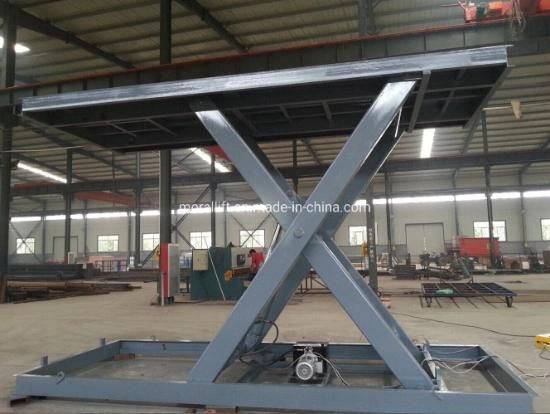

Used Heavy Loading Stationary Hydraulic Scissor Lift Table
Main feature:
1)used for lifting kinds of goods, car. etc
2)great loading capacity
3)hydraulic system increase safety
4)steady working

Specifications and Safety:
1.The hydraulic cylinders and hose are armed with explosion-proof lock valve to avoid a
sudden drop once hydraulic pipe breaks, the work platform will be down slowly to ensure
 safety of goods, car, etc
2. the handrail to guarantee safety of goods, car, etc
3. equipped with 4 guide rails to ensure safety and steady.
4. the limit switch system ensure lifts stop at accurate position.
5. overload protection facility is equipped on, the lift will not work when goods is overloaded.
6. Electric control system adopt elevator system from Japan Mitsubishi ensure safety
7. guarantee: 12 months, we supply spare parts free and supply technical supporting all the time.

Parameter:
1. load weight: 3000kgs/customize
2. table size: 5.5m x 2.5m/customize
3. travel height: 5m/customize
4. Elevator controls system
5. structure: high-strength Mn steel


Model	SJG3-5
Load capacity	3000KG
Platform size	5500*2500MM
Lifting height	5000MM
speed	100mm/s
power	5.5kw
power supply	AC 220V/380V  50HZ/60HZ
weight	2950KG

Pictures:













Welcome to your inquiry,we can customize for your every inquiry!
