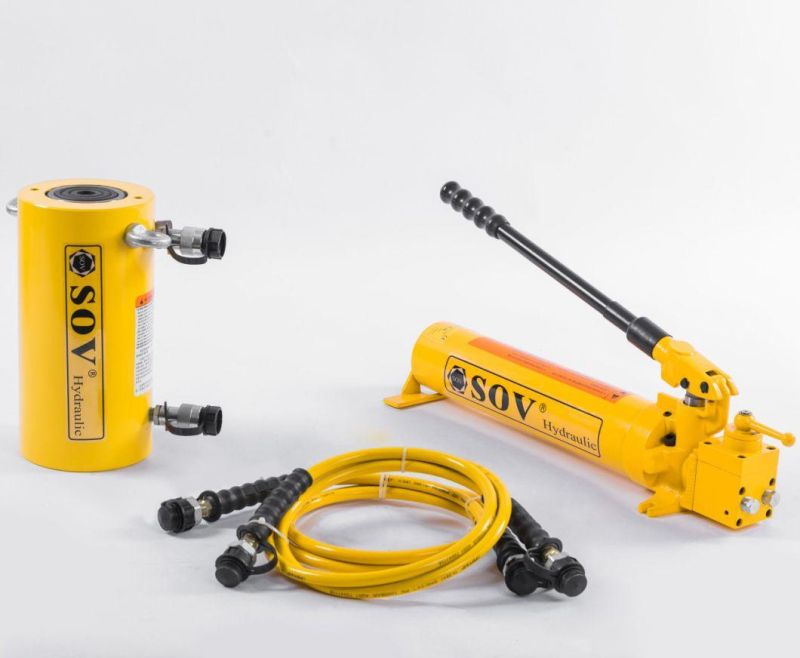

Enerpac Same 700 Bar Double Action Industrial and Constructional Hydraulic RAM Cylinder
SOV Hydraulic Technology (Shanghai) Co., Ltd.- Warranty：1 Year
- Type：Hydraulic Jack
- Structure：Hydraulic Jack
- Capacity (Load)：500t
- Power Source：Hydraulic
- Max Height：669mm
Base Info
- Model NO.：CLRG-5006
- Certification：CE, ISO 9001:2008
- Condition：New
- Body Material：#40cr
- Working Pressure：700bar or 70MPa
- Capacity：500t
- Stroke：150mm
- Collapsed Height：519mm
- Weight：480kg
- Certificate：CE, ISO9001:2008
- Customize：Available
- Transport Package：Wooden Case
- Specification：CE, ISO, SGS
- Trademark：SOV, Can OEM
- Origin：China
- HS Code：841221000
- Production Capacity：1000per Month
Description
Cylinder
Effective Area
(cm2)Oil
Capacity
(cm3) Coll. Height
(A) Ext.
Height
(B) Outside
Dia.
(D) Weight ton mm Push Pull Push Pull Push Pull mm mm mm kg SOV-CLRG-502 50 50 539 269 77,0 38,5 385 192 162 212 130 17 SOV-CLRG-504 100 539 269 77,0 38,5 770 385 212 312 130 20 SOV-CLRG-506 150 539 269 77,0 38,5 1155 577 262 412 130 23 SOV-CLRG-508 200 539 269 77,0 38,5 1540 770 312 512 130 27 SOV-CLRG-5010 250 539 269 77,0 38,5 1924 962 362 612 130 31 SOV-CLRG-5012 300 539 269 77,0 38,5 2309 1155 412 712 130 34 SOV-CLRG-1002 100 50 929 433 132,7 61,9 664 309 179 229 165 29 SOV-CLRG-1004 100 929 433 132,7 61,9 1327 619 229 329 165 34 SOV-CLRG-1006 150 929 433 132,7 61,9 1991 928 279 429 165 40 SOV-CLRG-1008 200 929 433 132,7 61,9 2655 1237 329 529 165 46 SOV-CLRG-10010 250 929 433 132,7 61,9 3318 1546 379 629 165 52 SOV-CLRG-10012 300 929 433 132.7 61,9 3982 1856 429 729 165 58 SOV-CLRG-1502 150 50 1390 675 198,6 96,5 993 482 196 246 205 39 SOV-CLRG-1504 100 1390 675 198,6 96,5 1986 965 246 346 205 52 SOV-CLRG-1506 150 1390 675 198,6 96,5 2978 1447 296 446 205 65 SOV-CLRG-1508 200 1390 675 198,6 96,5 3971 1930 346 546 205 78 SOV-CLRG-15010 250 1390 675 198,6 96,5 4964 2412 396 646 205 92 SOV-CLRG-15012 300 1390 675 198,6 96,5 5957 2895 446 746 205 105 SOV-CLRG-2002 200 50 1861 889 265,9 127,0 1330 635 212 262 235 55 SOV-CLRG-2006 150 1861 889 265,9 127,0 3989 1905 312 462 235 91 SOV-CLRG-20012 300 1861 889 265,9 127,0 7977 3809 462 762 235 146 SOV-CLRG-2502 250 50 2565 1068 366,4 152,6 1832 763 235 285 275 89 SOV-CLRG-2506 150 2565 1068 366,4 152,6 5497 2289 335 485 275 136 SOV-CLRG-25012 300 2565 1068 366,4 152,6 10993 4578 485 785 275 207 SOV-CLRG-3002 300 50 3193 1060 456,2 151,4 2281 757 322 372 310 184 SOV-CLRG-3006 150 3193 1060 456,2 151,4 6843 2270 422 572 310 232 SOV-CLRG-30012 300 3193 1060 456,2 151,4 13685 4541 572 872 310 303 SOV-CLRG-4002 400 50 3919 1354 559,9 193,5 2800 967 374 424 350 270 SOV-CLRG-4006 150 3919 1354 559,9 193,5 8399 2902 474 624 350 330 SOV-CLRG-40012 300 3919 1354 559,9 193,5 16797 5804 624 924 350 421 SOV-CLRG-5002 500 50 5114 1733 730,6 247,6 3653 1238 419 469 400 401 SOV-CLRG-5006 150 5114 1733 730,6 247,6 10959 3713 519 669 400 480 SOV-CLRG-50012 300 5114 1733 730,6 247,6 21918 7427 669 969 400 599 SOV-CLRG-6002 600 50 5987 2068 855,3 295,4 4276 1477 429 479 430 474 SOV-CLRG-6006 150 5987 2068 855,3 295,4 12829 4431 529 679 430 565 SOV-CLRG-60012 300 5987 2068 855,3 295,4 25659 8862 679 979 430 701 SOV-CLRG-8002 800 50 8234 2709 1176,3 387,0 5881 1935 484 534 505 741 SOV-CLRG-8006 150 8234 2709 1176,3 387,0 17644 5806 584 734 505 868 SOV-CLRG-80012 300 8234 2709 1176,3 387,0 35288 11611 734 1034 505 1058 SOV-CLRG-10002 1000 50 10260 3792 1465,7 541,7 7329 2709 564 614 560 1062 SOV-CLRG-10006 150 10260 3792 1465,7 541,7 21986 8126 664 814 560 1213 SOV-CLRG-100012 300 10260 3792 1465,7 541,7 43972 16252 814 1114 560 1439

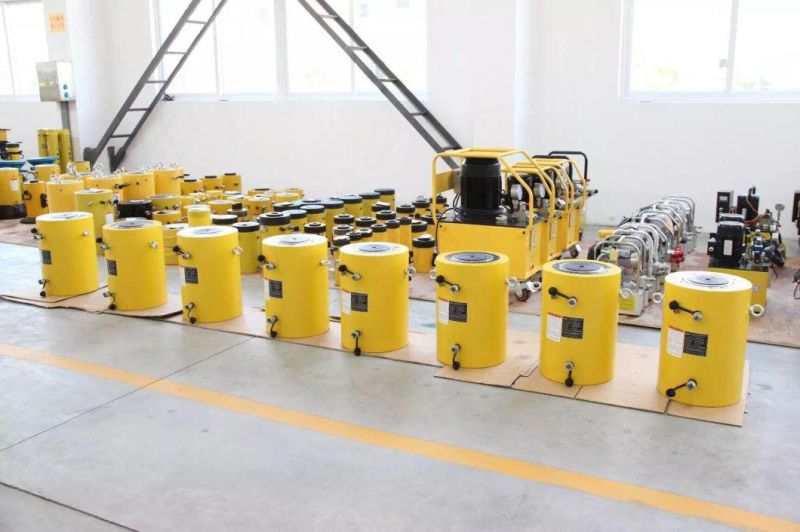

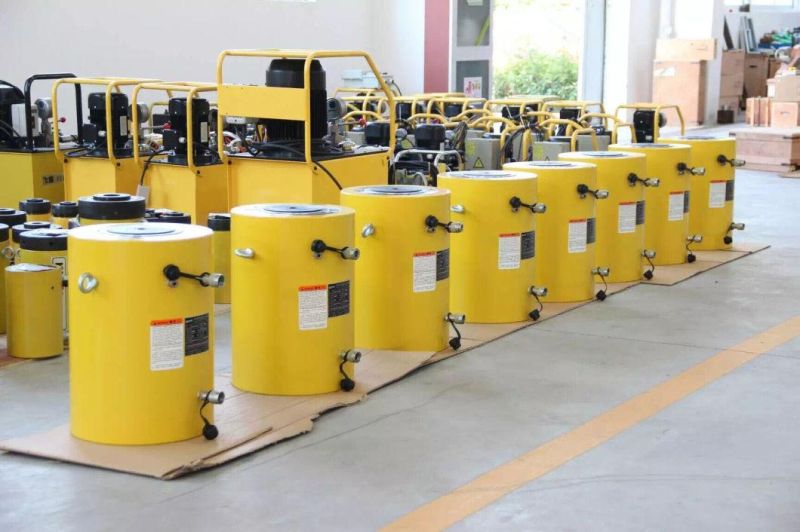

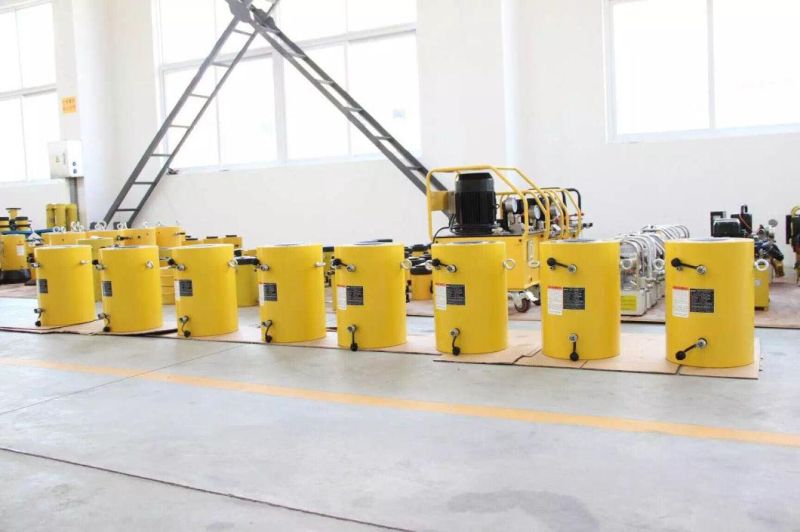

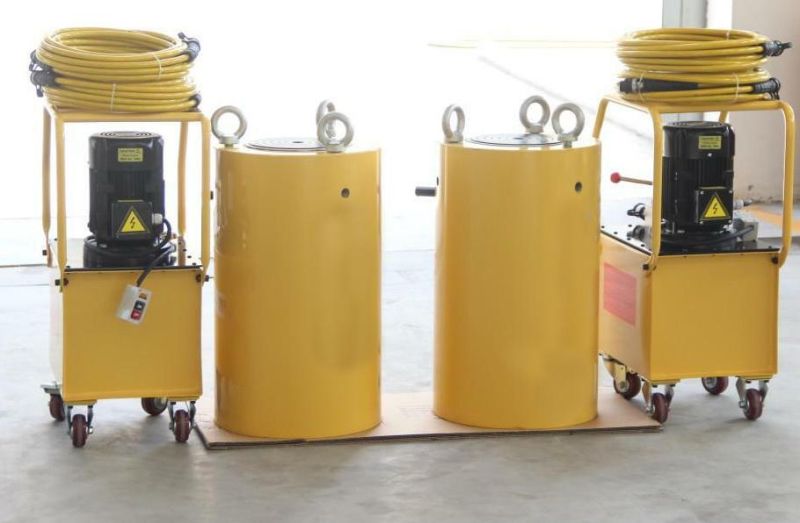

Photos

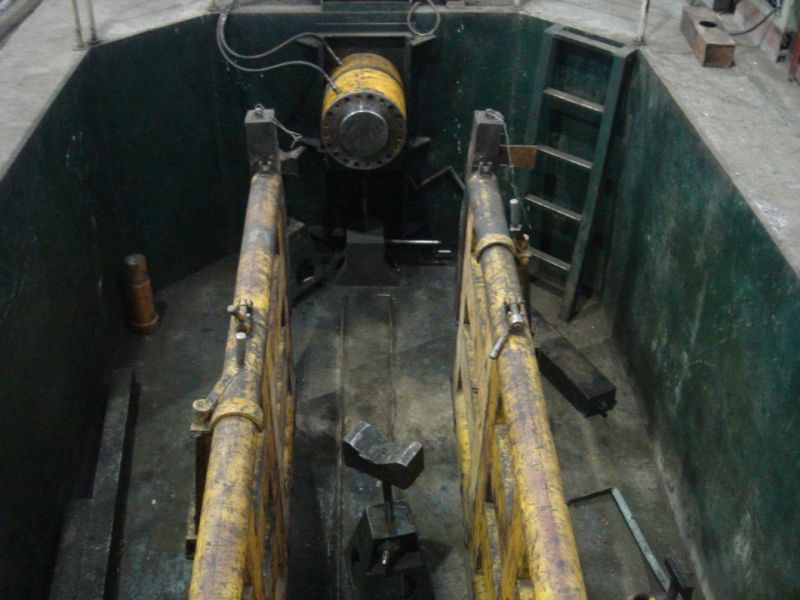

Applications

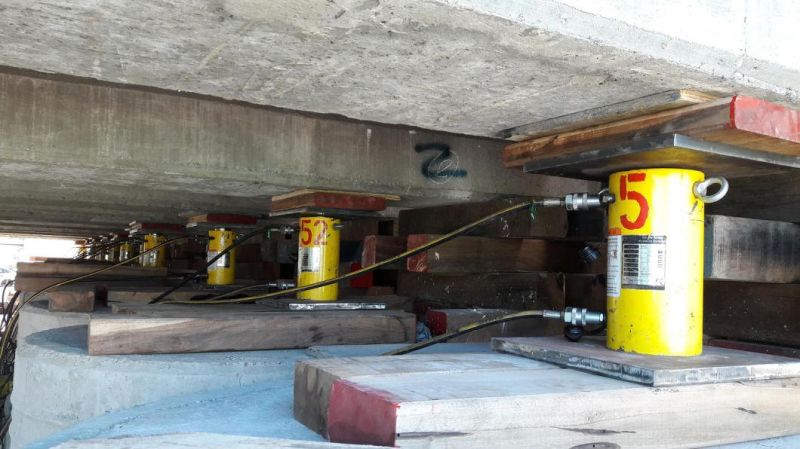

Application: synchronous lifting for urban overpass

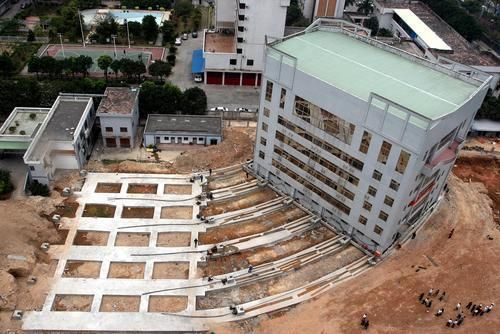

Application: synchronous lifting for house translation
Package and Delivery
1. Outer packing: standard export wooden case
2. Inner packing: careful stretch film and cardboard
3. Lead time: 1~3workdays when products in stock, 7~15workdays when out of stock
4. Delivery time: Prompt delivery
Shipping Methods
1. Light Weight: by international air express, within 3-7days arriving
2. Heavy Weight: by ocean cargo, arriving time depends on your destination port

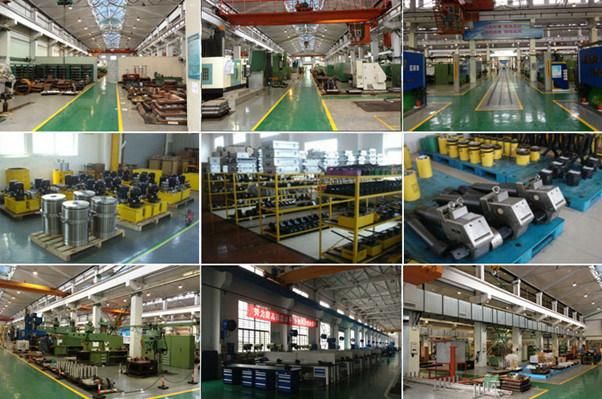

Company information
SOV Hydraulic Technology(Shanghai )Co., Ltd is a manufacturer engaged in design and manufacturing hydraulic cylinders (capacity covers from 10- 1000 tons), synchronous PLC hydraulic system, hydraulic bumps, hydraulic torque wrenches, and electric torque wrenches, and hydraulic components.

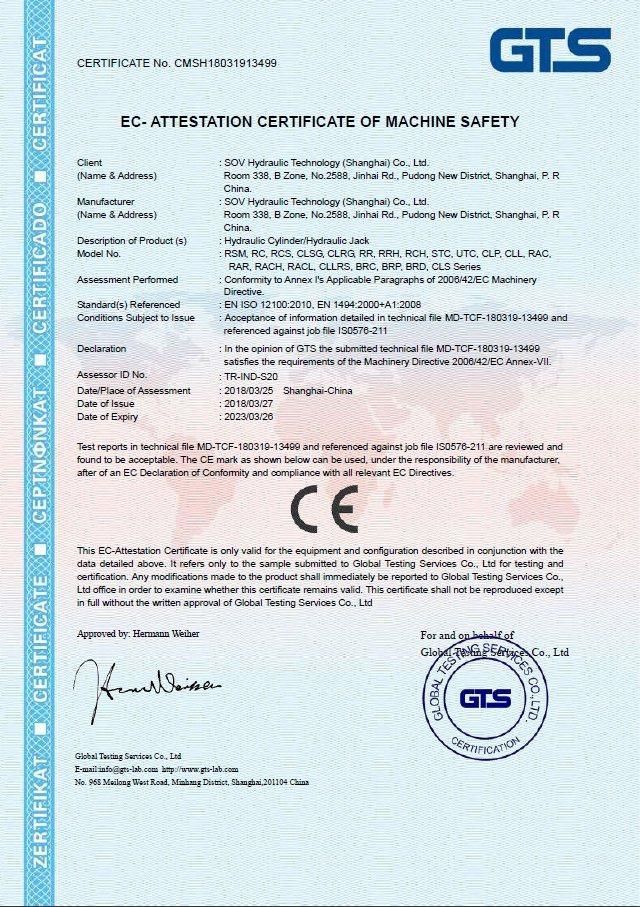

Certificate
Since the establishment in 1995, we successfully transformed from OEM manufacturer for Enerpac, Titan, to create our own brand SOV, and our factory has been approved by CE, ISO9001:2008 consecutively.
Clients
Our customers includes many big Chinese industrial companies, such as China Petroleum, Baosteel, Sinopec, China State Grid, Jiangnan Shipyards, China Railway Construction Corporation. Our synchronous PLC hydraulic system had played a great role in the China high-speed railway constructions. In 2011, our sales revenue reached 30 million USD, making us one of the leaders in the Chinese hydraulic cylinders market especially in the extra-high hydraulic cylinders for industrial area and construction field.
We are a manufacturer in tools, such as:
•Hydraulic cylinders, jacks (5-3000ton), single acting and double acting, hollow plunger; low height, ultra pressure, lock nut
•Hydraulic torque wrench, electric torque wrench, pneumatic torque wrench (100-160000Nm);
•Hydraulic bolt tensioner (M24-M600); Hydraulic pullers;
•Hydraulic pumps, manual and electric type (max up to 4000bar);
•Integrated hydraulic lifting system solutions ( 4-99 points lifting system for house translation or leveling, bridge supporting and tank welding supporting)
•Hydraulic nut and couplings. (M50-Tr1000), hydraulic hose
Our products have been widely used in industrial field such as steel plant, cement industry, chemical and refinery, bridge, railway construction and maintenance.
Competitive Advantages
1. High quality in competitive price;
2. Low minimum order quantity;
3. Wide range of products for your reference;
4. Good customer service: Customer satisfaction is our primary goal. Prompt, professional service offered by passionate and patient international salespeople.
5. OEM services: Customer's LOGO engraving, customized packaging, and produces the products according to customers' design, etc.
WHY DO YOU NEED SOV?
Q1: What's the brand name of your products?
A: Own brand "SOV", WE ARE GERMANY OWNED FACTORY. OEM is also available as required.
Q2: Hydraulic cylinder internal leakage?
A: There are 3 main reasons causing internal leakage: Overload, polishing is not well controlled, bad seal kits. As is known to all, vehicles in China are often overload, our products all designed to bear the overload power. We have numerical control machine to assure the polish processing .And we use the imported seals to meet customers' demands.
Q3: Does your piston rod get ruptured easily?
A: Hard chrome plating quenched and tempered 45# steel for piston rod to assure sufficient hardness and toughness.
Q4: Is your design reasonable? What about your product safe coefficient?
A: We have R&D team with abundant design experience. We also established production, education, and research cooperation with universities. Rest assured.
Q5: How about the delivery time?
A: Over 1000 sets advanced equipments to meet customer's large demand in short delivery time. Generally, it's 7-20 days.
Q6: What's the after-service?
A: If the quality can't meet your requirement, we will pay all your lost and offer technical support to solve your problem.
