• Model NO.：HY
• Feature：Explosion-Proof
• Certification：CE
• Capacity：1000kg, 1500kg, 2000kg
• Min. Height：85-105mm
• Max. Height：860-870mm
• Table Size：1450*1140mm
• Lift Time：25-35s
• Color：Customizable
• Net Weight：357-405kg
• Certificate：Ce Approved
• Scissor：Single Scissor Lift Table
• Type：Stationary Lift Table
• Transport Package：1PC,Wooden Case
• Specification：customizable
• Trademark：Buytool
• Origin：Made in China
• HS Code：8427900000
• Production Capacity：3000PCS,Month

Basic Info.

Model NO. HY Feature Explosion-Proof Certification CE Capacity 1000kg, 1500kg, 2000kg Min. Height 85-105mm Max. Height 860-870mm Table Size 1450*1140mm Lift Time 25-35s Color Customizable Net Weight 357-405kg Certificate Ce Approved Scissor Single Scissor Lift Table Type Stationary Lift Table Transport Package 1PC/Wooden Case Specification customizable Trademark Buytool Origin Made in China HS Code 8427900000 Production Capacity 3000PCS/Month

Product Description

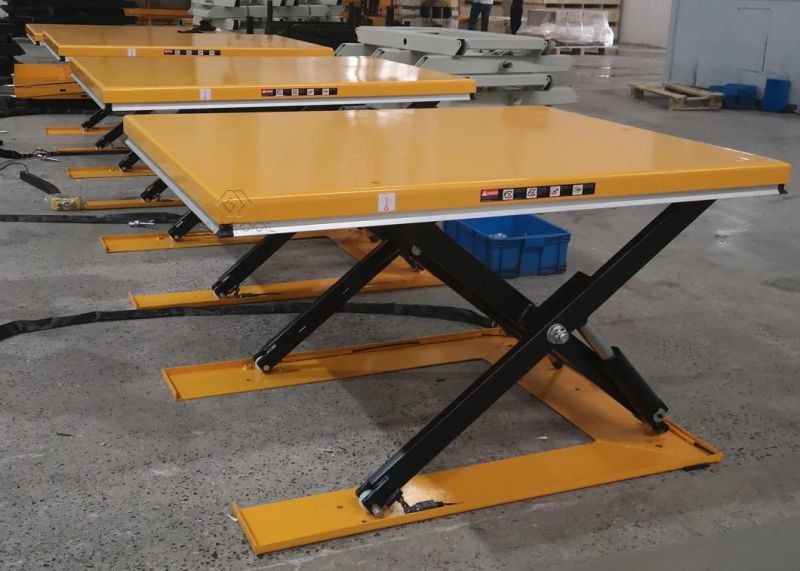

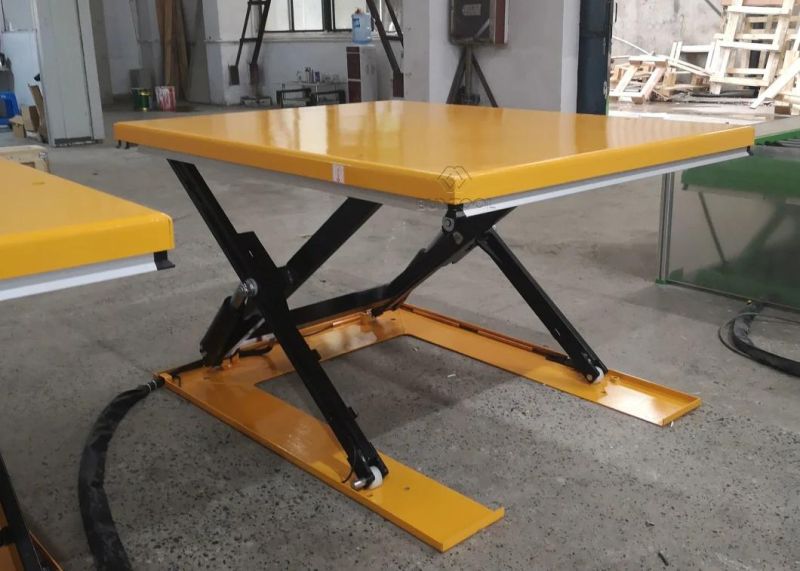

Heavy duty design with larger platform.

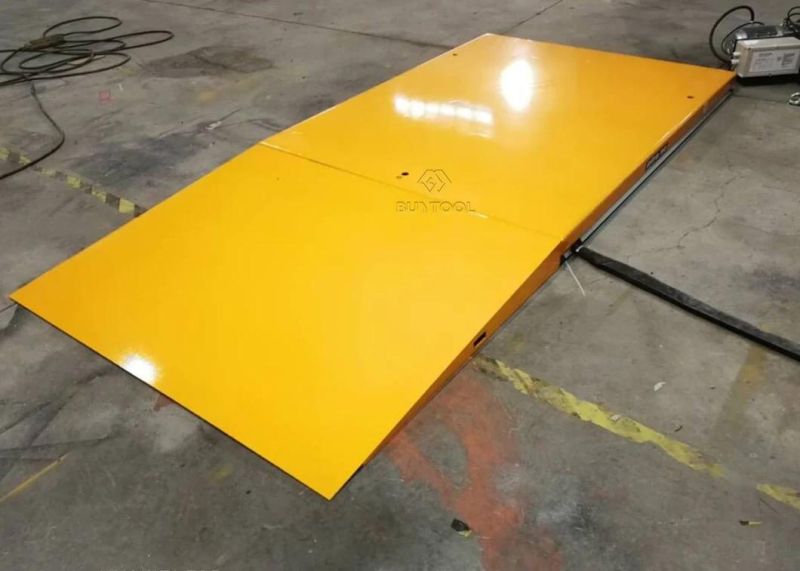

Loading ramp is a standard equipment.
Oiless bushings on pivot points.
These tables achieve a low closed height, eliminating the need for a pit installation.
They are manufactured to all European safety standards including EN1570: 1999.
Remote power pack with pedestal and controls, pretected to IP54.
Upper platform fitted with safety perimeter to prevent descent on contact with obstructions.
24V control box with UP and DOWN buttons and emergency stop.
External power pack equipped with a relief valve against overloading and a compensated flow valve for controlling lowering speed. Power supply are AC308V/50HZ/3phase.
Hose burst safety valve to stop the lift table lowering in case of hose breakage.
Removable lifting eyes to facilitate handling and installation of the lift table.
Mechanical safety chocks for maintenance.

Model	Capacity (kg)	Platform Size (mm)	Min.Height (mm)	Max.Height (mm)	Stroke (mm)	Lifting Time (second)	Power pack	Net Weight (kg)
HY1001	1000	1450×1140	85	860	775	25	380V/50HZ,AC 0.75kw	357
HY1002	1000	1600×1140	85	860	775	25	380V/50HZ,AC 0.75kw	364
HY1003	1000	1450 × 800	85	860	775	25	380V/50HZ,AC 0.75kw	326
HY1004	1000	1600 × 800	85	860	775	25	380V/50HZ,AC 0.75kw	332
HY1005	1000	1600 × 1000	85	860	775	25	380V/50HZ,AC 0.75kw	352
HY1501	1500	1600×800	105	870	775	30	380V/50HZ,AC 1.5kw	362
HY1502	1500	1600×1000	105	870	775	30	380V/50HZ,AC 1.5kw	401
HY1503	1500	1600 × 1200	105	870	775	30	380V/50HZ,AC 1.5kw	415
HY2001	2000	1600×1200	105	870	775	35	380V/50HZ,AC 2.2kw	419
HY2002	2000	1600×1000	105	870	775	35	380V/50HZ,AC 2.2kw	405

FAQ:

Q: What about the quality of the products?
A: Our products are CE approved, and we have five inspection steps before shipment:
1. Inspect the raw material in accordance with ISO9001;
2. Strict inspection in the whole production process;

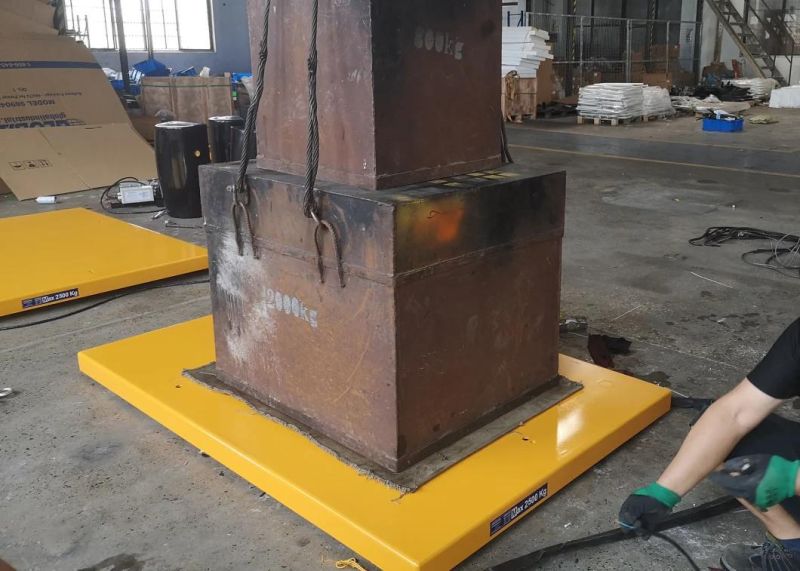

3. Load limit test when assembling finished;
4. 100% strict inspection of products before shipment;
5. If needed, inspection by buyer.

Q: How long is the quality guarantee?
A: All of our products carry one-year warranty.

Q: What's the leadtime?
A: Normally 30 days.
If you order more than 5 itmes mixed in one container, it will be 45 days.
If you order one item in one container, it will be 20 days.
